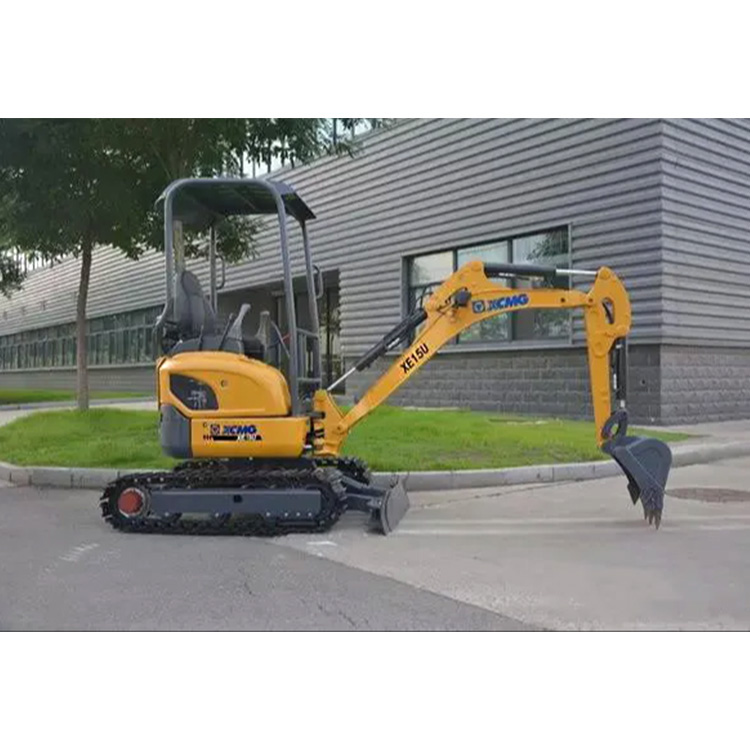

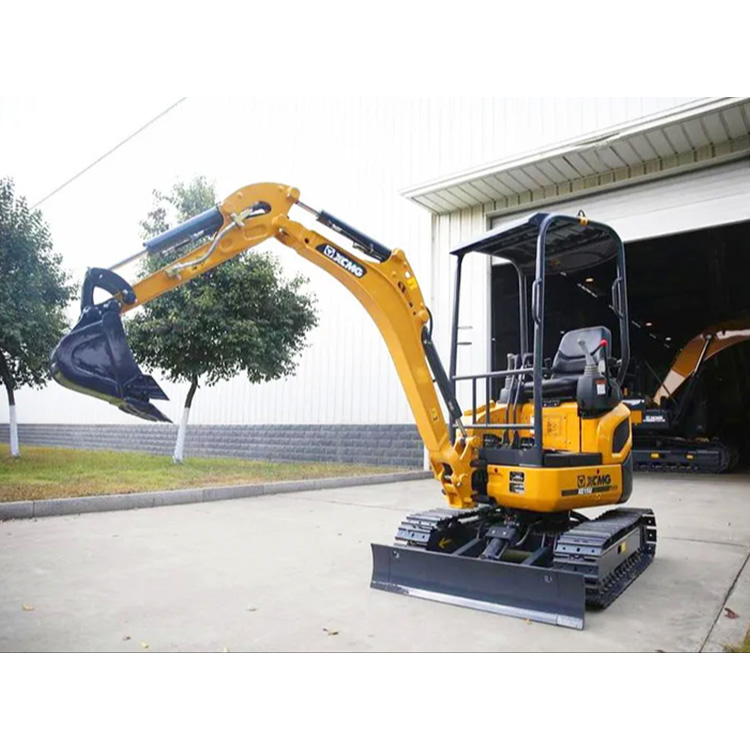

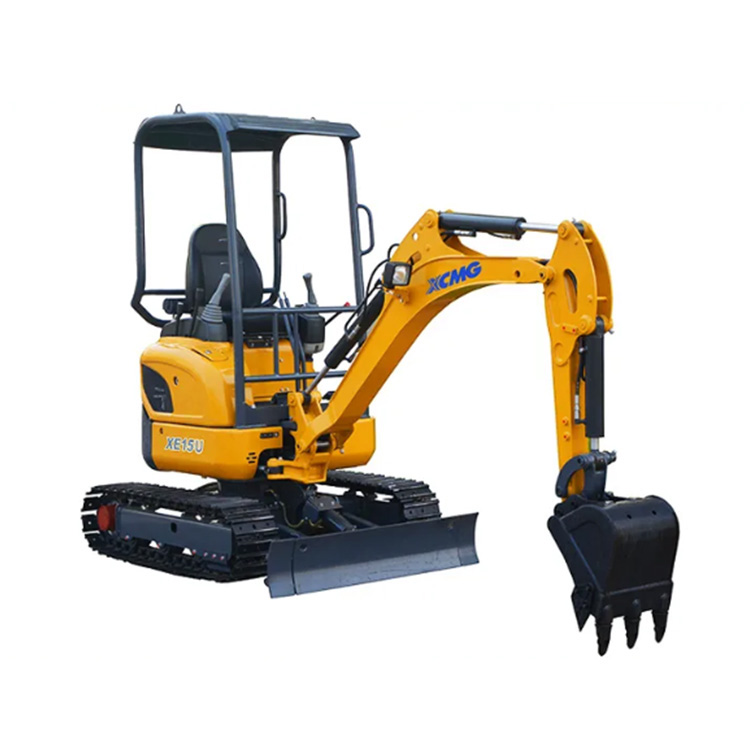

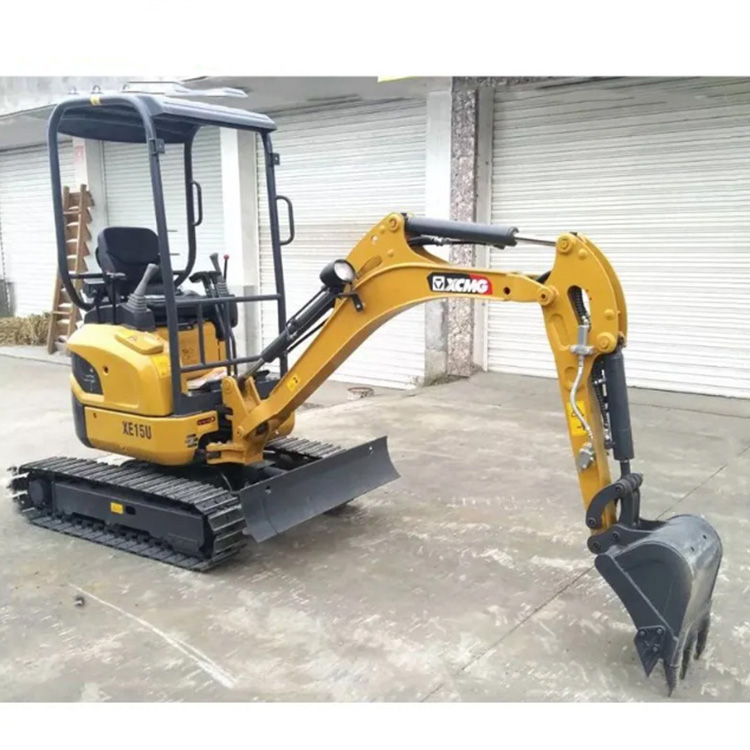

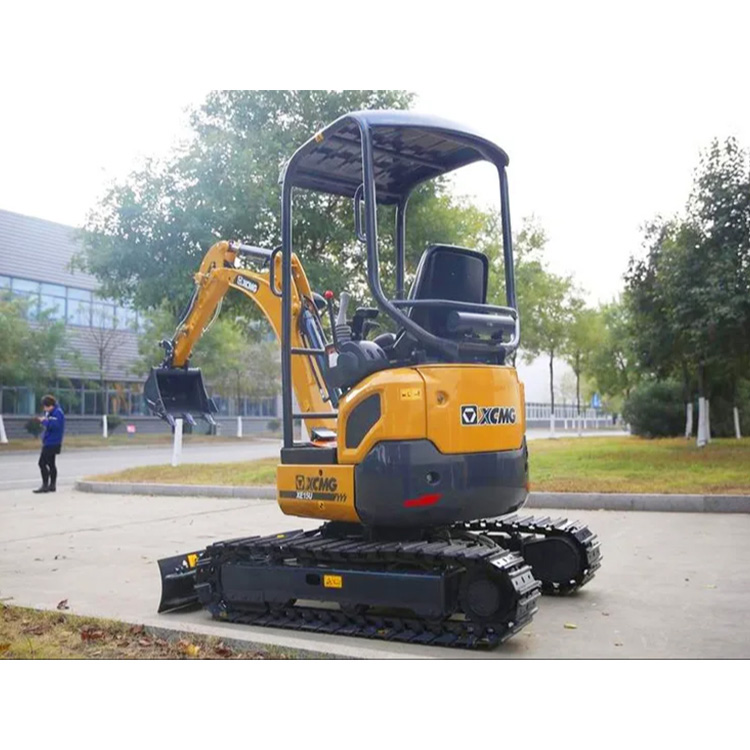

XE15U
| Quantity: | |
|---|---|
| Description | Unit | Parameter value | |
| Operating weight | Kg | 1795 | |
| Bucket capacity | m³ | 0.04 | |
| Engine | Model | / | D782-E3B-CBH-1 |
| No. of cylinders | / | 3 | |
| Output power | kw/rpm | 9.8/2300 | |
| torque/speed | N.m | 44.5/1800 | |
| Displacement | L | 0.778 | |
| Hydraulic system | Travel speed(H/L) | km/h | 4.3/2.2 |
| Gradeability | ° | 30° | |
| Pressure of prime valve | MPa | 22 | |
| Pressure of travel system | MPa | 22 | |
| Pressure of swing system | MPa | 11 | |
| Pressure of pilot system | MPa | 3.9 | |
| Oil Capacity | Fuel tank capacity | L | 18 |
| Hydraulic tank capacity | L | 17 | |
| Engine oil capacity | L | 3.8 | |
| Appearance size | Overall length | mm | 3560 |
| Overall width | mm | 1240 | |
| Overall height | mm | 2348 | |
| Width of platform | mm | 990 | |
| Overall width of chassis | mm | 990/1240 | |
| Width of crawler | mm | 230 | |
| Track length on ground | mm | 1270 | |
| Crawler gauge | mm | 760/1010 | |
| Clearance under counterweight | mm | 450 | |
| Min. ground clearance | mm | 145 | |
| Working scope | Min. tail swing radius | mm | 620 |
| Max. digging height | mm | 3475 | |
| Max. dumping height | mm | 2415 | |
| Max. digging depth | mm | 2290 | |
| Max. vertical wall digging depth | mm | 1750 | |
| Max. digging reach | mm | 3900 | |
| Min. swing radius | mm | 1530 | |
| Standard | Length of boom | mm | 1690 |
| Length of arm | mm | 1100 | |
| Bucket capacity | m³ | 0.04 | |
The 1-5 ton mini excavator is a compact digging solution for urban construction and small-scale projects, featuring a variable operating weight of 1,200 kg to 5,000 kg and maximum digging depth of 2.5m to 4.0m. Powered by a 18-45 kW Kubota/Victor diesel engine (EPA Tier 4 Final certified), it minimizes emissions (NOx ≤0.4 g/kWh) and noise (≤72 dB) for residential and indoor use. Its narrow width (900 mm to 1,500 mm) allows passage through standard doorways and narrow alleys, while a 360° swing radius enhances maneuverability in confined spaces. Equipped with a 0.05-0.2 m³ capacity bucket, it balances digging efficiency and portability for diverse digging tasks.
Efficient Digging Mechanism: Hydraulic digging force of 12-35 kN (bucket) and 8-25 kN (arm) enables fast soil excavation—clearing 80 m³ of soil per hour for 5-ton models and 30 m³/hour for 1-ton variants.
Compact Maneuverability: 900-1500 mm width × 2500-3800 mm length dimensions fit through 1000mm-wide garden gates and indoor job sites; zero-tail-swing design prevents collisions with walls or obstacles.
Quick-Attach System: ISO-standard interface swaps digging buckets, augers (100-300mm diameter), and mini-breakers in under 60 seconds—no tools required for multi-task adaptation.
Operator Comfort Cabin: Open or enclosed cab options with adjustable seat, ergonomic joysticks, and vibration-damping floor (reduces vibration by 35%); enclosed cabs include HVAC for -10°C to +40°C operation.
Municipal utility work: Digging trenches (≤1.5m depth × 300mm width) for water pipes, electrical cables, and gas lines in urban neighborhoods.
Residential construction: Excavating foundations for small buildings (e.g., garages, sheds) and digging drainage ditches around homes.
Landscaping projects: Creating ponds (up to 3m depth), leveling terrain for lawns, and digging holes for tree planting (with auger attachment).
Indoor demolition support: Removing concrete floors (≤100mm thickness) and digging basements in 2-3 story buildings with low noise output.
Q: What attachments are compatible?
A: It works with digging buckets (0.05-0.2 m³), earth augers (100-300mm diameter for tree planting), hydraulic breakers (for concrete demolition), and grading blades (for terrain leveling).
Q: Is it easy to transport?
A: Yes, 1-3 ton models (≤3,000 kg) fit in ½-ton pickup truck beds (e.g., Ford F-150); 4-5 ton models (3,000-5,000 kg) require a small trailer, reducing logistics costs.
