Product Introduction

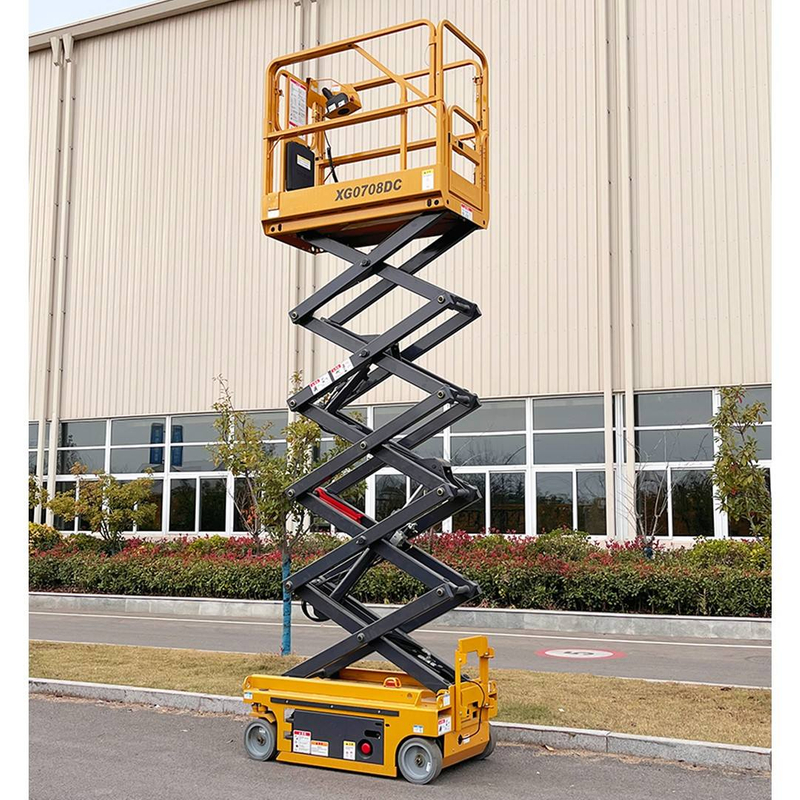

The XG0708DC is a compact, self‑propelled DC electric scissor lift designed for indoor and light outdoor aerial work. It delivers a 7.7m maximum working height and 240kg rated load capacity, combining a narrow 0.76m width, zero‑emission electric drive, and industry‑leading safety systems. Ideal for confined spaces, it’s widely used in warehousing, facilities maintenance, retail, and light construction.
Product Advantages
Ultra‑Compact & Maneuverable: 0.76m width, 0.4m inner turning radius; navigates narrow aisles, elevators, and tight job sites easily.
Eco‑Friendly DC Electric Drive: Zero emissions, low noise (≤68dB), 24V/85Ah battery; 4.0km/h (lowered) / 0.5km/h (raised) travel speed.
High Safety Standard: Automatic pothole protection, overload cut‑out, emergency stop, tilt alarm, and safety railings; CE/ISO9001 certified.
Smooth & Efficient Operation: 32s lifting / 23s lowering time; 0.6m platform extension (100kg capacity); 25% gradeability.
Low Maintenance & Durable: All‑steel scissor structure, corrosion‑resistant paint, and long‑lasting Fullriver battery; minimal service points.
Product Specification Table
Item | Parameter |
Model | XG0708DC |
Brand | XCMG |
Max. Working Height | 7.7m |
Max. Platform Height | 5.7m |
Rated Load (Platform) | 240kg |
Extended Platform Load | 100kg |
Platform Size (L×W) | 1370×700mm |
Extended Platform Length | 0.6m |
Overall Dimensions (L×W×H) | 1882×760×2020mm (folded: 1660mm) |
Machine Weight | 1200kg |
Turning Radius (Inner/Outer) | 0.4/1.55m |
Ground Clearance | 24mm (elevated) / 65mm (stowed) |
Travel Speed (Lowered/Raised) | 4.0 / 0.5 km/h |
Gradeability | 25% |
Lifting/Lowering Time | 32 / 23 s |
Battery | 24V, 85Ah, Fullriver |
Certification | CE, ISO9001 |
Application Scenarios
Warehousing & Logistics: Inventory checking, rack maintenance, and light fixture installation in narrow aisles.
Facilities Management: Office/building cleaning, ceiling/AC repair, and signage installation in malls, airports, and stations.
Retail & Hospitality: Decor setup, lighting maintenance, and shelf adjustment in supermarkets, hotels, and exhibition halls.
Light Construction: Interior finishing, drywall installation, and electrical wiring in residential/commercial projects.
Event & Exhibition: Stage setup, banner hanging, and AV equipment installation at conferences and sports venues.
Operation Guide
1 Pre‑Operation Checks
Inspect battery level, tire pressure, and hydraulic oil level.
Check platform railings, extension deck, and safety pins for security.
Test emergency stop, tilt alarm, and pothole protection functions.
Ensure the work area is flat, stable, and free of obstacles.
2 Starting & Driving
Turn the key switch to “ON”; the power indicator lights up.
Use the joystick to drive: forward/backward (lowered mode only); speed limited to 0.5km/h when elevated.
Steer with the steering wheel; avoid sudden turns on slopes.
3 Lifting/Lowering
Press the “Lift” button to raise the platform; release to stop.
Press the “Lower” button to descend; ensure no personnel/obstacles below.
Extend the platform only when fully raised; do not exceed 100kg on the extension.
4 Safety Rules
Never exceed 240kg (main platform) or 100kg (extension).
Never drive on slopes >25% or uneven ground when elevated.
Always wear a safety harness when working at height.
Always lower the platform before moving the lift.
5 Shutdown & Maintenance
Lower the platform fully; retract the extension deck.
Turn the key switch to “OFF”; disconnect the battery.
Clean the platform and chassis; check for loose bolts or damaged parts.
Charge the battery after use; store in a dry, ventilated area.
FAQ
Q1: What is the maximum working height of the XG0708DC?
A: 7.7m (platform height: 5.7m).
Q2: Can it be used outdoors?
A: Yes, for light outdoor use on flat, stable ground; avoid rain, strong wind (>12.5m/s), or uneven terrain.
Q3: How long does the battery last on a full charge?
A: 4–6 hours of continuous lifting/driving (varies by load and terrain).
Q4: What is the minimum width required for passage?
A: 0.76m (machine width); requires ≥0.8m clear width for safe navigation.
Q5: Is training required to operate the lift?
A: Yes; operators must read the manual and complete safety training before use.
Q6: What safety features does it have?
A: Overload protection, automatic pothole guards, emergency stop, tilt alarm, safety railings, and anti‑slip platform surface.
