XCB-L25
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction

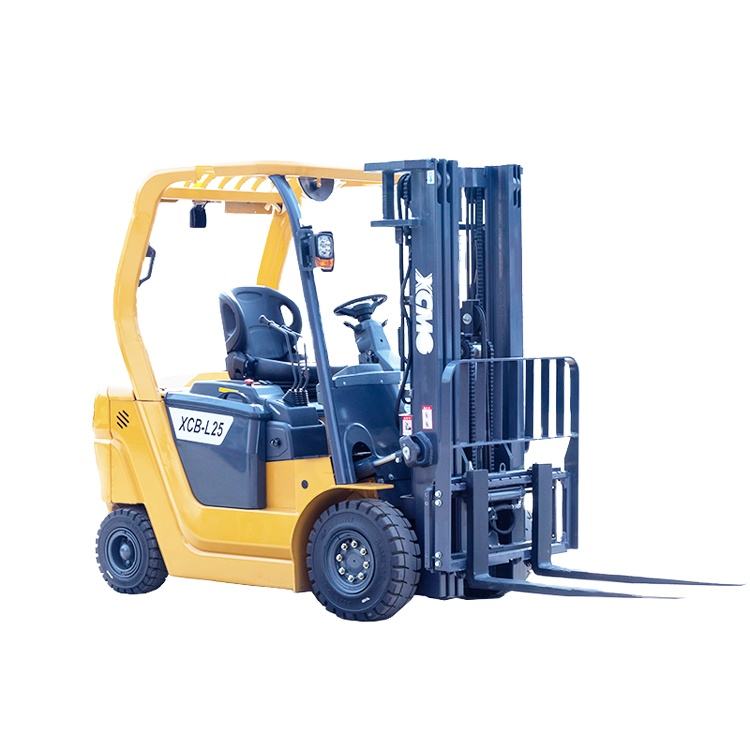

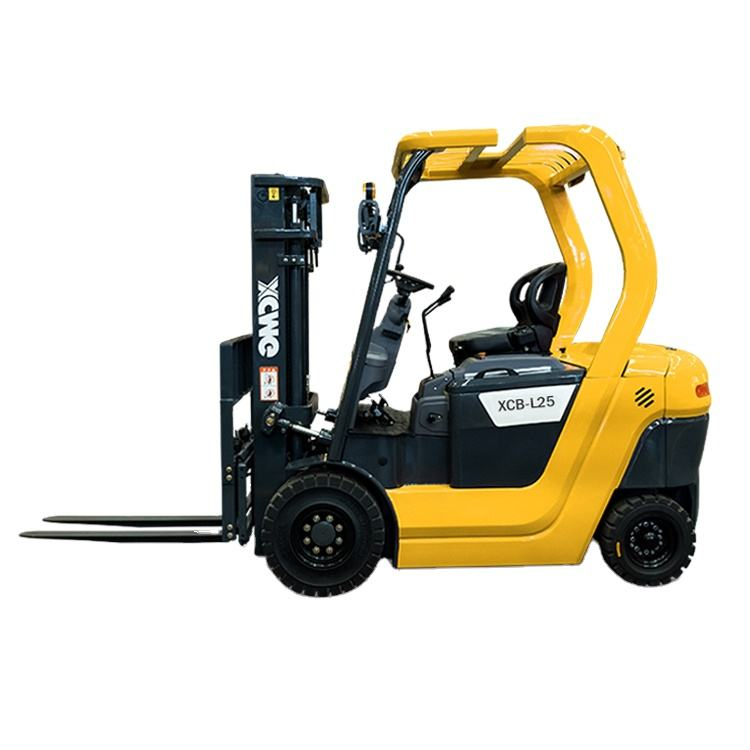

The XCB-L25 electric forklift is a material handling equipment with stable performance, flexible operation and low usage cost. It perfectly meets the core demands of modern logistics for green, efficient and low operating costs. It is an ideal choice for small and medium-sized enterprises and large logistics centers to carry out warehouse handling and stacking operations. It can effectively help enterprises improve logistics efficiency and achieve green upgrades.
Product Advantage
2.Ultra Performance Multiple speed modes, namely safe mode, economy mode, power mode, and performance mode, those modes all switch-free under various work conditions. The accurate tuning of product startup torque and
power efficiency combines with XG’s integral three-stage reduction drive axle to realize powerful climbing performance, with gradeability at 17% and climbing speed at 5km/h.3.High safety and reliability The 12 ° backward tilting capability of masts keeps the cargos closer to the machine body during transport to thus maintain stable gravity center of the machine and effectively prevent the accidental falloff of cargos during transport.
4.High operation comfort The three-dimensional spatial design is optimized in accordance with ergonomics for the operating force of handle, height of boarding footplates and handrails, positions of electronic accelerator and brake pedals, visual angles of dashboard, position of rearview mirrors, visual obstruction of the rear pillars, and top vision during aerial operations to remarkably improve the driver's operating comfort.
Technical Parameters
| Item | Unit | Parameter |
| Model | XCB-L25 | |
| Drive mode | Lead-acid battery/Lithium iron phosphate battery | |
| Rated lifting capacity | kg | 2500 |
| Load Center Distance | mm | 500 |
| Driving type | Sit-on type | |
| Wheelbase | mm | 1550 |
| Tire type (Front/rear) | Inflated tires/inflated tires | |
| Front wheel tread | 970 | |
| Rear wheel tread | 971 | |
| Tire size (Front) | 23×9-10-18PR | |
| Tire size (Rear) | 18×7-8-14PR | |
| Front Overhanging Distance | mm | 470 |
| Standard lifting height | mm | 3000 |
| Height with masts retracted | mm | 2090 |
| Roof Protection Frame Height | mm | 2185 |
| Overall height at maximum lifting height | mm | 4055 |
| Free lifting height | mm | 145 |
| Overall length (With forks) | mm | 3505 |
| Overall length (Without forks) | mm | 2435 |
| Overall width | mm | 1205 |
| Minimum ground clearance, at bottom of masts (Empty-Load/full-load) | mm | 125 |
| Minimum ground clearance, at bottom of frame (Empty-Load/full-load) | mm | 120 |
| Minimum turning radius | mm | 2150 |
| Traveling speed (Full-load/no-load) | km/h | 14/15 |
| Lifting speed (Full-load/no-load) | mm/s | 310/450 |
| Maximum gradeability (Full-load/no-load) | % | 15/17 |
| Gross weight (Including battery) | kg | 4040 |
| Axle load: No-load (Front/rear axle) | kg | 1875/2165 |
| Axle load: No-load (Front/rear axle) | kg | 5930/610 |
| Battery voltage | V | 48 |
Product Uses
Indoor operations: Workshops and warehouses with high cleanliness requirements such as food, beverage, pharmaceutical, electronic, textile, and supermarket warehousing.

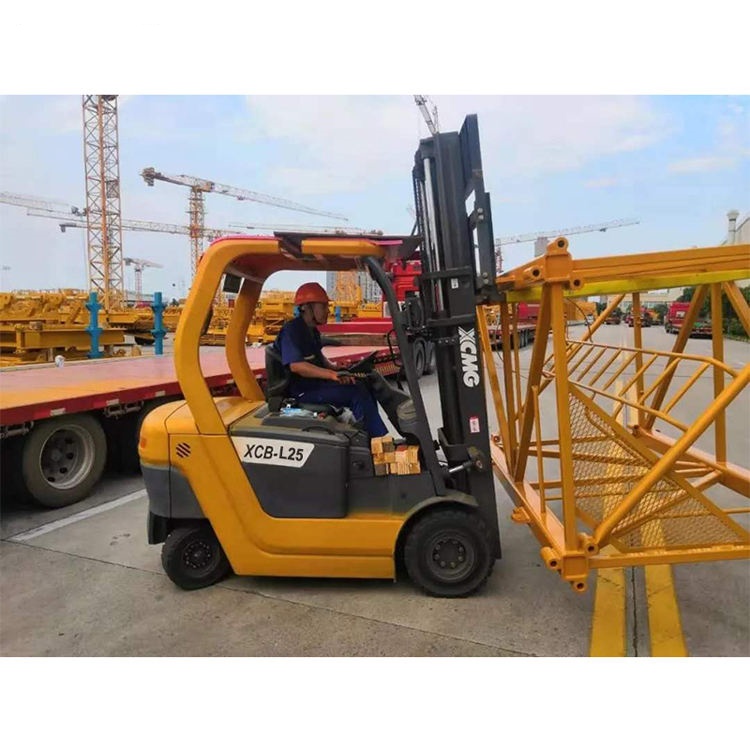

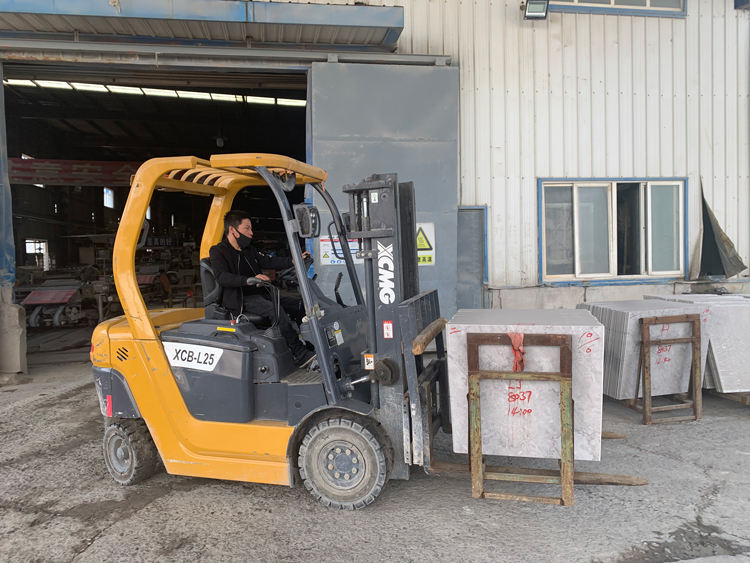

Outdoor short-distance material handling: material turnover within the factory area, loading and unloading vehicles, etc.
Other fields: libraries, archives, exhibition centers and other special occasions.
Product Operate Guide
I. Pre-work inspection
1. Inspection around the vehicle: Check whether the vehicle body, mast, and forks are intact and undamaged, and whether the tire pressure is normal.
2. Battery power check: Confirm that the battery is fully charged and that the connection wires are not loose or corroded.
3. Functional test: After startup, test whether the lights, horn, brakes, hydraulic lifting and tilting functions are normal.
Ii. Startup and Driving
1. Safe boarding: Hold the handrail tightly, get on the vehicle smoothly and fasten your seat belt.
Make sure the gear is in neutral before starting.
2. Smooth operation: When driving, accelerate and decelerate smoothly. Reduce the speed in advance before turning and pay attention to observing the surrounding environment and blind spots.
3. Standardized driving: Drive along the designated routes and at the prescribed speeds within the factory area. It is strictly prohibited to carry passengers.
FAQ
A: It is usually equipped with a 48V lead-acid battery (with a common capacity of 500-600Ah), and the battery life depends on the actual working conditions (such as load, frequency, road slope, etc.). Generally, it can work continuously for 6-8 hours (one shift). Supports fast charging and opportunistic charging. It is recommended to avoid complete discharge.
A: It adopts an AC drive system, which is powerful and can climb over 15% when fully loaded, fully meeting the requirements of conventional indoor and outdoor ramps.
A: Please note:
Overloading is strictly prohibited.
2. Slow down and sound the horn when starting or turning.
3. After the goods are lifted, the gantry needs to be tilted backward before moving.
4. Keep away from flammable and explosive environments (unless explosion-proof types are selected).
A: Daily checks are required
• Battery power and electrolyte (lead-acid battery);
• Whether the tires, forks and mast are in good condition;
Check if the brakes, lights and horn are functioning properly.
Regularly lubricate the chain, tighten the screws, etc.
A: Significantly lower. There are no consumable parts such as engines, engine oil, or filters. The main maintenance costs are concentrated on batteries and regular inspections. The long-term usage cost is much lower than that of internal combustion forklifts.
A: It has multiple protections
• Electrical system: Overvoltage/undervoltage/overcurrent/overheat protection;
• Operational safety: Emergency power-off switch, speed limit function, mast descent buffer;
• Mechanical safety: Protective top frame, safety belt.
