Product Introduction

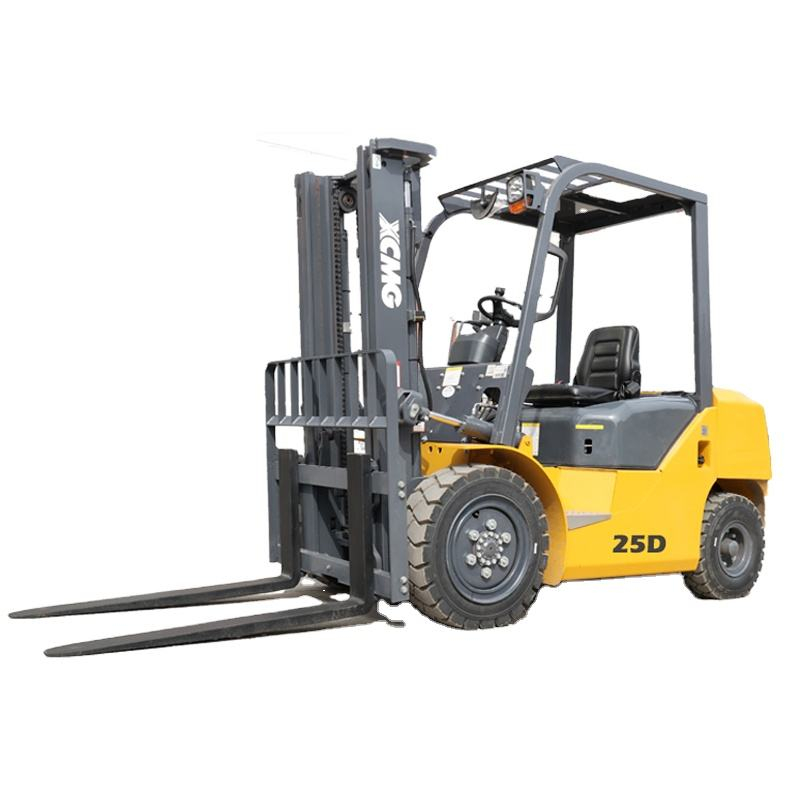

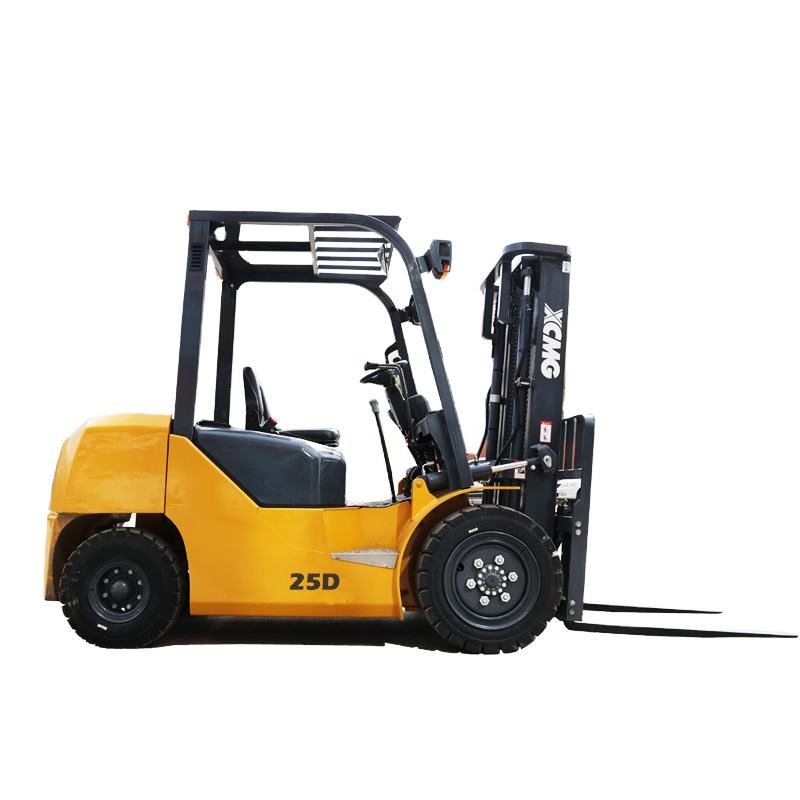

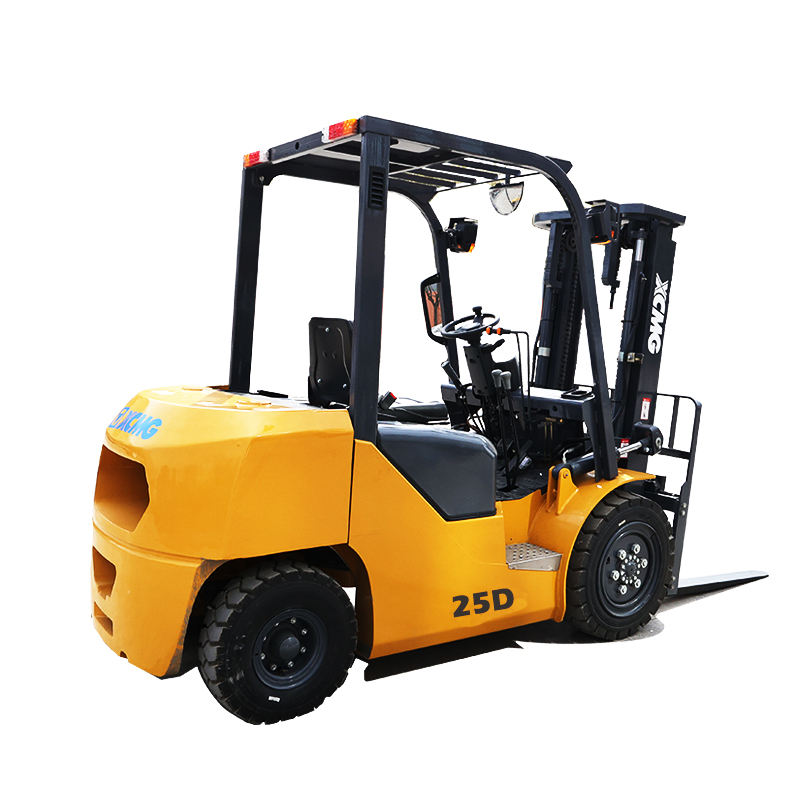

The XCB-D25 diesel forklift is a versatile and cost-effective "all-rounder" with balanced performance. It perfectly meets the demands of medium and small-sized material handling. While ensuring the consistent durability and reliability of the XG brand, it offers excellent flexibility and cost-effectiveness, making it an ideal choice for users to enhance handling efficiency and reduce overall operating costs.
Product Advantage
1.A powerful and reliable power system
Engine: Equipped with a diesel engine from a well-known brand, it features high low-speed torque, excellent acceleration performance, strong climbing ability, and is capable of adapting to various complex working conditions.
◦ Transmission system: Two options are provided: mechanical transmission and hydraulic transmission.
Mechanical gearboxes are economical. Hydraulic transmission is easier to operate, with smooth gear shifting and less shock.
2. Excellent operational flexibility and passability
Compact body: Compared with forklifts of larger tonnage, the XCB-D25 has a more compact body design, a smaller turning radius, and can move freely between narrow aisles, warehouses and shelves, with high space utilization.
◦ Excellent field of vision: The adoption of a wide-field mast and an optimally designed frame provides operators with an expansive field of vision, significantly enhancing operational safety.
Technical Parameters
| Model | - | XCB-D25 | XCB-D20 | XCB-D35 |
| Power Type | - | Diesel | Diesel | Diesel |
| Rated Load Capacity | Q(kg) | 2500 | 2000 | 3500 |
| Load Centre | C(mm) | 500 | 500 | 500 |
| Rated Lift Height | H(mm) | 3000 | 3000 | 3000 |
| Free Lifting Height | H3(mm) | 160 | 160 | 150 |
| Mast Height | H1(mm) | 1995 | 1995 | 2075 |
| Overall Width | W2(mm) | 1150 | 1150 | 1285 |
| Overhead Guard Height | H4(mm) | 2120 | 2140 | 2140 |
| Turning Radius (Outside) | R(mm) | 2240 | 2170 | 2495 |
| Travel Speed (Full/No Load) | km/h | 17/19 | 17/19 | 18/19.5 |
| Lifting Speed (Full Load/unload) | mm/s | 550/580 | 550/580 | 450/500 |
| Total Weight | kg | 3670 | 3330 | 4780 |
| Battery | V/Ah | 12/80 | 12/80 | 12/80 |
| Engine Model | - | XINCHAI | XINCHAI | ISUZU |
| Other Options | - | 2-Stage/3-Stage Full Free Wide View Mast |
Product Uses
Logistics and warehousing: Loading and unloading, stacking and short-distance transportation of palletized goods.
• Production workshop: Material distribution on the production line and finished product warehousing.
• Building materials market & Construction site: Transporting tiles, stones, pipes, cement and other building materials.
• Freight platform: Cooperate with trucks for loading and unloading operations.
• Agriculture and animal husbandry: Handling of feed bags, grain bags and agricultural supplies.
Product Operate Guide
The operation of the XCB-D25 diesel forklift requires a valid certificate. Before starting the operation, it is essential to conduct a round-around inspection to ensure that the oil, tires, lights and horn are all in normal condition. After starting, let the engine idle for 3 to 5 minutes to preheat. When driving, abide by the speed limit within the factory and sharp turns are strictly prohibited. The operation of the forks should be smooth. When overloaded, the mast should be tilted backward. In blind spots, the horn should be sounded and the vehicle should move slowly. When parking, place the forks flat on the ground, pull the handbrake tightly, turn off the engine and release the key. Overloading and carrying people are strictly prohibited. Regular maintenance and upkeep should be carried out to ensure the safe and reliable operation of the equipment. For specific operations, please refer to the official manual.
FAQ
1.What basic checks are needed on a daily basis?
A: Before daily operation, the following should be done: walk around the vehicle to check (tires, leaks, damages), check the engine oil, coolant, and hydraulic oil levels, and test whether the lights, horn, and brakes are functioning properly.
2.What is the maintenance cycle?
A: Please strictly follow the manual regulations, which are usually divided by working hours (such as 250 hours, 500 hours). Conduct routine inspections on a daily basis and regularly replace the engine oil, oil filter, air filter, diesel filter and hydraulic oil filter.
3.What should I do if the lifting speed of the forks is slow or weak?
A: First, check whether the hydraulic oil level is normal, whether the oil quality is good, and whether the hydraulic oil filter is clogged. If the problem persists, please contact after-sales service for inspection and repair.
4.What are the common reasons for difficulty or inability to start an engine?
Common causes include: insufficient battery power, loose battery terminals, air in the fuel line, clogged diesel filter or preheating system failure (in low-temperature environments).
5.How to deal with veering off course or ineffective braking?
A: This involves a major safety hazard! The machine should be stopped immediately for inspection: ① Whether the tire pressures on both sides are consistent; ② Whether the brake fluid level is normal; ③ Whether there is any oil leakage. Do not operate while ill. Report for repair immediately.
6.How to obtain original factory parts?
A: Please contact us through the online platform to obtain the original accessories to ensure the performance and safety of the equipment.
