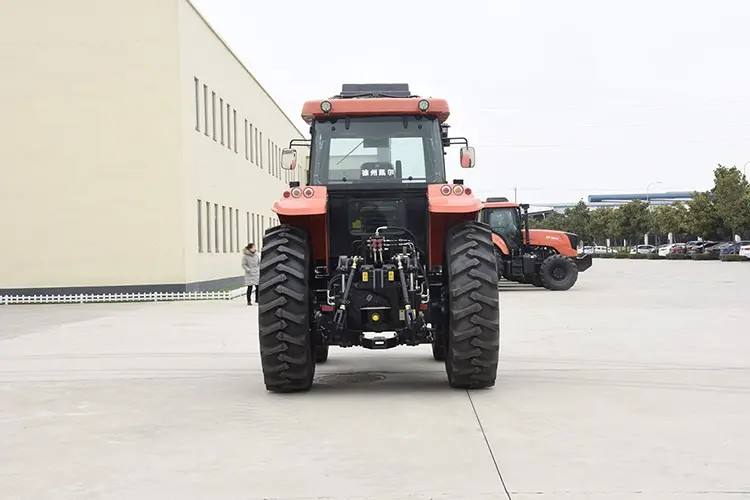

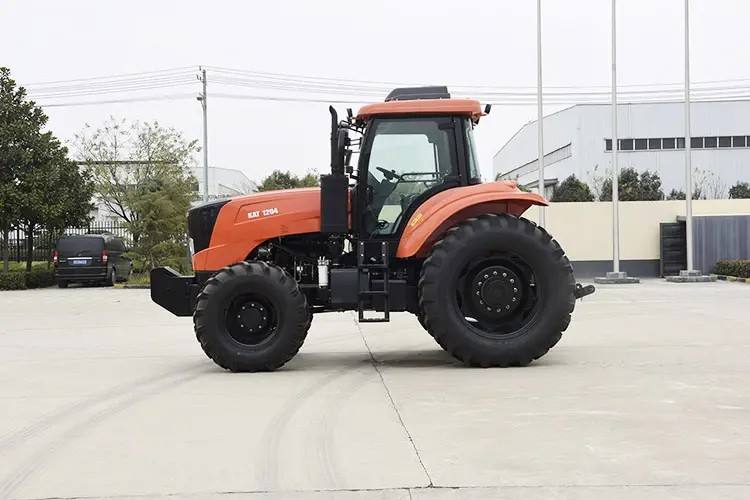

Product Introduction

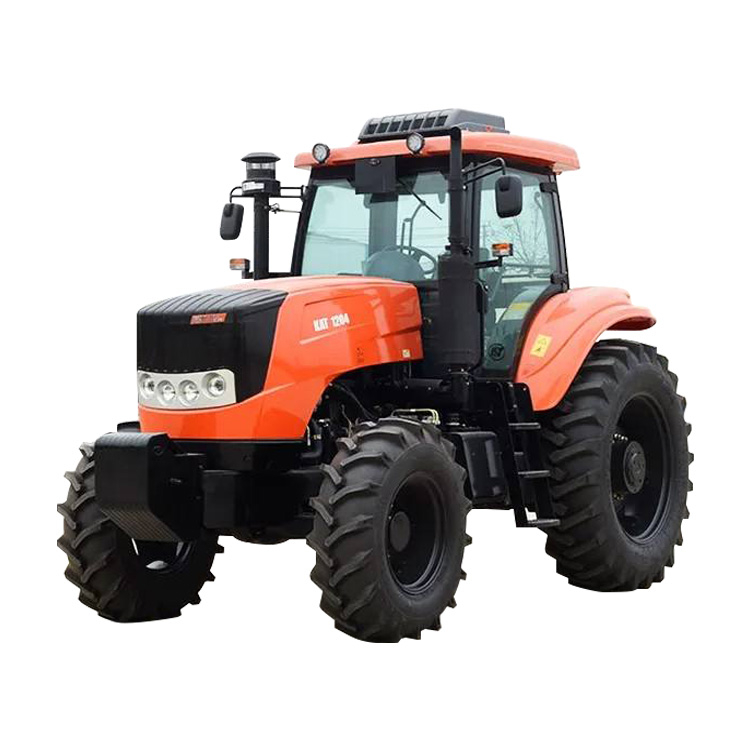

KAT1204 is positioned in the mid-to-high-end high-horsepower tractor market. Relying on XCMG's accumulated experience in heavy equipment research and development and manufacturing in the construction machinery field, this product emphasizes strong power, stable performance and extremely high durability under complex working conditions, aiming to provide users with efficient and reliable production tools.
Product Advantage
1. Powerful Performance
Engine reserve torque >30%, ensuring stable and powerful performance;
Three-stage air filtration system with a dust removal rate of up to 99.9%, with a maintenance cycle of up to one year; Heat dissipation system with ample capacity and a flip-open design for easier maintenance and higher operational efficiency.
2. Advanced electronic control lifting system
Built-in and external lifting buttons enable quick attachment of implements;
Supports one-button lifting and height adjustment, allowing power output to remain uninterrupted during headland turns for safe and efficient operation;
Optional high-lift/high-descent lifters available to meet different operational requirements.
3. Enhanced operator comfort
Climate control system with optimized airflow for enhanced comfort and energy efficiency;
Professional-grade 360° all-weather visibility design, air-suspended seat, and precise, responsive controls deliver an ergonomic, operator-centric experience.
Technical Parameters
| Model | Unit | KAT1204 |
| Engine | Power/speed | kW/r/min | 91(120)/2200 |
| Specific Fuel Consumption | g/kw.h | ≤220 |
| Drive Type | / | 4×4 |
| Dimension(Length/Width/Height) | mm | 5090/2300/3070 |
| Wheel Base | mm | 2688 |
| Track(Front wheel) | mm | 1698-2122 |
| Track(Rear wheel) | mm | 1626-2150 |
| Min. Ground Clearance | mm | 460 |
| Min.running weight | kg | 5700 |
| Front counter weight | kg | 500 |
| Rated Traction Force | kN | 28 |
| No. of gear |
| 16F+4R |
| Forward Gear | Speed | km/h | 4-33 |
| Reverse Gear | Speed | km/h | 6-28 |
| Tyre Model | Front Tires | / | 14.9-24R1 |
| Rear Tires | / | 18.4-38R1 |
| Power-output shaft Type | / | Rear position or independent |
| Power-output shaftRated Speed | r/min | 540/1000 |
| Max. Pull-down piston pull | kN | 31 |
Product Uses

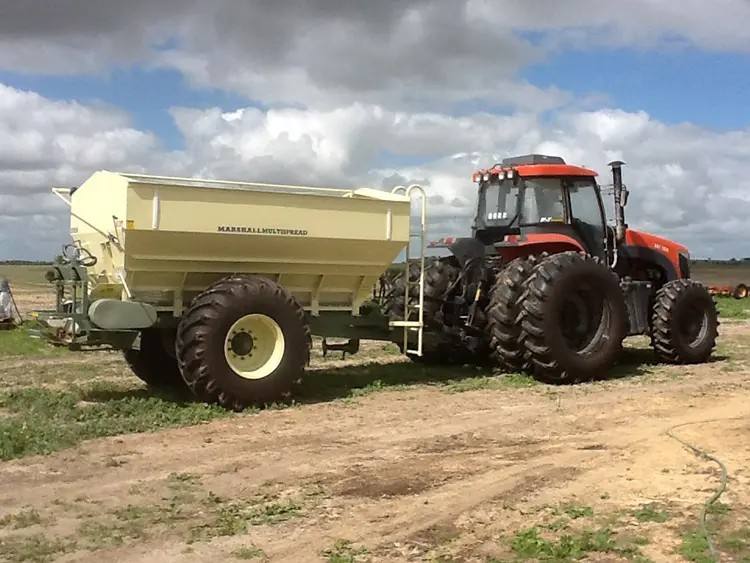

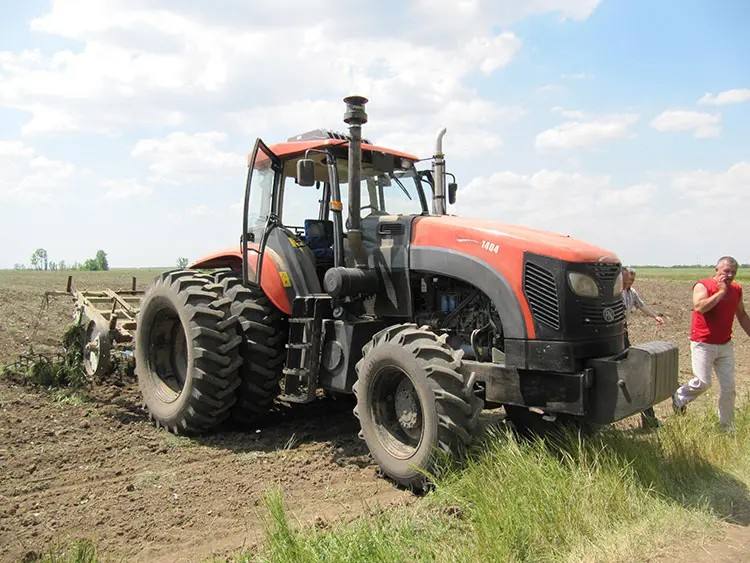

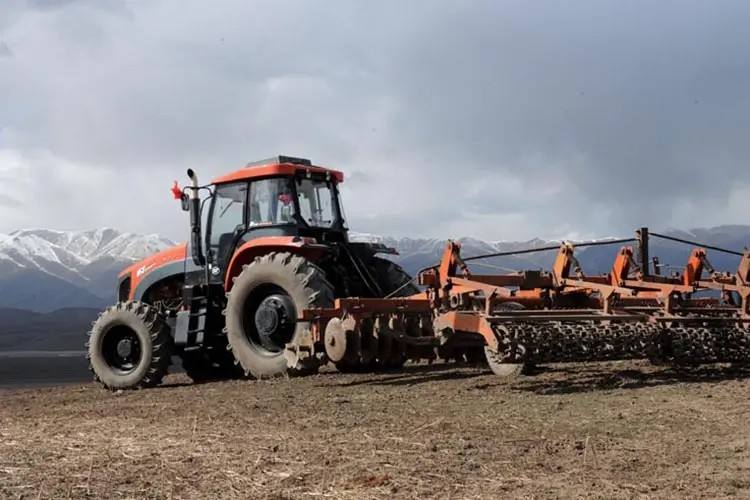

Field crop operations: Suitable for the entire process of deep plowing, sowing, and harvesting of crops such as wheat and corn.
Orchard management: The compact body design is suitable for operations between fruit tree rows and can be equipped with sprayers, mowers, and other equipment.
Agricultural Water Conservancy Construction: With powerful traction, it is suitable for land leveling, ditch excavation, and other engineering projects.
Livestock Forage Operations: It can be used with equipment such as silage harvesters and balers to meet the year-round forage processing needs of livestock farms.
Product Operate Guide
Pre-startup checks: Check the oil and coolant levels, and check the tire pressure.
Daily operation: Select appropriate gear for the task and maintain the engine within the economical speed range.
Regular maintenance: Clean the air filter every 100 hours of operation, change the engine oil every 250 hours, and inspect the clutch clearance every 500 hours.
Safety regulations: Use low gear when operating on slopes, and strictly prohibit lateral movement on terrain with a slope exceeding 15°.
