XE15E
| Availability: | |
|---|---|
| Quantity: | |

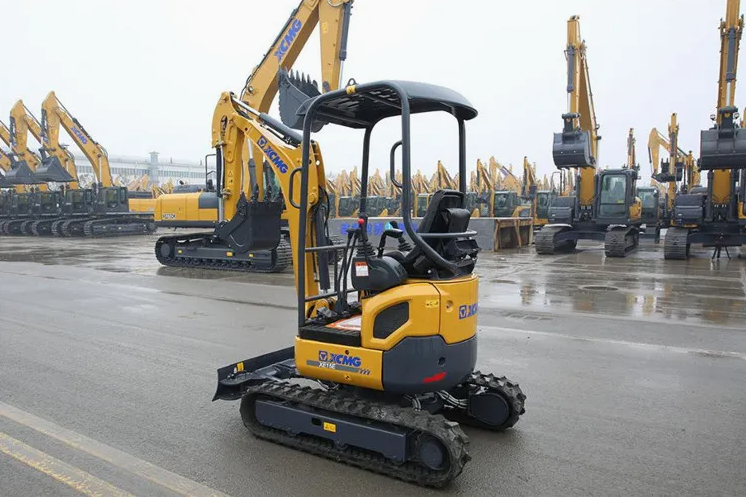

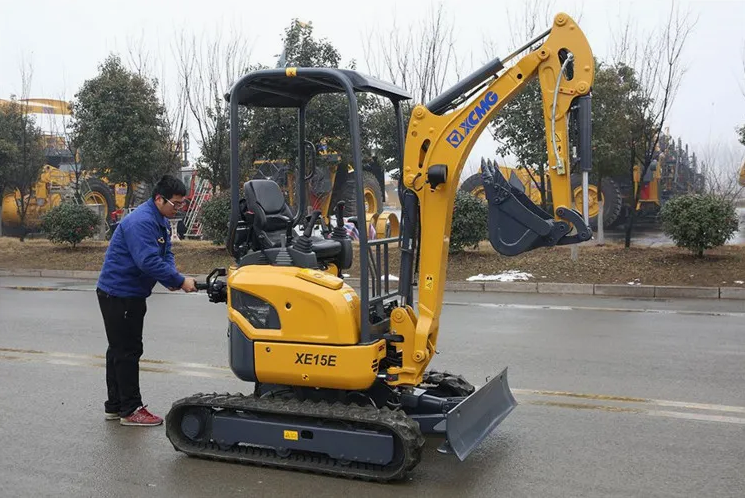

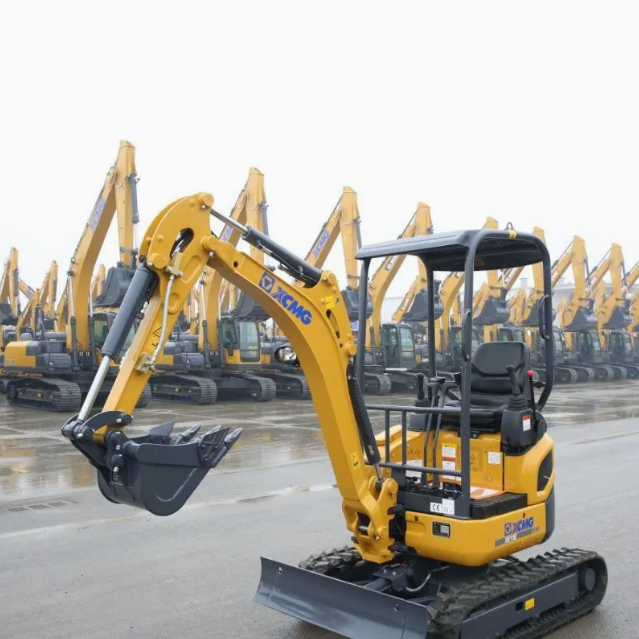

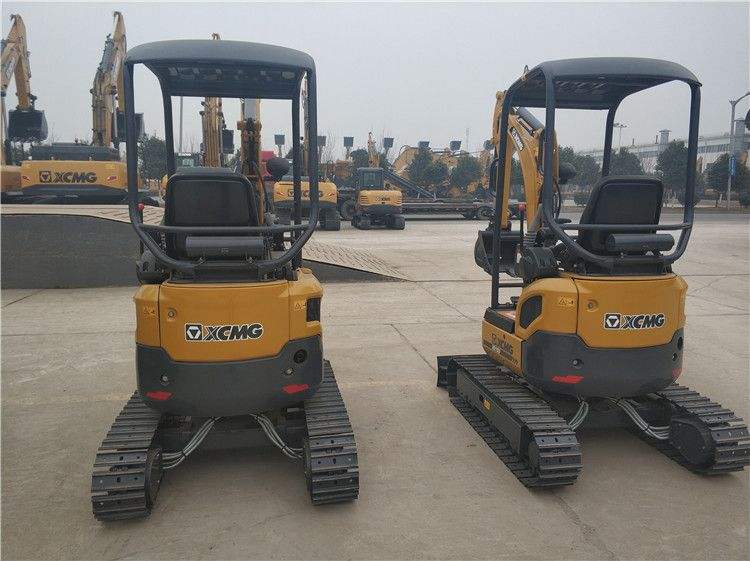

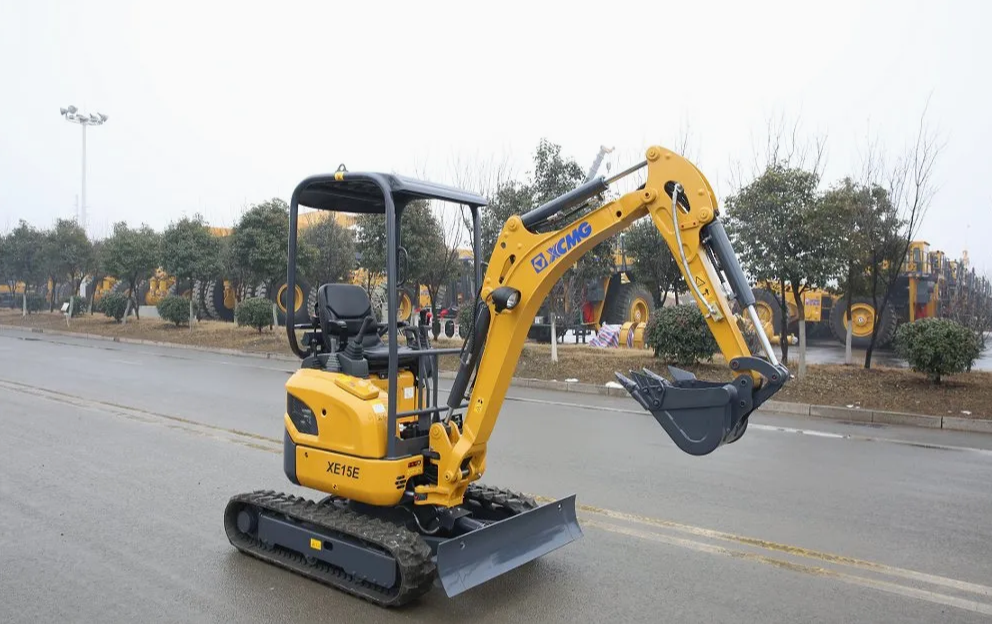

The XE15E excavator is a compact construction machine primarily used for earthmoving operations and construction in confined spaces. It features a telescopic undercarriage, a swingable working device, and a fully enclosed cab. The machine supports hydraulic breaker line extension functionality, enabling adaptation to complex working conditions. Its modular design and quick-opening hood structure enhance maintenance convenience.
XE15E With latest technological achievements used, key hydraulic parts have low energy consumption, fast response speeds, accurate control, and small impact forces, and can maintain strong mining ability and high operation efficiency. Perfect matching of the engine and hydraulic system power ensures that the engine can work in an area with optimal fuel consumption, improves a fuel utilization ratio, and saves the cost. A new-type hydraulic system provides enough flow for all working devices and has high efficiency.
| Item | Unit | Parameters | |
| Weight | Kg | 1795 | |
| Model | Operating weight | Kg | 1795 |
| Bucket capacity | m³ | 0.04 | |
| Moving Type | crawler | ||
| Product Name | XE15E | ||
| Display online time | 2019-03-30 | ||
| Main performance | Product Name | XE15E | |
| Swing speed | r/min | 8.7 | |
| Ground pressure | kPa | 28.5 | |
| Bucket digging force | kN | 16 | |
| Working range | A Maximum digging height | mm | 3475 |
| B Maximum dumping height | mm | 2415 | |
| C Maximum digging depth | mm | 2290 | |
| H Max Digging Radius | mm | 3900 | |
| I Min. swing radius | mm | 1550 | |
1. Municipal and Urban Precision Operations
With its compact body and zero-emission, low-noise pure electric power, the XE15E is perfectly suited for tasks like pipe laying, trenching for cable ducts, and curb installation in narrow urban spaces. It minimizes disruption to traffic and residents, making it an ideal choice for municipal maintenance.
2. Indoor and Confined Space Construction
Traditional diesel equipment emits harmful exhaust when operating in warehouses, underground garages, or factories. The XE15E's electric nature completely eliminates this issue, providing a safe, clean solution for indoor operations. It is frequently used for interior demolition, equipment foundation excavation, and material handling.
3. Landscaping and Horticultural Projects
Its low ground pressure design effectively protects vegetation on lawns and soft surfaces. Paired with attachments like clamshell buckets, it effortlessly handles tree pit excavation, humus transport, and landscaping tasks—all without exhaust pollution, making it highly environmentally friendly.
4. Small-Scale Farmland and Water Conservancy Construction
In agricultural water management scenarios, the XE15E's agile frame facilitates movement along field ridges. It excels at trench digging, silt removal, and slope grading. Leveraging readily available rural power sources, its operating costs are significantly lower than diesel equipment, delivering outstanding economic efficiency.
5. Special Sites with Stringent Environmental Requirements
In noise- and air-quality-sensitive areas like schools, hospitals, resorts, and food processing zones, the XE15E delivers a quiet, clean construction environment. It ensures all tasks are completed without disrupting surrounding operations.
Before operation, ensure the battery is fully charged and inspect all components for integrity. After startup, run at low speed under no load to verify proper functioning of the hydraulic and electrical systems. During operation, leverage the motor's precise control characteristics to achieve fine excavation through gentle handle operation. Take care to avoid underground obstacles such as cables. Clean the charging port regularly and recharge promptly after use for maintenance. When operating in confined spaces, ensure adequate ventilation for safety.
1. WHO ARE WE?
XUZHOU SHANGHENG ENGINEERING MACHINERY CO.,LTD is a leading construction machinery exporter,located in Xuzhou city,Jiangsu province where Xuzhou Construction Machinery Group Inc in. We have the domestic agency rights of them more than 10years,based on the advantage of them,we also estabish long-time business with other famous brands.
2. HOW IS YOUR DELIVERY TIME?
In general circumstance, we can have an immediate delivery of regular machines for our clients within 7 days, because we have a variety of resources to check machines in stock, locally and nation widely, and to receive machines in timely manner. But for manufacturers/factories, it will take more than 30 days to produce the ordered machine.
3. WHICH PAYMENT TERMS CAN YOU ACCEPT?
Normally we can work on T/T term or L/ term, sometime DP term.
1)On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of original B/L for long-term cooperating client.
2)On L/C term, a 100% irrevocable L/ C without "soft clauses"from an international recognized bank can be accepted. Please seek the advice from the individual sales manager whom you work with.
4. HYDRAULIC FLUID BECOMES DIRTY AGAIN SHORTLY AFTER REPLACEMENT?
Insufficient cleaning of the tank and lines during fluid change, or the bypass valve remaining open after filter replacement, causing contaminants to recirculate.
5. HYDRAULIC CYLINDER ROD SHAKES DURING EXTENSION?
Air ingress into the rodless chamber or slight piston rod bending (difficult to detect visually). Requires purging or professional calibration.
6. DOES THE REQUIRED FORCE TO MOVE THE CONTROL LEVER DECREASE AFTER THE ENGINE WARMS UP?
This is a normal physical phenomenon. As hydraulic oil temperature rises, its viscosity decreases, reducing resistance when flowing through the pilot valve.
