SLM2600S
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction

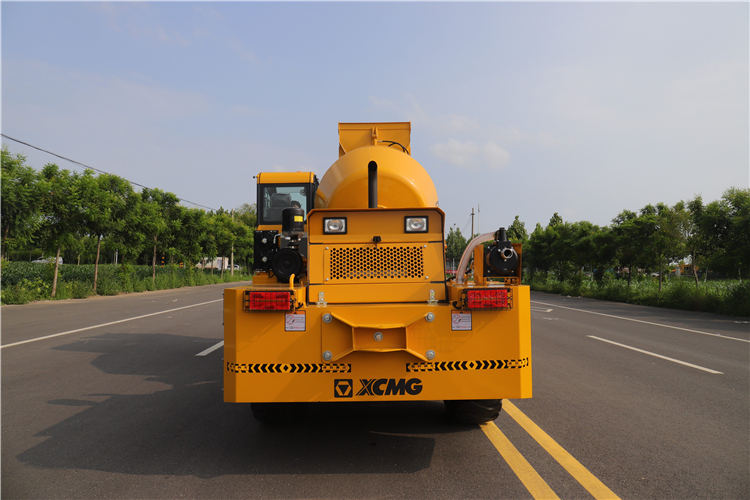

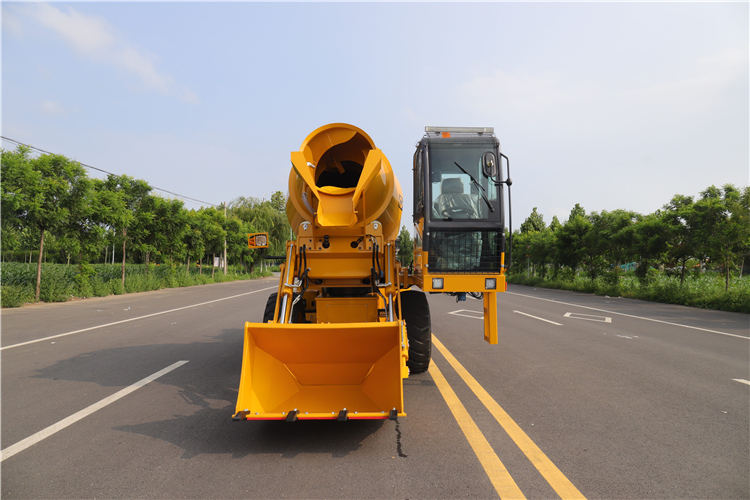

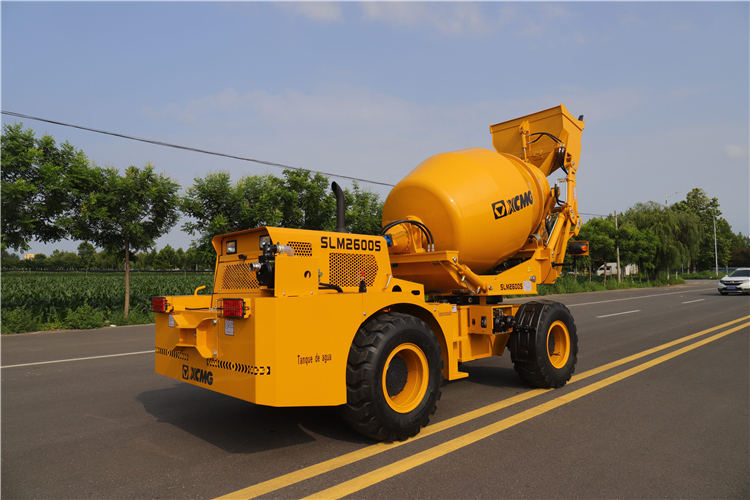

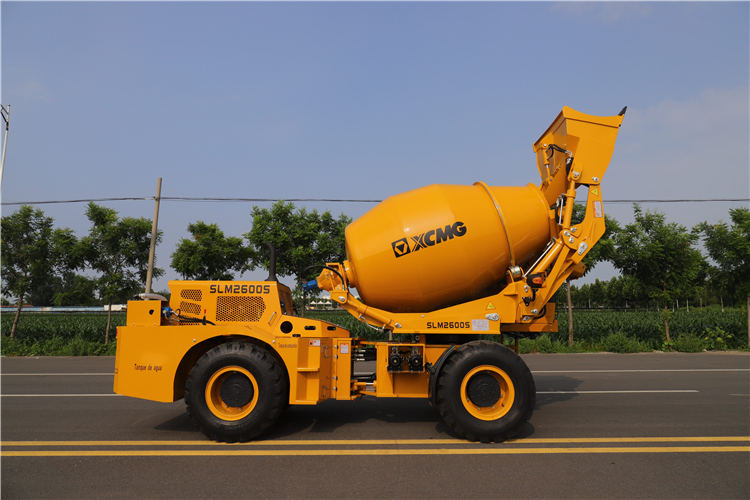

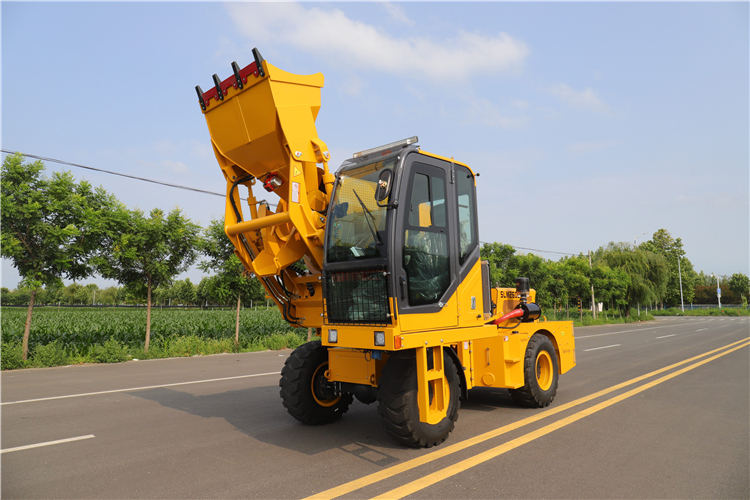

The SLM2600S is a highly efficient and intelligent self-loading concrete mixer truck that integrates the functions of loading, mixing, transportation and unloading. It represents a highly integrated solution in the field of construction machinery, mainly targeting construction scenarios with high demand for concrete such as large-scale infrastructure, mining, water conservancy, and rural urbanization.
Product Advantage
1. Highly integrated and powerful: One device simultaneously realizes five major functions: feeding, mixing, lifting, walking and unloading, making it a mobile "concrete production station".
2. Efficient construction, time and labor-saving: No external equipment assistance is required. It can complete the feeding and mixing by itself. The mixing drum has a large volume, and the single operation cycle time is short. The production efficiency far exceeds the traditional mode.
3. Flexible and mobile, convenient for site transfer: Equipped with a walking chassis, it can be quickly moved within the construction site and between different sites, making it particularly suitable for construction environments with scattered operation points and inconvenient transportation.
4. Intelligent control and easy operation: It adopts an advanced electro-hydraulic control system and an intelligent weighing system, ensuring high batching accuracy and excellent stirring quality. The integrated control in the cab is intuitive and easy to operate.
5. Energy conservation and environmental protection: By precisely controlling the ingredients, material waste is reduced. Centralized operation of equipment also reduces overall energy consumption and emissions.
Technical Parameters
| Model | SLM2600S |
| CAPACITY | 4 batches/h or 10.4 cubic/hour |
| Weight | 7000KG |
| Bucket(hydraulic gate) | 2.6 cubic |
| TIRE(steel wire high pressure vacuum tire) | 12R-22.5 |
| Power System | 24V |
| CLIMB | 40° |
| Turning radius | 2800mm |
Product Uses
Large-scale infrastructure construction: highways, railways, Bridges, tunnels, etc.
• Mining engineering: Ground hardening in mining areas, roadway support, etc.
• Water conservancy and hydropower projects: DAMS, river course management, etc.
• Rural and urbanization construction: Scenarios where the demand for concrete is scattered, such as civilian houses, rural roads, and small-scale water conservancy projects.
• Military engineering and emergency rescue: Rapid deployment, self-sufficiency, and meeting the demands of urgent construction.
Product Operate Guide
1. Feeding: The equipment travels to the material pile and uses the bucket at the front of the vehicle to collect raw materials such as sand, stones, and cement, which are then poured into its own mixing drum.
At the same time, an appropriate amount of water is automatically added by connecting the water pipe.
2. Mixing: When in motion or stationary, the mixing drum rotates in the forward direction, thoroughly and evenly mixing the materials inside the drum to form high-quality concrete.
3. Transportation: After the mixing is completed, the vehicle can drive to the construction pouring site by itself.
4. Unloading: After reaching the designated position, the mixing drum rotates in the opposite direction to evenly unload the concrete. Different construction requirements can be met by controlling the unloading speed.
FAQ
The essential difference lies in "automation" and "integration".
• Traditional mixer truck: It is merely a container for transportation and mixing.
Concrete needs to be produced by a fixed mixing plant before being injected into the tank, and it cannot obtain raw materials by itself.
• SLM2600S self-loading vehicle: It is a mobile production station. It feeds materials by itself with the bucket, controls the water-material ratio by itself, stirs by itself, transports by itself and unloads by itself. It has achieved a full-process integrated operation from raw materials to finished concrete.
A: The core advantage lies in significantly reducing costs and enhancing efficiency.
• Cost: It eliminates the expenses for purchasing/leasing loaders, mixing plants, additional mixer trucks, as well as the personnel costs for operating these devices.
• Efficiency: No need for multiple devices to coordinate and wait. All processes can be completed in one vehicle, making it particularly suitable for projects with tight schedules, scattered sites or in remote areas.
A: It depends on the concrete grade (mix ratio) you need. The intelligent weighing system built into the equipment will automatically calculate and control the addition amounts of sand, gravel, cement and water according to different formulas (such as C25, C30), ensuring the accuracy of the proportioned ratio.
A: It is equipped with a high-horsepower engine and adopts a reinforced chassis specifically designed for construction machinery. It has strong off-road capabilities and high load-carrying capacity, and is specifically designed to adapt to the rough and muddy off-road conditions of construction sites.
5. WHICH PAYMENT TERMS CAN YOU ACCEPT?
Normally we can work on T/T term or L/ term, sometime DP term.
1)On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of original B/L for long-term cooperating client.
2)On L/C term, a 100% irrevocable L/ C without "soft clauses"from an international recognized bank can be accepted. Please seek the advice from the individual sales manager whom you work with.
6. WHAT SERVICES CAN WE PROVIDE?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
