Product Description

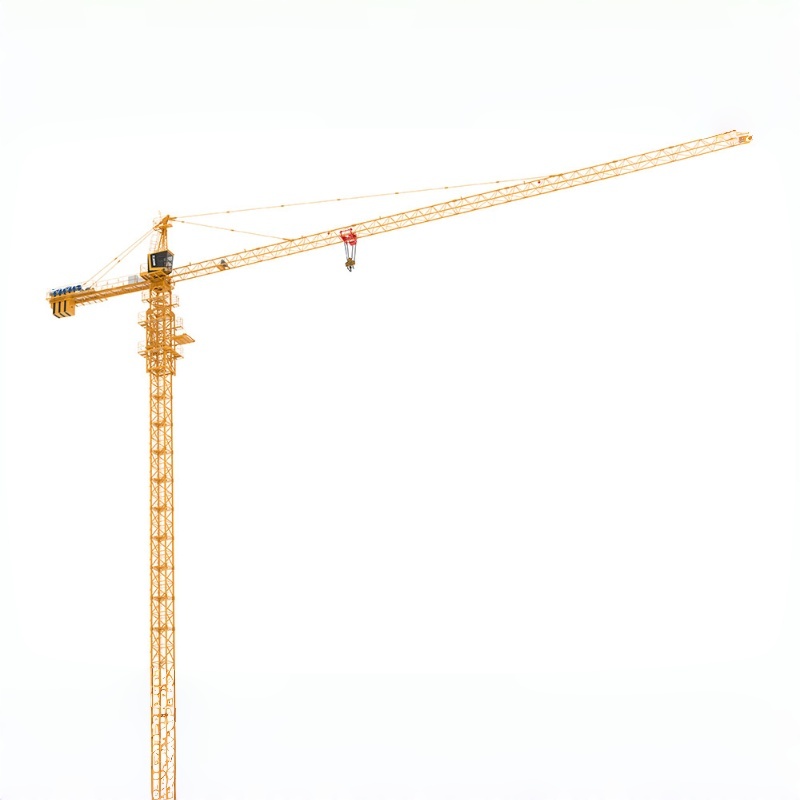

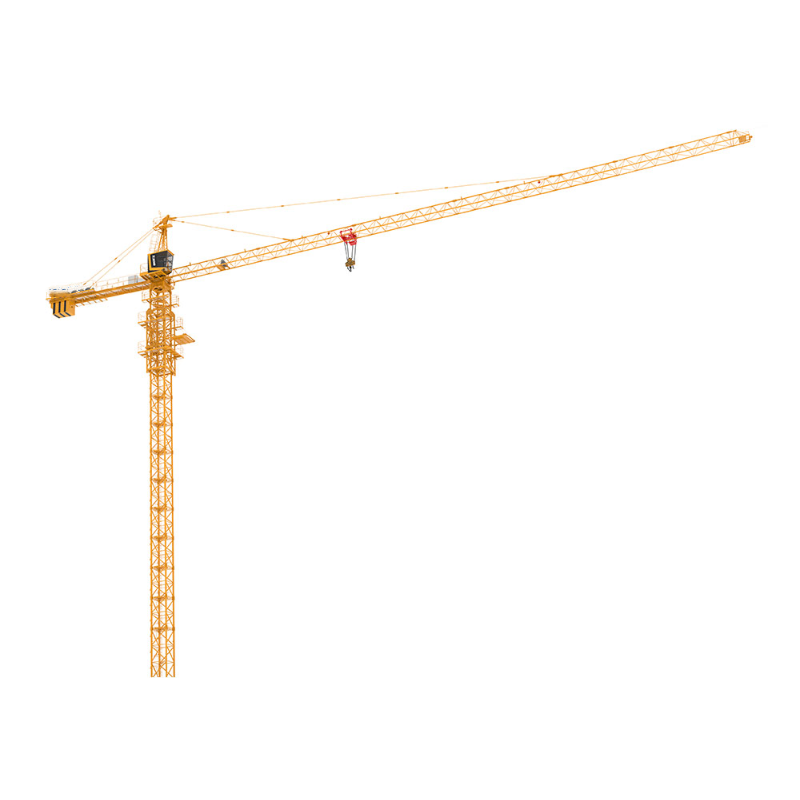

The XGA6012-6S topkit tower crane is a newly optimized medium-duty construction tower crane, designed to solve the pain points of low efficiency, unstable operation and difficult installation of traditional small and medium tower cranes. The whole machine adopts high-rigidity square tube integral tower section structure with precise welding and integral stress relief technology, greatly improving structural stability, wind resistance and fatigue resistance during long-term high-altitude operation. The optimized 60m jib structure realizes wide coverage working range with a 1.2t stable tip load, ensuring effective lifting operation at the far end of the construction site.
Equipped with an upgraded variable-frequency intelligent control system, the XGA6012-6S realizes stepless speed regulation for lifting, luffing and slewing actions. The max hoisting speed reaches 90m/min, which effectively improves construction progress while ensuring smooth and jitter-free operation. The independent hydraulic climbing system supports rapid frame lifting and layered heightening, with simple and efficient installation process, greatly shortening site assembly cycle. The standard 400m ultra-long rope capacity meets the height requirements of super high-rise continuous lifting work.
The whole machine adopts standardized modular design, with compact structure and strong assembly flexibility. The topkit disassembled structure reduces transportation volume and lowers logistics cost. Equipped with multiple safety protection devices including height limit, amplitude limit, torque limit and emergency braking, the crane realizes full-range safety monitoring and automatic overload protection. All finished equipment passes strict factory load testing and high-altitude simulation detection to ensure long-term stable and safe operation in various complex construction environments.
Product Advantages
100t·m High Rated Lifting Moment:
Featured with 6-ton max lifting capacity and 1.2-ton far-end tip load, it provides strong and stable lifting power, fully meeting the material handling demands of mid-to-high-rise building projects.
60m Ultra-long Working Jib:
Extended jib design realizes ultra-wide site coverage, reducing frequent crane position adjustment and improving overall construction efficiency, suitable for large-area construction sites.
Super High Construction Adaptability:
40m free-standing height and 199.6m maximum attached height support multi-layer and super high-rise construction, adapting to different building height requirements and complex site conditions.
Intelligent Variable-frequency Control:
Stepless speed regulation for lifting, slewing and luffing ensures smooth operation, accurate positioning and low operating impact, effectively protecting construction materials and improving operation safety.
Efficient Hydraulic Climbing System:
Automatic hydraulic heightening structure simplifies on-site assembly steps, shortens installation cycle and improves overall construction progress with high site flexibility.
Modular & Easy Transportation:
Standard disassembled topkit structure reduces overall transportation volume, lowers logistics cost and facilitates cross-region transportation and rapid assembly.
Comprehensive Safety Protection:
Equipped with torque limiter, height limiter, amplitude limiter and emergency stop device, realizing full working range safety monitoring and anti-overload protection to avoid construction risks.
Durable & Low Failure Rate:
High-strength integral tower body and optimized matching of core electrical and mechanical components ensure strong wind resistance, fatigue resistance and long service life for long-term high-intensity construction.
Technical Parameters
Item | Specification |
Model | XGA6012-6S |
Crane Type | Topkit / Hammerhead Tower Crane |
Rated Lifting Moment | 100 t·m |
Max Lifting Capacity | 6 Ton |
Max Jib Length | 60m |
Jib End Tip Load | 1.2 Ton |
Max Free-standing Height | 40m |
Max Attached Height | 199.6m |
Max Hoisting Speed | 90m/min |
Luffing Speed | 50/26m/min |
Slewing Speed | 0~0.6r/min |
Rope Capacity | 400m |
Tower Section Size | 1.6m × 1.6m × 2.8m |
Mast Type | F42B High-strength Integral Tower Section |
Control System | Intelligent Variable-frequency Stepless Speed Control |
Safety Device | Torque Limiter, Height Limiter, Amplitude Limiter, Emergency Brake |
Product Applications
High-rise Building Construction:
Main material lifting and component positioning for residential buildings, commercial buildings, office buildings and other mid-to-high-rise real estate projects.
Urban Renewal & Renovation Projects:
Material transportation and auxiliary hoisting for old community renovation, urban supporting facilities and municipal reconstruction projects.
Industrial Factory Construction:
Steel structure installation, concrete material handling and equipment hoisting for large industrial parks, factory buildings and logistics warehouses.

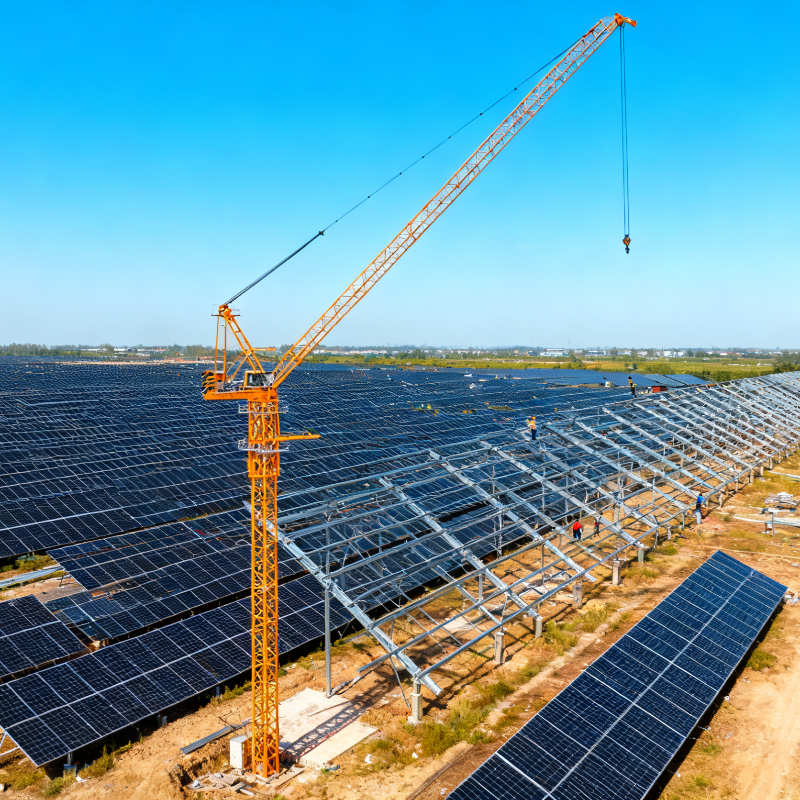

Infrastructure Engineering:
Auxiliary lifting tasks for bridge auxiliary construction, road engineering, water conservancy projects and municipal supporting facilities.

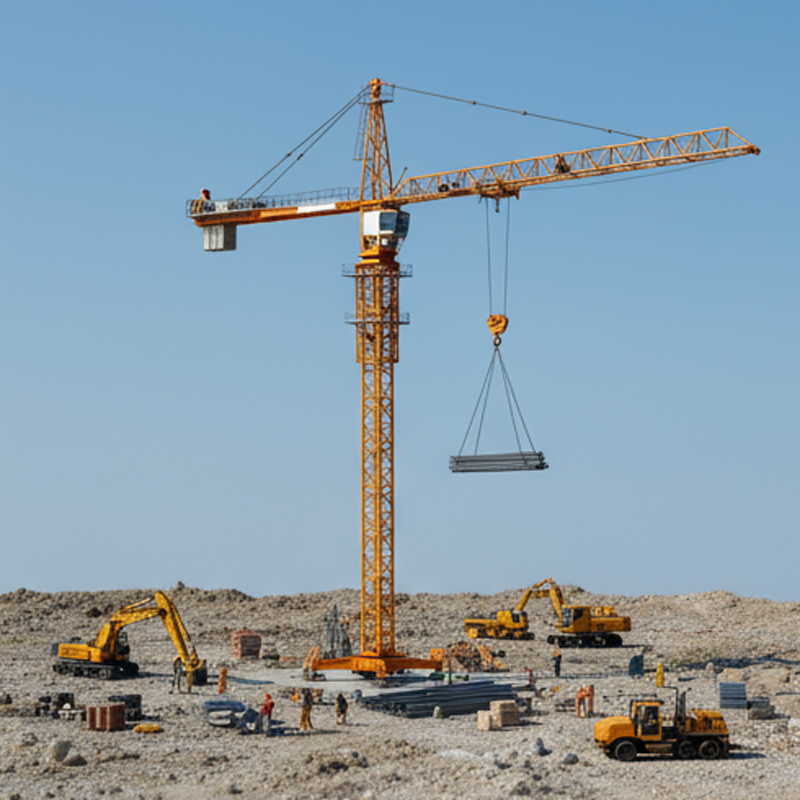

Large-area Construction Sites:
Suitable for large-scale continuous construction scenarios with wide working coverage, improving overall site operation efficiency.
Short-cycle Engineering Projects:
Modular assembly and rapid deployment features adapt to short-term construction, temporary engineering and phased construction tasks.
FAQ
Q1: What is the core advantage of XGA6012-6S compared with ordinary 6-ton tower cranes?
A: The XGA6012-6S adopts upgraded high-strength tower body and intelligent variable-frequency control technology, with 100t·m super-large torque, 60m ultra-long jib and stable 1.2t far-end load capacity. It features wider operation range, higher construction efficiency and stronger high-altitude stability than ordinary models. The modular design also reduces installation and transportation costs, achieving higher overall cost performance.
Q2: What is the maximum working height of this tower crane?
A: It supports a 40m free-standing independent height without attaching, and the maximum attached height can reach 199.6m, fully meeting the construction requirements of various mid-rise and super high-rise buildings.
Q3: Is the XGA6012-6S easy to install and transport?
A: Yes. Adopting standard topkit disassembled modular structure, the whole machine is divided into standardized components for packaging and transportation, effectively reducing logistics volume and cost. Equipped with an automatic hydraulic climbing system, on-site heightening and assembly are efficient and labor-saving.
Q4: What safety protection functions does the crane have?
A: The XGA6012-6S is equipped with complete safety protection systems including torque limiting protection, height limiting protection, amplitude limiting protection and emergency braking device. It can automatically alarm and cut off power when overloaded or beyond working range, ensuring zero-risk safe construction.
Q5: What is the delivery cycle and after-sales warranty?
A: The standard delivery cycle is 25–35 working days. We provide 12 months factory warranty, lifelong free technical guidance, remote fault diagnosis and cost-price spare parts supply, supporting global after-sales service.
Q6: What working environments is the equipment suitable for?
A: The XGA6012-6S has strong environmental adaptability, stable wind resistance and structural durability. It can work stably in suburban construction sites, urban building sites and open-air engineering environments, adapting to long-term all-weather outdoor construction operations.
