XGS38D
| Quantity: | |
|---|---|
Product Introduction

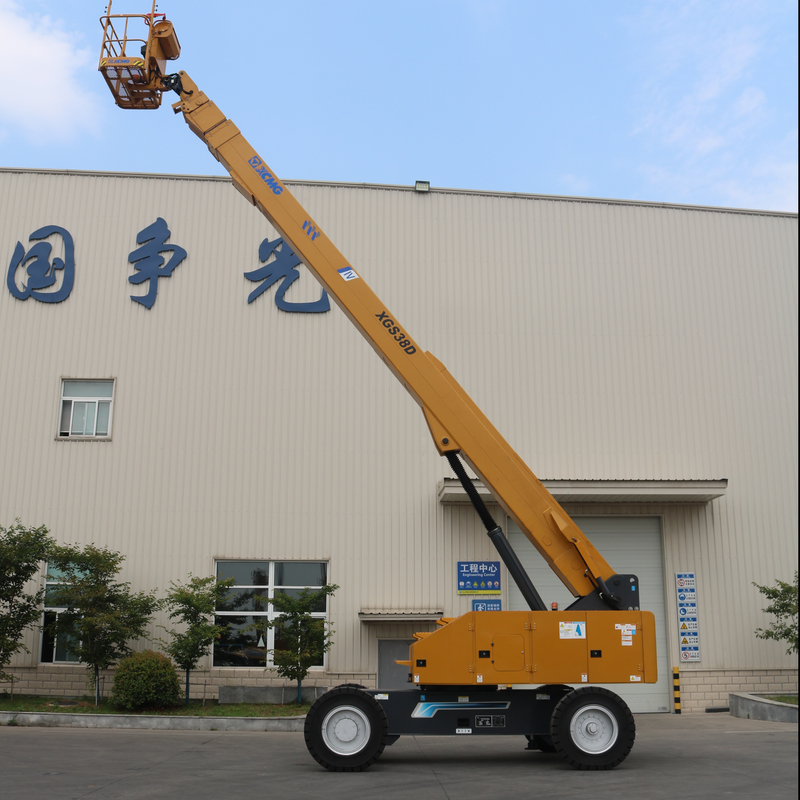

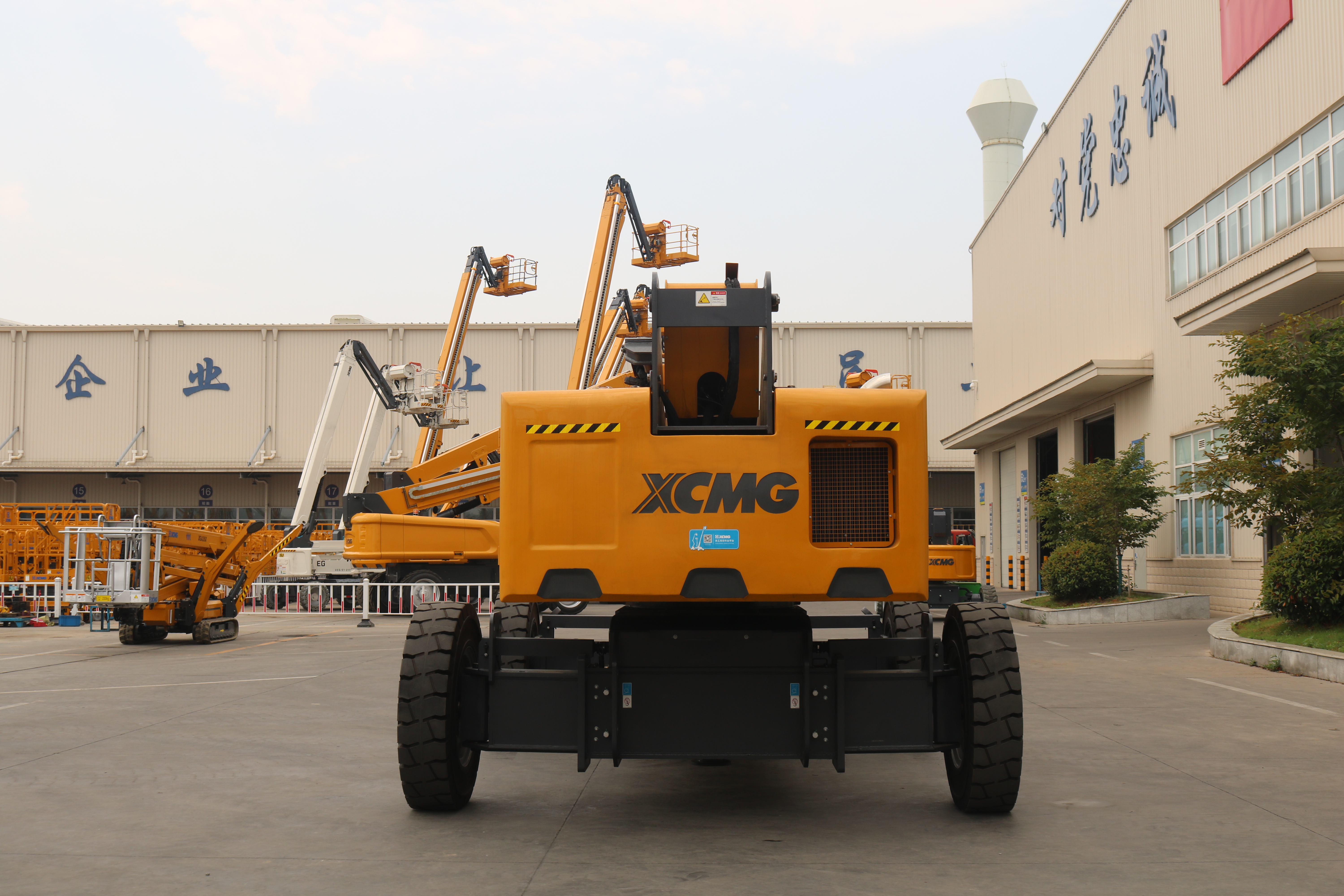

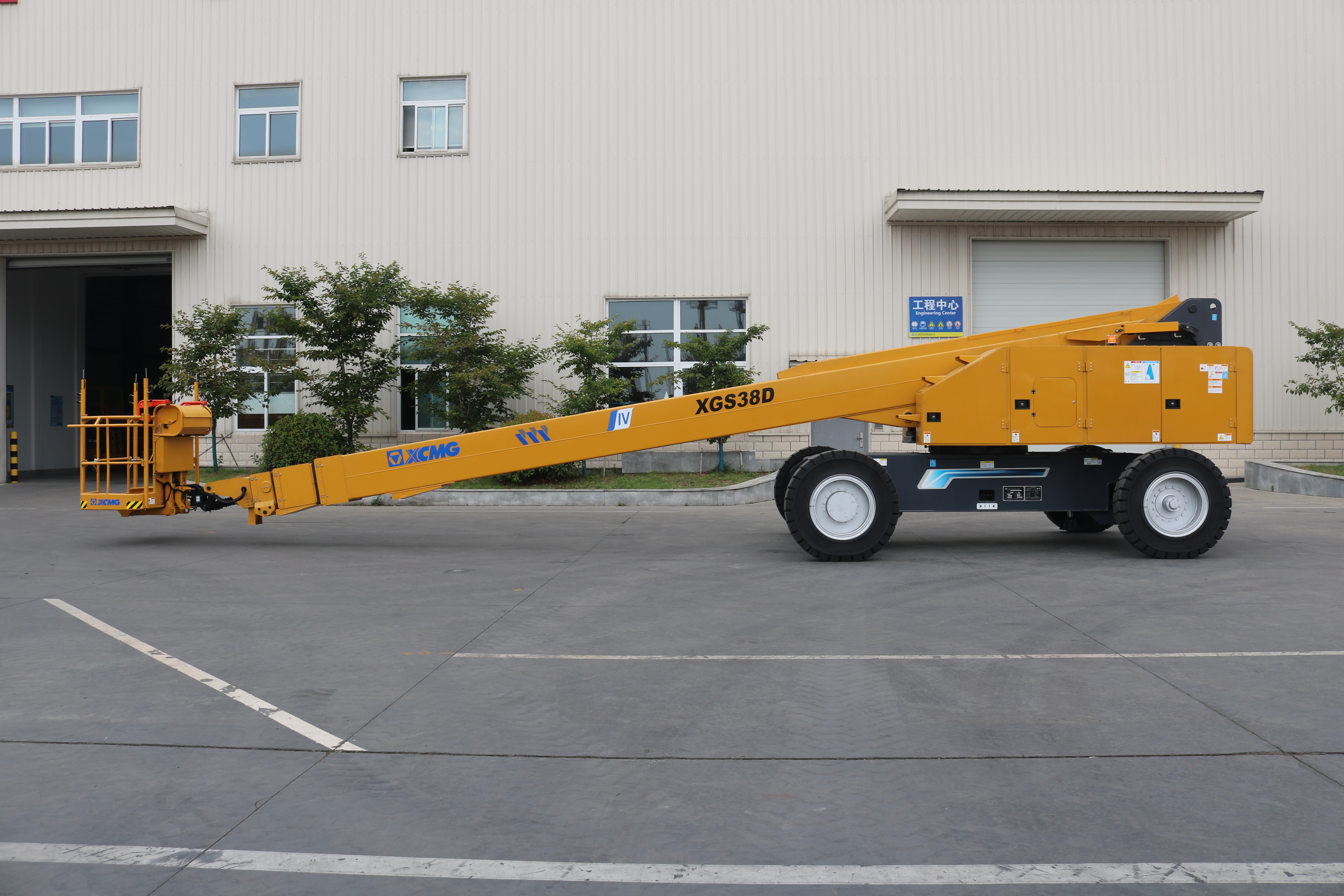

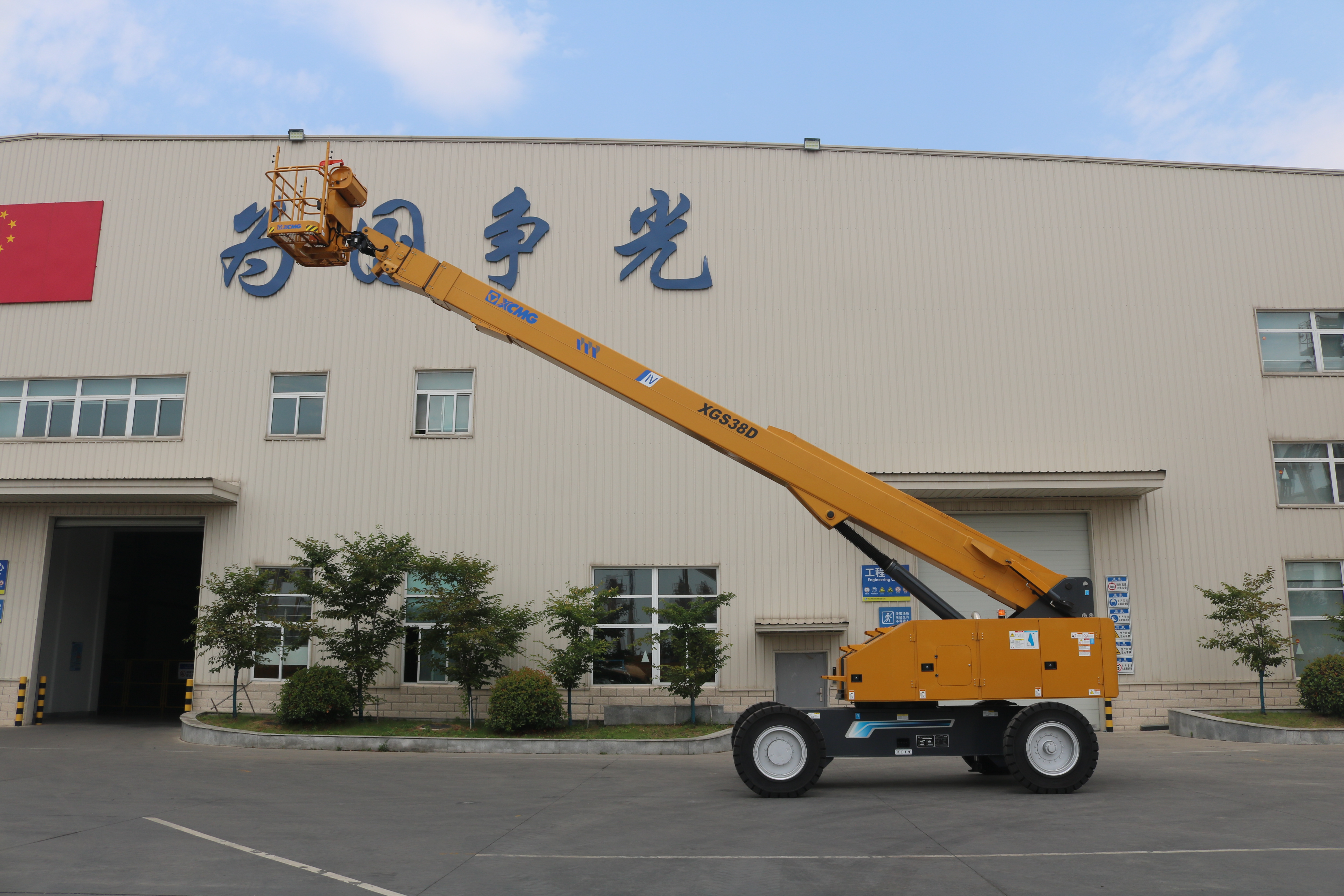

The XGS38D is a brand-new generation of high-performance 38-meter-class diesel-powered articulated boom aerial work platform from XG. It integrates XG's advanced technologies in the field of construction machinery, with the design concept of "efficiency, reliability, intelligence and comfort", aiming to provide top-notch equipment experience and construction solutions for users engaged in high-altitude operations.
Product Advantage
1. Powerful and flexible drive system
Four-wheel drive (4x4) & four-wheel steering: It offers excellent ground adaptability and off-road capability, allowing for stable driving on rough construction sites.
Multiple steering modes (front-wheel steering, rear-wheel steering, crab steering, and zero turning radius) make it have excellent maneuverability in narrow Spaces, with flexible steering and precise positioning.
◦ Large-angle climbing ability: With a climbing gradient of up to 25%, it can easily handle various steep slope conditions.
2. Highly efficient and energy-saving power system
It is equipped with a well-known brand diesel engine that meets the environmental protection Stage IIIA/National IV emission standards, featuring strong power, low fuel consumption and long driving range. It is particularly suitable for outdoor long-term operations without external power supply.
The advanced hydraulic system design ensures smooth and precise movements, with minimal energy loss and higher operational efficiency.

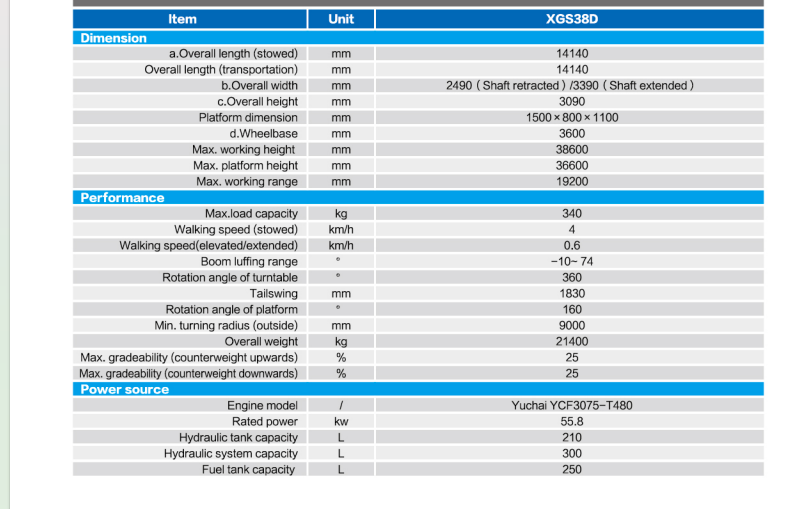

Technical Parameters
Product Uses
Main markets: Widely applied in medium and high-rise outdoor high-altitude operation fields such as construction, venue building, equipment installation, exterior wall maintenance, shipbuilding, and industrial parks.
Product Operate Guide
Professional training is required before operating the XGS38D. Before starting the operation, check the vehicle's oil, structure and emergency devices. After starting the engine, select the driving mode (four-wheel steering/drive) on the chassis control panel and smoothly drive into the workstation. Operate the proportional control handle on the platform to precisely control the movement of the boom and fine-tune the platform. Pay attention to environmental obstacles and ensure that the load does not exceed 340 kilograms. In an emergency, immediately use the emergency stop button on the platform or chassis. After the operation is completed, restore the equipment to the transportation state and park it properly. Be sure to strictly abide by all safety regulations in the manual.
FAQ
A: The maximum working height of this equipment is approximately 38.5 meters, and the maximum horizontal extension range is about 21 meters. As a articulated boom aerial work platform, its unique multi-section folding boom design endows it with outstanding obstacle-crossing capabilities, making it highly suitable for operations around buildings, factories or other obstacles.
A: Yes. The diesel engine adopted by the XGS38D complies with China's National IV (GB4) and the Stage IIIA emission standards for non-road mobile machinery in Europe and America, making it the mainstream environmentally friendly power configuration in the current market.
A: Excellent. Its four-wheel drive and four-wheel steering system offers powerful off-road performance and climbing ability (up to a 25% slope). Multiple steering modes (including crab walk and zero turning radius) enable it to move flexibly and position precisely even in narrow and rough construction sites.
A: The equipment is equipped with multiple safety protections:
• Emergency stop button: Emergency stop switches are installed on both the platform and the chassis.
• Emergency descent system: In the event of engine shutdown or main power failure, the emergency pump can be manually activated to safely lower the platform to the ground.
• Emergency Power Unit (EPU) : Provides backup power to ensure safe recovery.
A: Before daily operation, a machine inspection should be conducted, including:
• Check whether the structural components are deformed or cracked.
Check the hydraulic oil level, engine oil and coolant.
Test whether all control functions, safety alarm devices (such as tilt alarm) and emergency functions are functioning properly.
• Check the wear and pressure of the tires.
Please strictly follow the daily/monthly checklist in the operation manual.
A: Yes. The XGS38D adopts a design that is easy to maintain. The core components such as the engine compartment and the hydraulic system are rationally laid out and easily accessible. Daily maintenance and inspection (such as replacing filters and adding oil) are very convenient, which helps to reduce downtime.
