Product Introduction

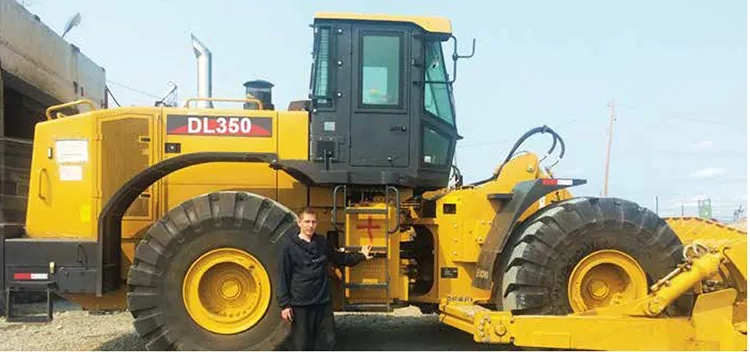

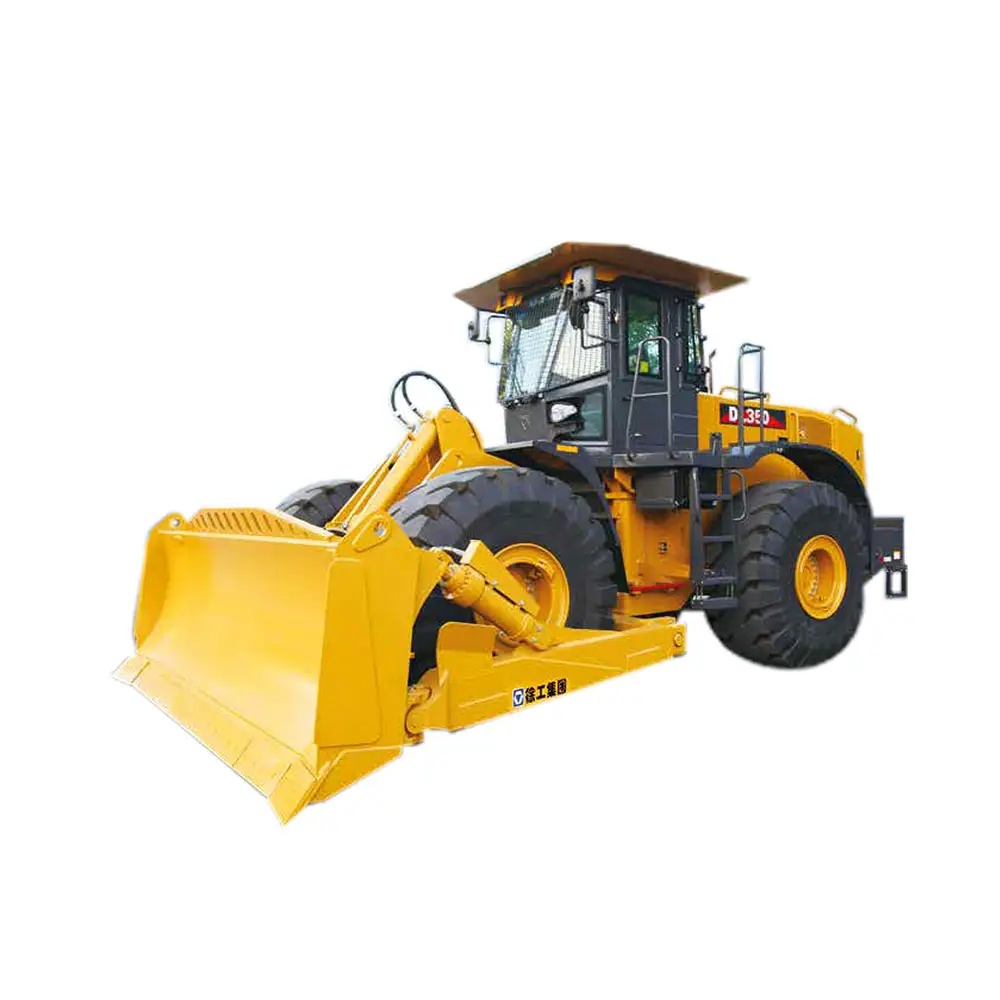

The DL350 is a large, efficient and intelligent wheeled bulldozer produced by XG of China. It is one of XG's flagship products in the field of earthmoving machinery, representing the advanced technical level of domestic wheeled bulldozers. It is mainly targeted at heavy-load working conditions such as mines, large-scale water conservancy projects, infrastructure construction and ports.
Product Advantage
* The imported Cummins electronic control, direct injection, turbocharged engine equipped features high torque reserve coefficient, excellent energy-conservation and environment-friendliness, and strong power.
* The split transmission and torque converter system, single-turbine three-element torque converter, and AMT full automatic electronic control transmission feature simple structure and higher reliability.
* The full-hydraulic maintenance-free wet drive axle features fast response, stable braking, and high safety and reliability.
* The XG new FOPS & ROPS pressurized cab features large space, broad visual field, excellent sealing performance, low noise, and high safety and comfort.
* The load-sensing variable hydraulic system reduces the fuel consumption by 7% and prolongs the lives of parts.
Technical Parameters
|
Description
|
Specifications
|
Unit
|
|
Machine weight
|
29000±300
|
kg
|
|
Engine
|
Model
|
Cummins. QSMII
|
|
|
Rated power
|
350
|
HP
|
|
Gear box / Drive axle
|
ZF
|
|
|
Tyre Size
|
39.5R25
|
|
|
SU push shovel capacity
|
6.88
|
m3
|
|
Max horse power
|
270
|
kN
|
|
Max steering angle
|
±40
|
°
|
|
Max lifting capacity
|
996
|
mm
|
|
Max digging depth
|
530
|
mm
|
|
Push shovel tilt
|
1075
|
mm
|
|
Travel speed
|
I - gear(F/R)
|
6.3
|
km/h
|
|
II - gear(F/R)
|
11.5
|
km/h
|
|
Ⅲ- gear(F/R)
|
24.3
|
km/h
|
|
Ⅳ- gear(F/R)
|
31.5
|
km/h
|
|
Size
|
Total length
|
7950
|
mm
|
|
Total height (top of the cab)
|
3805
|
mm
|
|
Shovel width
|
4434
|
mm
|
|
wheelbase
|
3600
|
mm
|
Product Uses

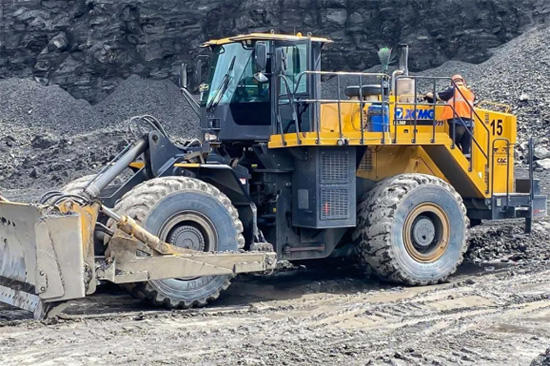

• Large open-pit mines: used for ore stripping, material pushing, road maintenance, etc.
• Large-scale water conservancy hub projects: used for the concentration, paving and leveling of earthwork.
• Infrastructure construction such as highways and railways: used for roadbed filling and site leveling.
• Port terminals: Used for the accumulation and clearance of bulk cargo materials.
• Other large-scale earthwork transfer projects.
Product Operate Guide
The operation of the DL350 bulldozer requires professional training. Before starting the operation, wrap around the machine for inspection to ensure that the equipment is in good condition. After starting, idle for preheating. Only when the instrument indication is normal can the operation be carried out. The lifting and tilting of the scraper are precisely controlled by the electro-hydraulic pilot handle. Flexibly apply articulated steering to deal with complex working conditions. It offers multiple intelligent modes, which can be switched with one click based on the load to optimize efficiency and fuel consumption. Overloading operation is strictly prohibited. Safety precautions should be implemented after the engine is turned off. For detailed operation, please be sure to refer to the random instruction manual.
FAQ
1.What kind of engine does it mainly use? What's the power?
A: It is usually equipped with the top domestic Weichai or the internationally renowned Cummins electronically controlled high-pressure co-travel engine, with a rated power of approximately 265 kilowatts (355 horsepower), providing strong and reliable power.
2.Is it complicated to drive the DL350?
A: It's not complicated. It adopts an electro-hydraulic pilot control system. The operating handle is very lightweight and highly responsive. Meanwhile, intelligent mode selection (such as power mode and economic mode) simplifies operational decisions, enabling even beginners to quickly get started and work efficiently.
3.How is its fuel consumption?
A: Fuel consumption depends on specific working conditions and operating habits. However, the intelligent engine it is equipped with and multiple working modes (such as economy mode) can effectively optimize the matching of power output and fuel consumption, and it has a significant energy-saving advantage among products of the same level.
4.Is daily maintenance convenient?
A: Very convenient. When designing, the convenience of maintenance was fully considered. Daily maintenance points such as oil filters, diesel filters, and air filters are all centrally arranged and can be reached from the ground, greatly reducing the time and labor costs of daily maintenance.
5.Are spare parts easy to buy? Is the supply timely?
A: For a main model like the DL350, there is an adequate reserve of core components. Contact us for purchase to ensure the timeliness and reliability of parts supply.
