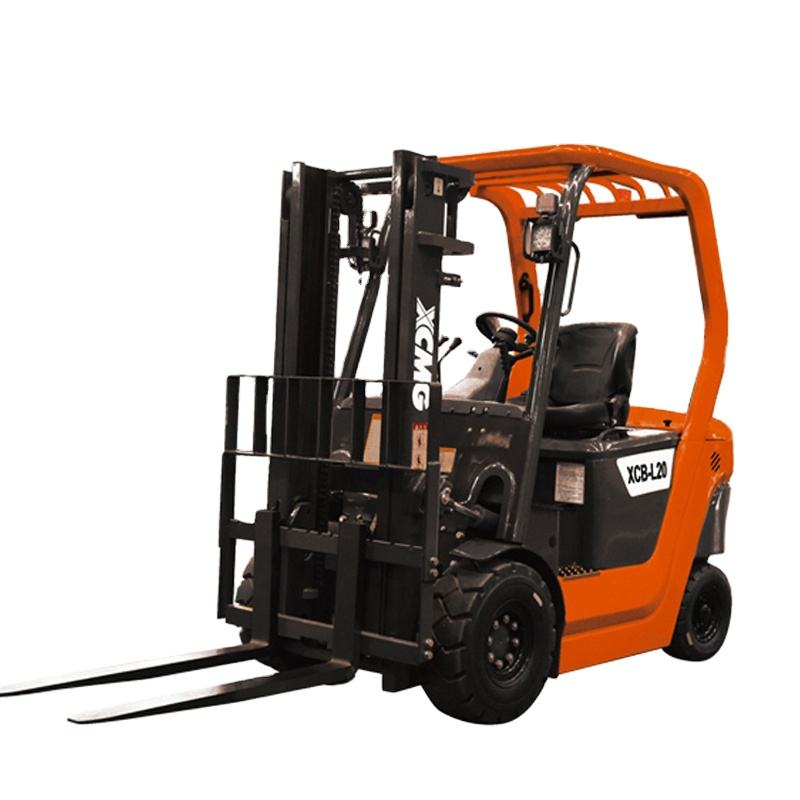

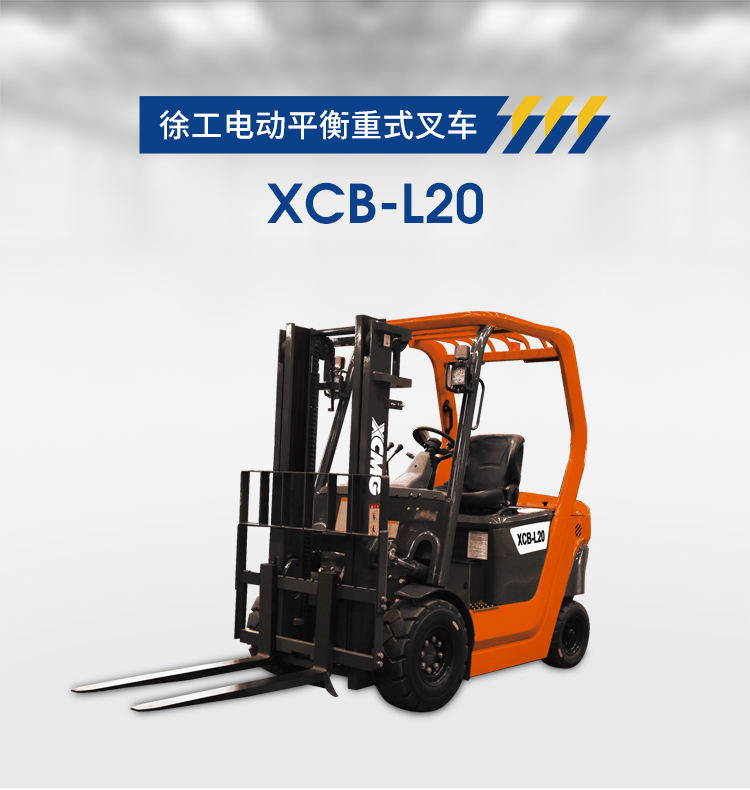

XCB-L20
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction
It features the breakthrough to the limitations of the style design in forklift industry with its unique and brand new structural appearance of XG. The application of XG XEC electrical control matching technology provides multiple modes of speed selection for various different working conditions. Better elevating speed with new safety mode is design for easy and convenient operation. Through accurate electrical controlled adjustment, the integrated drive axle can achieve the gradeability up to 17%.
Product Advantage
The application of XG XEC electrical control matching technology not only improves the smoothness of vehicle starting, acceleration and brake as well as the comfort of operation, but also enhance the protection of materials and personnel. The hydraulic system is applying dual-seaI structure of 24° cone and O-ing, effectively preventing the system from any possible leakage. It is also using the most advanced sixth generalion hydraulic cylinder to ensure the safety and reliability of operation.
The covering parts can be removable without any help of the tools, providing more space and convenience of maintenance.
On the basis of ergonomics, it is the first time in the industry configured with dual DOF (degree of freedom) steering control mechanism of XG independent intellectual property right to create a more oomfortable experience of operation and control.
Technical Parameters
| Model | Unit | XCB-L20 | ||
| Rated capacity | kg | 2000 | ||
| Load center distance | mm | 500 | ||
| Size | Max.lifting height | mm | 3000 | |
| Free lifting height | mm | 145 | ||
| Mast tilt angle front/rear | ° | 6/12 | ||
| Length fork excluded | mm | 2435 | ||
| Width | mm | 1180 | ||
| Mast height | mm | 2015 | ||
| Overhead guard height | mm | 2185 | ||
| Min.under clearance | mm | 120 | ||
| Wheel base | mm | 1550 | ||
| Min.Turning radius | mm | 2150 | ||
| Performance | Travelling speed loaded/unloaded | km/h | 14/15 | |
| Lifting speed loaded/unloaded | mm/s | 330/450 | ||
| Gradeability loaded/unloaded | % | 15/17 | ||
| Motor&Battery | Motor | Drive motor power | kW | 11 |
| Pump motor power | kW | 12 | ||
| Battery | Voltage | V | 48 | |
| Amphere | Ah | 450/525/540 | ||
Product Uses
Logistics and warehousing center: It is an ideal equipment for palletizing transportation, where goods are loaded, unloaded, stacked and picked within the shelf aisles.
• Production and manufacturing workshop: Raw materials, semi-finished products and finished products are transported on the production line. The quiet feature will not disturb the production environment.
• Cold chain and food industry: Working in cold storage and food processing workshops, electric power has no exhaust emissions, ensuring the safety of goods and the environment.
• In light industries such as pharmaceuticals, electronics, and textiles: For factories with high requirements for environmental cleanliness, electric forklifts are a must.
• Shopping malls, supermarkets, libraries: It is used for warehouse replenishment and indoor goods adjustment. Low noise will not affect customers and readers.
• Airport and railway station freight stations: Indoor transfer of luggage, parcels and goods.
Product Operate Guide

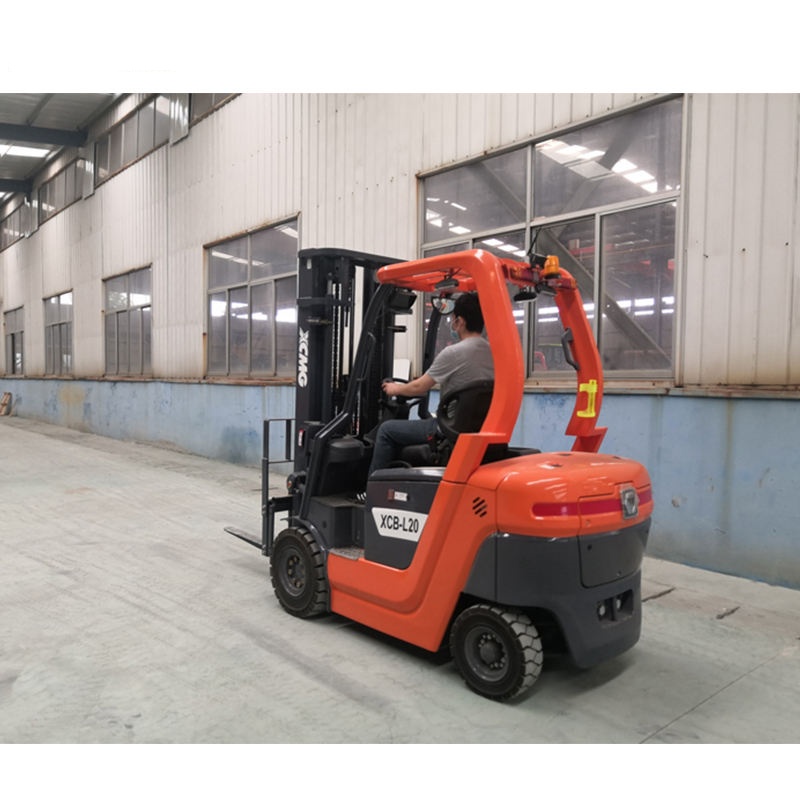

The XCB-L20 is a 2-ton electric counterbalanced forklift. Before operation, it is necessary to confirm that the operator is certified and conduct daily checks (such as lights, horns, brakes, battery level, etc.). After startup, the driving and hydraulic systems are controlled by the multi-functional handle to achieve the lifting, tilting of the forks and the stacking of goods. Overloading is strictly prohibited during operation. Pay attention to the safety of the field of vision and the surrounding area. It features low noise and zero emissions, and is suitable for indoor environments such as warehouses and workshops. After use, the forks should be placed on the ground, the power supply should be turned off, and it should be charged in time. Detailed operations must be subject to the official manual.
FAQ
A: Its rated lifting capacity is 2.0 tons. It is an electric counterbalanced forklift powered by a battery, featuring zero emissions and low noise.
A: Usually, a 48V traction battery (lead-acid battery) is standard or optional. Some configurations may also offer lithium battery options. For specific details, please consult the dealer.
A: Operations should be immediately halted and the forklift driven to the charging area for charging. Over-discharging is strictly prohibited; otherwise, it will seriously damage the battery life.
• Location: It must be conducted in a dedicated and well-ventilated charging area.
Method: Turn off the power of the forklift and remove the key. Use the original charger that comes with it. First, connect the battery plug, and then turn on the charger power.
After charging is complete, first turn off the power of the charger, and then unplug the battery plug.
• Timing: It is recommended to charge the battery when it has 20% to 30% left to avoid completely draining it. Even if it is not used for a long time, it should be recharged once a month.
A: Conduct a "round-trip inspection" before starting work every day:
1. Visual inspection: Check for any damage to the tires and frame.
2. Functional test: Check if the lights, horn and brakes are functioning properly.
3. Performance check: Whether the door frame is lifted or tilted smoothly.
4. Cleaning: Keep the vehicle body, especially the surface of the battery, clean and dry.
