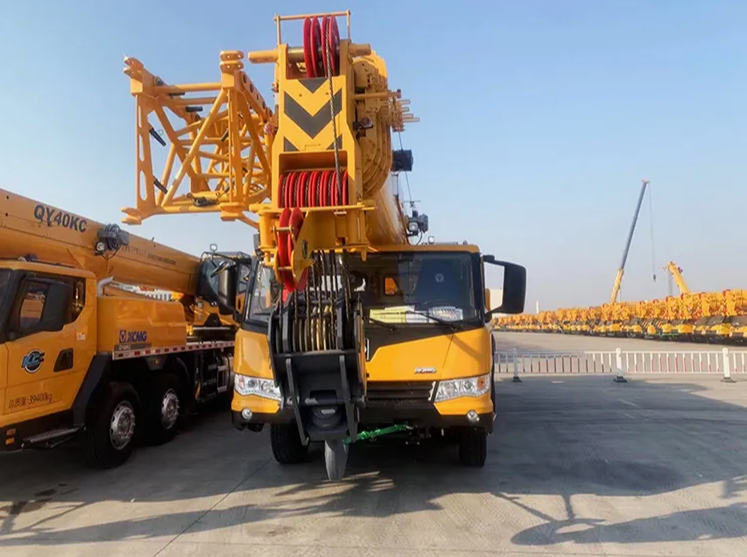

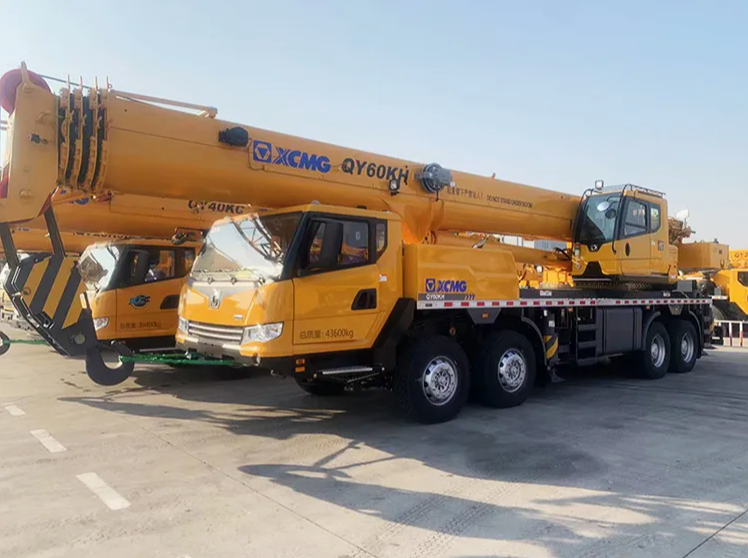

QY60KH
| Quantity: | |
|---|---|
| Dimension | Unit | QY60KH |
| Overall length | mm | 13500 |
| Overall width | mm | 2800 |
| Overall height | mm | 3510 |
| Weight | ||
| Total weight in travel | kg | 41000 |
| Power | ||
| Engine rated power | kW/(r/min) | 276/2200 |
| Travel | ||
| Max. travel speed | km/h | 75 |
| Min. turning diameter | m | 24 |
| Min. ground clearance | mm | 291 |
| Approach angle | ° | 17.5 |
| Departure angle | ° | 12 |
| Max. grade ability | % | 40 |
| Fuel consumption for 100km | L | 45 |
| Main performance | ||
| Max. rated total lifting capacity | t | 60 |
| Min. rated working radius | m | 3 |
| Turning radius at turntable tail | m | 3.55 |
| Max. lifting torque | kN.m | 2060 |
| Base boom | m | 11.2 |
| Fully extended boom | m | 42 |
| Fully extended boom+ jib | m | 58 |
| Longitudinal outrigger span | m | 5.81 |
| Lateral outrigger span | m | 6.7 |

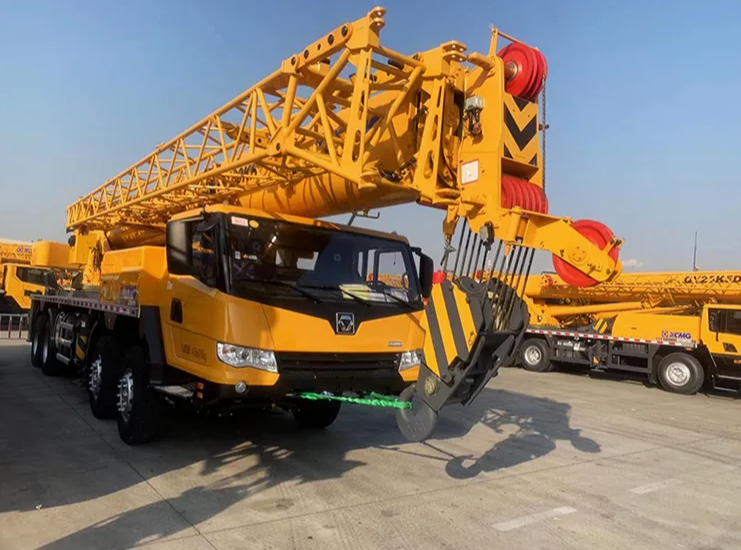

This 60-ton boom crane is engineered for heavy-lift operations in large-scale construction and energy projects, featuring a maximum lifting capacity of 60t at 5m radius and 12t at 25m radius to handle extreme loads with precision. Powered by a 280 kW Cummins QSM11 diesel engine (meets Euro 4 emissions standards), it balances raw power with fuel efficiency—consuming only 52 L/100 km during road travel. Equipped with a 48m 7-section telescopic boom (Q690 high-strength steel) and 18t removable counterweight, it delivers a lifting moment of 1800 kN·m for high-altitude and long-reach tasks. With an operating weight of 65,000 kg and 8x4 drive chassis, it maintains mobility across rough terrain while meeting CE and ISO safety certifications.
Super-Lift Hydraulic System: 25-30 bar high-pressure hydraulic system with triple gear pumps enables smooth boom extension (full length in 120 seconds) and load control; proportional valves reduce load sway by 40% during 60t lifts.

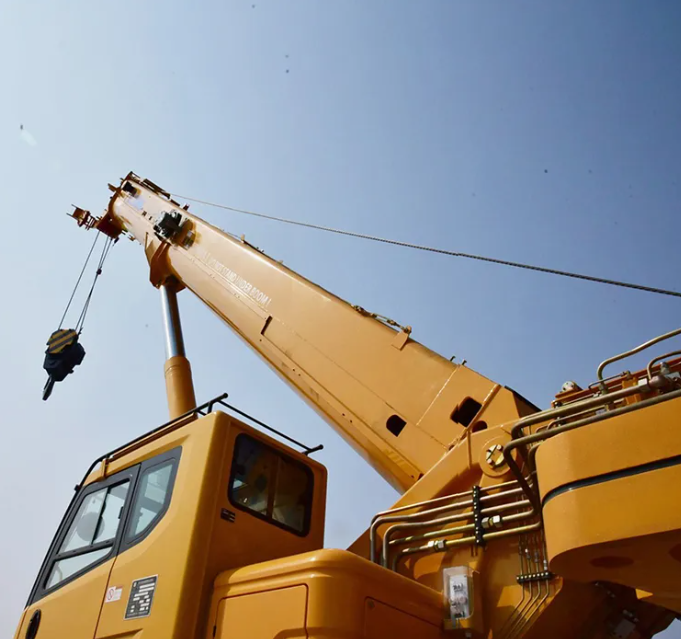

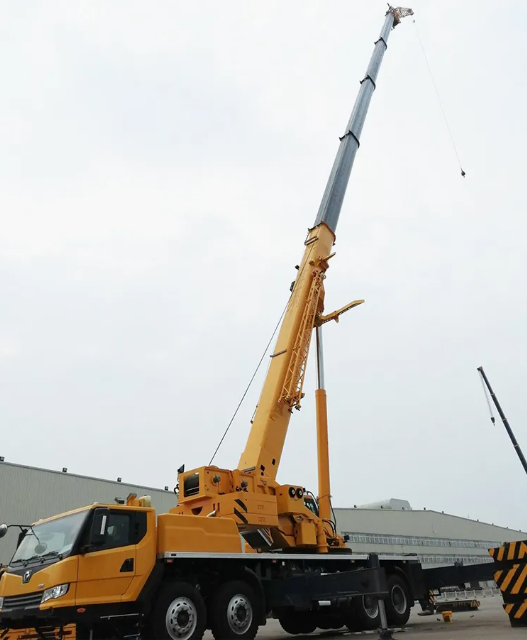

Telescopic Boom Structure: 48m boom with wear-resistant coating and anti-corrosion treatment extends to 62m with optional 14m jib, reaching heights suitable for 20-story building construction or wind turbine installation.
Heavy-Duty Chassis: 8-axle chassis with 16.00R25 off-road tires and air suspension supports road speeds up to 75 km/h; differential lock ensures traction on gravel, mud, and sloped terrain (≤18° incline).
Intelligent Safety Monitoring: 10-inch touchscreen panel displays real-time data (load weight, boom angle, hydraulic pressure) with ±1% accuracy; automatic overload protection triggers alarms and stops operations at 110% of rated capacity.
Wind energy project construction: Lifting 55t wind turbine nacelles to heights up to 90m and positioning 30t rotor blades (70m length) with jib attachment.
Large-scale steel structure installation: Hoisting 45t steel trusses and 50t roof beams for stadiums, shopping malls, and industrial warehouses (50m+ span).
Heavy machinery relocation: Loading/unloading 55t excavators, 60t bulldozers, and 45t asphalt pavers onto transport trailers at job sites.
Bridge component assembly: Installing 50t precast concrete beams and 15t guardrails for medium-span bridges (≤80m span) with precise positioning control.
Q: What’s the maximum lifting height?
A: Up to 48m with the standard boom; adding a 14m lattice jib extends the maximum height to 62m, ideal for rooftop HVAC installation and high-rise construction.
Q: How long does outrigger setup take?
A: 8-minute quick-setup with hydraulic extendable outriggers (7.5m span) and automatic leveling (±0.3° accuracy); rubber pads (600mm diameter) reduce ground pressure to ≤65 kPa.
