NXG5550DT
| Quantity: | |
|---|---|
Product Introduction
The Nxg5550dt is a new generation of heavy-duty, efficient and intelligent off-road mining dump truck (also known as "mining truck") launched by XG Group. It is mainly used for earthwork transportation in harsh working conditions such as large open-pit mines and water conservancy projects.
Product Advantage
* According to each of the engine torque characteristic curve, perfectly match the different types of Fast manual gearbox, Allision automatic gearbox, to protect the most energy rationalization output, the vehicle has an excellent starting ability, climbing ability.
* Optimized arrangement of the traditional system architecture, reducing the loss of energy transfer process to ensure the kinetic energy efficient, rapid transmission.
* Using the unique steering and steering follower, the steering mechanism. Steering light, the failure rate lower.
* Dual-circuit brake system equipped with high pressure geography accumulator volume increases, the brake pressure increasing 25% to 1 Mpa, shorten braking distance.

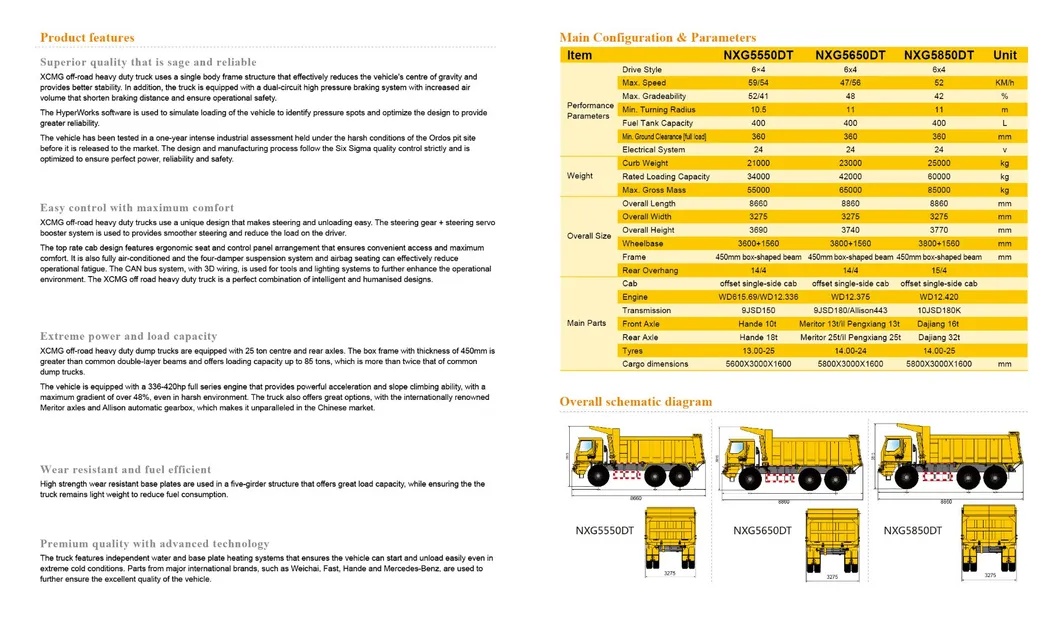

Technical Parameters

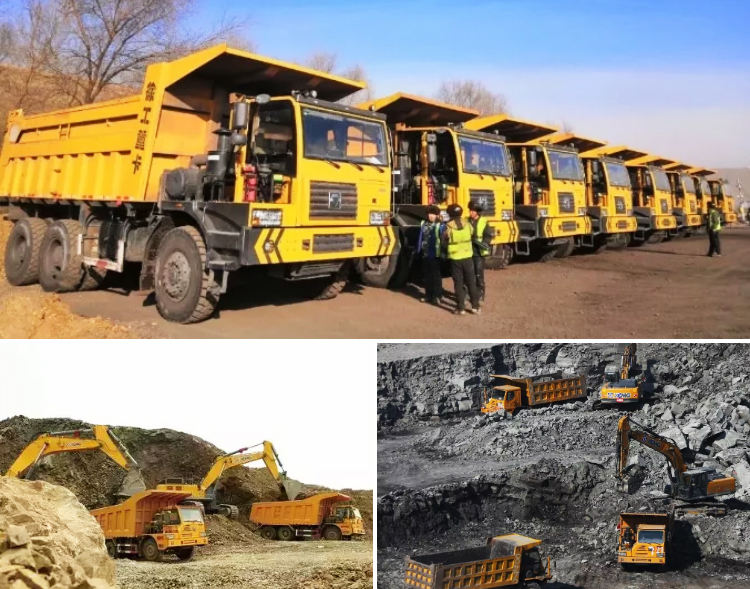

Product Uses
Large open-pit coal mines, metal mines, limestone mines and other types of mines.
Earthwork transportation in large-scale water conservancy hubs and infrastructure construction.
Other engineering sites that require large-scale, heavy-load and short-distance transportation.
Product Operate Guide
The operation of the Nxg5550dt dump truck must strictly comply with safety regulations. Before starting, a vehicle inspection should be conducted to ensure that the oil, tires and braking system are in normal condition. When driving, choose the appropriate gear according to the road conditions and avoid running at low speed under heavy load for a long time. When unloading, a flat and solid ground should be chosen. When lifting the vehicle compartment, the brakes must be used to ensure that the vehicle comes to a complete stop. After unloading, the vehicle compartment should be reset in time. It is strictly forbidden to drive with the bucket lifted. Daily maintenance should be carried out in accordance with regulations, with a focus on lubrication, tightening and cleaning to ensure the long-term and reliable operation of the equipment. For detailed operation, please refer to the random "Operation and Maintenance Manual".
FAQ
The core advantages are its durability, strong load-bearing capacity and low maintenance cost. It is highly suitable for medium and short-distance heavy-load transportation in harsh working conditions such as large and medium-sized open-pit coal mines, metal mines, and sand and gravel yards in China. It is an ideal choice for those pursuing high availability and comprehensive economic benefits.
A: It is usually equipped with Weichai WP13 series large-displacement and high-torque engines as standard, which are powerful and highly adaptable. Fuel consumption is greatly influenced by factors such as load, road conditions, and driving habits. Under the combined conditions of empty and heavy loads, the fuel consumption range is approximately between 35 and 45 liters per 100 kilometers. This is for reference only.
A: Common causes include:
• The power take-off is not fully engaged: Check if the gearshift lever is pushed in place.
• Insufficient or deteriorated hydraulic oil: Check the oil level and oil quality.
• Hydraulic system failures: including gear pump wear, lift valve jamming, cylinder leakage, etc., require professional maintenance.
A: Strictly follow the "Maintenance Manual", with key points including:
• Oil products: Regularly replace engine oil, diesel filters, hydraulic oil and filter elements.
• Tightening: Regularly inspect and tighten key fasteners such as U-bolts, wheel nuts, and leaf spring pins.
• Lubrication: Apply grease to all lubrication points (such as the hinge points of the lifting cylinder and the suspension points) on time.
• Cleaning: Keep the air filter and radiator clean to prevent engine overheating and insufficient power.
A: This indicates that the cab complies with international safety standards for Roll-Over Protective Structure and Falling Object Protective Structure. In the event of unexpected rollovers or occasional small rockfalls, providing the driver with a survival space is an essential safety design for mining vehicles.
Check the dashboard: Observe if any warning lights are on (such as engine failure, high temperature, insufficient air pressure, etc.).
Basic inspection: Check whether the oil, water, gas and electricity are normal.
Using smart terminals: If an intelligent management system is selected, fault code prompts can be viewed on the screen.
