Product Description

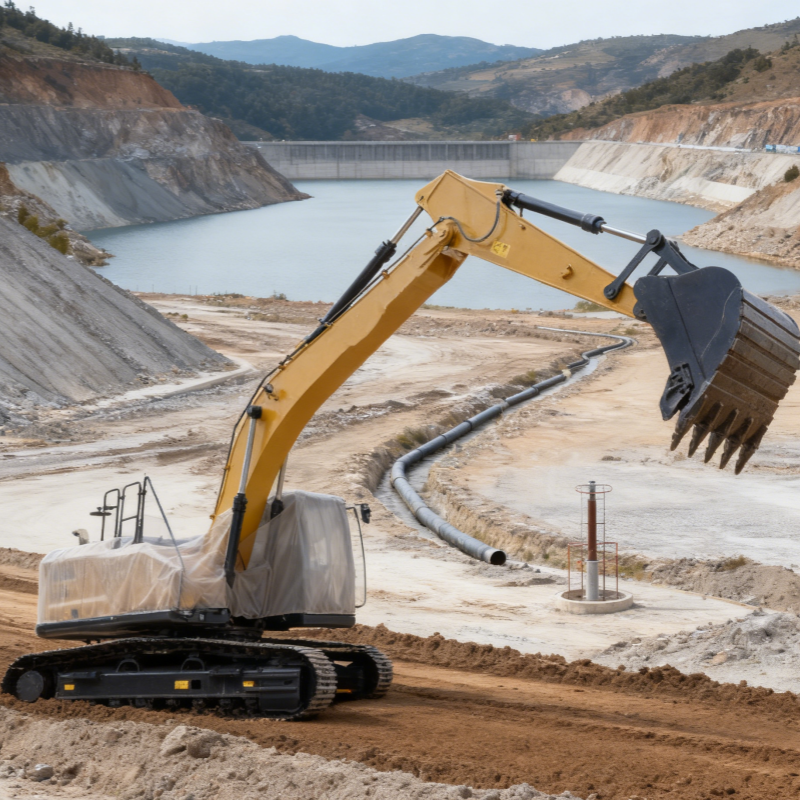

The XE225G is a high-performance 22-ton class crawler hydraulic excavator, specifically designed for medium-scale engineering projects. It adopts a reliable energy-saving engine and advanced intelligent hydraulic control system, ensuring stable power output, flexible operation and excellent fuel efficiency. With a standard 1.2m³ bucket and reinforced structural design, the excavator boasts strong digging force and long service life. The upgraded spacious cab is equipped with humanized operating controls, low-noise design and efficient HVAC system, providing a comfortable and safe working environment for operators. It supports quick attachment replacement, adapting to various working scenarios and becoming a cost-effective and reliable equipment for construction industries.
Product Advantages
Energy-Saving & Efficient: Equipped with a high-efficiency engine, combined with intelligent hydraulic system, reducing fuel consumption by 10% compared with conventional models, while ensuring strong power reserve.
Superior Durability: Reinforced boom, arm and frame, matched with wear-resistant crawler track shoes and bucket teeth, effectively improving resistance to impact and wear, extending service life by 25%.
Flexible & Precise Operation: Advanced hydraulic control technology ensures smooth and precise operation, flexible rotation and fast action response, improving construction efficiency.
Comfortable & Safe: Spacious cab with shock absorption seat, low noise (≤75dB), 7-inch touchscreen and rear camera, ensuring operator comfort and operation safety.
Strong Versatility: Supports quick replacement of attachments (bucket, hydraulic breaker, grapple, etc.), suitable for various construction tasks such as excavation, breaking, loading and grabbing.
Easy Maintenance: Optimized maintenance design, convenient access to key components, reducing maintenance time and cost.
Product Parameters
Item | Unit | Specification |
Operating Weight | kg | 22,300 |
Bucket Capacity | m³ | 1.2 (0.9-1.4 optional) |
Engine Model | - | Cummins QSB6.7-C150 |
Rated Power | kW/rpm | 110 / 2200 |
Bucket Digging Force | kN | 160 |
Arm Digging Force | kN | 115 |
Max. Digging Radius | mm | 9,800 |
Max. Digging Depth | mm | 6,400 |
Max. Dumping Height | mm | 6,800 |
Swing Speed | rpm | 11.5 |
Travel Speed (High/Low) | km/h | 5.5 / 3.2 |
Fuel Tank Capacity | L | 380 |
Hydraulic Tank Capacity | L | 150 |
Track Shoe Width | mm | 500 |
Track Gauge | mm | 2,200 |
Product Applications
Municipal Construction: Urban road construction, pipeline laying, greening engineering, and urban renewal projects.
Water Conservancy Projects: River dredging, reservoir construction, irrigation channel excavation, and flood control projects.
General Earthwork: Foundation excavation, soil backfilling, and site leveling for residential and commercial buildings.
Road & Bridge Construction: Highway and railway embankment construction, bridge foundation excavation, and roadbed finishing.
Quarrying & Mining: Small-scale stone mining, aggregate loading, and rock breaking (with hydraulic breaker attachment).
Agricultural Engineering: Farmland transformation, irrigation ditch digging, and rural infrastructure construction.
Operation Guide
1 .Pre-Operation Inspection
Check the levels of engine oil, coolant, hydraulic oil, and fuel, and make up for any shortage.
Inspect the crawler track tension, track shoes, bucket teeth, and hydraulic hoses for wear, damage, or leakage.
Verify the function of all lights, horn, rear camera, and safety alarms to ensure they work normally.
Check the cab controls (joysticks, foot pedals, buttons) to ensure they are in neutral position and flexible to operate.
Inspect the boom, arm, and bucket for cracks or deformation, and check the connecting pins and bushings for looseness.
2 .Starting & Operation
Enter the cab, fasten the seatbelt, adjust the seat and armrests to a comfortable position, and close the cab door.
Turn the key to the ON position, wait for the system self-check to complete (about 3 seconds), then press the one-key start button to start the engine.
Let the engine idle for 3-5 minutes to warm up, and check the instrument panel for abnormal indicators.
Operate the left joystick to control the swing of the upper body and the lifting/lowering of the boom; operate the right joystick to control the expansion of the arm and the opening/closing of the bucket.
Use the foot pedals to control the travel of the excavator (left pedal for left track, right pedal for right track); press the mode button on the touchscreen to switch between Eco/Standard/Power modes according to the workload.
When replacing attachments, stop the engine, turn off the power, and ensure the attachment is firmly connected before operation.
3 .Safety Rules
No personnel are allowed within the 8m working radius of the excavator to avoid safety accidents.
Do not operate on slopes with an angle exceeding 25°, and avoid turning or stopping on steep slopes.
Never exceed the rated load or dig beyond the bucket capacity to prevent structural damage.
Stop the engine, turn off the power, and pull the safety lock before performing inspection, maintenance, or attachment replacement.
Do not operate the excavator in severe weather (such as heavy rain, strong wind, or heavy fog) to ensure operation safety.
When leaving the operator’s seat, pull the safety lock and turn off the engine.
4 .Daily Maintenance
Grease the boom, arm, and bucket connecting pins every 8 working hours.
Clean the radiator, air filter, and fuel filter daily to ensure unobstructed ventilation and filtration.
Check the hydraulic oil temperature (normal range: 45-80°C) and pressure regularly to avoid overheating or abnormal pressure.
Inspect the undercarriage (track shoes, rollers, idlers) for wear and tighten loose bolts.
Drain the water from the fuel tank and fuel filter daily to prevent water from entering the engine.
FAQ
Q1: What is the fuel consumption of the XE225G per hour?
A1: The fuel consumption is 15-20 L/h, depending on the workload and operation mode. Eco mode is more fuel-efficient (15-17 L/h), while Power mode is suitable for heavy loads (18-20 L/h).
Q2: Can the XE225G work in high-altitude or low-temperature environments?
A2: Yes. It can work normally at an altitude of ≤3,000m, and the cold-start aid system ensures reliable start at -15°C. For higher altitude or lower temperature, customized configurations are available.
Q3: What attachments are compatible with the XE225G?
A3: It is compatible with a variety of attachments, including 0.9-1.4m³ buckets, hydraulic breakers (135/140), grapples, rippers, and augers, meeting different construction needs.
Q4: What is the service life of the XE225G?
A4: With proper daily maintenance, the service life can reach 15,000+ working hours, thanks to the reinforced structural design and high-quality components.
Q5: Is the XE225G a crawler or wheeled excavator?
A5: The XE225G is a standard crawler hydraulic excavator, equipped with crawler track chassis, which has strong ground adaptability and stability, suitable for complex construction sites.
Q6: What after-sales support is provided?
A6: We provide a 1-year/3,000-hour warranty (whichever comes first). There is a global service network, offering 24/7 parts supply and on-site technical support to solve problems in a timely manner.
