LW300FN
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction

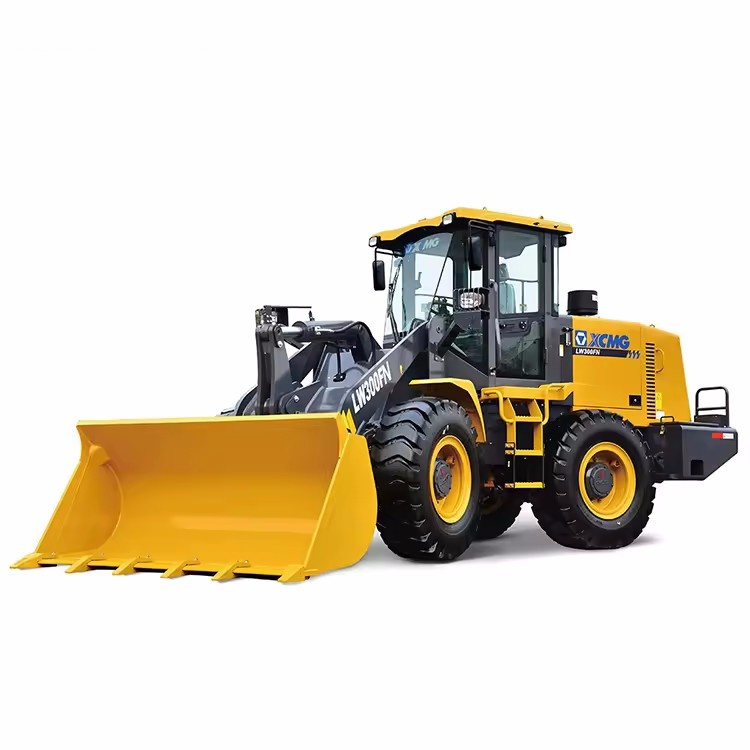

The LW300FN is a classic 3-ton class loader product that has been verified by the market for a long time. It perfectly balances power performance, economy, comfort and reliability. With its high availability rate, low failure rate and relatively low operating costs, it has become the preferred equipment for many individual users and large engineering companies, and is a highly competitive benchmark product in the medium-sized loader market.
Product Advantage
1. It features high efficiency, energy-saving, and strong power.
2. The three-element torque converter and the fixed shaft power shift transmission feature high maturity and reliability.
3. The 2600mm wheelbase features high mobility and flexibility and is applicable to all kinds of working sites.
4. The bucket is made of high strength material to realize high wear and impact resistance.
5. The diversified configurations and complete attachments adapt to the construction needs in different regions and under
different working conditions.
6. The optional A/C and the sound insulation and noise reduction measure build elaborately a comfortable operating environment.
Technical Parameters
| Description | Unit | Parameter value |
| Rated operating load | kg | 3000 |
| Bucket capacity | m³ | 1.5~2.5 |
| Machine weight | kg | 10600±200 |
| Dump clearance at maximum lift | mm | 2770~3260 |
| Reach at maximum lift | mm | 1010~1210 |
| Wheel base | mm | 2600 |
| Tread | mm | 1850 |
| Height of hinge at maximum lift height | mm | 3830 |
| Working height(fully lifted) | mm | 4870 |
| Max.breakout force | kN | 130 |
| Max.horse power | kN | 95 |
| Hydraulic cycle time-raise | s | 5.5 |
| Total hydraulic cycle time | s | 10 |
| Min. turning radius over tyres | mm | 5165 |
| Articulation angle | ° | 35±1 |
| Gradeability | ° | 28 |
| Tyre size | 17.5-25-12PR | |
| Overall machine dimension L×W×H | mm | 7050×2482×3118 |
| Model | WP6G125E22 | |
| Emission standards | Emission 2 | |
| Rated Power/Speed | kW/rpm | 92/2200 |
| Fuel Tank | L | 170 |
| Hydraulic Tank | L | 170 |
| Ⅰ-gear(F/R) | km/h | 8/10 |
| Ⅱ-gear(F/R) | km/h | 13/30 |
| Ⅲ-gear(F) | km/h | 24/- |
| Ⅳ-gear(F) | km/h | 40/- |
Product Uses
As a classic 3-ton wheel loader, the LW300FN has an extremely wide range of applications, almost covering all industries that require small and medium-sized loading and handling operations.
Its core uses are: to efficiently carry out the loading, handling, short-distance transportation of loose materials, as well as light excavation and pushing operations.
Product Operate Guide
Start the engine：
Make sure the gearshift lever is in neutral (N) position.
Confirm that the parking brake (handbrake) has been engaged.
Rotate the key to the "ON" (power on) position, wait for a few seconds (system self-check), and after the preheating indicator light on the dashboard goes off, continue to rotate it to the "START" (start) position to start the engine. Release the key immediately after starting.
After starting, let the engine idle for 3 to 5 minutes (about 700rpm) to warm up. Do not slam on the accelerator. Observe whether the readings of each instrument are normal.
Turn off the engine：
Let the engine idle for 3 to 5 minutes to cool down components such as the turbocharger.
Turn the key to the "OFF" position and the engine will turn off.
Take out the key, pull the handbrake tightly, and place wooden blocks under the wheels if necessary.
