Product Introduction

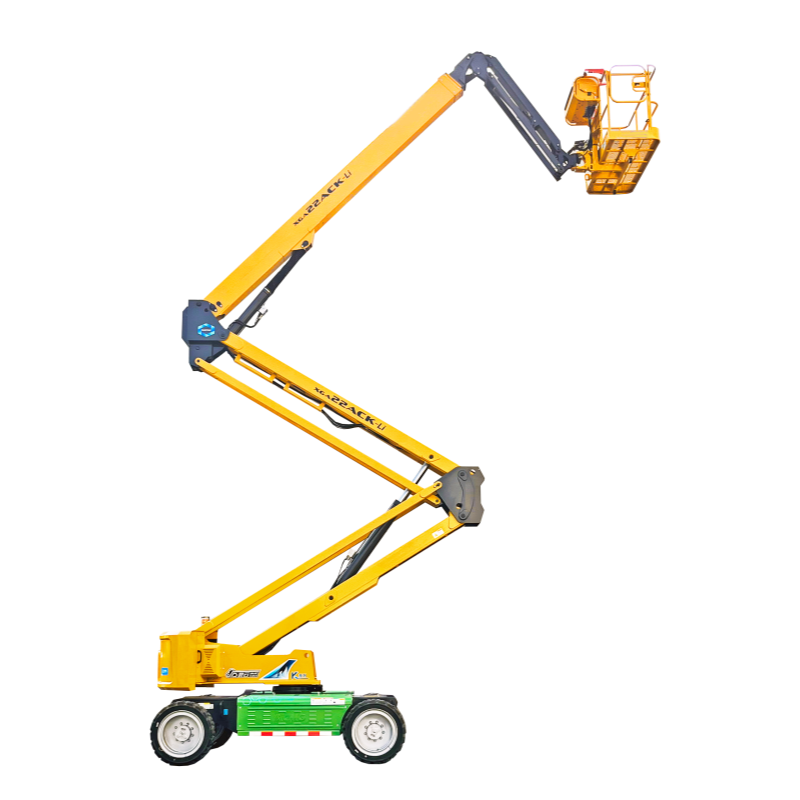

XGA22ACK is a self-driving electric articulated boom lift tailored for medium and high-altitude aerial tasks. It achieves a maximum working height of 22m and a peak horizontal outreach of 10.4m, with a standard load capacity of 227kg. Driven by a pure electric system, the equipment operates free of emissions with extremely low running noise. Featuring an articulated boom structure and zero tail swing design, it delivers superior flexibility for operation in narrow spaces and around site obstacles. It is widely adopted for indoor maintenance, commercial site servicing, building retrofitting and diverse outdoor aerial operations.
Product Advantages
Zero Tail Swing: No rear protrusion during turntable rotation, effectively preventing collision risks in narrow and confined working zones.
Flexible Articulated Boom: Multi-joint mechanical structure easily adapts to complex working angles and bypasses various on-site barriers.
Eco-friendly Electric Drive: Zero exhaust emissions and quiet running performance, suitable for indoor environments and eco-restricted construction sites.
Strong Terrain Adaptability: 45% climbing capacity guarantees steady traveling on inclined roads and uneven ground surfaces.
Compact Structure: Folded mini size enables convenient movement, easy storage and cost-efficient transportation.
Precise Hydraulic System: Ensures smooth boom stretching and retracting with simple and sensitive operation control.
Comprehensive Safety Configuration: Integrated with overload protection, tilt warning and emergency lowering devices for full safety coverage.
Low Operating Cost: Electric energy power mode cuts daily operational expenditure and reduces routine maintenance workload.
Product Specifications
Item | Unit | XGA22ACK |
Max. Working Height | m | 22 |
Max. Platform Height | m | 20 |
Max. Horizontal Outreach | m | 10.4 |
Rated Platform Load | kg | 227 |
Platform Dimension | mm | 1420 × 720 × 1100 |
Overall Dimension (Stowed) | mm | 8320 × 1780 × 2200 |
Total Weight | kg | 8200 |
Power Source | - | Electric Battery |
Travel Speed (Stowed / Extended) | km/h | 4.0 / 0.7 |
Max. Gradeability | % | 45 |
Turntable Rotation Angle | ° | 360° Continuous |
Platform Swing Angle | ° | 180 |
Ground Clearance | mm | 190 |
Tail Swing | - | Zero Tail Swing |
Application Scenarios
Indoor Maintenance: High-altitude cleaning, equipment inspection and interior renovation for factories, hotels and shopping malls.
Commercial Venues: Roof overhaul, lighting replacement and billboard installation in exhibition centers, theaters and stadiums.
Building Construction: Exterior wall refurbishment, pipeline installation and overhead auxiliary construction work.
Municipal Engineering: Street lamp maintenance, landscape pruning and roadside public facility upkeep.
Warehouse Logistics: Inspection and routine maintenance of high-level racks in large warehouses and logistics parks.
Operation Guide
Pre-operation Inspection
Check battery residual capacity to ensure sufficient power for ongoing operations.
Inspect tire pressure, surface condition and fastening status of wheel bolts.
Check hydraulic oil level and verify there is no fluid leakage.
Test safety railings, platform door, emergency stop key and alarm devices for normal performance.
Operating Steps
Switch on the main power supply and wait for system self-inspection completion.
Drive the equipment to a firm and flat ground, then activate the parking brake.
Operate the control levers slowly to lift, extend and rotate the boom to the designated working position.
Adjust the platform angle for precise positioning and avoid overloading the rated capacity.
Upon work completion, fully retract and lower the boom before cutting off the main power.
Safety Regulations
Do not exceed the 227kg rated load; the platform allows only one single operator.
Operate solely on solid ground with the working slope no more than 5 degrees.
Halt all operations immediately once wind speed exceeds 12.5m/s.
Operators must equip safety helmets and safety harnesses during high-altitude work.
Conduct regular inspection on safety components and hydraulic accessories.
FAQ
Q1: Is XGA22ACK applicable for indoor use?
A: Yes. It adopts full electric drive with zero emission and low noise. Its zero tail swing structure also makes it ideal for narrow indoor working spaces.
Q2: How long can it run continuously after being fully charged?
A: It supports 5 to 7 hours of continuous operation under standard working conditions. A full charging period takes around 8 hours.
Q3: What is zero tail swing?
A: The rotating turntable will not go beyond the machine body, effectively preventing collisions with surrounding obstacles.
Q4: Can it drive on sloped roads?
A: Yes. It features 45% gradeability and can travel steadily on regular slopes and rough terrain.
Q5: What safety features does it have?
A: It is equipped with overload protection, tilt alarm, emergency stop and emergency lowering system to ensure operational safety.
Q6: What is the warranty term?
A: The whole machine enjoys a warranty of 12 months or 2000 working hours, whichever comes first. Global after-sales and technical support are available.
