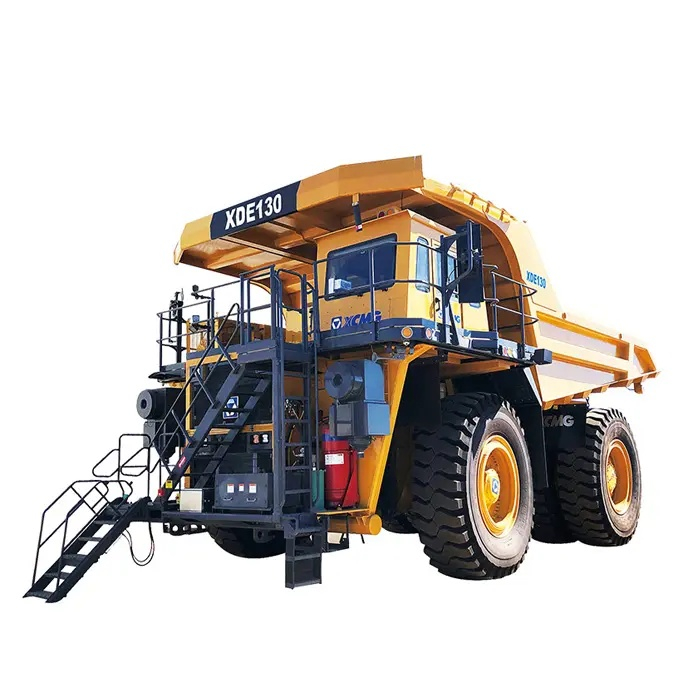

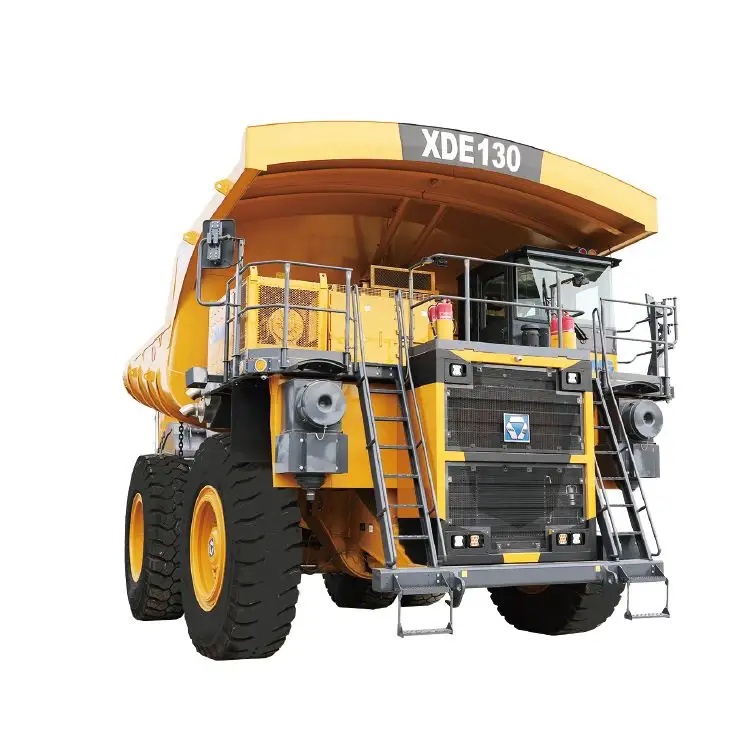

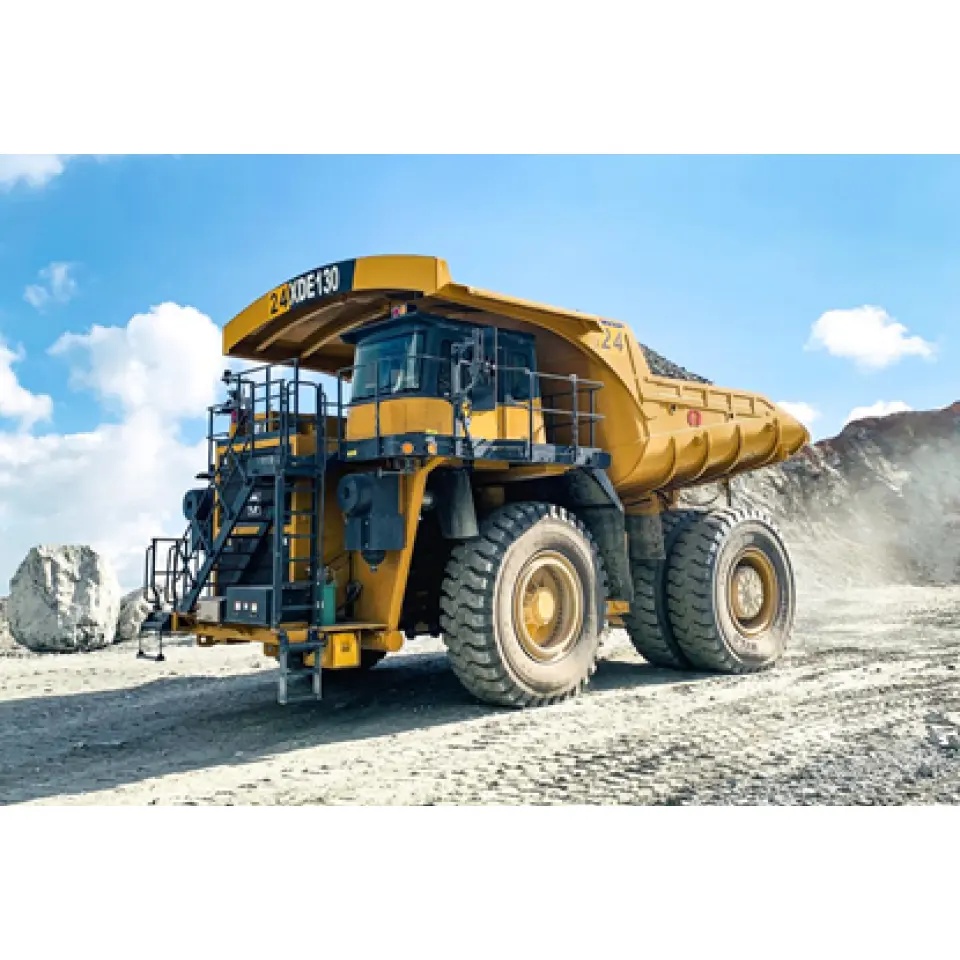

Xde130 130ton Mining Dumper Tipper Truck Price

Product Introduction

XDE130 Electric drive dump truck adopts original imported MTU electronically controlled diesel engine and electric drive system technology from Westinghouse Air Brake Technologies, which provides strong power, maximum speed is up to 50 km/h, maximum climbing degree 20%; rated load 120 t, suitable for 20 million tons of annual output construction of large-scale open-pit mine mining and large-scale earthwork transportation; the entire truck is equipped with automatic weighing system (optional), centralized fire extinguishing system (optional), centralized lubrication system, GPS system and various safety equipment to ensure safe and efficient operation of the entire truck. This truck has reached the domestic leading and international advanced level in terms of design, manufacturing and service maintenance.

Product Advantage

1.Super strong carrying capacity and efficient transportation: With a rated load capacity of up to 120,000 kg, it adopts large-volume bucket cargo boxes, which are perfectly matched with large electric shovels and hydraulic shovels. It has a huge single-trip transportation capacity and significantly improves the operational efficiency of the entire mine.

2. Advanced electric drive system: It adopts the electric drive mode of "diesel engine + alternator + AC drive motor".

This technology has the advantages of high traction, high vehicle speed, strong climbing ability and relatively simple maintenance, and is especially suitable for the complex and harsh road conditions in mining areas.

3. High reliability design

Frame structure: Key parts are made of high-strength alloy steel plates, and the finite element analysis (FEA) technology is applied for optimized design. It has strong torsional and impact resistance and a long service life.

◦ Key components: Mainly supplied to the world's top suppliers (such as Cummins engines, Siemens or GE electric drive systems, etc.), ensuring the outstanding performance and reliability of the core power chain.

Technical Parameters

Product Uses

Large open-pit coal mines: used for overburden stripping and raw coal transportation.

• Large-scale metal mines: such as iron mines and copper mines, etc., are used for the transportation of ores and waste rocks.

• Large-scale water conservancy projects: used for large-scale transportation of earthwork and stonework.

Product Operate Guide

The operation of the XDE130 mining dump truck must strictly comply with safety regulations. Before starting, a surround check should be conducted to ensure that there are no obstacles around the vehicle and that the tires, lights and hydraulic system are normal. Familiarize yourself with all the instruments and control switches in the driver's cabin. After starting, wait for the system self-check to complete. When driving, it accelerates and decelerates smoothly, and uses the characteristics of electric transmission for slow braking. When unloading, a flat and solid ground should be chosen. After a complete stop, lift the cargo box. After unloading, make sure the cargo box is completely reset before driving. During daily operations, it is necessary to closely monitor the alarm information of the vehicle's intelligent management system. If any abnormality is detected, stop the machine immediately for inspection.

FAQ

1.What are the advantages of electric drive over mechanical drive?

A: Advantages include: greater traction, better starting and climbing performance; Stepless speed change ensures smoother operation and less impact. It is easy to maintain and eliminates the need for complex mechanical gearboxes and drive shafts. It features regenerative braking function, which can recover energy when going downhill, saving fuel and reducing brake wear.

2.Where is the intelligence of vehicles reflected?

A: This is mainly reflected in the vehicle intelligent management system (VIMS) and the remote monitoring platform. It can monitor the health status of vehicles in real time, track their locations, manage fuel consumption, issue fault warnings and conduct data analysis, achieving efficient fleet dispatching and preventive maintenance.

3.What should be noted when driving on steep slopes?

A: Electric brakes (retarders) should be used in advance to control the vehicle speed, and the use of service brakes (foot brakes) should be minimized as much as possible to prevent the brakes from overheating and causing performance degradation or damage. Keep going downhill at a low speed and smoothly.

4.What are the precautions for lifting and lowering the cargo box?

A: When lifting and unloading materials, it is essential to ensure that the vehicle is completely stationary on a flat and solid ground. It is strictly prohibited to drive in the lifting state. After unloading is completed, the cargo box must be fully reset to the locking point before starting the vehicle.

5.What checks should be conducted before a daily trip?

A: A "round-trip inspection" should be carried out, including the tire pressure and wear condition, whether there is any oil or water leakage, whether the lights and horns are normal, whether there are visible cracks in structural components (such as the frame and suspension), and whether the braking system is reliable, etc.

6.What is the maintenance cycle for core components such as engines and electric drive systems?

A: Please strictly follow the official maintenance and care manual of Xu for the maintenance cycle. Generally, engines have specific intervals for oil and filter element replacement, while electric drive systems mainly focus on inspection, cleaning and performance testing. The specific cycle varies depending on the intensity of operation and working conditions.
