Product Introduction

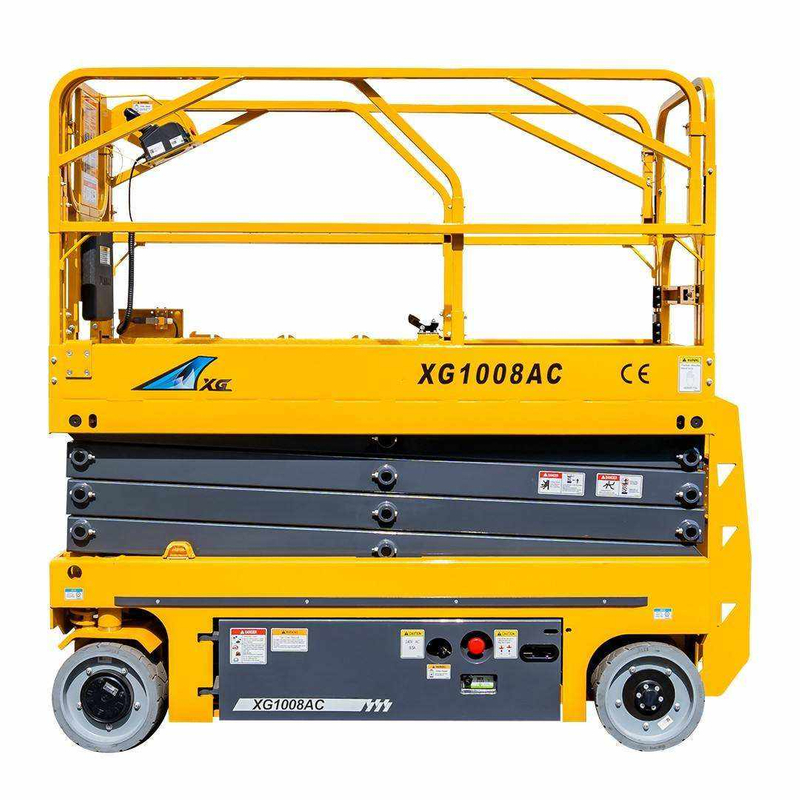

XG1008AC is a self-driving AC electric scissor lift built for medium-height aerial working assignments. It delivers a maximum working height of 9.8 meters together with a 230kg standard load capacity. Driven by a dependable alternating current system, the unit runs smoothly with quiet operation and zero pollutant emissions. Designed with compact body outlines, wear-resistant solid tires and reinforced all-steel scissor frames, it brings outstanding maneuverability and stable performance. Compliant fully with CE standard specifications, it serves as reliable equipment for indoor facility maintenance, commercial service jobs and light interior construction work.
Product Advantages
1.Stable AC Power Supply: Supplies consistent sustained power, perfect for long-duration indoor tasks with low running noise and zero exhaust pollution.
2.Compact & Agile Layout: Narrow overall body plus sensitive steering enables easy passage through standard doors, elevators and narrow aisle spaces.
3.Rigid & Long-Lasting Frame: Reinforced scissor supports and high-strength vehicle body extend service life while maintaining steady operation status.
4.Complete Safety Protection Suite: Pre-fitted with overload safeguard, tilt warning alarm, emergency stop switch, automatic pothole prevention and anti-slip working deck.
5.Expandable Working Platform: 0.9m stretchable deck enlarges operating space and lifts overall work efficiency.
6.User-Friendly Operation & Simple Upkeep: Intuitive control layout and streamlined mechanical design cut daily maintenance expenses and labor time.
7.Great Ground Compatibility: Durable solid tires guarantee smooth traveling on flat indoor floor surfaces.
Product Specification Table
Item | Specification |
Model | XG1008AC |
Max. Working Height | 9.8 m |
Max. Platform Height | 7.8 m |
Rated Load Capacity | 230 kg |
Extended Platform Load | 115 kg |
Platform Size (L × W) | 1670 × 740 mm |
Extended Platform Length | 0.9 m |
Overall Dimension (L×W×H, Folded) | 2120 × 810 × 2250 mm |
Total Weight | 1690 kg |
Outer Turning Radius | 1.75 m |
Ground Clearance | 20 mm (Raised) / 70 mm (Stowed) |
Travel Speed (Lowered / Raised) | 4.5 km/h / 0.8 km/h |
Gradeability | 25% |
Lifting Time | 18 ~ 35 s |
Lowering Time | 28 ~ 38 s |
Power Type | AC Electric + 24V Battery |
Certification | CE |
Application Scenarios
1.Warehouse & Logistics: Stock inspection, shelf assembly and indoor lighting maintenance within narrow warehouse aisles.
2.Office & Building Upkeep: Ceiling cleaning, air conditioner and pipeline maintenance for office towers and public service facilities.
3.Commercial Premises: Lamp replacement, billboard mounting and interior layout adjustment in shopping malls, hotels and exhibition centers.
4.Indoor Renovation Projects: Wall painting, circuit wiring and interior decoration for residential and commercial building projects.
5.Event Arrangement Work: Stage assembly, banner hanging and equipment setup for exhibitions and large-scale conferences.
6.Medium-height Indoor Aerial Work: All kinds of moderate-height overhead tasks carried out inside buildings.
Operation Guide
1. Pre-operation Inspection
Check AC power connection state, battery residual capacity, tire surface condition and hydraulic oil liquid level.
Examine safety guardrails, stretchable platform and locking pins to guarantee tight fixed installation.
Test emergency stop key, tilt alarm and pothole protection gear to confirm complete normal functionality.
Clear all on-site barriers and verify the working ground is flat and solid.
2. Driving Operation
Shift the key switch to ON position to start the lifting machine.
Control forward and backward travel via the joystick; traveling speed will be limited once the platform rises.
Carry out gentle steering movements. Avoid sharp turns or driving on slopes steeper than 25° during elevated work.
3. Lifting & Lowering
Hold the lift button to raise the platform; release the button to halt lifting movement.
Press the descending button to lower the platform. Keep the area underneath free of staff and obstacles.
Extend the auxiliary platform only after the main platform reaches full lifting height. Never surpass the rated load limit.
4. Safety Regulations
Overloading behavior is strictly forbidden: 230kg for main platform and 115kg for extended deck.
Do not drive on slopes exceeding 25 degrees while the platform stays lifted.
Operators must wear safety harnesses when performing any high-altitude tasks.
Fully lower and retract the stretchable platform before relocating the scissor lift.
5. Shutdown & Maintenance
Completely lower the platform and fold back the extended deck.
Turn off the key switch and disconnect the power supply.
Clean the machine exterior and check loose fittings or component damage.
Charge the battery promptly after finishing work. Store the lifting equipment inside dry, ventilated spaces.
FAQ
Q1: What is the maximum working height of XG1008AC?
A: Its maximum working height reaches 9.8m, with a maximum platform height of 7.8m.
Q2: What power configuration does this model adopt?
A: It matches alternating current power with a 24V storage battery to deliver stable continuous operation.
Q3: Is this scissor lift available for outdoor operations?
A: It is primarily designed for indoor usage. Short-duration light outdoor work on flat ground is allowed. Avoid operation under heavy rain, strong wind and rugged terrain.
Q4: What weight can the extended platform bear at maximum?
A: The stretchable platform can hold a peak load of 115kg; overloading is strictly banned.
Q5: How many staff can stand on the platform at one time?
A: The platform supports up to two operators, with total weight not exceeding 230kg.
Q6: What safety assemblies come as standard fitment?
A: It is fitted with overload protection, tilt alarm, emergency stop, automatic pothole protection and anti-slip platform surface.
