SQZ4500B Super Heavy Articulated Lorry Crane 100ton Low Clearance Folding Boom Crane 23.9m Radius For Petrochemical Industrial Hoisting

Product Description

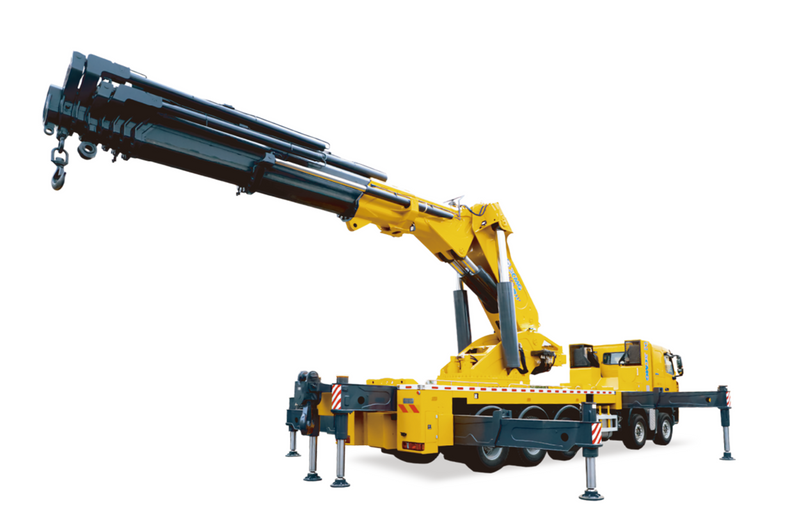

The SQZ4500B hydraulic folding boom crane is a top-tier ultra-heavy load lifting equipment, specially developed for super-large hoisting tasks that conventional telescopic cranes and ordinary folding cranes cannot accomplish. It adopts premium high-strength 12-sided polygonal steel boom and integral one-piece box frame forging technology, which greatly enhances overall bending resistance, torsion resistance and structural stability, effectively eliminating boom jitter and deformation during full-load and long-radius operation to realize precise heavy-load positioning.

Equipped with optimized multi-section telescopic folding boom system, the crane achieves a maximum working radius of 23.9m, covering an ultra-wide operation range and reducing frequent vehicle position adjustment to greatly improve construction efficiency. It adopts advanced dual-pump confluence large-flow hydraulic system, featuring fast lifting response, stable power output, low energy consumption and excellent continuous working performance. Built-in multi-stage hydraulic buffer protection devices ensure smooth and steady boom extension, retraction and luffing, minimizing equipment wear and extending service life.

The integrated rotary table and counterweight box design optimizes the overall force transmission structure and further improves operation stability under ultra-heavy loads. Supported by dual high-torque reducers and full hydraulic slewing drive, the crane realizes 360° dead-angle-free full rotation for all-directional flexible operation in complex construction sites. Full-span multi-stage telescopic reinforced hydraulic outriggers expand the supporting area comprehensively, providing ultra-high safety and stability for 100-ton super-heavy hoisting. It supports intelligent upgrades including wireless remote control, real-time load monitoring and automatic overload protection. All finished cranes undergo strict full-load factory testing and aging inspection to ensure stable and durable operation in harsh industrial environments.

Product Advantages

• Flagship Ultra-heavy Lifting Performance:

  Industry-leading 4500kN·m rated torque and 100-ton standard lifting capacity (92.5-ton practical working load), breaking the performance limit of traditional folding cranes and fully meeting super-large industrial heavy hoisting demands.

• Upgraded 12-sided Polygonal Boom:

  Premium twelve-sided high-strength steel boom and integral forging process greatly improve structural rigidity, anti-bending and anti-torsion ability, ensuring stable and jitter-free operation under full-load and long-radius working conditions.

• Ultra-long Working Radius & High Efficiency:

  23.9m super-long maximum working radius covers a larger operation area, reducing vehicle moving frequency and significantly improving overall construction efficiency for large-scale projects.

• Exclusive Limited-space Operation Capacity:

  Compact full-folding design realizes ultra-low body height, enabling super-heavy hoisting in low workshops, enclosed warehouses, tunnels and narrow urban sites where large all-terrain cranes cannot access.

• Efficient Confluence Hydraulic System: Dual-pump large-flow confluence hydraulic technology delivers fast lifting speed, sensitive response and stable operation, supporting long-term high-intensity continuous industrial operation with low energy consumption.

• 360° Unlimited Full Rotation:

  Dual high-torque reducer driving system ensures smooth, stable and dead-angle-free all-round rotation, adapting to various complex and irregular large-scale construction scenarios.

• Integrated Reinforced Stable Structure:

  One-piece box frame + integrated rotary counterweight box design optimizes force transmission, matched with full-span reinforced telescopic outriggers to effectively prevent tilting risks during ultra-heavy load operation.

• Intelligent & Customizable Configuration:

  Optional wireless remote control, real-time load monitoring system, overload self-protection system and multi-functional accessories, supporting personalized adaptation for high-dust, high-humidity and low-temperature harsh working environments.

Technical Parameters

Product Applications

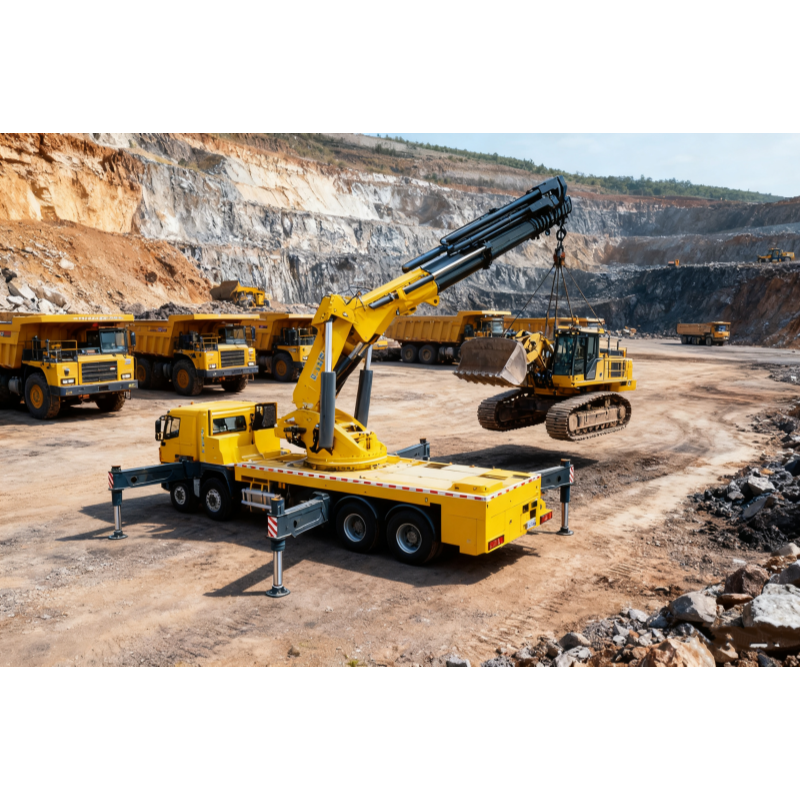

• Super-large Industrial Equipment Installation:

  Precision hoisting, positioning and displacement of 100-ton ultra-heavy mechanical equipment, large steel structures and core industrial components in heavy industrial parks and closed factory buildings.

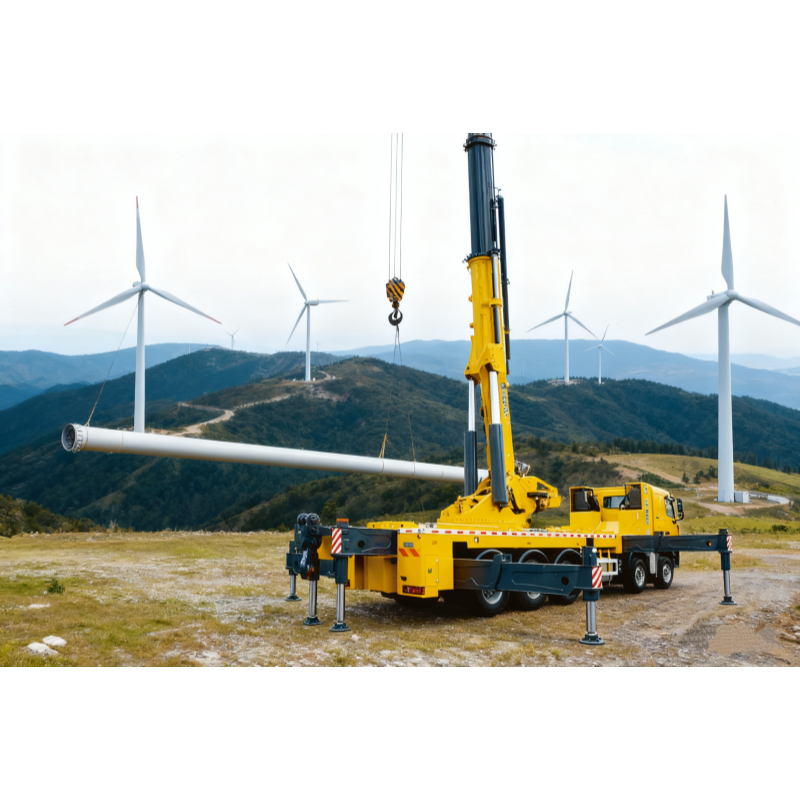

• Petrochemical & New Energy Engineering:

  Hoisting, installation and maintenance of large chemical storage tanks, power station units, wind power equipment and heavy pipeline facilities for petrochemical, thermal power and new energy projects.

• Urban Large-scale Municipal Renovation:

  Super-large bridge erection and maintenance, urban viaduct reconstruction, overhead traffic facility replacement and high-altitude heavy-duty municipal construction.

• Ultra-limited Space Operation:

  Professional super-heavy hoisting in low-height workshops, enclosed warehouses, tunnel interiors and narrow urban areas inaccessible to traditional large truck cranes.

• Port & Terminal Heavy Logistics:

  Loading, unloading and transshipment of super-large containers, heavy bulk cargo and oversized engineering equipment at ports, freight terminals and large logistics hubs.

• National Key Infrastructure:

  Heavy material hoisting, large equipment assembly and engineering construction for highway, railway, water conservancy and bridge super projects.

• Major Emergency Heavy Rescue:

  On-site clearance of super-large engineering obstacles, heavy equipment rescue and emergency hoisting for major industrial and construction accidents.

FAQ

Q1: What core advantages does SQZ4500B have over conventional heavy cranes?

A: The SQZ4500B is a flagship 100-ton super-heavy folding boom crane with 4500kN·m ultra-high torque, filling the gap in large-tonnage folding crane technology. It uniquely combines ultra-heavy 100-ton lifting capacity and low-clearance flexible operation, solving the industry pain point that large truck cranes cannot enter narrow spaces and ordinary cranes cannot lift super-heavy loads. Equipped with 12-sided high-rigidity boom and integrated stable structure, it ensures high-precision and high-efficiency heavy-load construction.

Q2: Does the SQZ4500B support full-angle dead-angle-free operation?

A: Yes. Adopting dual high-torque reducer full hydraulic driving system, the crane supports 360° continuous unlimited full rotation with stable and smooth slewing performance. Matched with the 23.9m ultra-long working radius and flexible folding boom adjustment, it adapts to various complex, narrow and irregular large-scale construction scenarios.

Q3: What kind of chassis is compatible with the 100-ton SQZ4500B crane?

A: This ultra-heavy flagship crane is exclusively matched with customized multi-axle heavy-duty special truck chassis to guarantee bearing safety and driving stability. We provide one-stop professional chassis selection, personalized modification and overall scheme design according to local road transportation standards and actual working conditions.

Q4: What intelligent upgrade configurations are available?

A: The standard configuration is reliable manual hydraulic operation. It can be upgraded with intelligent wireless remote control, real-time load monitoring, automatic overload protection and fault self-diagnosis system, realizing safer, more precise and intelligent ultra-heavy load operation.

Q5: What are the delivery cycle and after-sales warranty policies?

A: The delivery time of standard SQZ4500B is 35–45 working days after deposit confirmation. We provide 12 months official factory warranty, lifelong free professional technical guidance, remote fault diagnosis and cost-price spare parts supply for global customers.

Q6: Can the equipment be customized for special working environments?

A: Full personalized customization is supported. We can customize high-grade anti-corrosion coating, reinforced outriggers, environment-resistant hydraulic components and multi-functional working accessories to adapt to high dust, high humidity, low temperature and other harsh industrial working conditions.
