Product Overview

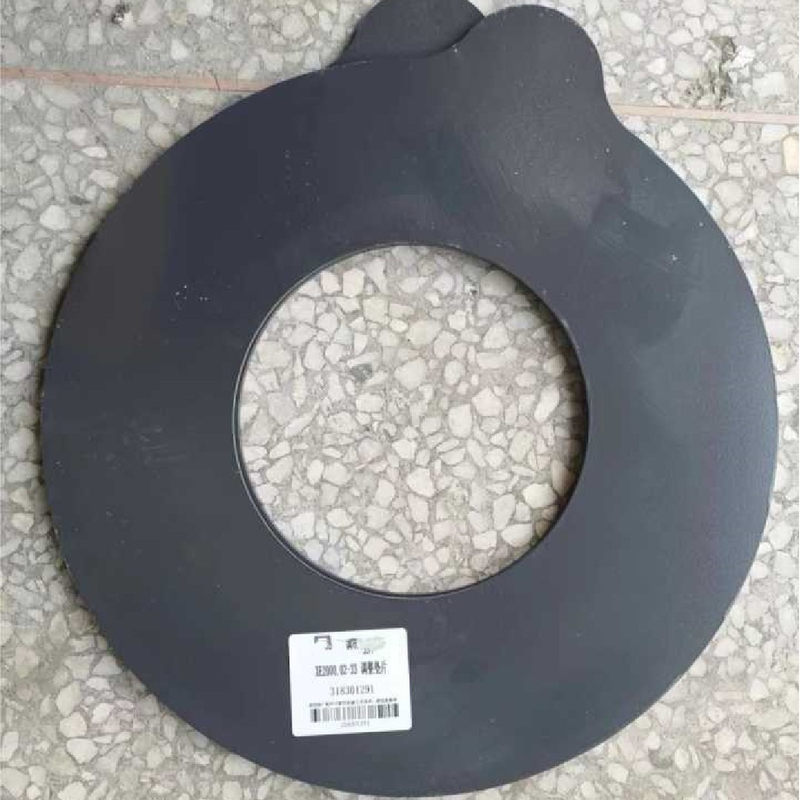

The XE2000 Excavator Adjusting Shim (Part No.: XE2000.02-33, 318301291) is a high-precision, essential spare part specifically designed for the XE2000 heavy-duty mining crawler excavator. As a thin, flat precision component, it is mainly used to fill gaps between the excavator’s key moving parts (such as bucket pins, arm pins, boom joints, and linkages) to adjust clearance, correct alignment, and compensate for wear-induced looseness. Made of high-quality cold-rolled steel with professional heat treatment, this adjusting shim features high flatness, strong wear resistance, and precise dimensional accuracy, perfectly matching the XE2000’s structural specifications. It plays a crucial role in reducing component wear, lowering operational noise, improving transmission efficiency, and ensuring the stable and safe operation of the excavator’s mechanical system in harsh mining environments, while providing a 3-month warranty for quality assurance.

Key Advantages

• High Precision & Dimensional Accuracy: Manufactured with advanced CNC machining technology, the shim has a flatness tolerance of ±0.01mm and precise thickness control, ensuring it can accurately fill gaps between components and achieve optimal alignment adjustment, avoiding slack and movement of excavator parts.

• Durable & Wear-Resistant Material: Adopts high-quality 45# steel or cold-rolled steel (CRS 1008/1010) with heat treatment and surface anti-corrosion treatment, featuring high hardness (70-90 HRB), excellent wear resistance, and oxidation resistance, which can withstand long-term friction and heavy load impact in mining environments.

• Perfect Compatibility: Strictly designed according to the original parameters of the XE2000 excavator, it fully matches the mounting size and gap requirements of the machine’s bucket, arm, and boom joints. No modification is needed, and it can be directly installed and used, ensuring consistent performance of the excavator’s mechanical system.

• Wear Compensation & Alignment Correction: Effectively compensates for uneven wear of excavator components caused by long-term operation, fills gaps between parts, prevents premature wear of pins, bushings, and joints, and optimizes the operational performance of the excavator.

• Easy Installation & Maintenance: Lightweight, thin-structured, and easy to handle, it can be quickly installed and adjusted without professional tools or complex procedures, reducing maintenance time and labor costs for the excavator.

• Quality Guaranteed with Warranty: Undergoes strict quality inspection (including dimensional measurement, hardness testing, and flatness detection) before leaving the factory, with a 3-month warranty. Any quality problems caused by manufacturing defects will be replaced free of charge, ensuring reliable use for customers.

Product Specifications (Table)

Product Applications

The XE2000 Excavator Adjusting Shim is a dedicated precision component for the XE2000 heavy-duty mining crawler excavator, mainly used in the following scenarios to ensure the stable operation of the machine’s mechanical system:

• Open-Pit Mining Sites: Used to adjust the clearance between the XE2000’s bucket pins, arm pins, and boom joints during mineral extraction and stripping operations. It compensates for wear caused by long-term heavy load and friction, preventing component slack and ensuring stable operation of the excavator in high-dust, high-vibration environments.

• Quarry & Rock Excavation: Adjusts the alignment of the excavator’s bucket and arm linkages during hard rock digging and aggregate production, filling gaps caused by rock impact and wear, reducing noise and component damage, and improving operational efficiency.

• Large-Scale Earthmoving Projects: Ensures precise alignment of the XE2000’s moving parts during dam construction, highway and railway foundation construction, and port expansion, avoiding premature wear of pins and bushings, and extending the service life of the excavator’s mechanical system.

• Daily Maintenance & Wear Compensation: Used as a standard spare part for XE2000 excavators. During daily maintenance, it is used to replace worn shims, adjust component clearance, and compensate for uneven wear of mechanical parts, restoring the excavator’s optimal operational performance.

• Harsh Environment Operations: Suitable for high-altitude, extreme-cold, and humid regions (such as Australia, South America, Central Asia). Its anti-corrosion and high-temperature resistance design ensures stable performance in extreme environments, maintaining the normal operation of the excavator’s mechanical system.

Operation Guidelines (Installation, Replacement & Safety)

1 .Pre-Installation Preparation

• Before installation, shut down the XE2000 excavator’s engine and place the machine in a stable position (bucket on the ground) to ensure safe operation during installation.

• Check whether the part number, thickness, and size of the adjusting shim match the XE2000’s specifications and the gap requirements of the installation position to avoid mismatched shims affecting adjustment effect.

• Inspect the shim for damage (such as deformation, cracks, or surface corrosion) and clean the installation surface (between pins, bushings, and joints) to remove dust, oil, and debris, ensuring good contact between the shim and components.

• Prepare necessary tools (such as wrenches, screwdrivers, and micrometers) to facilitate installation and clearance measurement.

2 .Installation Steps

1. Loosen the bolts or fasteners of the excavator’s joint (bucket pin, arm pin, or boom joint) using a wrench, and slightly separate the components to create a gap for shim installation.

2. According to the measured gap size, select the appropriate thickness of the adjusting shim (start with the thinnest shim and add more as needed) and insert it into the gap between the components, ensuring the shim is flat and closely attached to the component surface without tilting or looseness.

3. Adjust the position of the shim to ensure it is aligned with the component’s mounting surface, then tighten the bolts or fasteners to the specified torque (refer to the XE2000 excavator manual) to fix the components and shim firmly.

4. After installation, check the clearance between the components (recommended clearance: 0.5-1.0mm) using a micrometer. If the clearance is too large or too small, adjust the number or thickness of the shims until the optimal clearance is achieved.

5. Start the excavator and run it at idle speed, operate the boom, arm, and bucket to check for abnormal noise or stuck movement. If everything is normal, the installation is complete.

3 .Replacement Steps

1. Shut down the engine, place the excavator in a stable position, and pull the pilot control shut-off lever to the lock position to ensure safety.

2. Loosen the bolts or fasteners of the joint where the old shim is installed, slightly separate the components, and use a screwdriver to gently take out the old, worn shim (if the shim is stuck, do not pull hard to avoid damaging the components).

3. Clean the installation surface thoroughly, remove accumulated dust, oil, and rust, and inspect the components for wear or damage (if components are severely worn, repair or replace them first).

4. Install the new adjusting shim according to the installation steps, select the appropriate thickness to ensure the optimal clearance between components, and tighten the bolts firmly.

5. Test the excavator’s operation to confirm that there is no abnormal noise, and the boom, arm, and bucket move smoothly. Record the replacement time for subsequent maintenance reference.

4 .Safety Guidelines

• Do not install or replace the shim when the excavator is running or powered on to avoid injury caused by sudden component movement.

• Do not use shims with incorrect thickness or size, as this may cause excessive tightness or looseness of components, leading to mechanical failures or component damage.

• During installation, ensure the shim is flat and closely attached to the component surface; do not use deformed or damaged shims.

• After installation, must check the component clearance and tighten the bolts to the specified torque to prevent the shim from falling off during operation, which may cause equipment failure or safety accidents.

• Store unused shims in a dry, clean environment, avoid moisture, corrosion, or deformation, and ensure they can be used normally when needed.

FAQ

What are the part numbers of the XE2000 Adjusting Shim?

The part numbers are XE2000.02-33 and 318301291, which are fully compatible with the XE2000 heavy-duty mining crawler excavator.

What is the thickness range of this adjusting shim?

The standard thickness range is 0.1mm - 2.0mm, and we can also provide customizable thickness according to the specific gap requirements of your XE2000 excavator.

How to choose the correct thickness of the shim?

First, measure the gap between the excavator’s components (bucket pin, arm pin, etc.) using a micrometer, then select the shim thickness that can fill the gap and ensure the optimal clearance (0.5-1.0mm) between components.

What is the warranty period of this adjusting shim?

It provides a 3-month warranty. If there are quality problems caused by manufacturing defects within the warranty period, we will provide free replacement.

Why is the adjusting shim important for the XE2000 excavator?

The shim fills gaps between components, adjusts alignment, compensates for wear, reduces component friction and noise, prevents premature wear of pins and bushings, and ensures the stable and safe operation of the excavator’s mechanical system.

Can this shim be reused after disassembly?

It is not recommended to reuse it. After disassembly, the shim may be deformed or worn, which will affect the adjustment effect and may cause damage to the excavator’s components. It is recommended to use a new shim for replacement.
