Product Introduction

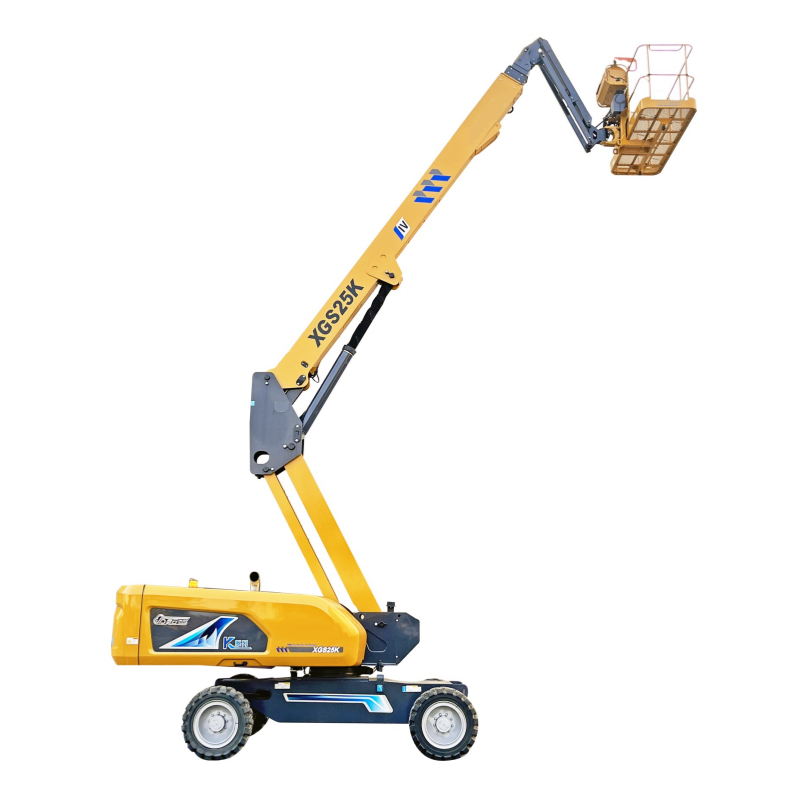

XGS25K is a diesel-powered self-propelled telescopic boom lift for heavy-duty aerial work. It delivers a 25m max working height, 17.9m horizontal outreach, and 300kg (unrestricted) / 460kg (limited) dual load capacity. With precise design, powerful drive, easy operation, and 360° continuous turntable rotation, it ensures high stability and efficiency for outdoor high-altitude tasks in construction, steel structure, petrochemical, municipal, large venues, and rental fleets.
Product Advantages
Superior Working Performance: 25m height, 17.9m outreach, 300/460kg dual load, meeting heavy-load long-reach demands.
Powerful Diesel Drive: Strong gradeability up to 45%, 4WD + axle balance system for excellent rough-terrain adaptability.
Flexible 360° Rotation: Unlimited turntable rotation + 160° platform swing for all-round positioning without blind spots.
Advanced Hydraulic System: Load-sensing hydraulics with gravity descent for smooth, stable, energy-saving operation.
High Safety & Stability: Real-time load monitoring, dynamic gravity adjustment, automatic leveling, emergency power unit.
Compact Transport Size: Stowed height under 3m, easy transport on standard trailers, reducing logistics costs.
Durable & Low Maintenance: Heavy-duty chassis, robust hydraulic piping, long service life, ideal for rental fleets.
Product Specifications
Item | Unit | XGS25K |
Max. Working Height | m | 25 |
Max. Platform Height | m | 23 |
Max. Horizontal Outreach | m | 17.9 |
Rated Load Capacity | kg | 300 (unlimited) / 460 (limited) |
Platform Dimension | mm | 2440 × 910 × 1150 |
Overall Dimension (Stowed) | mm | 10300 × 2500 × 2980 |
Total Weight | kg | 12750 |
Power Source | - | Diesel Engine |
Travel Speed | km/h | 6.5 (stowed) / 0.7 (extended) |
Max. Gradeability | % | 45 |
Turntable Rotation | ° | 360° Continuous |
Platform Swing Angle | ° | 160 |
Boom Luffing Range | ° | -3 ~ +75 |
Fly Jib Luffing Range | ° | -65 ~ +70 |
Min. Turning Radius (Outside) | m | 4.9 |
Ground Clearance | mm | 320 |
Application Scenarios
Building Construction: Exterior wall installation, glass curtain wall fitting, steel structure erection, high-rise maintenance.
Municipal & Traffic: Streetlight/traffic signal repair, bridge inspection, highway sign installation, tree trimming.
Petrochemical & Energy: Pipeline maintenance, equipment inspection, flare stack repair in refineries and power plants.
Large Venues: Stadium/airport/exhibition center roof maintenance, lighting/audio system installation.
Rental & General Hire: Versatile for outdoor projects, ideal for rental fleets due to high reliability and low maintenance.
Operation Guide
Pre-operation Inspection
Check diesel fuel, engine oil, hydraulic oil levels; ensure no leaks.
Inspect tire pressure and damage; verify wheel bolts are tight.
Test safety systems: guardrails, door locks, limit switches, emergency stop.
Confirm battery voltage and emergency power unit (EPU) function normally.
Operating Steps
Start diesel engine; wait for system self-check and stable idle.
Drive to firm, level area; apply parking brake and chock wheels.
Operate boom controls slowly: luff, extend, rotate turntable to target.
Adjust 160° platform swing for precision; avoid overloading.
After work: retract boom fully, lower platform, shut down engine, remove keys.
Safety Regulations
Never exceed rated load: 300kg unrestricted / 460kg limited; max 2 operators.
Operate only on solid ground; max allowable slope: 5° when working.
Stop operation if wind speed > 12.5m/s (strong wind).
Operators must wear safety harnesses, helmets, non-slip shoes.
Regularly inspect safety sensors, limit devices, hydraulic components.
FAQ
Q1: What’s the difference between 300kg and 460kg modes?
A: 300kg is unrestricted (full outreach allowed); 460kg is limited (reduced outreach for safety). Choose based on job reach and weight needs.
Q2: What is the fuel consumption and tank capacity?
A: Typical fuel consumption: 9–11 L/h (varies with load). Standard tank: ~160L, ensuring long working hours per refill.
Q3: Can it work on muddy or uneven ground?
A: Yes. 45% gradeability, 4WD, axle balance, and 320mm ground clearance enable stable travel on mud, gravel, rough terrain.
Q4: What safety features are standard?
A: Standard: emergency stop, overload protection, tilt alarm, 360° safety sensors, automatic leveling, EPU for lowering during engine failure.
Q5: Is transport easy?
A: Yes. Stowed dimensions: 10.3m × 2.5m × 2.98m, fits standard low-bed trailers; height under 3m simplifies logistics.
Q6: What is the warranty?
A: 12 months / 2000 hours (whichever first) full machine warranty. Core components (engine, pump, motor) have extended coverage. Global after-sales support available.
