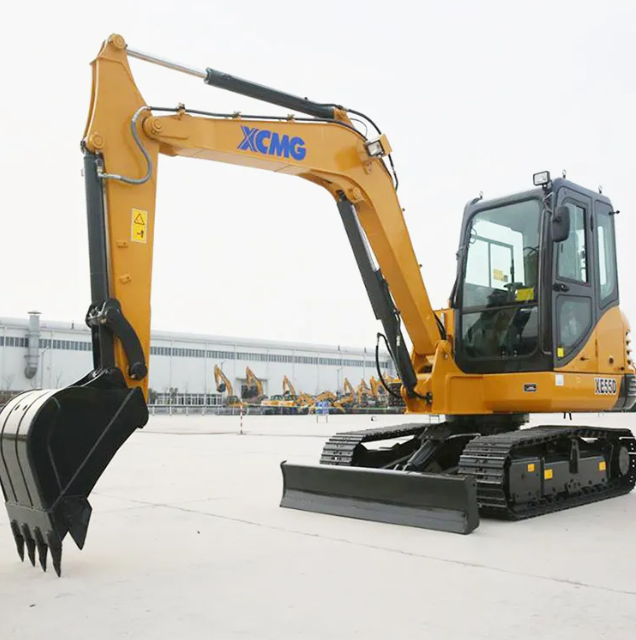

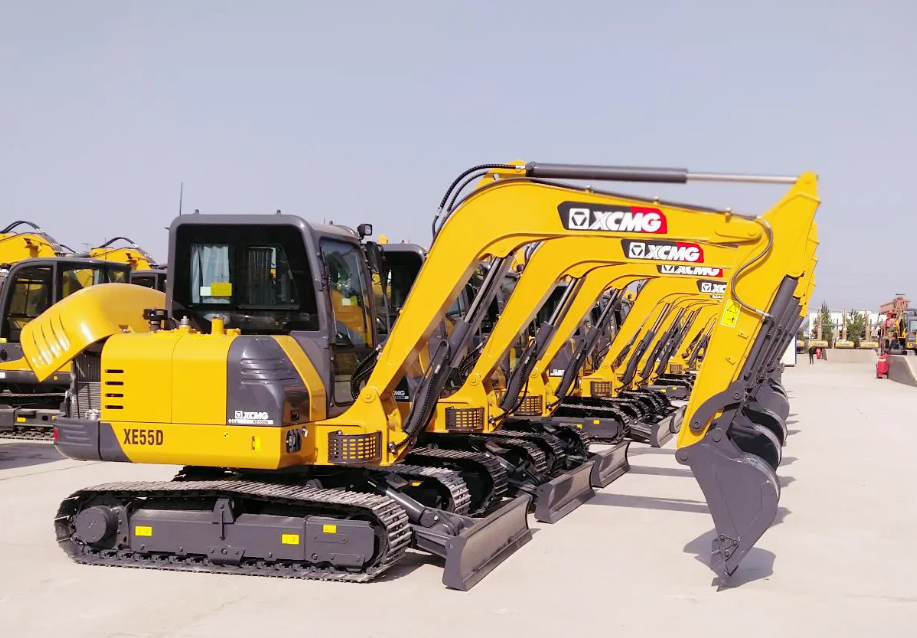

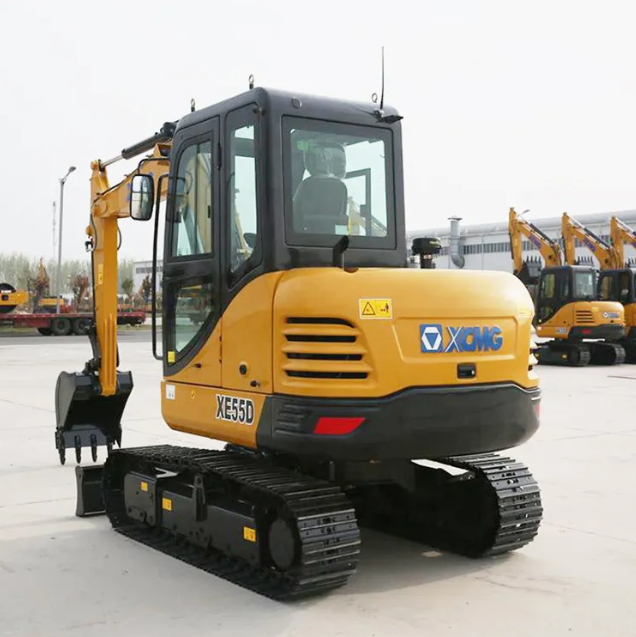

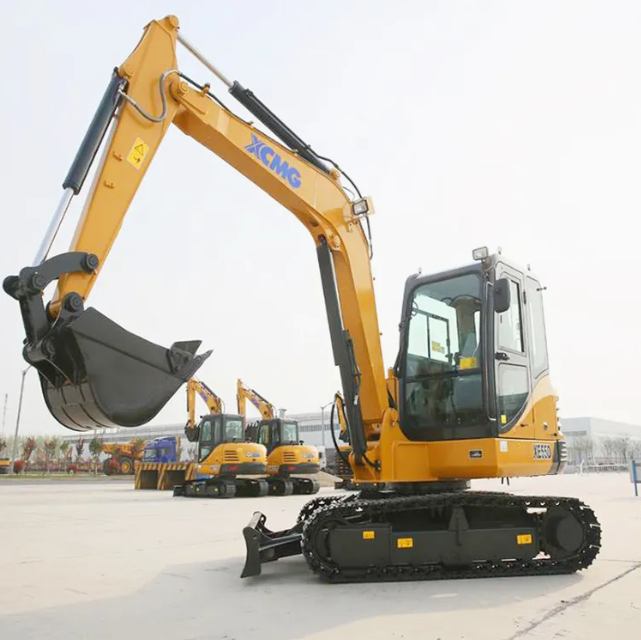

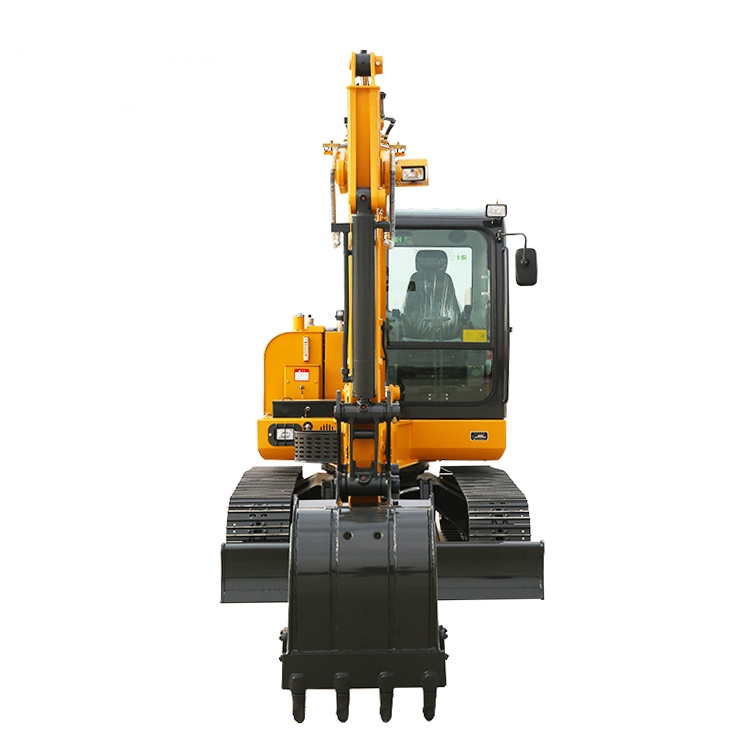

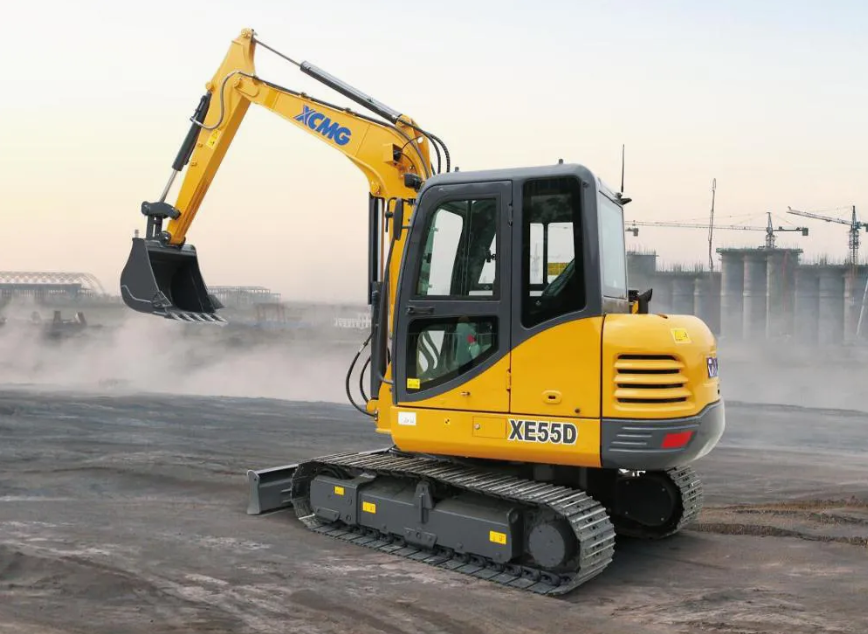

XE55D
| Availability: | |
|---|---|
| Quantity: | |
| Model | Unit | XE55D | |
| Operating weight(without dozer blade) | Kg | 5700 | |
| Bucket capacity | m³ | 0.2 | |
| Engine | Engine Model | / | 4TNV94L-BVXG |
| No. of cylinders | / | 4 | |
| Rated power/speed | kw/rpm | 36.2/2200 | |
| Maximum torque/speed | N.m | 210.6/1260 | |
| Displacement | L | 3.054 | |
| Main performance | Travel speed(H/L) | km/h | 4.2/2.2 |
| Rotating speed | r/min | 10 | |
| Gradeability | ° | ≤35 | |
| Ground pressure | kPa | 31 | |
| Bucket digging force | kN | 48.3 | |
| Arm digging force | kN | 32.5 | |
| Maximum tractive force | kN | 50.5 | |
| Rated flow of main pump | L/min | 149.1 | |
| Main safety valve pressure | MPa | 24 | |
| Travel system pressure | MPa | 24 | |
| Swing system pressure | MPa | 21 | |
| Pilot system pressure | MPa | 3.5 | |
| Oil Capacity | Fuel tank capacity | L | 110 |
| Hydraulic tank capacity | L | 77 | |
| Engine oil capacity | L | 10 | |
| Appearance size | Overall length | mm | 5860 |
| Overall width | mm | 1950 | |
| Overall height | mm | 2585 | |
| Width of platform | mm | 1780 | |
| Track length | mm | 1920 | |
| Total width of chassis | mm | 400 | |
| Track gauge | mm | 1500 | |
| Counterweight clearance | mm | 700 | |
| ground clearance | mm | 385 | |
| Working range | Max. digging height | mm | 5630 |
| Max. dumping height | mm | 3945 | |
| Max. digging depth | mm | 3830 | |
| Max. vertical wall digging depth | mm | 2680 | |
| Max. digging reach | mm | 6130 | |
| Min. swing radius | mm | 2460 | |
| Standard | Length of boom | mm | 3000 |
| Length of arm | mm | 1600 | |
| Bucket capacity | m³ | 0.2 | |
The 0-2m crawler excavator specializes in shallow-depth digging tasks, featuring a maximum digging depth of 0.5m to 2.0m and operating weight of 800 kg to 2,000 kg. Designed for precision work in confined spaces, it has a ultra-compact width of 700 mm to 1,000 mm—able to pass through narrow garden paths and indoor doorways. Powered by a 10-22 kW gasoline/diesel engine (EPA Tier 4 compliant), it offers fuel efficiency (2.0-2.8 L/hour) and low emissions (particulate matter ≤0.02 g/kWh). Equipped with a 0.03-0.08 m³ mini bucket, it excels at detailed digging tasks where larger excavators cannot access.
Shallow-Dig Precision: Hydraulic bucket control with ±5mm accuracy ideal for installing small trenches (100-300mm width) and shallow foundations; adjustable digging angle (0-90°) for varied soil types.
Ultra-Compact Design: 700-1000mm width × 2200-3000mm length × 1500-1800mm height fits through 800mm-wide gaps (e.g., between garden sheds, inside garages).
Lightweight Crawler System: 300mm-wide rubber crawlers with reinforced treads provide traction on wet soil and paved surfaces; total weight ≤2,000 kg for easy transport.
Versatile Attachment Compatibility: Works with mini buckets, narrow trenching tools (100mm width), and grass rakes—all attach via a manual quick-connect system (no hydraulic tools needed).
Garden bed preparation: Digging shallow trenches (0.5-1.0m depth) for flower bed edging and installing landscape fabric.
Small-scale utility installation: Laying electrical wires (≤50mm diameter) and water hoses for garden irrigation systems.
Indoor digging tasks: Excavating basements in tiny homes (≤1.5m depth) and digging floor drains in garages.
Landscaping detail work: Shaping terrain for rock gardens, digging around existing plants without root damage, and leveling soil for patio installation.
Q: What’s the minimum digging depth?
A: As low as 0.5m, suitable for shallow tasks like installing garden lighting cables and small drainage channels.
Q: How is it transported?
A: Its 800-2,000 kg weight allows transport in a standard utility trailer (towable by ½-ton trucks); no specialized transport equipment required.
