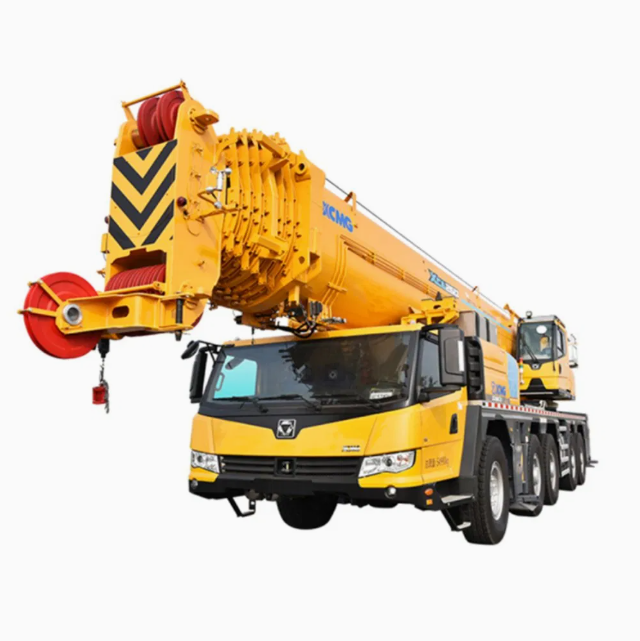

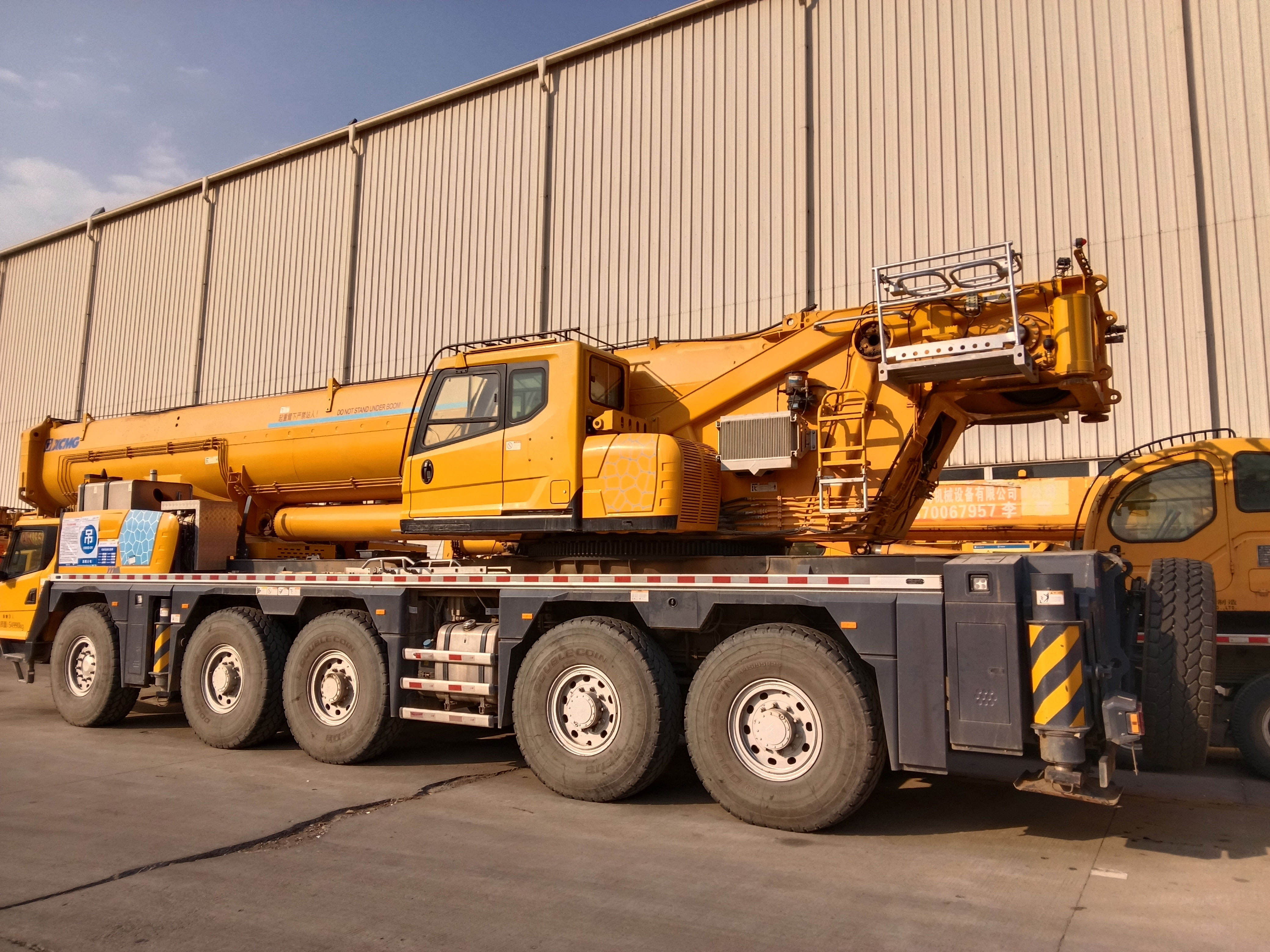

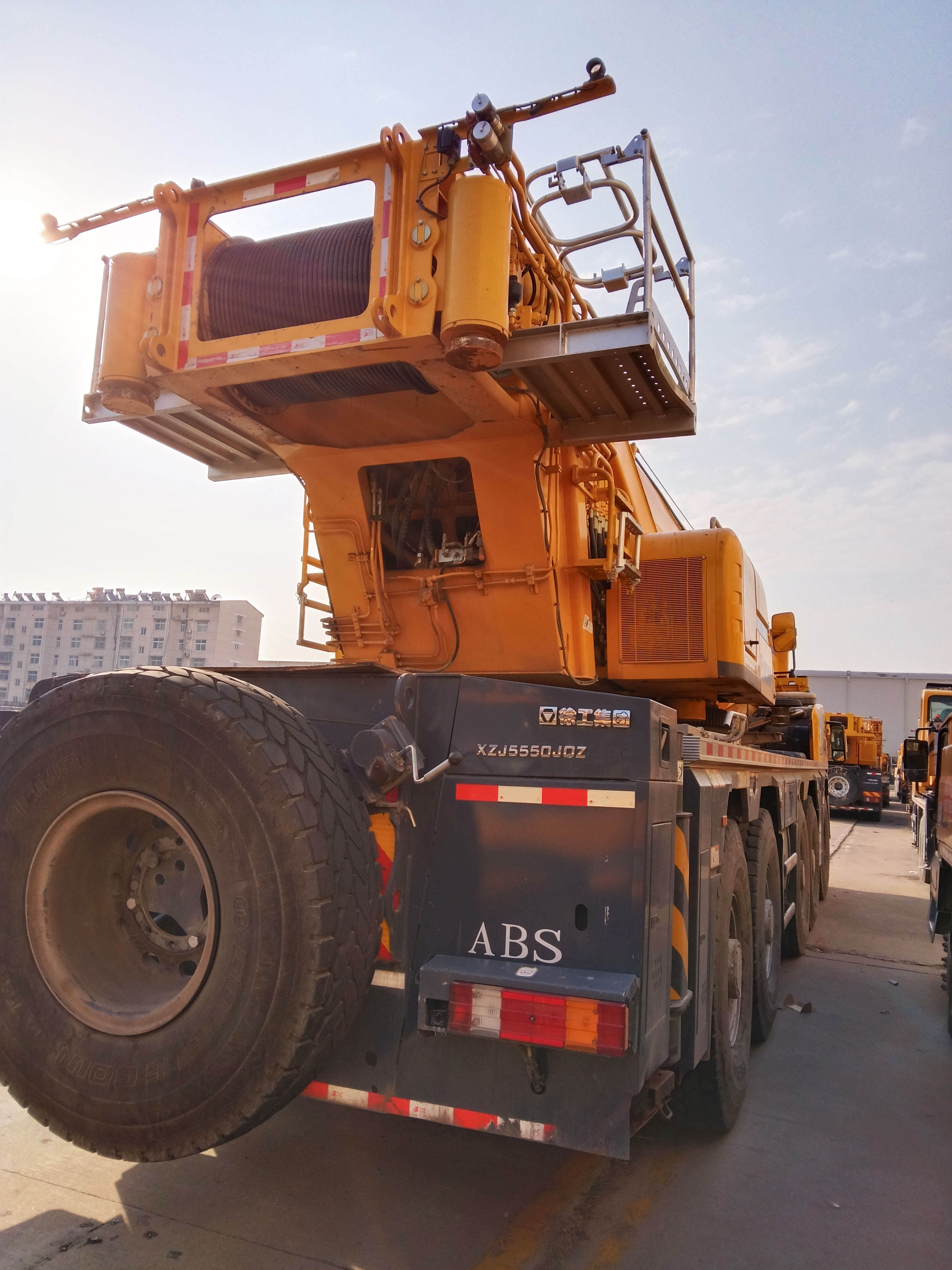

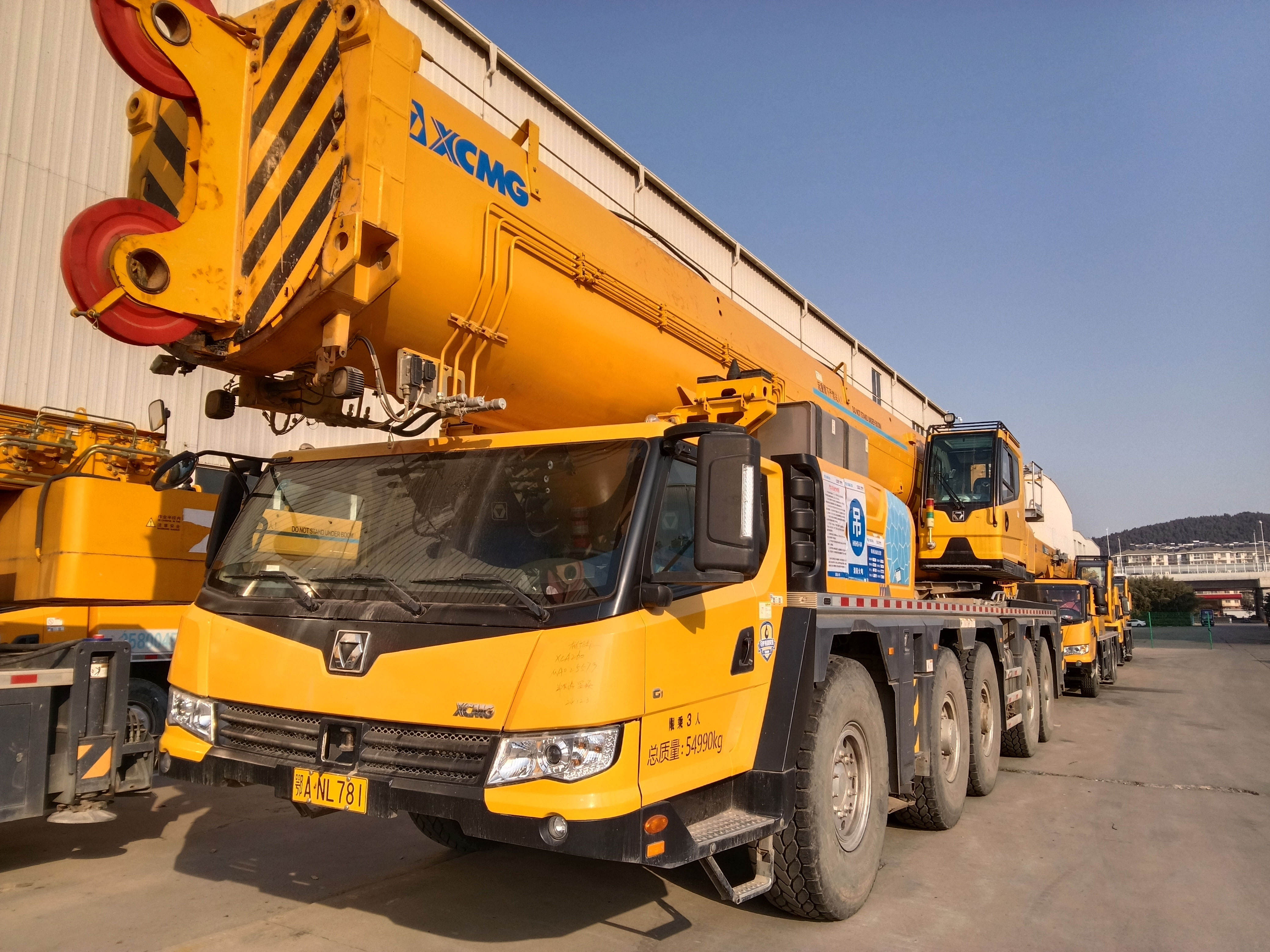

XCA260
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction
Equipped with a high-capacity lifting system and advanced hydraulic technology, the XCA260 delivers impressive lifting capacity and excellent stability. It is capable of handling a wide range of lifting tasks, including heavy machinery installation, bridge construction, and industrial projects.
The XCA260 features a robust and durable structure, ensuring its ability to withstand the demanding conditions of construction sites.
Product Advantage
Made of high-strength steel, with removable box structure outriggers.
4 outriggers are arranged in X shape, four point supporting, with fully-extended outrigger span of 15000×15000 mm;
hydraulic control; monitored by electric level gauge. Reaction force of outrigger at max. lifting load: 410t.
Weichai engine WP17G770E304; V type 8- cylinder, water cooled, supercharging intercooler, diesel engine, manufactured by Weichai, with rated power of 566 kW /1900 rpm, and max. torque of 3000 N.m /(1200~1500) rpm; compliant with Off-road Stage III emission standard.
Technical Parameters
| Whole length | 15180 | (mm) |
| Full width of the whole machine | 3000 | (mm) |
| Whole machine high | 4000 | (mm) |
| Wheelbase | 2650+1650+2900+1650 | (mm) |
| Tread | 2540 | (mm) |
| General quality of running state | (kg) | |
| Axle load | 10290*1+10350×2+12000×2 | (kg) |
| Engine model (on the bus) | WP13.550E62/MC13.54-61 | - |
| Engine rated power | 405/1900 | (kw/(r/min)) |
| Engine rated torque | 400/1800 | (N.m/(r/min)) |
| Maximum travel speed | 80 | (km/h) |
| Minimum stable running speed | 1-1.5 | (km/h) |
| Minimum turning diameter | 18.5 | (m) |
| Maximum climb | (%) | |
| Minimum ground clearance | 307 | (mm) |
| Approach angle | 18 | (°) |
| Departure angle | 14 | (°) |
| Maximum rated total weight | 230 | (t) |
| Minimum rating | 3 | (m) |
| Maximum lifting torque of the basic arm | 7997 | (kN·m) |
Product Uses
1. Large-Scale Infrastructure Construction
The XCA260 is ideally suited for infrastructure projects such as bridge construction and large-scale venues. Its powerful lifting capacity and long boom effectively handle heavy loads like precast beam segments and large steel components, boosting construction efficiency. It can even meet lifting demands for structures up to 33 stories tall.
2. Wind Turbine Installation and Maintenance
This model boasts excellent off-road capability and maneuverability, adapting to complex terrain in wind farms for turbine installation and maintenance. Its extended boom meets high-altitude lifting requirements.
3. Petrochemical and Power Construction
In petrochemical projects, power plant construction, and substation installations, the XCA260 handles positioning and installation of heavy equipment like large tanks, reactors, and boiler modules. Its new energy-efficient hydraulic system and precise micro-movement ensure smooth, accurate lifting.
4. Urban Renewal and Construction Sites
With its flexible steering modes and relatively compact structure, this crane operates effectively in confined urban spaces. It handles steel structure hoisting for high-rise buildings, large equipment transportation, and municipal engineering projects. Its pre-set counterweight repositioning function adapts well to narrow sites.
Product Operate Guide
Lifting Operations: Before operation, ensure outriggers are deployed to achieve leveling. Set operating conditions via the controller, inspect lifting equipment integrity, and strictly prohibit overloading. Utilize the counterweight preset repositioning function to adapt to confined spaces.
Boom Operation: Control all movements via the joystick. The intelligent control system delivers exceptional micro-movement capability, ensuring smooth and precise lifting. Maintain safe working distances.
Safety Precautions: Cease operations during high winds. Fully retract boom and outriggers after use. Perform regular equipment maintenance.
FAQ
1. DIFFICULTY STARTING THE ENGINE WHEN COLD?
Check if the glow plugs or intake air preheating system are functioning properly, and ensure diesel fuel with the appropriate cold-weather rating is used.
2. ENGINE STRUGGLES TO START WHEN WARM?
Possible causes include leaking injectors or deteriorated cylinder seals. Professional inspection required.
3. RADIO OR CLOCK MEMORY LOST AFTER SHUTDOWN?
Continuous power fuse (memory fuse) blown or open circuit.
4. WINDSHIELD WIPERS ONLY OPERATE AT HIGH SPEED?
Damaged low-speed contacts in the wiper switch assembly or related wiring fault.
5. ORIGINAL VEHICLE LIGHTS DIM AFTER ADDING AUXILIARY LIGHTS?
Insufficient generator output causes system voltage drop when additional electrical components are installed.
6. SEVERE INTERFERENCE WITH WALKIE-TALKIES OR RADIOS?
Interference sources include spark plugs, generator carbon brushes, etc. Ensure spark plug suppression resistors and generator filter capacitors are functioning properly.
