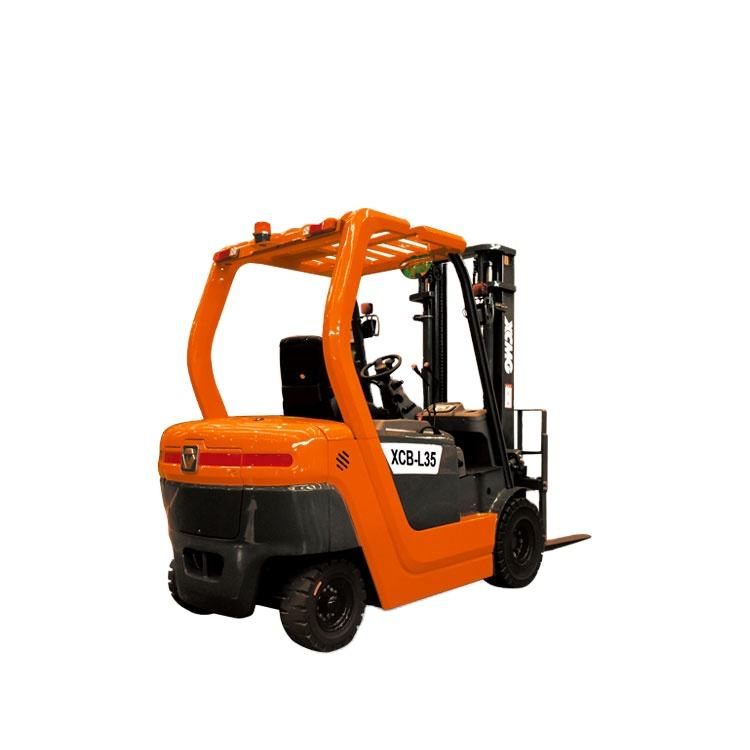

XCB-L35
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction
Aimed at users with medium to high-intensity operation requirements, it is designed to replace traditional internal combustion forklifts of the same tonnage, providing a green logistics solution with zero emissions, low noise and low usage costs.
Product Advantage
1. Powerful and efficient power system
◦ AC drive system: It adopts world-class AC motors and electronic control systems, featuring strong power, excellent acceleration performance, strong climbing ability, and higher efficiency than traditional DC systems.
High-efficiency hydraulic system: Equipped with an independent AC hydraulic motor, it features faster lifting and lowering speeds, smoother gantry operation, precise control, and lower energy consumption.
2. Outstanding energy conservation and environmental protection performance
Zero emissions: Pure electric drive, with no exhaust emissions during operation, fully meeting the most stringent environmental protection requirements.
Low noise: The motor operates with extremely low noise, greatly improving the working environment for the operator and the surrounding environment. It is particularly suitable for night and indoor operations.
Energy recovery function: Standard equipped with regenerative braking function, it can convert kinetic energy into electrical energy and recharge the battery during braking, deceleration and going downhill, effectively extending the driving range and reducing energy consumption.
Technical Parameters
| Model | Unit | XCB-L35 | ||
| Rated capacity | kg | 3500 | ||
| Load center distance | mm | 500 | ||
| Size | Max.lifting height | mm | 3000 | |
| Free lifting height | mm | 145 | ||
| Mast tilt angle front/rear | ° | 6/12 | ||
| Length fork excluded | mm | 2555 | ||
| Width | mm | 1270 | ||
| Mast height | mm | 2060 | ||
| Overhead guard height | mm | 2200 | ||
| Min.under clearance | mm | 135 | ||
| Wheel base | mm | 1680 | ||
| Min.Turning radius | mm | 2770 | ||
| Performance | Travelling speed loaded/unloaded | km/h | 16/17 | |
| Lifting speed loaded/unloaded | mm/s | 330/450 | ||
| Gradeability loaded/unloaded | % | 15/17 | ||
| Motor&Battery | Motor | Drive motor power | kW | 16.6 |
| Pump motor power | kW | 13.5 | ||
| Battery | Voltage | V | 80 | |
| Amphere | Ah | 420/450/540 | ||
Product Uses

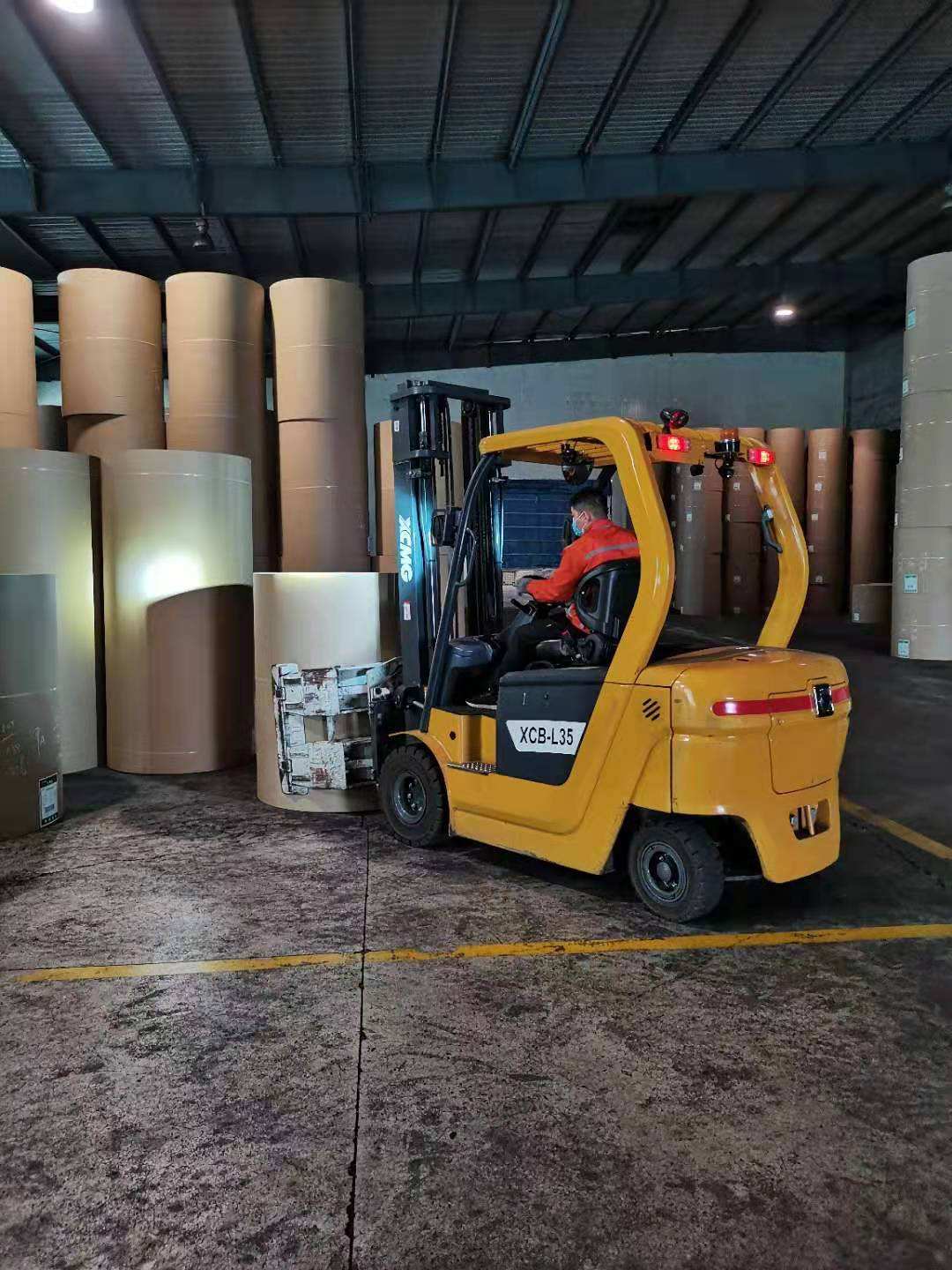

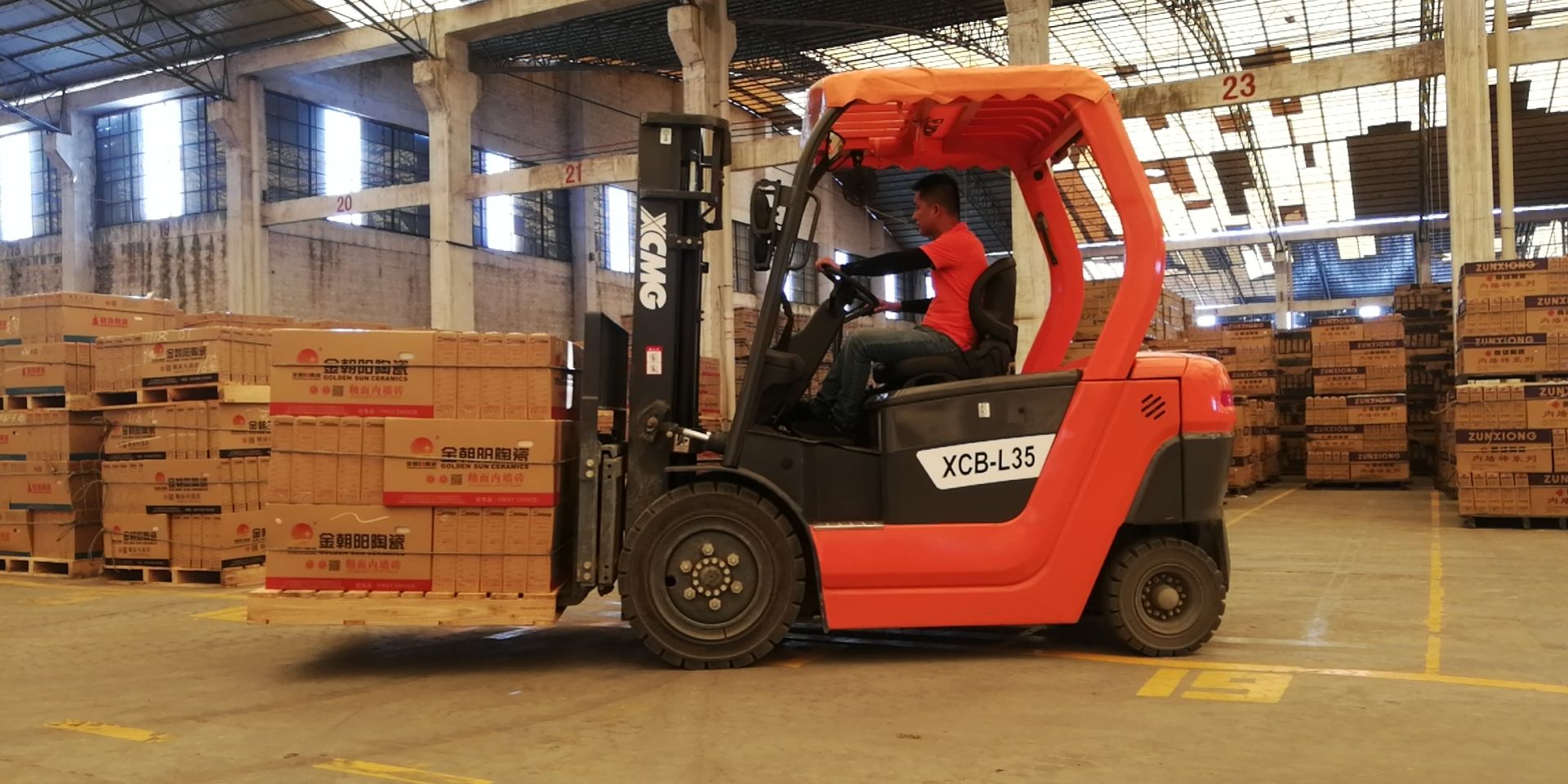

Indoor operations: Clean workshops and warehouses with high requirements for environmental protection and air quality in industries such as food, beverages, medicine, tobacco, textiles, and electronics.
Outdoor operations: logistics transfer stations such as ports, airports, and railway platforms.
Other fields: goods handling in large supermarkets, material turnover in manufacturing, etc.
Product Operate Guide
The operation of the XCB-L35 electric forklift must follow safety regulations. Before starting the operation, conduct a round-around inspection to confirm that the battery power, tires, forks and instrument indications are all normal. When starting, make sure the gear is in neutral and fasten your seat belt after sitting steadily. Maintain a smooth acceleration while driving, slow down in advance when turning, and pay attention to the surrounding environment and blind spots. When loading and unloading goods, align with the cargo position and tilt the mast slightly forward. The lifting and lowering should be smooth. After the goods are lifted, the mast should be tilted backward to prevent it from sliding. Overloading operation is strictly prohibited. After the operation, lower the fork to the lowest position, pull the handbrake tightly, turn off the power, and remove the key. Regular maintenance is the key to ensuring safe and efficient operation.
FAQ
A: The rated load capacity of XG XCB-L35 is 3.5 tons. The standard lifting height is generally 3 meters, but higher-specification gantries such as 4 meters or 5 meters can be selected according to customer requirements.
A: It is usually equipped with a large-capacity lead-acid battery (you can also consult if there is a lithium battery option). The battery life has no fixed value and depends on the actual working conditions, such as load weight, operation frequency, driving distance, road slope and other factors. Generally, there is no problem with one shift (8 hours) of operation. However, for high-intensity use, it may be necessary to charge during the shift.
A: It adopts an advanced AC drive system, featuring strong power and excellent acceleration performance. The full-load climbing gradient is usually ≥15%, which can fully meet the slope requirements of most indoor and outdoor sites. For operations of 3.5 tons or less, it can perfectly replace internal combustion forklifts in most scenarios, and is more environmentally friendly and economical.
A: It's not complicated. It adopts a humanized design. The operation handle has a high degree of integration, and the direction, speed and hydraulic functions are all easy to control. Experienced drivers can quickly get the hang of it, but new drivers also need to undergo formal training before they can operate.
A: It usually takes 8 to 10 hours to fully charge after complete discharge. It is recommended to use an intelligent charger and follow the principle of "shallow charging and shallow discharging" to avoid completely draining the battery before recharging. Whenever possible, recharge the battery. Charging should be carried out in a dedicated area that is well-ventilated, dry and far away from flammable materials.
A: Yes, but you need to choose the special configuration for cold storage. This includes special anti-freezing hydraulic oil, low-temperature steel, condensate water treatment devices, special tires and electrical systems, etc. Ordinary configuration forklifts cannot directly enter the cold storage for operation to avoid damage and safety accidents.
