XLC22000
| Availability: | |
|---|---|
| Quantity: | |

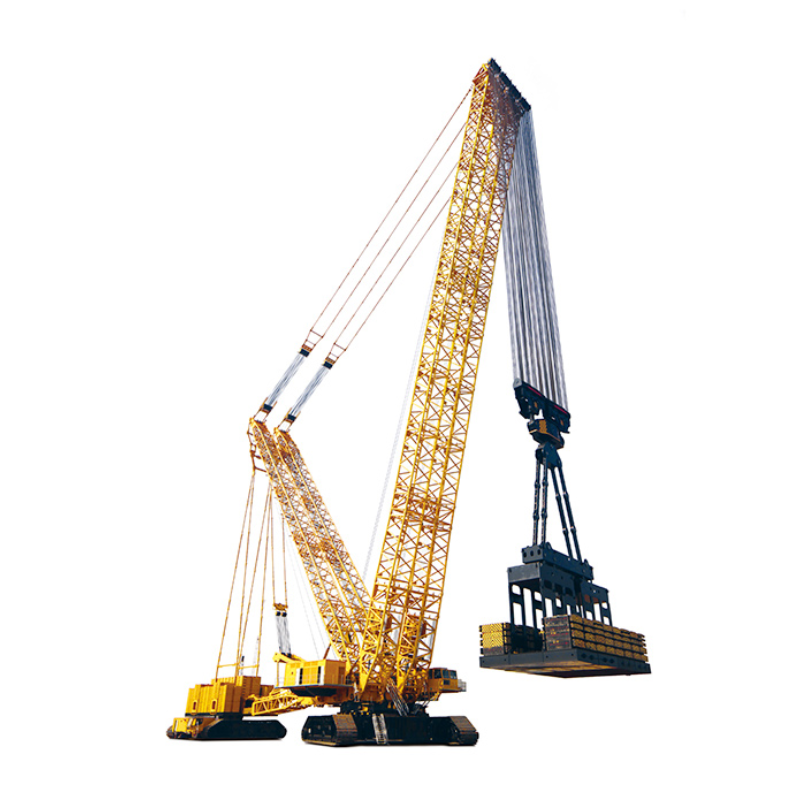

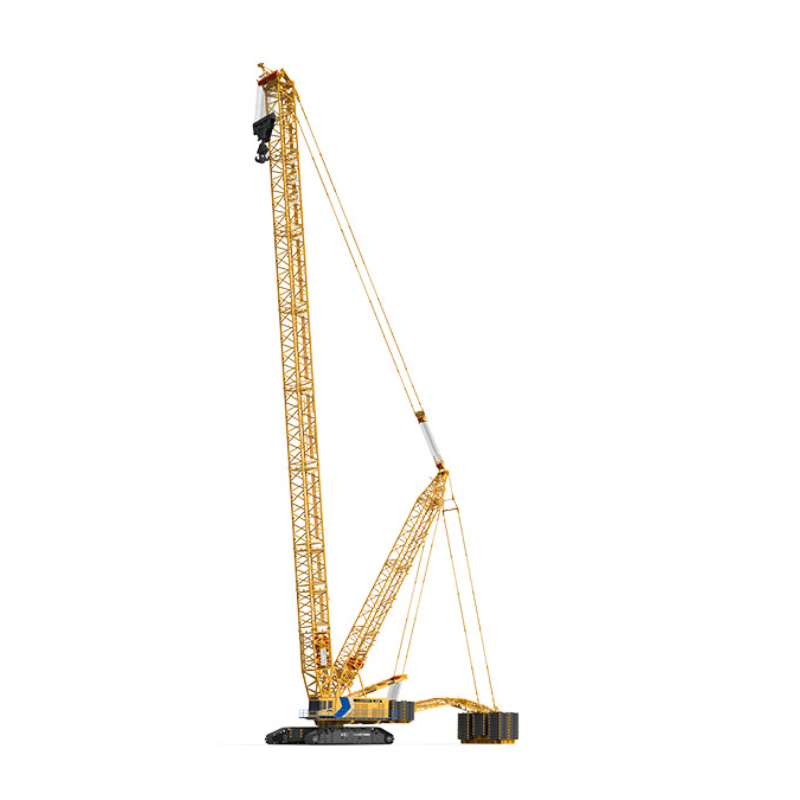

The XCMG XLC22000 ultra-heavy crawler crane is a full-hydraulic driven heavy-duty lifting machine developed for extreme construction conditions. It adopts high-strength alloy steel lattice boom structure with optimized mechanical layout, delivering excellent rigidity, anti-deformation performance and extended working radius. Equipped with top-grade imported hydraulic components and industrial PLC intelligent control system, the equipment realizes stable stepless speed regulation, precise positioning and jitter-free lifting, supporting long-duration high-intensity heavy-load operation.
This 2000-ton crawler crane supports multiple working configurations, including heavy-duty main boom, light-duty main boom and tower jib high-altitude lifting, covering full-range working requirements from ultra-heavy low-altitude hoisting to ultra-high altitude precise installation. It is equipped with a panoramic intelligent cab with noise reduction, shock absorption and constant temperature design, providing operators with broad vision and comfortable operating experience. The whole machine adopts full industrial-grade protection, realizing stable operation in strong wind, low temperature, high dust and other harsh environments. In addition, the overall modular split design of booms, counterweights and walking components simplifies global transportation, on-site assembly and daily maintenance, greatly improving project construction efficiency and reducing comprehensive operating costs.
Industry-Leading Ultra-Heavy Lifting Performance:
Boasting a maximum lifting capacity of 2000 tons and a maximum lifting moment of 28000 t·m, the XLC22000 easily handles super-heavy load tasks that conventional large cranes cannot complete. The flexible 30–150m main boom combination meets ultra-high and super-large range lifting demands, fully adapting to top-level super engineering construction standards.
Ultra-Stable Structural Design & Durability:
The lattice boom adopts customized high-strength alloy steel and precision integral welding technology, with excellent fatigue resistance and structural toughness. It maintains stable mechanical performance under long-term heavy-load and strong-wind working conditions, effectively avoiding structural deformation and potential safety risks for long-term engineering operation.
Intelligent & Precise Control System:
Adopting XCMG self-developed intelligent lifting control system and high-precision hydraulic drive module, the crane achieves accurate control of lifting, luffing and slewing actions. Built-in real-time working condition monitoring, fault self-diagnosis and data recording functions minimize manual operation errors, greatly improving construction safety and overall working efficiency.
Powerful Complex Site Adaptability:
Reinforced multi-crawler walking structure increases ground contact area and bearing capacity, enabling stable walking and operation on muddy, soft foundation, uneven mountainous and complex open-air construction sites. Full-machine dustproof, waterproof and wind-resistant design ensures reliable operation in extreme weather and harsh working environments.
Modular Structure & Low Comprehensive Cost:
All core components adopt standardized modular split design, fully compliant with international bulk shipping and container transportation specifications. The optimized component layout and centralized lubrication & maintenance structure simplify daily inspection and after-sales maintenance, effectively reducing long-term operation and maintenance costs of ultra-large equipment.
Full-Range Intelligent Safety Protection:
Equipped with comprehensive safety mechanisms including overload protection, height limit, slewing limit, real-time wind speed alarm and emergency stop protection. The intelligent monitoring system realizes full-process real-time early warning and safety control, ensuring zero safety hazards during ultra-heavy load construction operations.
Item | Unit | Specification |
|---|---|---|
Max. Rated Lifting Capacity | t | 2000 |
Max. Lifting Moment | t·m | 28000 |
Main Boom Length Range | m | 30 - 150 |
Auxiliary Jib Length Range | m | 24 - 96 |
Rated Engine Power | kW | 600 |
Whole Machine Working Weight | t | 1200 |
Max. Single Line Hoisting Speed | m/min | 120 |
Gradeability | % | 25 |
Working Wind Speed Limit | m/s | 13.8 |
Transport Mode | / | International Standard Modular Bulk Transport |
Warranty Period | / | 1 Year Full Machine, 2 Years for Core Components |
XLC22000 2000-ton super crawler crane is dedicated to global ultra-large and high-difficulty engineering projects, widely used in multiple heavy-duty lifting scenarios:
Nuclear Power Engineering:
Professional hoisting and installation of nuclear reactor domes, pressure vessels and core equipment for new nuclear power plant construction
Petrochemical & Chemical Industry:
Lifting and positioning of large reactors, storage tanks, tower bodies and heavy industrial components for petrochemical and coal chemical projects
Large Wind Power Projects:
Hoisting and installation of ultra-high wind turbine towers, generator sets and fan accessories for onshore and offshore wind farms

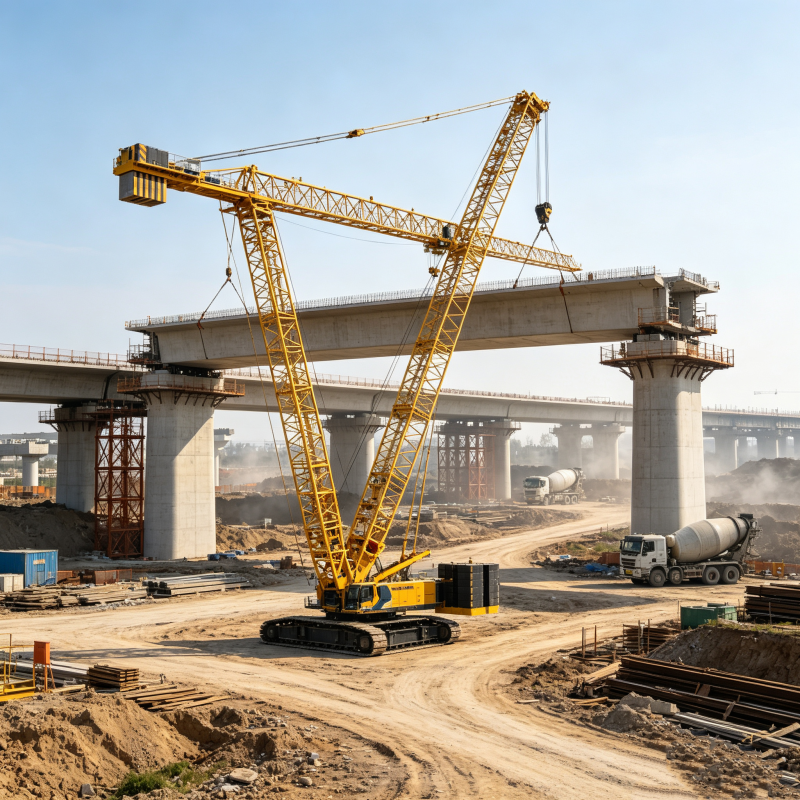

Super Bridge Construction:
Integral hoisting of large bridge steel box girders, arch ribs and bridge tower components for long-span super bridge projects
Key National Infrastructure:
Heavy lifting operations for hydropower stations, thermal power plants, railway hubs, port terminals and large municipal projects
Super High-Rise & Steel Structure Projects:
Integral hoisting and precise installation of super-large steel trusses, steel columns and heavy building components for super high-rise buildings and industrial parks
Q1: What are the core advantages of XCMG XLC22000 crawler crane?
A: The XLC22000 is a 2000-ton ultra-heavy crawler crane tailored for super engineering projects. It features ultra-large lifting capacity, extended boom working range, stable intelligent control and strong environmental adaptability. It can complete high-difficulty super-heavy lifting tasks that ordinary large-tonnage cranes cannot support, with higher construction efficiency and safety.
Q2: What working modes does the XLC22000 support?
A: It supports three core working modes: heavy-duty main boom operation, light-duty main boom operation and tower jib high-altitude lifting. The main boom length ranges from 30m to 150m, and the auxiliary jib ranges from 24m to 96m, covering full-scene low, medium and ultra-high altitude lifting requirements.
Q3: Is XLC22000 suitable for harsh construction sites?
A: Yes. The reinforced crawler walking system adapts to soft, muddy and uneven complex sites. The whole machine adopts industrial-grade windproof, dustproof, waterproof and low-temperature resistant design, which can operate stably in extreme weather and harsh outdoor construction environments.
Q4: What after-sales warranty and technical services are provided?
A: We provide 1-year full-machine warranty and 2-year warranty for core components including engine, hydraulic system and intelligent control system. We support global one-stop services including remote fault diagnosis, overseas technical guidance, on-site maintenance and full-cycle spare parts supply.
Q5: Is the XLC22000 convenient for international transportation?
A: Yes. The whole machine adopts scientific modular split design, all split components meet international sea transportation standards. It effectively reduces transportation volume and ocean freight costs, realizing fast cross-border transportation and on-site assembly.
Q6: Does the crane support intelligent operation and remote management?
A: Absolutely. Equipped with a new-generation intelligent control system, it realizes real-time working parameter monitoring, automatic safety protection and fault self-diagnosis. It supports remote data viewing and equipment operation management, helping customers achieve intelligent and efficient construction management.
