SLM3500S
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction

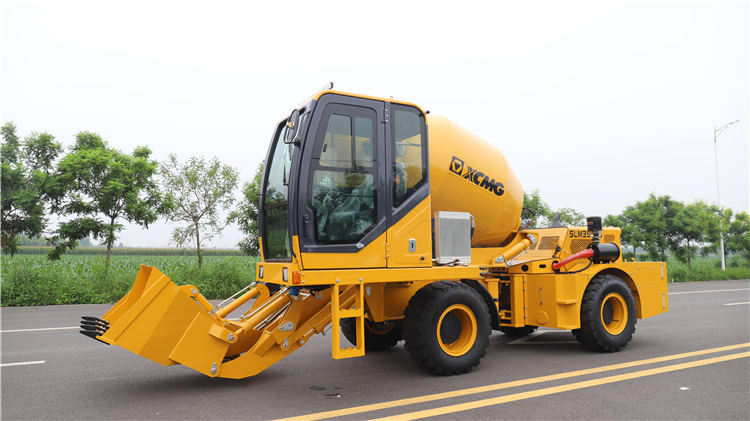

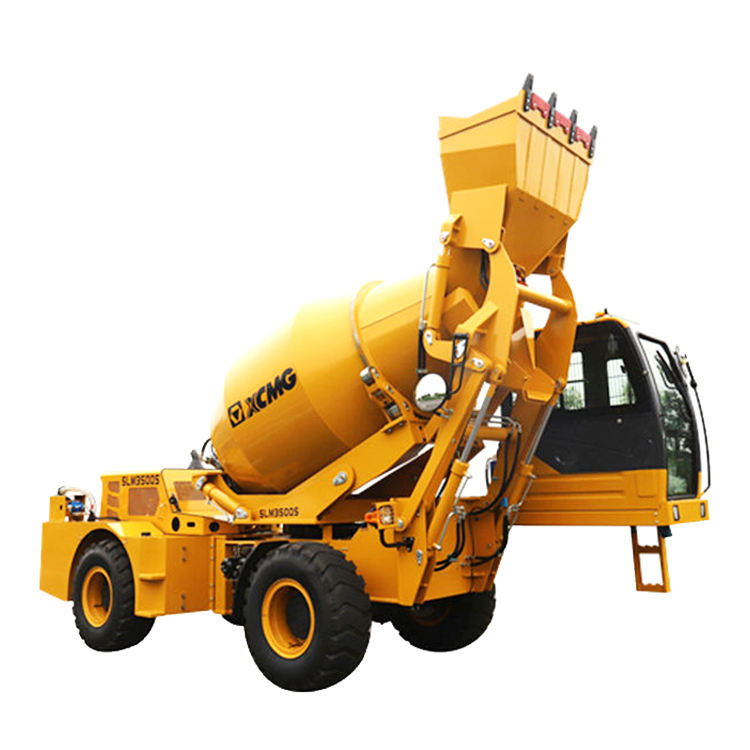

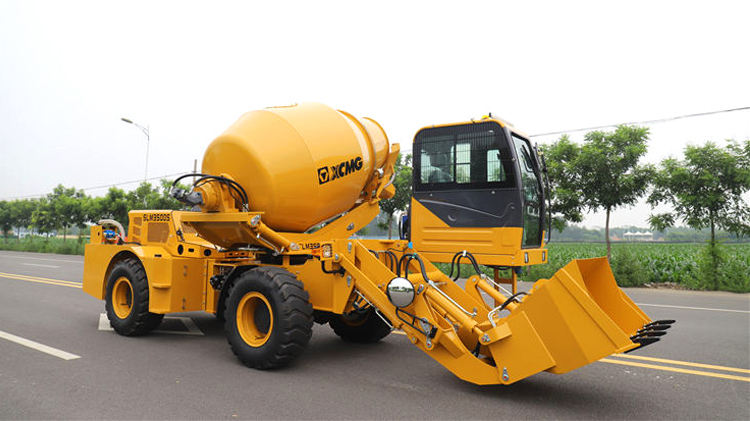

SLM3500S self loading concrete mixer is a new 3.5 cube concrete mixer, with a maximum driving speed of 40km/h and a production efficiency of about 15.5m3/ h. All bucket action through the pilot handle to achieve.
Product Advantage
* Drum rotation: discharge port height 1.8 meters, cab and tank horizontal rotation 270 tank can be raised and
* SPEED: dual altitude, low speed 0-25 kph, high speed 0-40kph
* Driver's seat: Widen the luxurious cab of the excavator, front window can be opened, anti-roll, anti-falling object type, double armrest cushion seat* Clay Groove: equipped with one 150CM Removable Chute to increase the length of discharge
* Water Supply System: Use Small Servo pump on independent double circuit, use single wheel 4-piston plus double brake caliperTechnical Parameters
| Model | SLM3500S |
| CAPACITY | 4.5 batches/h or 15.5 cubic/hour |
| Weight | 8100KG |
| Bucket(hydraulic gate) | 0.65 cubic |
| TIRE(steel wire high pressure vacuum tire) | 12R-22.5 |
| Power System | 24V |
| Length, width, height / wheelbase / Wheelbase | 7100mm*2750mm*3300mm*2700mm*2200mm |
| CLIMB | 40° |
| Turning radius | 2900mm |
Product Uses
I. Large-scale infrastructure and key project construction
Highway and railway construction
Ports, airports, large Bridges and tunnels
Energy projects such as hydropower stations and nuclear power plants
Ii. Urbanization Construction and Transportation of Commercial Concrete
Super high-rise buildings and large commercial complexes
Urban subway and pipe gallery projects
Construction of large-scale residential communities and development zones
Iii. Special Working Conditions and Harsh Environments
Long-distance transportation
Extreme environments such as high plateaus and high temperatures
Areas with high environmental protection requirements
Product Operate Guide
The operation of the SLM3500S mixer truck must follow the norms to ensure safety and efficiency. Before operation, check whether the hydraulic oil level, lubrication system and feeding and discharging devices are normal. When loading materials, make sure the vehicle comes to a complete stop, reduce the engine speed to idle and engage the power take-off to control the loading speed. During transportation, the mixing drum should keep rotating at a low speed to prevent the concrete from solidifying or segregation. When unloading, accurately locate the position, adjust the engine speed according to the working conditions to control the unloading speed, and clean the mixing drum and the inlet and outlet troughs in time after completion. It is strictly prohibited to adjust the pressure of the hydraulic system at will. Daily maintenance is the key.
FAQ
A: Usually, the classic "golden power chain" configuration is adopted: Weichai engine + FAST transmission + XG special axle. This combination is renowned for its powerful performance, durability, large market share, and ease of maintenance. It has extremely high reliability and can adapt to various harsh engineering environments.
A: Fuel consumption depends on load, road conditions and driving habits. The SLM3500S reduces fuel consumption by matching high-power, low-speed engines, optimizing the transmission system and adopting a lightweight design. In combination with its intelligent management system (such as XG's network connection platform), monitoring and optimizing driver behavior can further effectively reduce the overall fuel consumption.
A: This system can achieve:
• Real-time monitoring: Vehicle location, trajectory, speed, fuel consumption, engine data, etc.
• Safety Management: Set up electronic fences to monitor bad driving behaviors (such as sudden acceleration and sudden braking).
• Operation and maintenance management: Fault alarm reminders, maintenance plan reminders, generation of operation reports, helping fleets achieve refined management.
A: The basic configuration includes a reliable braking system, lighting system, etc. At the same time, it is strongly recommended to choose the 360° panoramic imaging system as an option. It can completely eliminate blind spots and greatly enhance safety when reversing and turning in narrow and complex construction sites and urban roads.
• Daily: Check the oil levels of engine oil, coolant and hydraulic oil; Inspect the cleaning device;
Lubricate the raceway of the mixing drum.
• Regular: Strictly follow the maintenance manual and replace the engine oil and filters (engine oil, fuel, and hydraulic oil filter elements) regularly. Check and adjust the hydraulic pump and motor;
Tighten the bolts at all parts.
Most importantly: After each operation, the inside and outside of the mixing drum and the feeding and discharging troughs must be thoroughly cleaned to prevent the concrete from solidifying. This is the key to ensuring the normal service life of the vehicle.
A: Possible causes and troubleshooting steps
1. Check the hydraulic oil: Is the oil level too low?
Has the oil quality deteriorated?
2. Check the filter: Is the hydraulic oil filter element clogged?
3. Check the operation: Is the power take-off (PTO) fully engaged?
Has the engine speed met the requirements?
4. Professional maintenance: If all the above are normal, it might be a fault with the hydraulic pump or motor. Contact maintenance personnel immediately for inspection and repair. Do not adjust the system pressure by yourself.
