XGA20ACK XGA20ACK-Li
| Availability: | |
|---|---|
| Quantity: | |

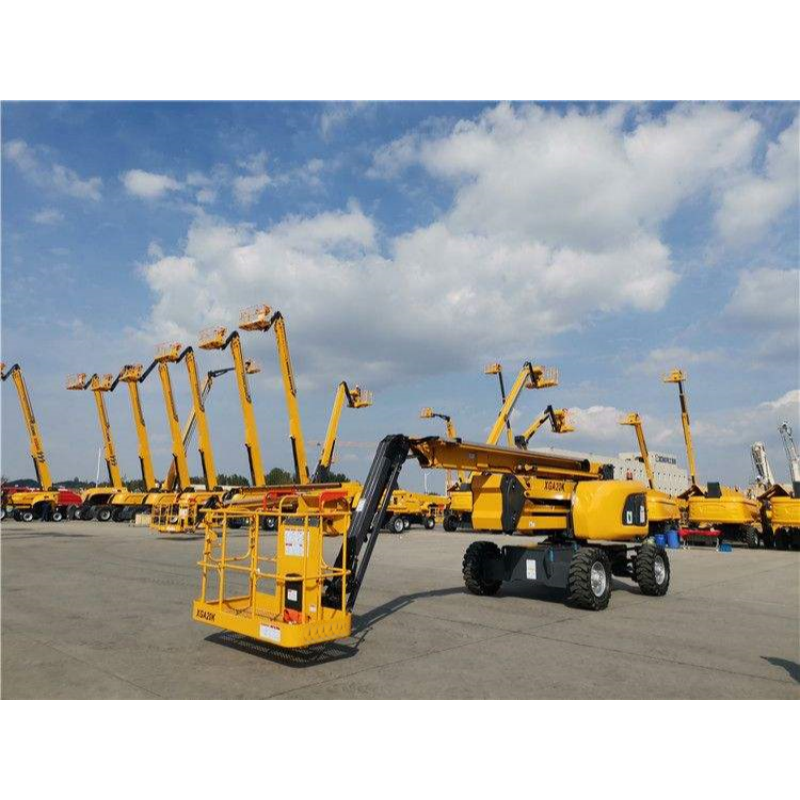

The XGA20ACK is a fully electric self-propelled articulated boom lift, tailor-made for diverse medium and high-altitude aerial operation scenarios. It boasts a maximum working height of 20 meters, a maximum horizontal outreach of 9.8 meters, and a standard rated load of 227 kilograms. Adopting a pure electric drive scheme, the equipment achieves zero exhaust emissions and ultra-low running noise throughout the operation process, meeting green construction standards. Equipped with a flexible multi-section articulated boom and exclusive zero tail swing structure, the lift features superior on-site maneuverability, enabling free travel and precise operation in narrow spaces and complex obstacle environments. With reliable overall performance and strong scenario adaptability, it is an ideal device for indoor maintenance, commercial venue operation, building renovation and all kinds of outdoor high-altitude construction work.
1. Zero Tail Swing Design: The rotating turntable is completely confined within the machine body during full-angle rotation, with no rear overhang. It effectively eliminates collision risks in narrow, enclosed and compact construction spaces, ensuring safe operation in limited-area scenarios.
2. Highly Flexible Articulated Boom: The multi-joint combined boom structure supports flexible angle adjustment and obstacle avoidance. It can easily adapt to complex working angles and on-site barrier conditions, realizing accurate positioning for diversified aerial operation demands.
3. Green & Low-carbon Operation: Featuring zero tail gas emission and quiet running performance, the equipment complies with environmental protection requirements. It is perfectly applicable to closed indoor spaces, shopping malls, exhibition venues and regions with strict environmental control standards.
4. Excellent Climbing Performance: With a maximum gradeability of 45%, the machine maintains stable driving and working status on inclined pavements and uneven rugged ground, adapting to complex road conditions on construction sites.
5. Compact Integrated Body: The optimized overall structural layout minimizes the machine’s footprint. It simplifies on-site movement, daily storage and cross-region transportation, effectively reducing overall logistics and site layout costs.
6. Stable & Precise Hydraulic System: The matched high-quality hydraulic control system ensures smooth and steady boom lifting, stretching and rotating movements. It delivers sensitive and user-friendly operation, bringing a comfortable and precise control experience for operators.
7. Full-range Safety Protection: Integrated with multiple safety configurations including overload protection mechanism, tilt angle warning system and emergency lowering device. It builds a comprehensive safety barrier to effectively avoid operational risks and guarantee full-process construction safety.
8. Low Operating & Maintenance Cost: Driven by clean electric power, the equipment cuts daily energy consumption costs significantly. Meanwhile, the mature and stable structural design reduces regular maintenance frequency and later-stage operation and maintenance investment.
Item | Unit | XGA20ACK Parameters |
|---|---|---|
Max. Working Height | m | 20 |
Max. Platform Height | m | 18 |
Max. Horizontal Outreach | m | 9.8 |
Rated Platform Load | kg | 227 |
Platform Dimension | mm | 1420 × 720 × 1100 |
Overall Dimension (Stowed State) | mm | 7860 × 1780 × 2150 |
Total Machine Weight | kg | 7600 |
Power Supply Type | - | Electric Battery |
Travel Speed (Stowed / Extended) | km/h | 4.0 / 0.7 |
Max. Gradeability | % | 45 |
Turntable Rotation Angle | ° | 360° Continuous Rotation |
Platform Swing Angle | ° | 180 |
Minimum Ground Clearance | mm | 190 |
1. Indoor Maintenance Projects: Suitable for high-altitude cleaning, professional equipment inspection and interior space renovation in industrial factories, hotels, shopping malls and other indoor venues.
2. Commercial Venue Construction: Applied to roof maintenance and repair, lighting fixture replacement, billboard installation and other aerial work in exhibition centers, theaters, stadiums and other public commercial places.
3. Building Construction Engineering: Capable of exterior wall renovation, overhead pipeline laying and installation, as well as auxiliary high-altitude construction operations for building projects.
4. Municipal Engineering Operations: Widely used in urban street lamp maintenance, landscape greening tree pruning, and daily maintenance of roadside public infrastructure facilities.
5. Warehouse & Logistics Management: Ideal for high-level shelf inspection, equipment debugging and daily maintenance operations in large-scale warehouses and logistics distribution centers.
Check the remaining battery power to ensure sufficient electric energy to support continuous and stable operation.
Examine tire pressure and tire surface integrity, and confirm all wheel fixing bolts are tightly fastened without looseness.
Inspect the hydraulic oil liquid level to meet the standard requirement, and check the entire hydraulic pipeline for oil leakage or damage.
Verify the normal working state of safety guardrails, platform access doors, emergency stop buttons and alarm devices to ensure all safety components are functional.
Turn on the main power switch of the equipment, and wait for the completion of the automatic system self-inspection program.
Drive the lift to a solid, flat and stable working area, and firmly engage the parking brake device.
Operate the control lever gently and steadily to complete boom lifting, stretching and rotating actions, and adjust the equipment to the preset working position.
Fine-tune the platform position for accurate operation positioning; strictly prohibit overloading beyond the official rated load capacity during operation.
After the operation is completed, fully retract and lower the boom to the initial stowed position, then cut off the main power supply of the equipment.
The equipment shall not exceed the 227kg rated load limit, and the working platform only supports single-person operation at one time.
The machine is only allowed to work on solid and flat ground, with the working ground slope strictly controlled within 5 degrees.
All equipment operations must be stopped immediately when the on-site wind speed exceeds 12.5 meters per second.
Operators must wear safety helmets and safety harnesses throughout the whole high-altitude operation process to ensure personal safety.
Regularly inspect and maintain all safety protection components and hydraulic system parts to ensure long-term stable operation of the equipment.
Q1: Is the XGA20ACK applicable for indoor operation?
A1: Absolutely yes. The pure electric driving design realizes zero emission and low-noise operation, and the unique zero tail swing structure avoids space collision. It is highly adaptable to narrow and confined indoor working environments.
Q2: What is the continuous working time after full charging?
A2: Under standard working conditions, the equipment can achieve 5 to 7 hours of stable continuous operation, and the full charging cycle is about 8 hours.
Q3: What is the working principle of zero tail swing?
A3: When the equipment turntable rotates at 360 degrees, no part will protrude beyond the machine body. It effectively prevents collision with walls, columns and other obstacles in narrow construction spaces, ensuring flexible and safe operation.
Q4: Does the equipment support slope driving?
A4: Yes. The machine is equipped with 45% super gradeability, which can maintain stable driving and working performance on conventional slopes and rough road surfaces.
Q5: What safety configurations does the equipment have?
A5: The lift is equipped with a complete safety protection system, including overload protection function, tilt angle alarm device, emergency stop system and emergency lowering mechanism, providing all-round safety guarantee for on-site operation.
Q6: What is the official warranty policy?
A6: The whole machine enjoys a 12-month or 2000-working-hour warranty service (whichever comes first). We provide 24/7 global professional after-sales service and technical support to solve customer problems efficiently.
