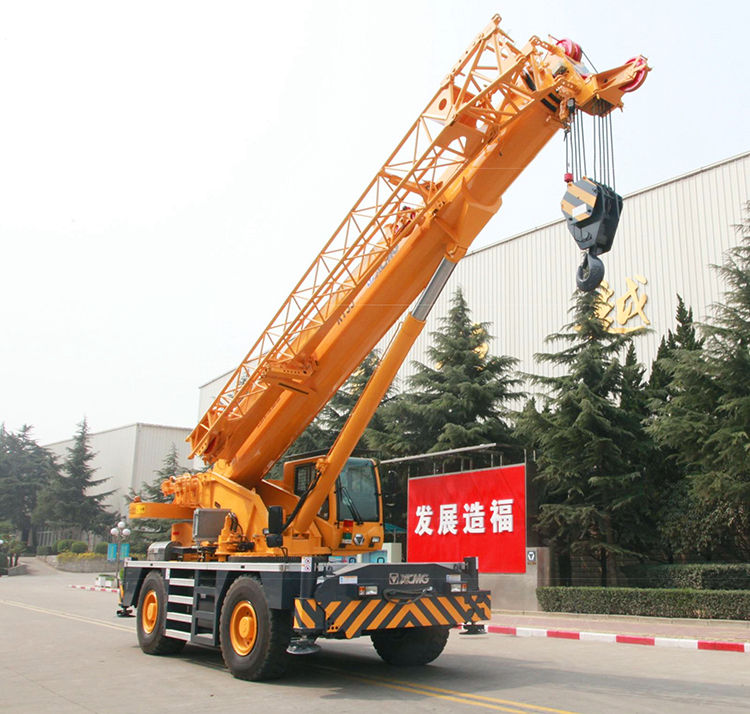

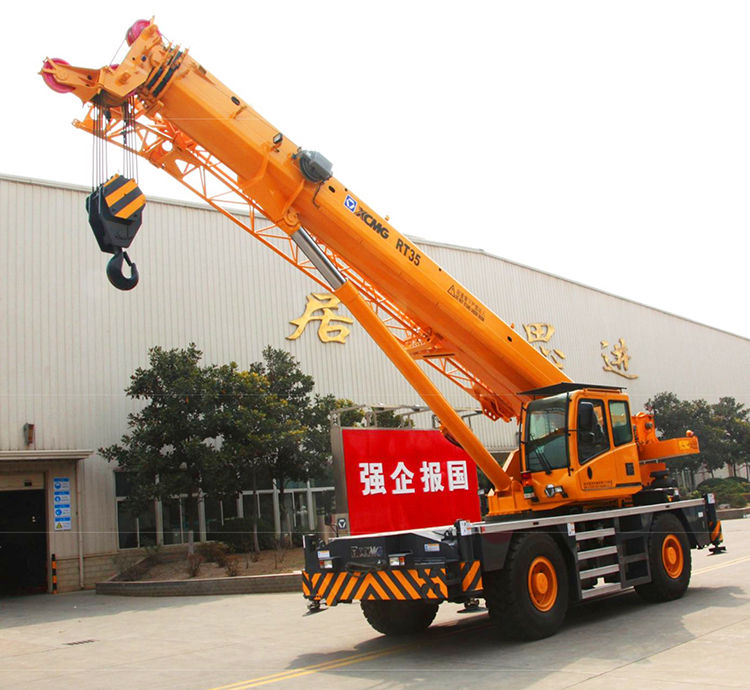

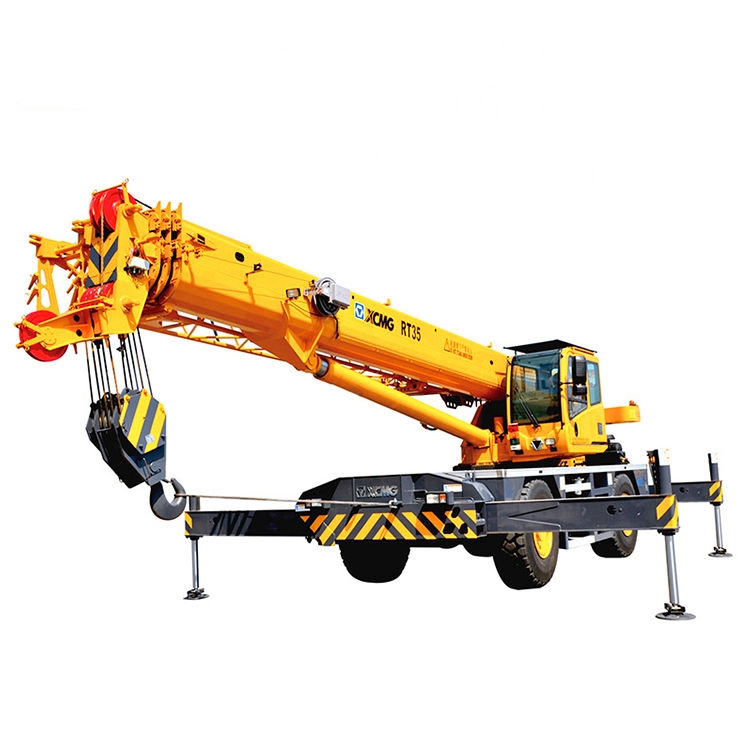

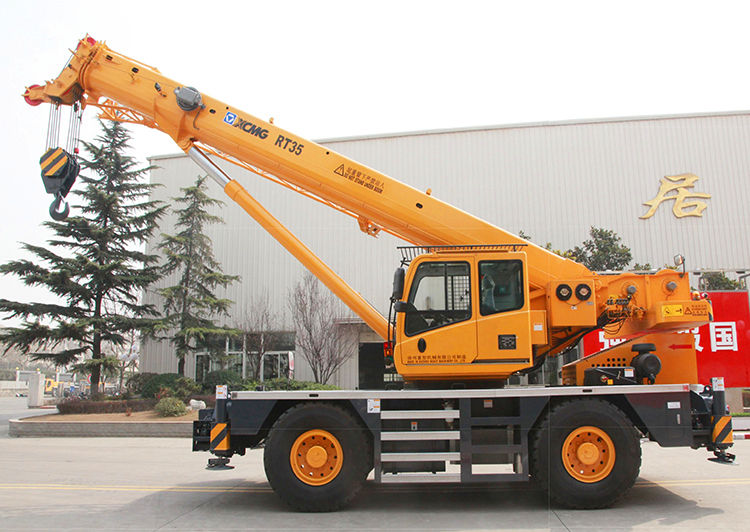

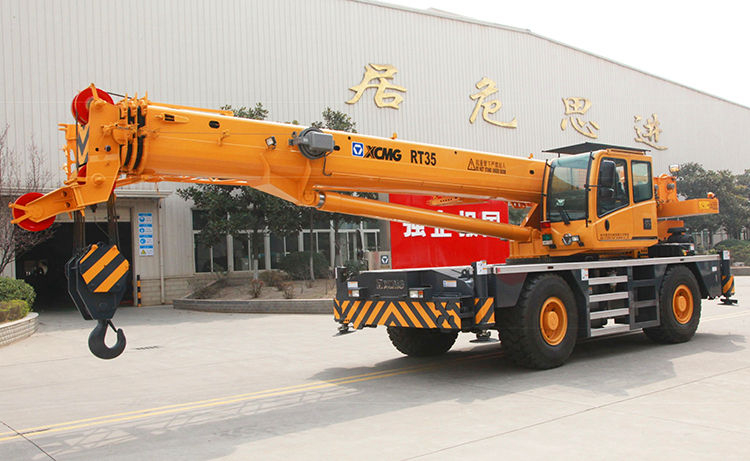

Product Introduction
The RT35 is equipped with a Dongfeng Cummins engine and an optimized powertrain system, paired with an energy-efficient hydraulic system that significantly reduces fuel consumption. Fuel efficiency during high-speed operation is claimed to improve by over 20%. It features lifting protection controls for overload, over-hoisting, and over-discharging, along with the industry's exclusive rear axle wheel auto-centering control and automatic driving safety protection system, substantially enhancing active safety.
Product Advantage
Energy-saving and environment friendly
Specialized energy-saving hydraulic system. The torque converter with lockout function has features of large torque at low speeds and high efficiency at high speeds. Elevating control system for freefall, without additional power needed.
High mobility and efficiency
Two driving types of 4×2 and 4×4 are adopted with forwards and backwards driving function. Four steering modes are adopted , and the min. turning radius is 5.7m with better job site adaptability.
Powerful lifting capacity
Developed jointly by Chinese and German engineers, with advanced design concept. 4-section boom of 32m and jib of 15m with wide operation range.
Technical Parameters
| Item | Unit | RT35 |
| Overall length | mm | 11952 |
| Overall width | mm | 2980 |
| Overall height | mm | 3450 |
| Weight |
| Total weight in travel | kg | 30360 |
| Power |
| Engine rated power | kW/(r/min) | 142 |
| Engine rated torque | N.m/(r/min) | 616 |
| Travel |
| Max. travel speed | km/h | 38 |
| Min. turning diameter | m | 11.4 |
| Min. ground clearance | mm | 400 |
| Approach angle | ° | 23 |
| Departure angle | ° | 20 |
| Max. grade ability | % | 55 |
| Fuel consumption for 100km | L | - |
| Main performance |
| Max. rated total lifting capacity | t | 35 |
| Min. rated working radius | m | 3 |
| Turning radius at turntable tail | m | 3.885 |
| Max. lifting torque | kN.m | 1445.5 |
| Full-extend boom | m | 9.7 |
| Full-extend boom+jib | m | 31.7 |
| Boom length | m | 45.1 |
| Working speed |
| Boom lifting time | s | 85 |
| Boom full extension time | s | 120 |
| Max. swing speed | r/min | - |
| Max. speed of main winch (single rope) | m/min | - |
| Max. speed of aux. winch (single rope) | m/min | 2.5 |

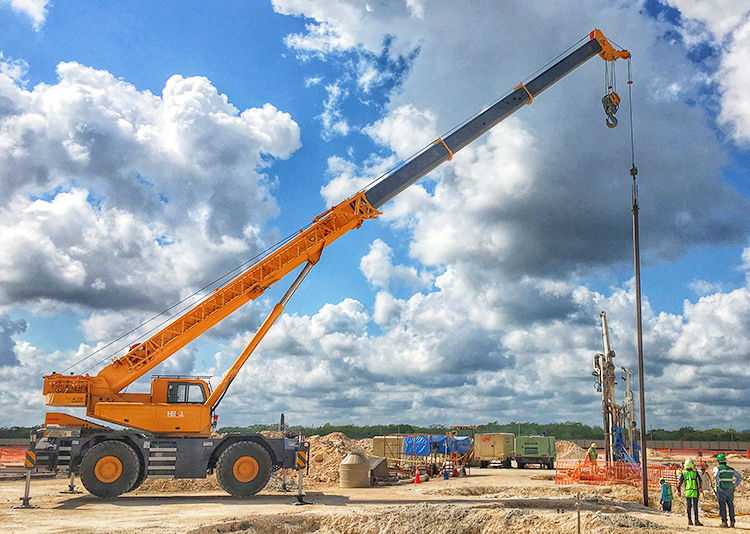

Product Uses
1. Mining and Quarry Operations
Ideal for lifting and transporting ore, stone, equipment components, and installing pipelines in mines and quarries. Its rugged chassis and powerful off-road capability (maximum gradeability of 55%) handle rough and challenging terrain.
2. Oilfield and Energy Sites
Used for equipment installation, pipe handling, and maintenance support at oilfield and energy project sites. Three operating modes—outrigger-supported lifting, tire-supported lifting, and load-carrying travel—accommodate diverse construction site requirements.
3. Road, Bridge, and Infrastructure Construction
Widely deployed at highway and bridge construction sites for hoisting precast components, steel materials, and other building supplies. Its extended boom configurations provide excellent working reach, effectively covering common low-rise construction areas.
4. Port and Warehouse Logistics
In ports and large warehousing facilities, it efficiently handles loading/unloading and transshipment of heavy cargo, machinery, and materials. Its agile mobility (38 km/h speed) and 360° slewing capability enhance logistics efficiency.
5. Equipment Maintenance and Emergency Response
Ideal for equipment inspection and maintenance in industrial and mining enterprises, as well as emergency response at natural disaster or accident sites. Its excellent stability (H-type outriggers) and reliable continuous operation capability address diverse requirements.
Product Operate Guide
RT35 operation must be strictly standardized. Before operation, ensure outriggers are fully extended and supported on solid, level ground. Monitor the load moment indicator (LMI) throughout operation; overloading is strictly prohibited. Control boom movements smoothly via the control console, paying attention to the flexible switching between multiple steering modes. During lifting operations, a dedicated signal person must direct operations to ensure cargo is securely fastened and personnel are kept clear. After operation, fully retract and secure the boom, and perform regular maintenance. Operators must be certified.
FAQ
1. HOW TO MAINTAIN A GENERATOR?
Check belt tension, clean the rectifier, inspect carbon brush wear, and periodically measure output voltage.
2. HOW TO DIAGNOSE STARTER MOTOR ISSUES?
Check power supply, test the solenoid switch, inspect gear meshing, and measure starting current.
3. HOW TO REPLACE AN ENGINE BELT?
Loosen the tensioner, remove the old belt, install the new belt and adjust tension, check pulley alignment.
4. WHAT SHOULD BE NOTED WHEN REPAIRING THE BRAKE SYSTEM?
Use specialized tools, disassemble in sequence, replace worn components, adjust clearance after installation, and test.
5. WHAT TO DO IF THE ENGINE IS HARD TO START?
Check battery charge, starter motor operation, fuel system, and intake system. Troubleshoot each component sequentially.
6. HOW TO RESOLVE INSUFFICIENT HYDRAULIC SYSTEM PRESSURE?
Check hydraulic fluid level and quality. Inspect the hydraulic pump, control valves, and cylinders for internal leaks or damage.
