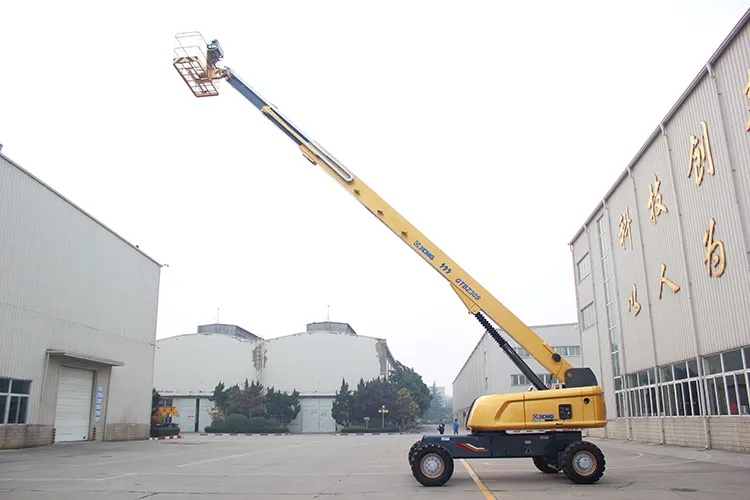

Product Introduction
Integrated dual redundancy safety control: The backup system automatically intervenes when the main control system fails
Intelligent load monitoring: Real-time display of platform load and alarm for over-limit
Tilt protection: Restricts movement when the outriggers are not fully extended or the ground is uneven
Emergency descent system: Equipped with dual backup descent devices of manual and electric

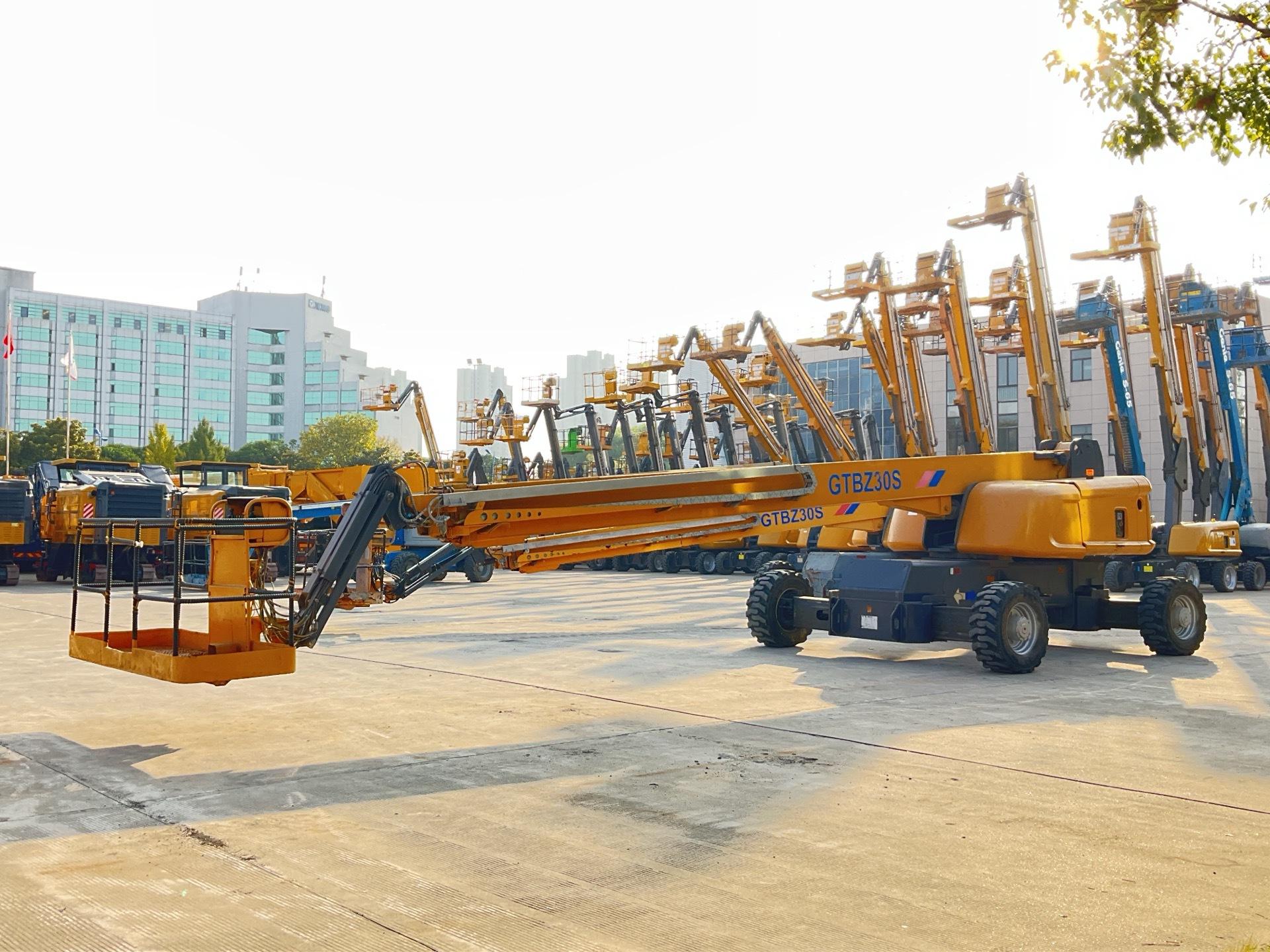

Product Advantage

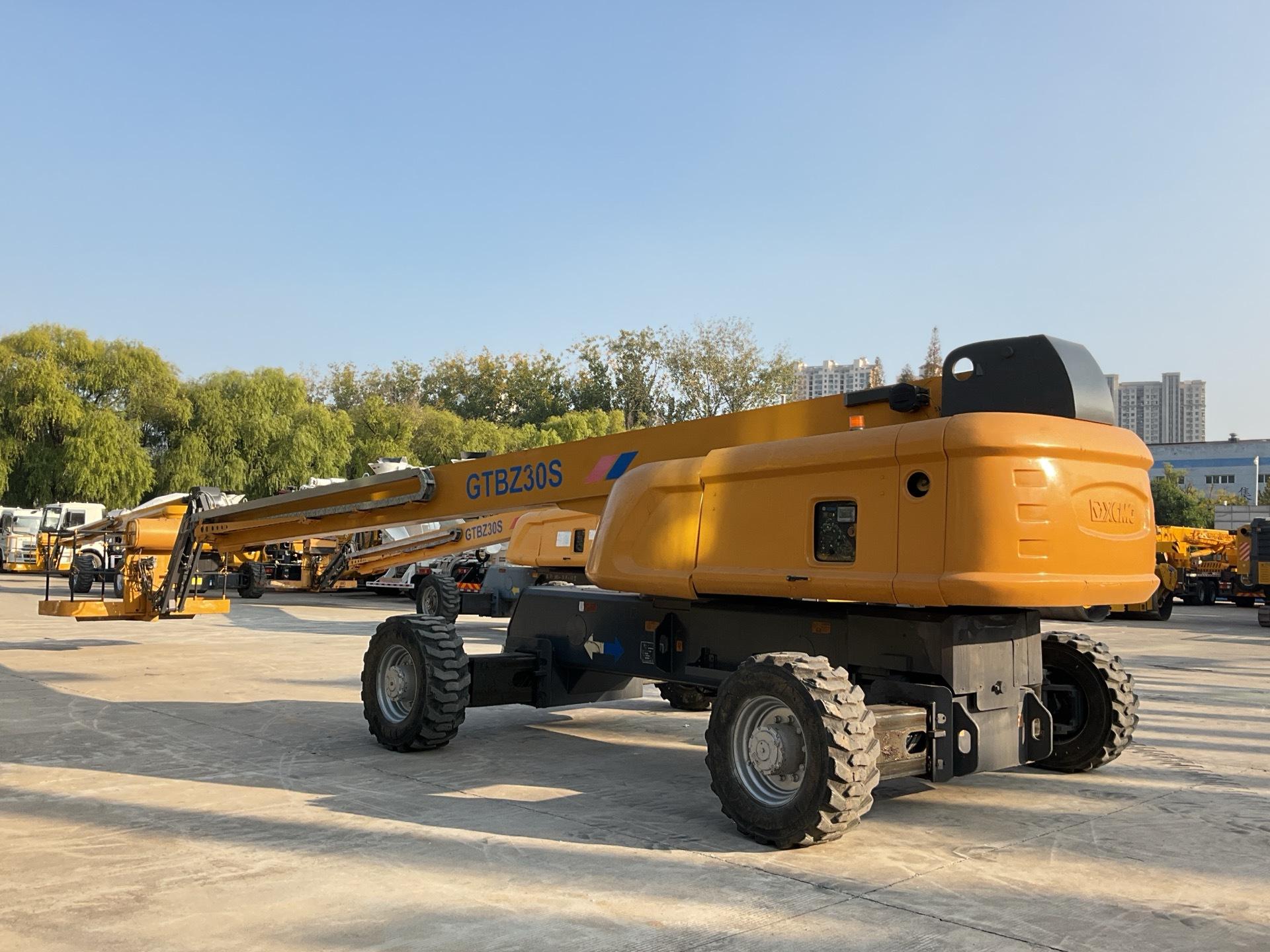

1. Super-strong Capacity Of Climbing Drive
The electronic steering and wide foam tyres both attribute to an excellent capacity of climbing drive, thus adapting itself to all kinds of complicated road conditions.
2. Strongest Capacity Of Loading Within The Industry
The maximum load capacity of 30&32 meters is 480kg&340kg respectively ranks the first within the industry, thus satisfying the user’s demands on heavy load.
3. Excellent Working Range
The double-load operating-curve control technologies realizes a real-time monitoring over loads, thus producing a strong capacity of operation, as well as a widest working range at the same elevation.
Technical Parameters
| Project | Unit | Parameters |
| a Full length of machine | mm | 13380 |
| b Full width of machine (shaft retraction / shaft extension) | mm | 2490/3800 |
| c Full height of machine | mm | 3070 |
| d Wheelbase | mm | 3800 |
| Maximum operation height | m | 32.2 |
| Maximum platform height | m | 30.5 |
| Maximum operation margin | m | 23.1 |
| Maximum bearing weight | kg | 340 (unlimited) / 480 (limited) |
| Boom variable amplitude range | ° | -11~+75 |
| Rotary table rotation angle | ° | 360° |
| Maximum tail pendulum (shaft retraction / shaft extension) | mm | 2085/1430 |
| Platform size | mm | 2400×900 |
| Platform rotation angle | ° | 180 |
| Total weight | kg | 18300 |
| Maximum driving speed | km/h | 5 |
| Minimum turning radius | m | 8.2 / 10.8 (two turns) |
| (shaft retraction / shaft extension) | 5.8 / 6.8 (four turns) |
| Minimum ground clearance | mm | 260 |
| Maximum climbing ability | % | 45 |
| Tire specification | - | 385/65D22.5 |
| Engine model | - | Perkins 1104D-44T |
| Engine rated power | kW/(r/min) | 55.5/2400 |
Product Uses
•Maintenance of large-scale power stations/refineries
• Maintenance of cross-sea Bridges
• Construction of large-scale sports venues
• Shipbuilding and maintenance
Aerospace facility operations
Product Operate Guide
Power mode selection
◦ One-click switch on the control panel:
【 Pure Electric Mode 】 Indoor/Sensitive Areas (Zero emissions)
【 Diesel Mode 】 Outdoor/long-term operation (Strong power)
Intelligent operation control
The movement of the three-section boom is controlled by an electro-hydraulic proportional handle
◦ Monitor via a 7-inch touchscreen:
◦ Real-time load (Overload is strictly prohibited)
◦ Outrigger status indication
◦ Equipment tilt Angle
FAQ
1.What form does the power system take?
A: It adopts a hybrid power system (diesel engine + AC motor) and supports intelligent switching between pure electric mode and diesel mode.
2.How to choose the power mode?
A: Switch with one click through the control panel
• Pure electric mode: Suitable for indoor Spaces, hospitals, schools and other places with high requirements for noise and emissions.
• Diesel mode: Suitable for outdoor, construction site and other working conditions that require long range and strong power.
3.What steering modes does the equipment have?
A: Supports front-wheel steering, four-wheel steering, and crab mode, which can be switched through the chassis controller to adapt to flexible operation in narrow Spaces.
4.How to achieve ultra-high altitude obstacle crossing?
A: Through the multi-section arm hinge design and 360° continuous rotation function, combined with the "flying arm" operation, it can cross complex obstacles such as pipelines and trusses.
5.What are the core safety devices?
A: Equipped with multiple safety systems
Dual redundancy control: When the main control system fails, the backup system automatically takes over
• Intelligent load limiting: Real-time monitoring of platform load and alarm when exceeding the limit
• Tilt protection: Restricts movement when the outriggers are not fully extended or the ground is uneven
• Emergency dual backup: Manual + electric dual sets of emergency descent devices
6.How to deal with sudden power outages or power failures?
A: Immediately activate the emergency procedure
Press the emergency stop button
2. Activate the emergency descent device (prioritize electric backup and switch to manual operation in case of abnormality)
3. Contact technical support through the on-board communication system
