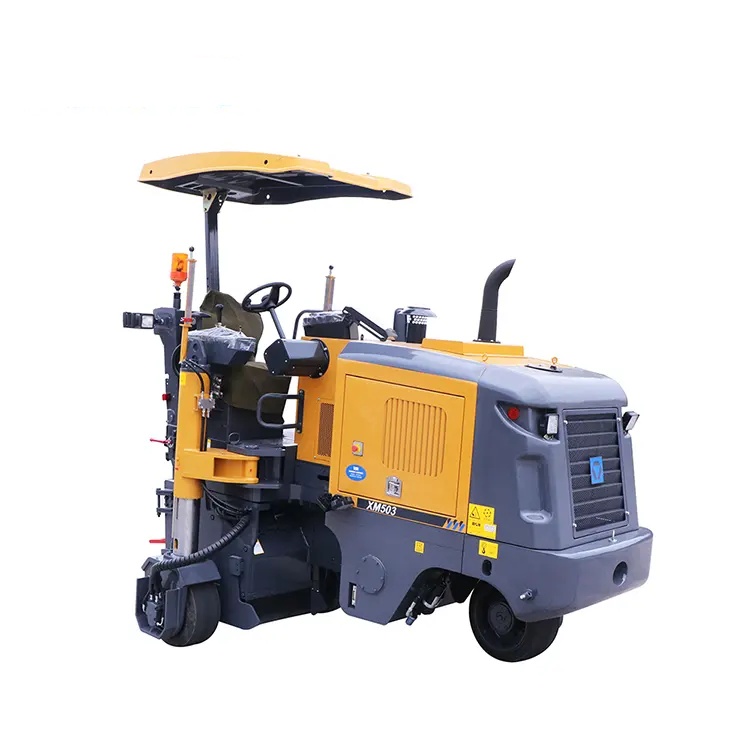

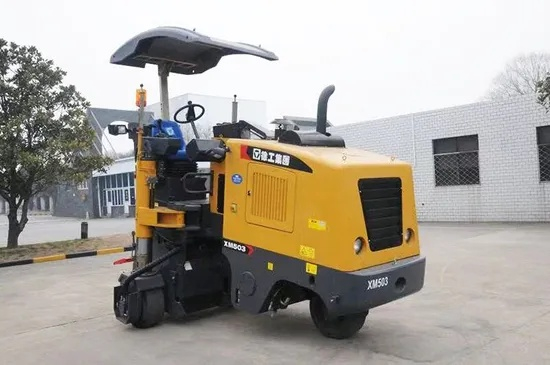

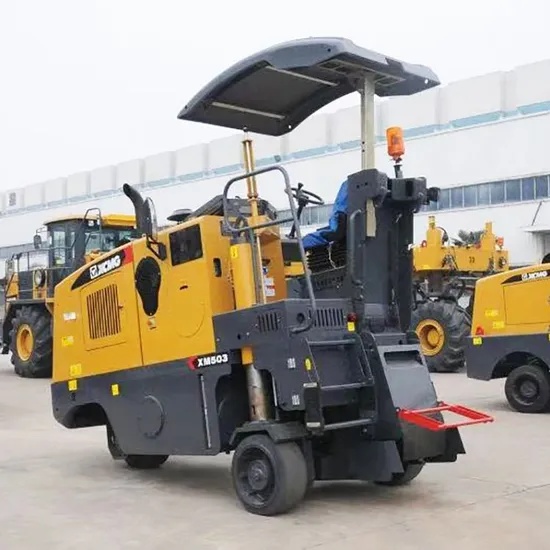

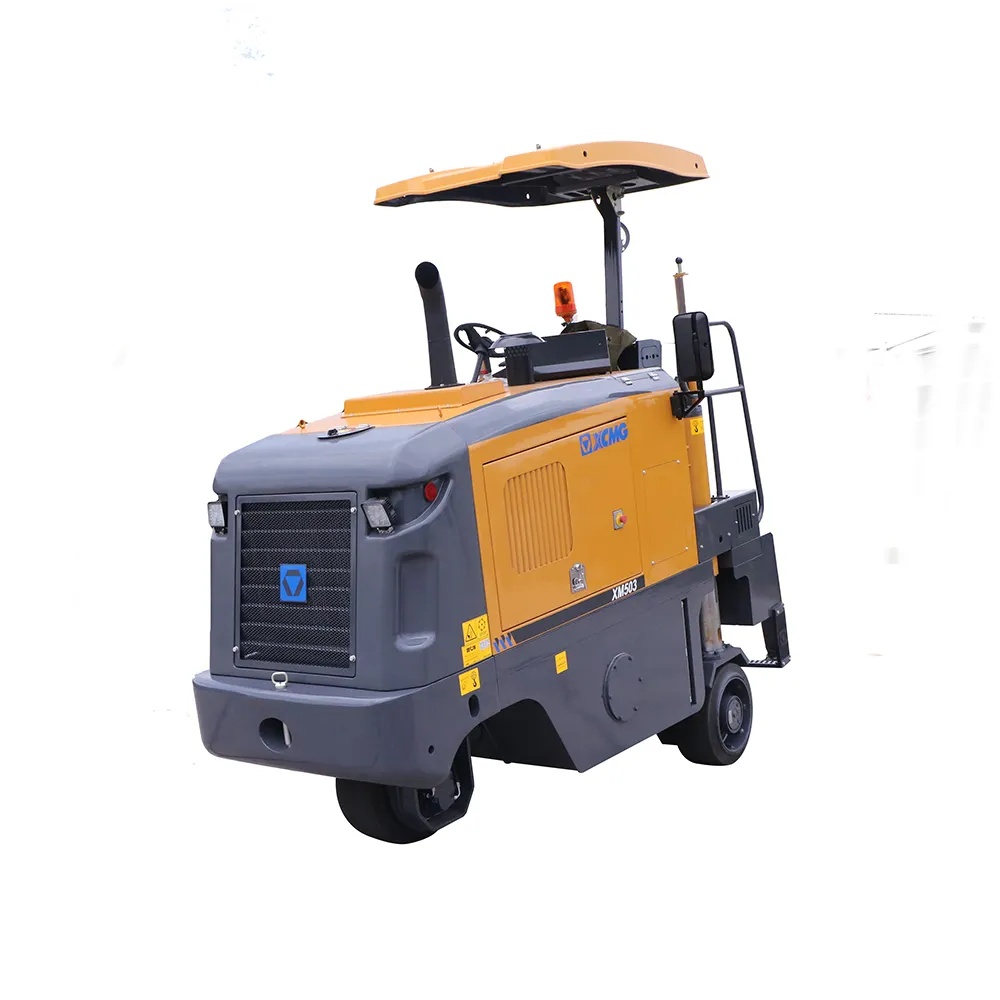

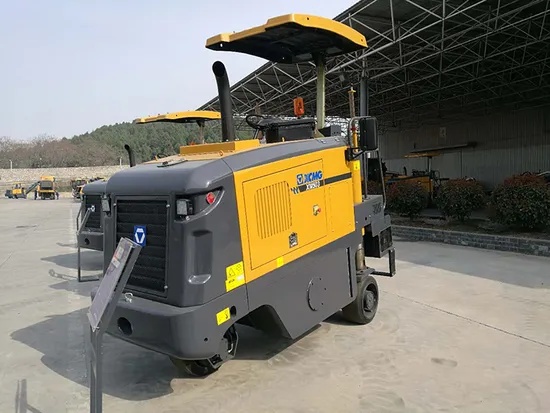

Product Introduction
Wheeled type, all-wheel (three-wheel) drive, hydraulic + mechanical drive mode, constantly variable speed change, and high and low gears. The hydraulic + mechanical drive mode is applied to achieve efficient and powerful milling. The rear outriggers are installed with depth indicator to indicate the milling depth. The full-hydraulic single-front-wheel steering features small steering radius and flexible steering. The electric-driven water pump eases the disassembling and cleaning of water spray nozzles.
Product Advantage
1. Excellent mobility and passability
Compact body: The equipment has a small width and a small turning radius, making it highly suitable for flexible relocation and operation in busy urban areas, narrow streets, and residential communities, minimizing the impact on traffic.
All-wheel drive: It offers excellent traction and climbing ability, and can adapt to various uneven construction environments.
2. Efficient and clean operation capability
◦ Specialized milling rotor: Optimized milling drum design ensures smooth cutting, high efficiency and economical tool consumption.
Integrated dust removal system: Standard equipped with mechanical dust removal and water spray dust suppression systems, effectively controlling the dust generated during the milling process, meeting the environmental protection requirements of municipal construction, and presenting a good image of civilized construction.
3. Humanized operation experience
◦ Easy operation: The hydraulic control system is simple and intuitive to operate, easy to get started with, and can quickly train operators.
Comfortable cab: It provides a good field of vision and operating environment, reducing the workload of the operator.
Convenient maintenance: The layout of daily maintenance points is reasonable and within easy reach, with low maintenance costs and a long maintenance period.
Technical Parameters
| Item | XM503 |
| Milling width | 500mm |
| Maximum milling depth | 180mm |
| Tool nose distance | 15mm |
| engine model | SC4H-C125 |
| Rated speed | 2200 rpm |
| Rated power | 92Kw |
| Fuel tank | 140L |
| Water tank | 300L |
| Working speed | 0-40 m/min |
| Walking speed | 0-6Km/h |
| Theoretical climbing ability | 50% |
| Discharge maximum height | 1200mm |
| Theoretical discharge capacity | 42m3/h |
| Total weight | ≤7800/7300Kg |
| Minimum milling radius | 350mm |
| Ground clearance | 180 mm |
| Front track | 1720×300×620mm |
| Rear crawler | 1720×300×620mm |
| Conveyor belt device |
| Aggregate conveyor belt width | 800mm |
| Discharging conveyor width | 800mm |
| Conveyor belt conveying capacity | ≤330m3/h |
| Shipping dimensions |
| Machinery (length×width×height) | 7650×2580×3000mm |
| Belt conveyor (length × width × height) | 8060×1150×1500mm |
Product Uses

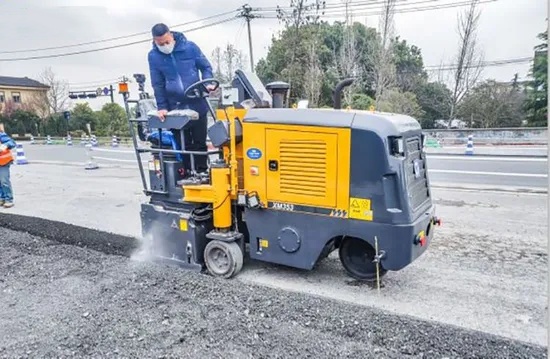

• Municipal roads: Local milling of urban roads, pothole repair, and peri-well restoration.
• Street and community: Milling and renovation of internal roads and squares within the community.
• Traffic facilities: Remove road markings and speed bumps.
• Auxiliary operations: Provide supplementary operations for areas that large milling machines cannot access.
Product Operate Guide
The operation of the XM503 milling machine must comply with safety regulations. Before starting work, check the wear of the cutting tools, the oil level and the dust removal nozzles. After starting, idle for preheating and control the movement and steering of the equipment through the control lever. When milling, set the appropriate depth and speed according to the working conditions, insert the tool smoothly and maintain a uniform feed rate to ensure a flat working surface. Always pay attention to the surrounding environment and strictly prohibit limbs from approaching rotating parts. After work, clean the equipment and carry out daily maintenance. Detailed operations must strictly follow the official user manual.
FAQ
1.What is the minimum turning radius and passability of the equipment?
A: It adopts a compact design and all-wheel drive system, with a small turning radius and strong maneuverability. It can flexibly pass through narrow streets and community entrances, adapting to the complex environment of municipal construction.
2.How effective is the dust removal system? Can it meet environmental protection requirements?
A: It is equipped with a dual system of mechanical dust removal and water spray dust suppression as standard, effectively suppressing the spread of dust and fully meeting the environmental protection requirements of municipal construction, achieving civilized operation.
3.What aspects should be noted in daily maintenance?
A: Check the tool wear, hydraulic oil level and belt tension every day. Regularly clean the dust removal filter element and replace the lubricating oil. For detailed maintenance cycles, please refer to the operation manual.
4.What is the frequency and cost of tool replacement?
A: The tool life depends on the hardness of the milled material. Generally, it can be used for 80 to 120 hours on medium-strength asphalt roads. It is recommended to use the original factory cutting tools. The cost per piece is relatively low, but special tools are needed for replacement.
5.How to quickly troubleshoot equipment malfunctions?
A: First, check the alarm code on the dashboard and make a preliminary judgment by referring to the manual. Common problems include clogged oil circuits, sensor malfunctions, etc. It is recommended to contact an authorized service point for professional diagnosis.
6.Does it support customized configuration?
A: Optional accessories such as reinforced cutting tools and high-precision leveling instruments are available. For special requirements, it is necessary to communicate and confirm the compatibility with the manufacturer in advance.
