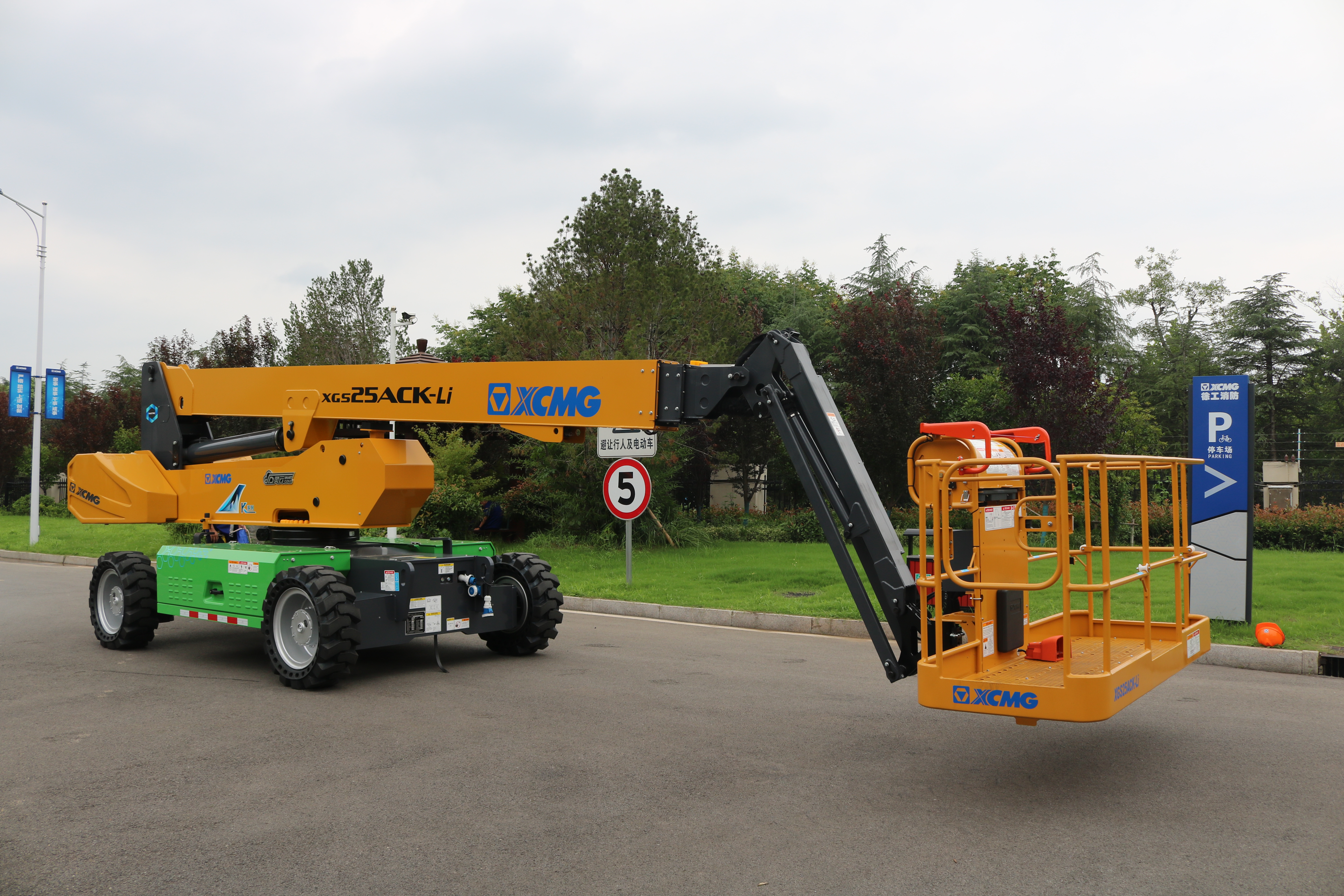

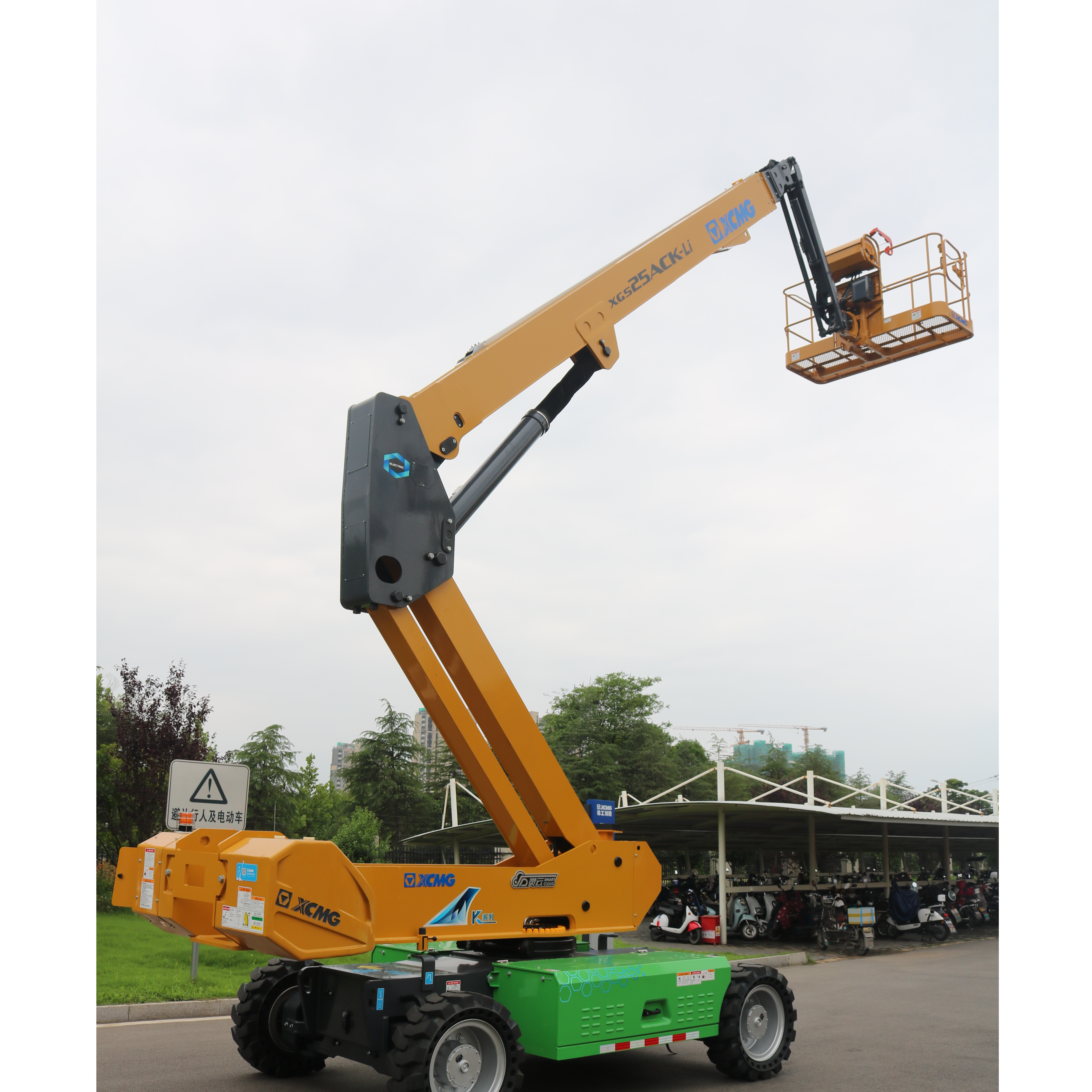

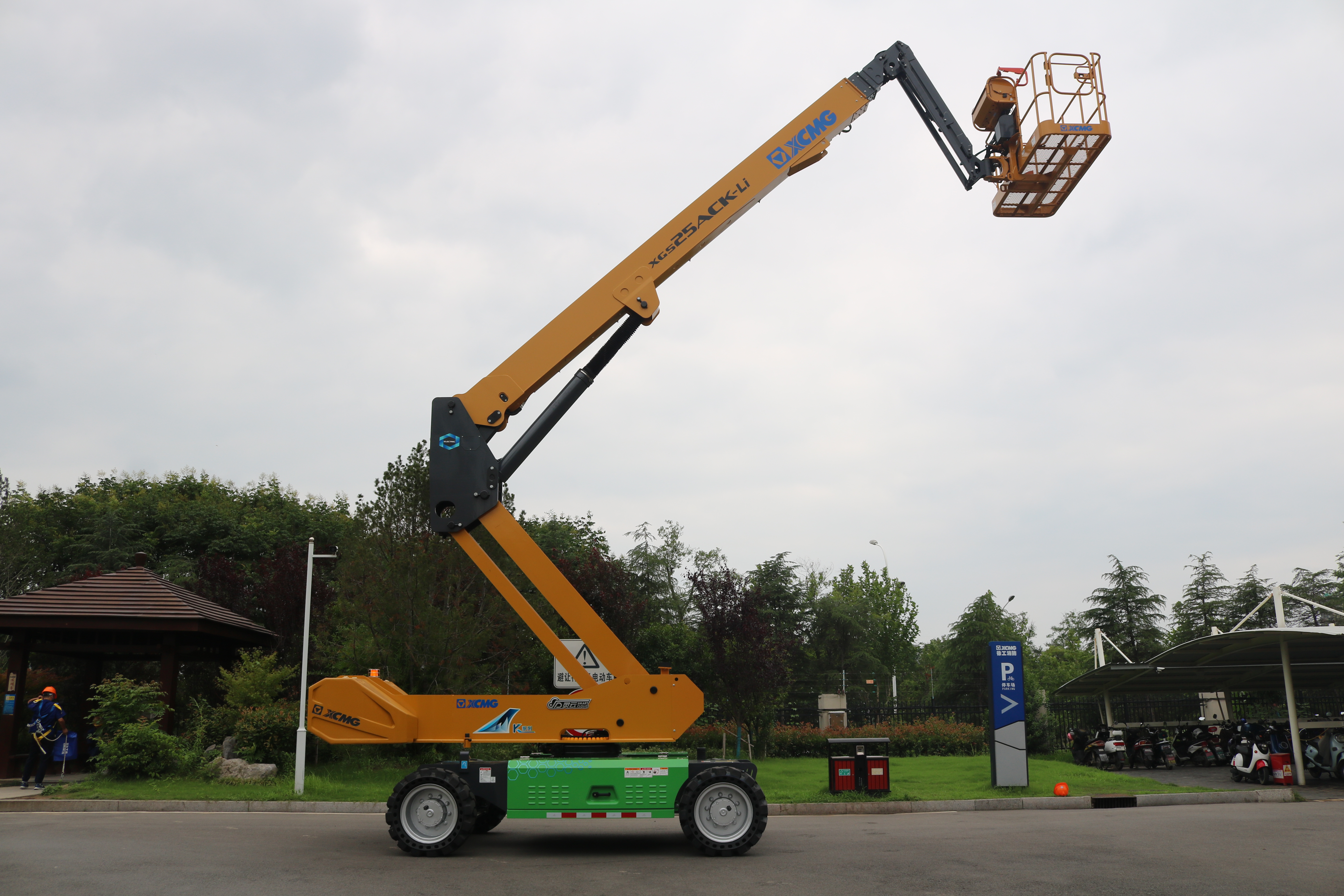

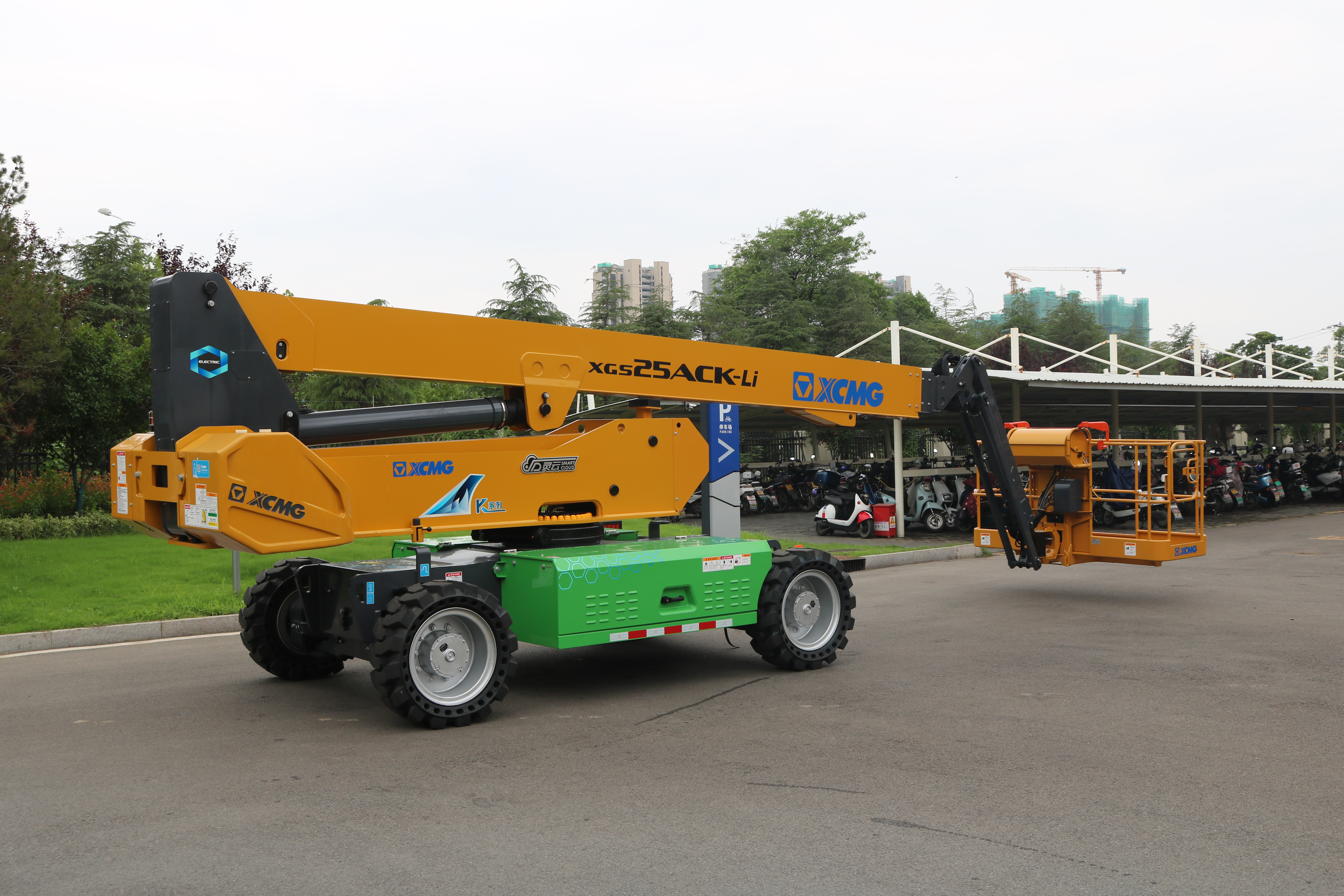

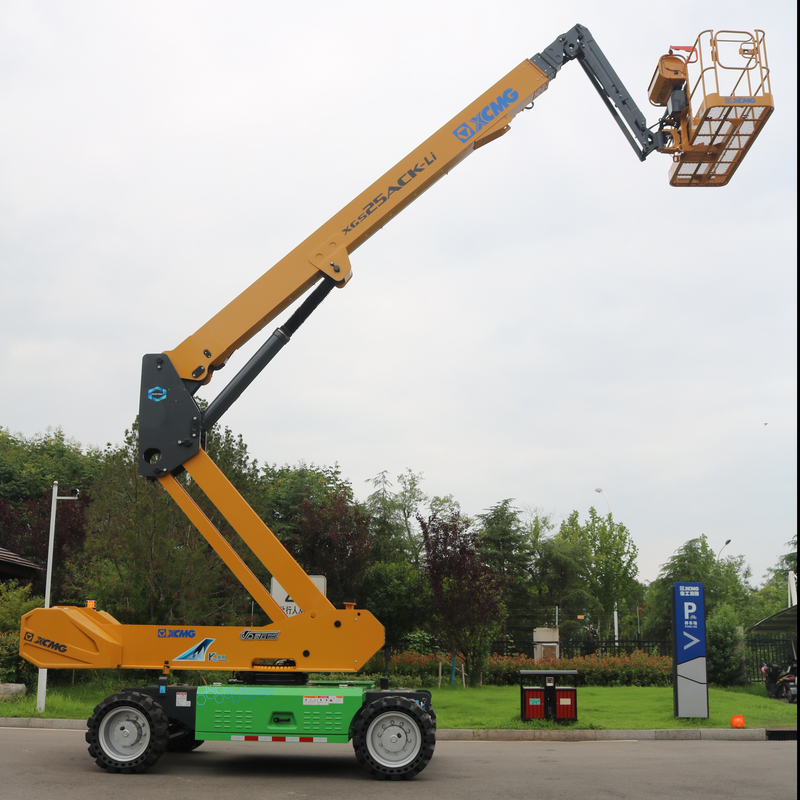

XGS25ACK/ XGS25ACK-Li
| Quantity: | |
|---|---|
Product Introduction
XGS25ACK: Equipped with an AC motor system and a traditional lead-acid battery, it is an economical and reliable classic choice.
XGS25ACK-Li: Equipped with an AC motor system and high-performance lithium battery, it is a modern choice for those who pursue high efficiency, environmental protection and low operating costs.
These two products are designed to provide safe, stable and efficient solutions for operations in higher airspace, meeting the construction needs of large venues, industrial plants, infrastructure and other fields.
Product Advantage
1. Powerful and efficient AC drive system
The entire series is equipped with AC motors, providing strong traction and climbing ability, running smoothly, efficiently, and basically maintenance-free.
2. Dual power options to meet diverse demands
Lithium battery version (XGS25ACK-Li): Zero emissions, low noise, fast charging support (fully charged in 1-2 hours), long-lasting battery life, all-weather operation, and lower total cost of ownership. It is an ideal choice for high-end indoor applications.
Lead-acid version (XGS25ACK): Mature technology, more advantageous purchase cost, suitable for budget-sensitive users who do not have extreme requirements for environmental protection and noise.

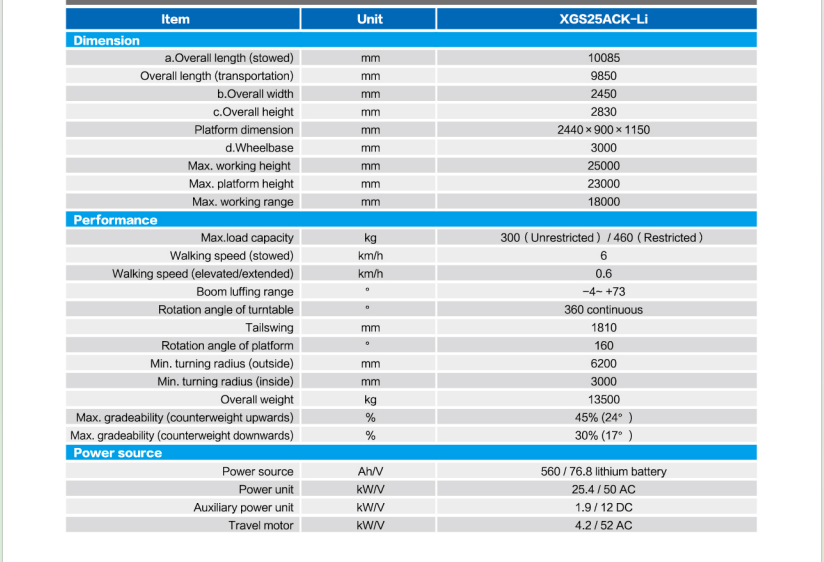

Technical Parameters
Product Uses
The construction and maintenance of large sports venues, airports, railway stations and theaters
Construction, equipment installation and maintenance of large industrial plants and warehouses
Construction and maintenance of infrastructure such as hydropower stations and Bridges
Cleaning and decoration of the exterior facades of large-scale commercial complexes
Product Operate Guide
1. Platform control: Operate on the platform control box. Use the proportional control handle to smoothly control the lifting and moving of the equipment, and pay attention to maintaining a safe distance from obstacles.
2. Load and personnel: Overloading is strictly prohibited. All platform personnel must fasten their safety belts and attach safety ropes to the designated hanging points.
3. Movement and Steering: Depending on the site space, flexibly use front-wheel steering, four-wheel steering or crab steering modes to pass through narrow areas. When driving, always pay attention to the environment behind and around.
4. Emergency: Be familiar with the location of the emergency stop button. In case of sudden malfunction or power failure, remain calm and use the manual emergency descent device to safely lower the platform.
FAQ
A: The core difference lies in the power battery:
• XGS25ACK: It adopts lead-acid batteries, with relatively low purchase costs and mature technology. It is suitable for users with limited budgets who do not have extreme requirements for battery life and charging speed.
• XGS25ACK-Li: Equipped with lithium iron phosphate batteries, it features zero emissions, low noise, fast charging support (1-2 hours), ultra-long battery life, and a long lifespan. With a lower total holding cost, it is the preferred choice for indoor operations, high-end rentals, and projects with high environmental protection requirements.
A: It offers three steering modes, greatly enhancing flexibility in narrow Spaces:
• Front-wheel steering: Standard mode, suitable for open areas.
• Four-wheel steering: All wheels rotate in the same direction, reducing the turning radius and facilitating turns in confined Spaces.
• Crab-shaped steering: The front and rear wheels rotate in opposite directions, enabling the equipment to move diagonally and facilitating close contact with walls or obstacles while passing through corridors.
A: It depends on the battery type and working conditions
• Lithium battery version (XGS25ACK-Li) : When fully charged, it usually can operate for 8-10 hours in a standard state and supports quick charging during lunch breaks.
• Lead-acid version (XGS25ACK) : Battery life is approximately 6-8 hours, and the charging time is relatively long (about 8-10 hours).
The actual range may vary depending on the load, driving distance, frequency of ascent and descent, and ambient temperature.
Does an AC motor need maintenance?
A: Daily maintenance mainly includes:
• Cleaning: Keep the entire vehicle clean, especially the oil cylinders, sliders and lead screws of the outriggers.
• Inspection: Inspect structural components, fasteners, tires and battery connection lines daily.
• Charging: Lead-acid batteries need to be charged in a timely manner;
Lithium batteries can be charged at any time and support fast charging.
The greatest advantage is that the AC motor does not require carbon brush replacement and is basically maintenance-free, which greatly saves maintenance costs and time.
A: The equipment is equipped with multiple safety devices
• Emergency Stop button: Pressing it immediately stops all actions.
Emergency descent device: In case of sudden power failure, this device can be manually activated to enable the platform to descend safely and slowly to the ground.
• Emergency steering: When the main steering fails, the backup mode can be activated to move the device.
All operators must be familiar with the locations and usage methods of these devices before going on the machine.
A: The control panel will display the fault code. Please stop the operation immediately and conduct a preliminary troubleshooting by referring to the "Fault Code Table" in the randomly attached "User and Maintenance Manual". If the problem cannot be solved, please contact professional maintenance personnel immediately. Do not disassemble the core components by yourself.
