Product Introduction

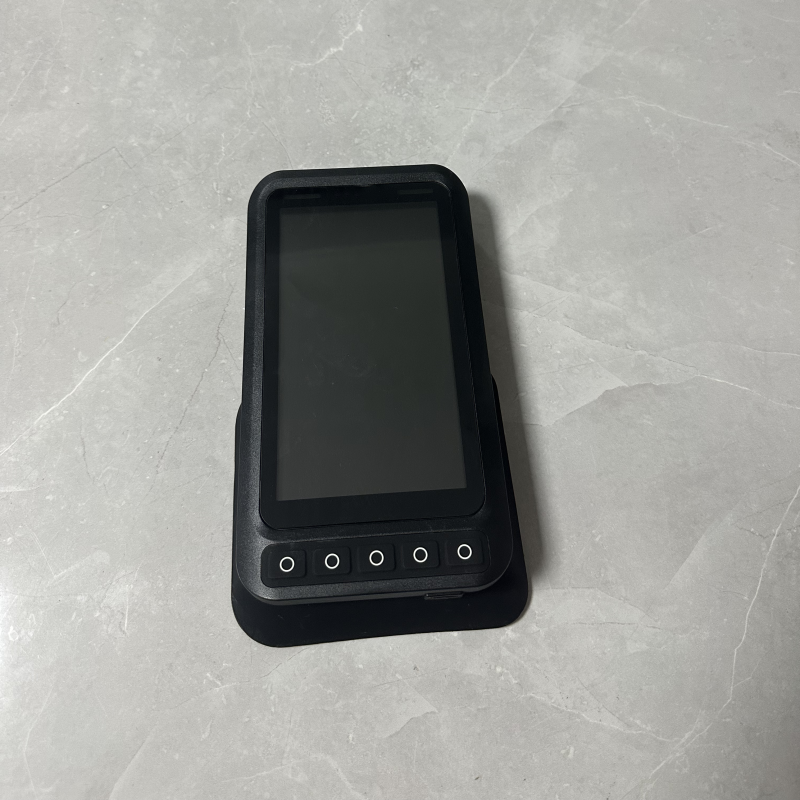

The EXAGXCMG070I-11 Monitor is a high-definition, industrial-grade display specially designed for the XE2000 mining excavator. As the core of the excavator’s intelligent monitoring system, it is responsible for real-time displaying key operating data, fault codes, and working status of the equipment, including engine speed, hydraulic pressure, oil temperature, coolant temperature, and various system alarms. Manufactured in strict accordance with original specifications, this monitor features stable performance, clear display, and strong environmental adaptability, making it an essential replacement part for XE2000 mining excavator maintenance and operation, ensuring the safe and efficient operation of the equipment in harsh mining environments.

Product Advantages

• High-Definition Clear Display: Equipped with a high-brightness LCD screen, the display is clear and easy to read even under strong sunlight or low-light mining environments, ensuring the operator can quickly grasp equipment status.

• Stable Performance & Accurate Data: Adopts high-quality core chips and mature circuit design, ensuring real-time, accurate transmission and display of equipment operating data, with strong anti-interference ability and no data drift.

• Perfect Compatibility: Designed specifically for the XE2000 mining excavator, fully matching the equipment’s electrical system, plug-and-play, no need for complex modification or debugging, easy to replace.

• Durable & Environmentally Adaptable: IP67 waterproof, dustproof, and shockproof design, able to withstand high dust, high vibration, and extreme temperature changes in mining sites, with long-term stable operation.

• User-Friendly Operation: Simple interface layout, clear function classification, and responsive operation buttons, making it easy for operators to check data, view fault codes, and operate related functions quickly.

• Long Service Life & Cost-Effective: Made of high-quality industrial materials, with strong wear resistance and aging resistance, low failure rate, reducing the frequency of replacement and later maintenance costs for users.

Product Parameters

Product Application Scenarios

The EXAGXCMG070I-11 Monitor is exclusively designed for the XE2000 mining excavator and is widely used in various mining and construction scenarios, mainly including:

• XE2000 Mining Excavator Operation: Real-time monitoring of the excavator’s engine, hydraulic system, and electrical system during mining operations, ensuring safe and efficient work.

• Mining Site Equipment Maintenance: Replacement of damaged or faulty original monitors, restoring the excavator’s monitoring function and ensuring normal operation.

• Heavy-Duty Construction Sites: Applicable to XE2000 excavators working in construction, road construction, and other heavy-duty scenarios, adapting to harsh working environments.

• Excavator After-Sales Service: Used as a professional replacement part for after-sales maintenance of XE2000 mining excavators, improving maintenance efficiency.

• Industrial Equipment Monitoring: Compatible with other same-spec heavy-duty engineering machinery (with matching interfaces) for real-time status monitoring.

• Mine Equipment Fleet Maintenance: Used for daily inspection and replacement of XE2000 excavator fleets in large mines, ensuring the normal operation of the entire fleet.

Product User Guide

1.Installation Steps

• Shut down the XE2000 excavator engine, turn off the main power switch, and wait for the equipment to cool down completely to ensure safe operation.

• Gently remove the old monitor from the installation bracket, disconnect the wiring harness connector at the back of the monitor (pay attention to the direction of the connector to avoid damage).

• Clean the installation bracket and the wiring harness connector to remove dust, dirt, and other impurities, ensuring good contact.

• Align the EXAGXCMG070I-11 monitor with the installation bracket, fix it firmly with the original screws (do not over-tighten to avoid damaging the monitor shell).

• Connect the wiring harness connector to the back of the new monitor, ensuring a tight connection without looseness (check that the connector is inserted in place).

• Turn on the main power switch of the excavator, start the engine, and check whether the monitor displays normally, whether all data is accurate, and whether there is any fault alarm.

2.Daily Maintenance

• Regularly wipe the monitor screen with a soft, dry cloth to remove dust and stains, avoiding the use of corrosive cleaning agents to prevent screen damage.

• Check the wiring harness connection regularly (once a week) to ensure it is tight and free of looseness, aging, or damage; replace the wiring harness in time if any problems are found.

• Avoid hitting or colliding with the monitor during operation to prevent screen breakage or internal component damage.

• In rainy or dusty environments, check the monitor’s waterproof and dustproof performance regularly, and wipe the edge of the monitor to prevent water or dust from entering the interior.

• If the monitor fails (such as no display, blurred screen, or inaccurate data), shut down the equipment immediately and check the power supply and wiring harness first; if the problem persists, replace the monitor in time.

3.Precautions

• Do not disassemble the monitor without professional training, as this may damage internal precision components and affect performance.

• Ensure the working voltage is within the specified range (18V-32V) to avoid burning the monitor due to overvoltage or undervoltage.

• When installing or replacing the monitor, do not pull the wiring harness hard to avoid breaking the wires.

• Store the monitor in a dry, clean, and ventilated environment when not in use, away from high temperature, humidity, and corrosive substances.

• If the monitor is exposed to strong sunlight for a long time, use a sunshade to protect the screen and extend its service life.

FAQ

Q: Is the EXAGXCMG070I-11 monitor compatible with all XE2000 mining excavator models?

A: Yes, this monitor is specially designed for the XE2000 series mining excavators, fully matching the electrical system and installation size of all XE2000 models, and can be directly replaced and used.

Q: What should I do if the monitor does not display after installation?

A: First, check whether the wiring harness is connected tightly and in place; then check whether the excavator’s power supply is normal. If the problem still exists, it may be a monitor fault, and you can replace it with a new one.

Q: Can the monitor display all the operating data of the XE2000 excavator?

A: Yes, it can display all key operating data, including engine speed, hydraulic pressure, oil temperature, coolant temperature, fuel level, and various system fault codes, helping operators grasp the equipment status in real time.

Q: How long is the service life of this monitor?

A: Under normal use and regular maintenance, the service life can reach 3-5 years. The actual service life will be affected by working environment, maintenance frequency, and operation habits.

Q: Is the monitor waterproof and dustproof? Can it be used in rainy or dusty mining sites?

A: Yes, it has an IP67 protection level, which is fully waterproof and dustproof, and can work stably in harsh environments such as rainy days and dusty mines.

Q: What is the difference between this replacement monitor and the original factory monitor?

A: It is manufactured in strict accordance with the original factory’s specifications and quality standards, with the same display effect, performance, and compatibility as the original monitor. It is a cost-effective replacement choice without compromising quality.
