XG0807HDW/XG0807HDW-Li
| Availability: | |
|---|---|
| Quantity: | |

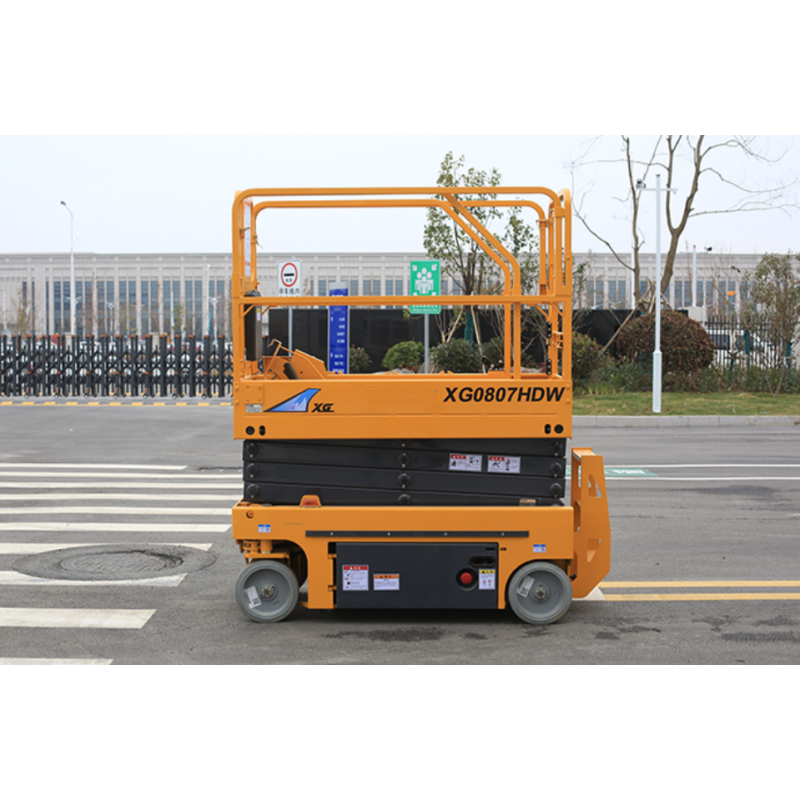

XG0807HDW (Lead-acid) / XG0807HDW-Li (Lithium) is a heavy-duty hydraulic drive self-propelled scissor lift with 7.8m max working height and 230kg rated load. Designed for narrow-space & light rough-terrain tasks, it features an 810mm ultra-narrow width, solid non-marking tires, and a robust all-steel scissor structure. The HDW-Li version upgrades to long-cycle lithium battery for longer runtime and faster charging. Both are CE-certified, zero-emission, low-noise, and ideal for indoor/outdoor aerial work in construction, warehouses, and commercial spaces.
Hydraulic Drive System: Smooth lifting/lowering, stable power output, strong adaptability to complex ground.
Ultra-Compact & Passable: 810mm width, zero inner turning radius; easily passes standard doors, elevators, and narrow aisles.
High Safety Configuration: Overload protection, tilt alarm (1.5°/3°), emergency stop, automatic pothole protection, anti-slip platform, and safety railings.
Extendable Platform: 0.9m extension (115kg load) expands working range for flexible operation.
Durable & Low Maintenance: Heavy-duty scissor structure, modular components, simplified daily upkeep.
Indoor & Outdoor Versatility: Stable on flat/light rough ground; suitable for construction sites, warehouses, malls, and public facilities.
Cost-Effective: Mature 24V lead-acid battery (4×6V/280Ah), low replacement cost, easy maintenance.
Longer Runtime: 25.6V lithium battery (160Ah), 2× longer working time than lead-acid.
Faster Charging: 2–3h full charge (vs. 8–10h for lead-acid), high efficiency.
Lightweight & Long Cycle: 30% lighter battery, 1000+ charge cycles, longer service life.
Item | XG0807HDW (Lead-acid) | XG0807HDW-Li (Lithium) |
|---|---|---|
Model | XG0807HDW | XG0807HDW-Li |
Max. Working Height | 7.8 m | 7.8 m |
Max. Platform Height | 5.8 m | 5.8 m |
Rated Load Capacity | 230 kg | 230 kg |
Extended Platform Load | 115 kg | 115 kg |
Platform Size (L × W) | 1670 × 740 mm | 1670 × 740 mm |
Extended Platform Length | 0.9 m | 0.9 m |
Overall Dimension (L×W×H, Folded) | 1900(1680) × 810 × 2160(1830) mm | 1900(1680) × 810 × 2160(1830) mm |
Total Weight | 1580 kg | 1480 kg |
Inner Turning Radius | 0 m | 0 m |
Outer Turning Radius | 1.75 m | 1.75 m |
Ground Clearance | 20 mm (Raised) / 70 mm (Stowed) | 20 mm (Raised) / 70 mm (Stowed) |
Travel Speed (Lowered / Raised) | 3.9 km/h / 0.8 km/h | 4.5 km/h / 0.8 km/h |
Gradeability | 25% | 25% |
Lifting Time | 13–30 s | 13–30 s |
Lowering Time | 25–35 s | 25–35 s |
Battery | 24V, Lead-acid (4×6V/280Ah) | 25.6V, Lithium (160Ah) |
Charging Time | 8–10 h | 2–3 h |
Working Hours (Full Charge) | 4–6 h | 8–10 h |
Certification | CE | CE |
Construction Sites: Interior/exterior renovation, painting, electrical wiring, HVAC installation on light rough ground.
Warehouse & Logistics: Inventory counting, shelf assembly, lighting/ventilation maintenance in narrow aisles.
Commercial Spaces: Fixture installation, sign hanging, ceiling cleaning, lamp replacement in malls, hotels, exhibition halls.
Building Maintenance: Indoor wall repair, pipeline upkeep, electrical work for offices, apartments, public facilities.
Municipal & Roadwork: Streetlight maintenance, traffic sign installation, greenery trimming on flat/light rough terrain.
Events & Exhibitions: Stage setup, banner hanging, AV equipment installation for conferences and temporary activities.
Check battery charge (lead-acid: electrolyte level; lithium: power indicator), tire pressure, and hydraulic oil level.
Verify safety railings, platform extension, and locking pins are secure.
Test emergency stop, tilt alarm, and pothole protection for normal function.
Clear ground obstacles; ensure surface is flat, solid, and free of debris (avoid slopes >25%).
Turn key switch to ON; activate hydraulic power.
Use joystick for forward/backward; speed limited to 0.8km/h when elevated.
Steer gently; avoid sharp turns or slopes >25% while platform is raised.
Press lift button to raise; release to stop (hydraulic smooth control).
Press lower button to descend; keep area below clear.
Extend platform only when fully elevated; do not exceed 115kg on extension.
No Overload: 230kg main / 115kg extension max load.
Slope Limit: Do not drive on slopes >25% when elevated.
Safety Harness: Required for all elevated work.
Lower Before Moving: Fully retract platform before repositioning.
Fully lower platform and retract extension.
Turn off key switch; disconnect charger (if connected).
Clean surface; check for loose bolts or damage.
HDW: Charge after use; check electrolyte monthly.
HDW-Li: Charge to 80% for long-term storage; avoid overcharging.
A: Max working height is 7.8m; max platform height is 5.8m.
A: HDW: 24V lead-acid battery, 4–6h runtime, 8–10h charge, lower cost. HDW-Li: 25.6V lithium battery, 8–10h runtime, 2–3h charge, lighter weight, longer cycle life.
A: Yes, for light rough-terrain use on flat, solid ground. Avoid heavy rain, strong wind, or uneven terrain.
A: 810mm—fits standard doors, elevators, and narrow spaces.
A: Max 2 persons (total load ≤230kg).
A: Overload protection, tilt alarm, emergency stop, automatic pothole protection, anti-slip platform, safety railings.
