Product Introduction

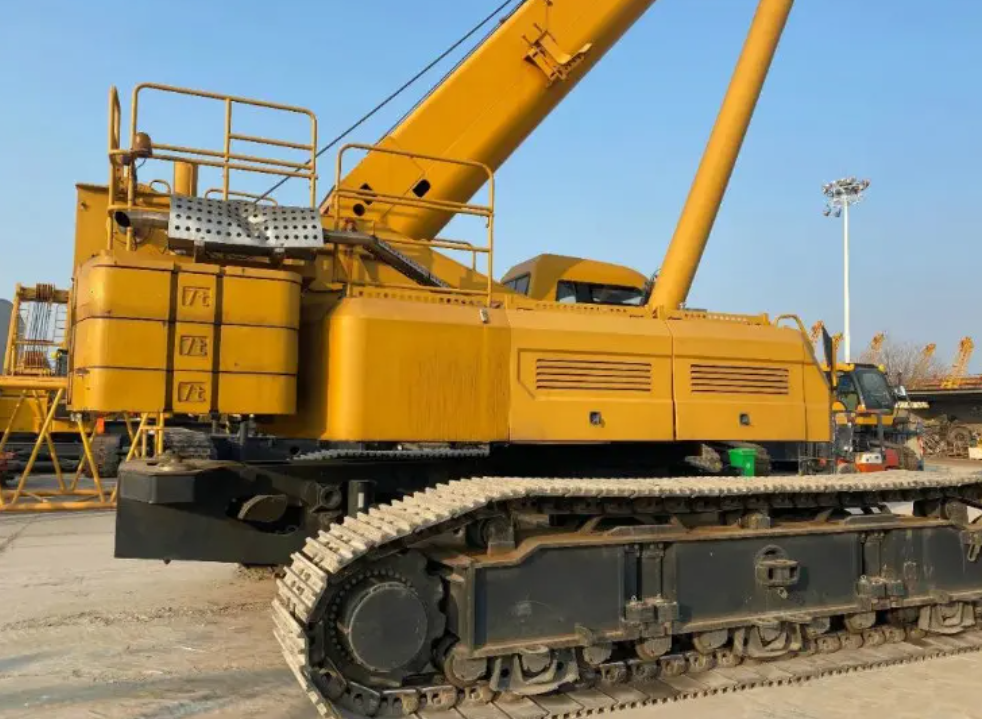

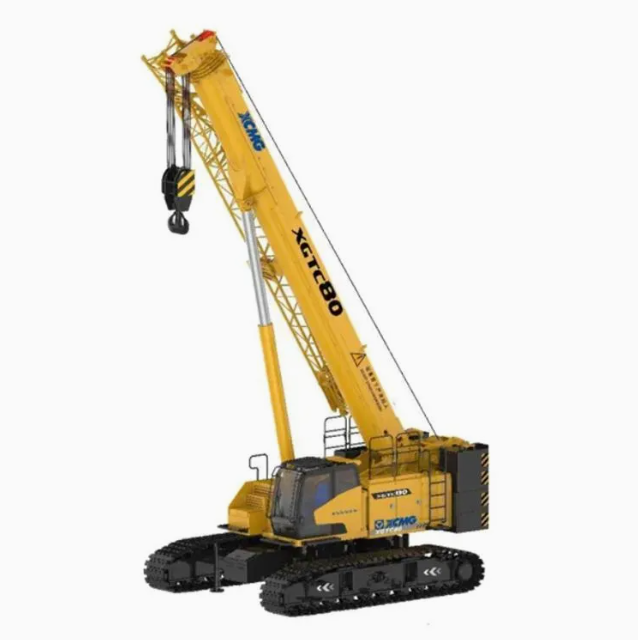

The XGTC80 prioritizes efficient operation and workplace safety. It comes standard with a self-installing track beam and counterweight system, eliminating the need for auxiliary cranes during relocation. With a transport height controlled under 3.5 meters, it offers cost-effective efficiency.
Product Advantage
XGTC80 telescopic crawler crane is widely used in steel structure workshop, highway and bridge construction, ultra-high voltage tower and assembled buildings and other infrastructure construction, as well as oil, auxiliary rotary excavation construction and other complex operating environment. XGTC80 is rich in security configuration, with virtual wall, gauge intelligent detection technology, intelligent products, high safety limit conditions. Standard crawler beam, balance heavy self-disassembly, the main engine does not remove the crawler beam transport, transport height < 3.5m, the only industry.
Technical Parameters
| Item | Unit | Parameter value |
| Max. rated lifting capacity | (t) | 80 |
| Max. lifting load moment | (t.m) | 302.5 |
| Boom length | (m) | 47 |
| Max. slewing speed | (r/min) | 2 |
| Max. travel speed | (km/h) | 2.5 |
| Engine rated power | (kW) | 199 |
Product Uses
1. Urban Construction and Infrastructure Lifting
The XGTC80 is ideally suited for lifting operations in urban construction sites, municipal projects, and general engineering applications. With a transport height below 3.5 meters, it offers excellent maneuverability. Its standard-equipped crawler beams and counterweight self-assembly system enable disassembly and assembly without auxiliary cranes, saving costs and time while allowing rapid deployment in confined spaces.

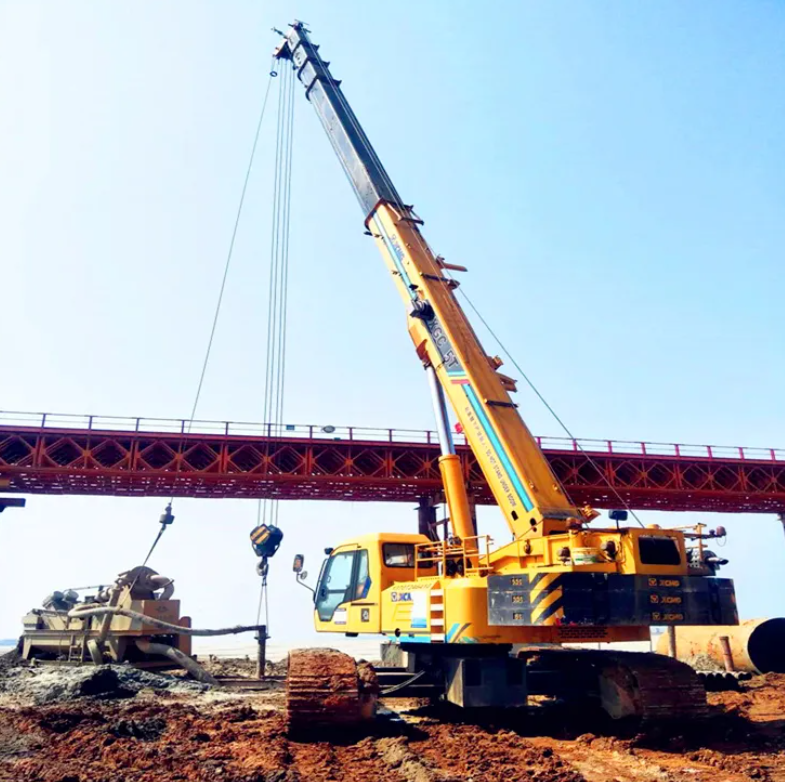

2. Power Construction and Equipment Installation
This model excels in power industry applications such as transformer hoisting and transmission tower component installation. Its strong gradeability and complex ground pressure distribution enable stable operation on unpaved surfaces and remote sites.
3. Industrial Plant and Maintenance Operations
Within factory workshops or industrial parks, the XGTC80 supports equipment installation, maintenance, and lifting tasks. Its 360° slewing capability and rear-view monitoring system enhance safety in complex environments. The hydraulic cylinder rope block telescoping mechanism further boosts construction efficiency.
4. Logistics Warehousing and Material Handling
In heavy-duty logistics warehouses, ports, terminals, or rail yards, this crane can also handle heavy cargo, container modules, or large materials. Its flexible crawler chassis facilitates site mobility for diverse lifting tasks.
Product Operate Guide
To operate the XGTC80, first ensure the ground is firm and level. Fully extend the outriggers with pads. Always consult the load moment indicator (LMI) and never exceed the rated capacity. Maintain clear communication with your signaler during all lifts. Avoid swinging loads over personnel and adhere to all safety protocols outlined in the official operator's manual.
FAQ
1. HOW TO TROUBLESHOOT A MALFUNCTIONING LIGHTING SYSTEM?
Check fuses, bulbs, switches, and wiring connections. Use a multimeter to measure voltage and continuity.
2. HOW TO SAFELY OPERATE ON INCLINES AND DECLINES?
Maintain low speed, avoid shifting gears or turning, and use auxiliary braking devices when necessary.
3. HOW TO MAINTAIN THE GENERATOR?
Check belt tension, clean the rectifier, inspect carbon brush wear, and periodically measure output voltage.
4. HOW TO DIAGNOSE STARTER MOTOR FAILURE?
Check power supply, test the solenoid switch, inspect gear meshing, and measure starting current.
5. HOW TO ENSURE SAFETY WHEN WORKING NEAR HIGH-VOLTAGE LINES?
Maintain a safe distance, set up warning signs, assign a dedicated supervisor when necessary, and use insulated protective equipment.
6. HOW TO HANDLE A CIRCUIT SHORT CIRCUIT?
Disconnect the power supply, use a multimeter to locate the short circuit point, repair damaged insulation, and replace faulty wiring harnesses.
