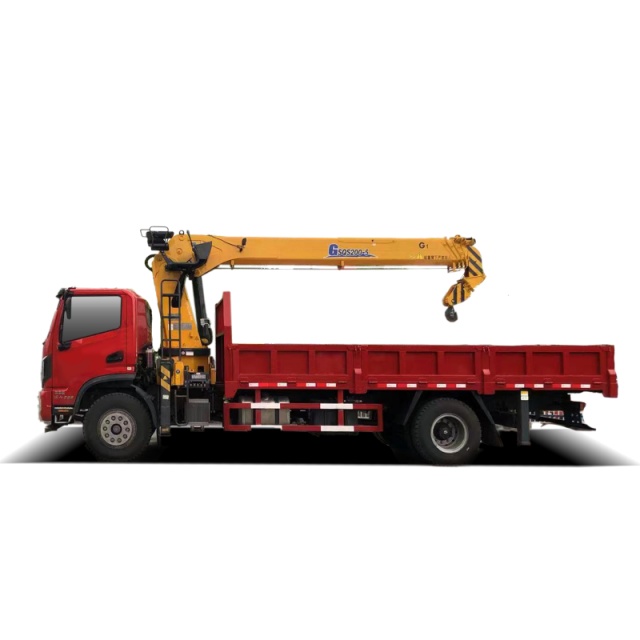

GSQS200-5 Hydraulic Truck Mounted Crane 210kN·m Lifting Moment Heavy Duty Telescopic Boom Loader Crane for Construction

Detailed Product Description

GSQS200-5 is a newly optimized medium-small tonnage straight-arm truck-mounted crane developed by XCMG, focusing on high efficiency, energy saving, and reliable durability. Adopting an upgraded single-cylinder synchronous telescopic structure, the boom realizes smoother and more stable extension and retraction with stronger load-bearing telescopic capacity, effectively improving on-site operation efficiency. The self-developed hydraulic confluence proportional control system optimizes oil circuit distribution, ensuring flexible and accurate operation with outstanding micro-control performance, which greatly reduces operation difficulty for drivers.

This crane supports 360° unlimited continuous rotation, eliminating dead operating angles and greatly expanding the working range. The whole machine adopts high-strength structural steel and integrated welding technology, with enhanced boom rigidity and anti-torsion performance, adapting to long-term high-intensity outdoor operation. The optimized hydraulic system reduces energy consumption while improving response speed, realizing energy-saving and efficient operation. In addition, the model features a compact body design, compatible with most mainstream 4×2 truck chassis, with flexible installation and no restriction on cargo box size, balancing lifting performance and transportation practicability perfectly.

All core hydraulic components and structural parts are strictly tested for fatigue and durability, with excellent weather resistance and fault resistance, suitable for complex working environments such as high temperature, low temperature, and dusty construction sites. It is widely recognized for stable performance, low failure rate, and long service life in global engineering and logistics lifting fields.

Core Product Advantages

• Superior Lifting Performance:

  Max lifting capacity reaches 9 tons with a 210kN·m rated lifting moment and 18.7m ultra-long hydraulic boom, realizing ultra-high lifting height and wide coverage, far exceeding industry peers in the same tonnage level.

• Stable Hydraulic Control System:

  Adopts self-developed confluence proportional hydraulic system with precise oil circuit regulation. The compound action is stable and smooth, with excellent micro-operation performance, effectively improving operation accuracy and construction safety.

• Upgraded Synchronous Telescopic Mechanism:

  Optimized single-cylinder synchronous telescopic structure enhances load-carrying telescopic ability, enabling stable boom expansion and retraction under load conditions and greatly improving overall working efficiency.

• Full-range Flexible Operation:

  Supports 360° continuous free rotation without dead angles, covering all-directional working areas. Compact body structure adapts to various working spaces with strong site adaptability.

• High-strength Durable Structure:

  Made of high-quality high-strength alloy steel with integrated welding and reinforcement technology. The boom has strong anti-torsion and anti-bending capacity, resisting long-term high-intensity operation and complex environmental erosion.

• Easy Installation & Wide Compatibility:

  Reasonable compact layout, compatible with most mainstream 4×2 truck chassis. No limitation on cargo box size, convenient for installation and modification, balancing lifting function and cargo transportation capacity.

• Energy-saving & Low Failure Rate:

  Optimized hydraulic oil circuit design reduces power consumption and heat generation. Core components are strictly screened and tested, with stable operation, low maintenance cost, and long service life.

Technical Parameter Table

Product Application Scenarios

The GSQS200-5 truck-mounted crane features strong adaptability and comprehensive performance, widely used in multiple industries and scenarios worldwide:

• Logistics & Freight Handling:

  Suitable for loading, unloading and transferring heavy cargo in logistics stations, freight yards and transportation operations, improving cargo handling efficiency greatly.

• Municipal Engineering Construction:

  Applied for street facility installation, pipeline hoisting, greening engineering, and municipal maintenance works, adapting to narrow urban working spaces.

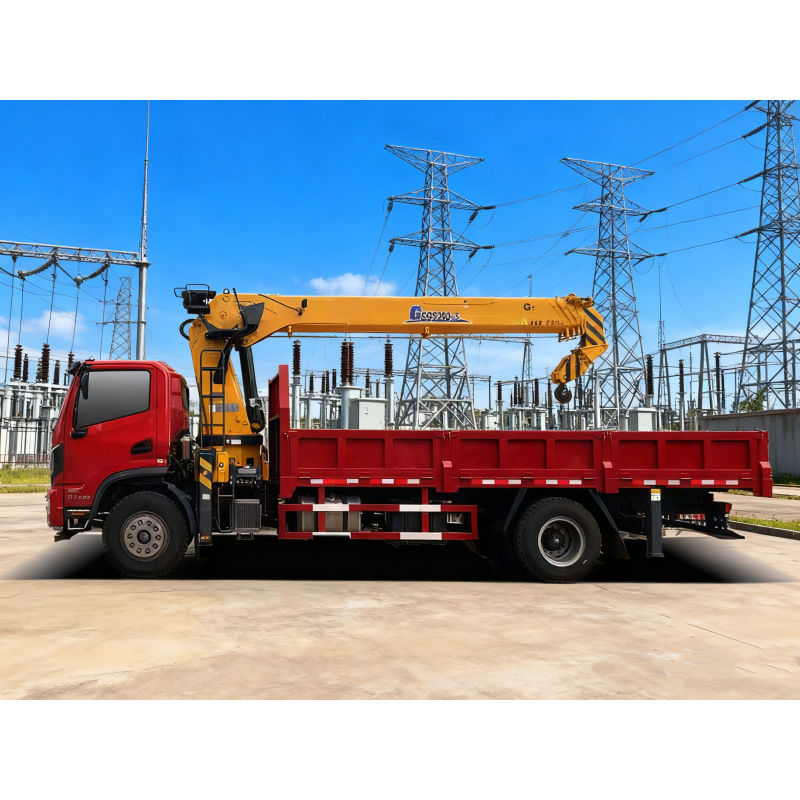

• Electric Power & Communication Engineering:

  Used for pole erection, equipment hoisting and maintenance of power grids and communication base stations, suitable for field outdoor operations.

• Field & Remote Construction:

  Ideal for outdoor operations in mountains, suburbs and remote areas, with flexible movement and no dependence on fixed lifting equipment.

• Building & Civil Engineering:

  Used for hoisting small and medium-sized building materials, construction equipment and auxiliary components in construction sites.

• Dock & Warehouse Operation:

  Assist in cargo stacking, loading and unloading in docks, warehouses and industrial parks, realizing flexible and efficient short-distance hoisting.

FAQ

• Q1: What is the maximum lifting weight and boom length of GSQS200-5?

  A1: This crane has a maximum lifting capacity of 9 tons, a rated lifting moment of 210kN·m, and a maximum hydraulic telescopic boom length of 18.7m, with superior lifting coverage in the same tonnage models.

• Q2: What chassis is the GSQS200-5 suitable for?

  A2: It is perfectly compatible with most mainstream 4×2 truck chassis in the market. With a compact structural design, it will not affect the installation of the truck cargo box, realizing integration of transportation and lifting.

• Q3: Does the crane support full-angle rotation?

  A3: Yes. The GSQS200-5 supports 360° unlimited continuous rotation without operating dead angles, achieving all-directional flexible hoisting operations.

• Q4: What are the advantages of its hydraulic system?

  A4: It adopts XCMG self-developed confluence proportional hydraulic system, with stable oil circuit output, smooth compound actions and precise micro-operation. The upgraded synchronous telescopic mechanism supports load-carrying expansion and retraction with higher working efficiency.

• Q5: Is the machine suitable for complex working environments?

  A5: Absolutely. The whole machine adopts high-strength wear-resistant and anti-corrosion materials, with excellent dust resistance, high and low temperature resistance. Core components have passed strict durability tests, adapting to long-term high-intensity outdoor and complex site operations.

• Q6: What is the after-sales and warranty policy?

  A6: We provide official factory warranty, global technical support and spare parts supply service. Professional after-sales teams support remote guidance and on-site maintenance to ensure long-term stable operation of the equipment.
