803420123
| Availability: | |
|---|---|
| Quantity: | |

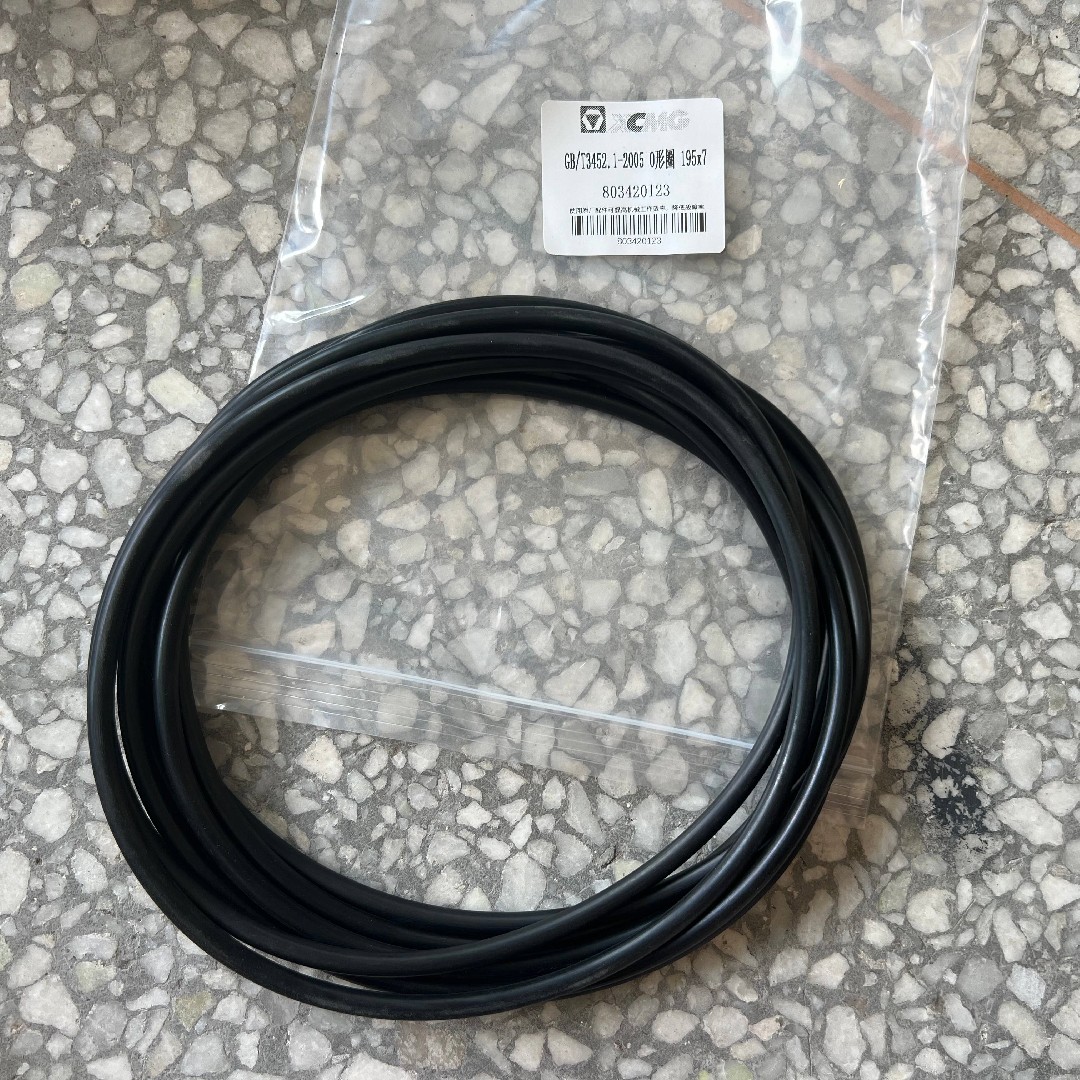

The 803420123 Wiring Harness O-Ring is a high-performance sealing component specifically designed for the XE2000 mining excavator. As a critical part of the excavator’s wiring harness system, it is mainly used to seal the connection of the wiring harness, preventing dust, water, oil, and other impurities from entering the wiring interface. This O-ring effectively protects the wiring harness from damage caused by harsh mining environments, ensures stable signal transmission of the excavator’s electrical system, and avoids short circuits or malfunctions due to interface leakage. Manufactured in strict accordance with original specifications and industry standards (GB/T3452.1-2005), it is a reliable replacement spare part for XE2000 mining excavator maintenance, ensuring the safe and stable operation of the equipment in long-term harsh working conditions.
Excellent Sealing Performance: Adopts precision molding technology, with accurate size and tight fit with the wiring harness interface, forming a reliable sealing barrier to effectively prevent dust, water, and oil from entering, avoiding electrical system failures caused by contamination.
Durable High-Quality Material: Made of high-grade nitrile rubber (NBR) or fluorine rubber, featuring excellent oil resistance, wear resistance, high and low temperature resistance, and aging resistance, which can adapt to the harsh working environment of high dust, high temperature, and frequent vibration in mines.
Precision Molding & Stable Performance: Produced by high-precision molding equipment, the surface is smooth, free of burrs, and the elasticity is moderate, ensuring that it is not easy to deform or break after long-term use, and the sealing performance remains stable without leakage.
Cost-Effective & Long Service Life: High-quality material and exquisite craftsmanship extend the service life, low failure rate, reduce the frequency of replacement and later maintenance costs, and are a cost-effective replacement choice compared with original parts while ensuring the same performance.
Product Parameters
Parameter Name | Specification |
|---|---|
Product Name | Wiring Harness O-Ring |
Part Number | 803420123 |
Applicable Model | XE2000 Mining Excavator |
Material | Nitrile Rubber (NBR) / Fluorine Rubber (Optional) |
Standard | GB/T3452.1-2005 |
Operating Temperature Range | -40℃ ~ +120℃ |
Sealing Type | Static Sealing |
Working Pressure | 0-1.6MPa |
Feature | Waterproof, Dustproof, Oilproof, Wear-Resistant |
Installation Type | Direct Fit (No Modification Required) |
Product Application Scenarios
The 803420123 Wiring Harness O-Ring is exclusively designed for the XE2000 mining excavator, mainly used in the sealing of the wiring harness connection of the excavator’s electrical system, and its application scenarios include:
XE2000 Mining Excavator Wiring Harness Sealing: Specialized for sealing the connection of the excavator’s main wiring harness, control wiring harness, and sensor wiring harness, protecting the wiring interface from dust and oil contamination.
Heavy-Duty Engineering Machinery Wiring Protection: Compatible with other same-spec mining excavators or heavy-duty engineering machinery (with matching wiring harness interface size) for wiring harness sealing and protection.
Harsh Environment Equipment Sealing: Suitable for sealing the wiring harness of equipment working in high dust, high humidity, and high oil pollution environments such as mines, construction sites, and oilfields.
Shut down the XE2000 excavator engine, turn off the main power switch, and wait for the equipment to cool down completely to avoid electric shock or scalding during operation.
Clean the wiring harness interface and the installation groove with a clean, dry cloth to remove dust, oil stains, and other impurities, ensuring the interface is clean and smooth, which is crucial for effective sealing and long O-ring service life.
Align the wiring harness connector with the interface, gently insert it in place, and ensure the connection is tight. Do not use excessive force to avoid damaging the O-ring or the wiring harness connector.
Keep the wiring harness interface clean, regularly wipe off dust and oil stains, avoid the O-ring being corroded by harmful substances, which can extend its service life.
When the excavator is not used for a long time, store it in a dry, ventilated environment, avoid the O-ring being in a high-temperature, high-humidity, or corrosive environment for a long time, which can prevent aging and deformation.
Do not use petroleum-based lubricants during installation; use silicone-based lubricants compatible with the O-ring material to reduce friction, ease installation, and protect against pinching, avoiding chemical damage to the O-ring.
The O-ring is a consumable part; replace it in time when signs of failure appear to avoid electrical system malfunctions caused by leakage, which may lead to more serious equipment damage and safety hazards.
Q: What are the symptoms of a damaged or aging wiring harness O-ring?
A: Common symptoms include dust or oil stains at the wiring harness interface, unstable operation of the excavator’s electrical system (such as abnormal monitor display or sensor failure), short circuits, or visible fluid leakage. If any of these symptoms occur, the O-ring should be replaced in time to avoid further damage to the electrical system.
Q: Is it easy to install the 803420123 O-ring? Do I need professional tools?
A: It is very easy to install. It adopts a direct fit design, no professional tools or technical training are required. You only need to follow the installation steps to remove the old O-ring, clean the interface, and install the new O-ring, which can be completed quickly by ordinary operators.
Q: What is the difference between this replacement O-ring and the original factory O-ring?
A: It is manufactured in strict accordance with the original factory’s specifications, size, and material standards, and adopts the same precision molding process as the original O-ring. It has the same sealing performance, compatibility, and durability as the original O-ring, but it is more cost-effective, making it an ideal replacement choice for daily maintenance.
