Product Description

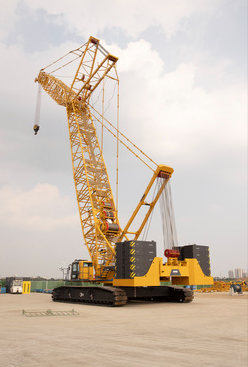

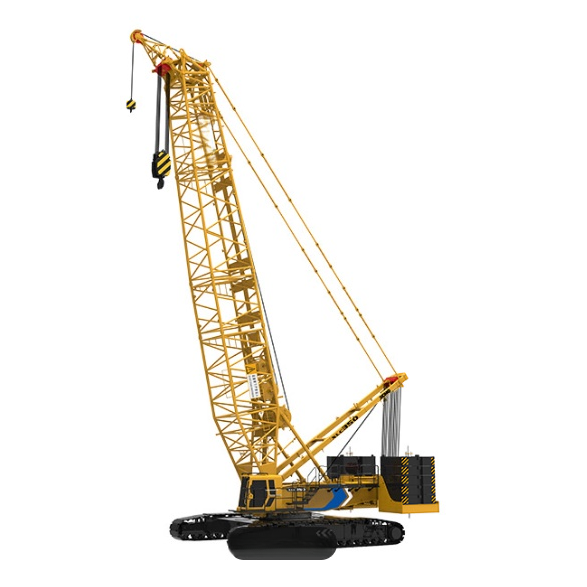

XCMG XLC350 crawler crane is a full-hydraulic driven heavy lifting machinery developed for complex and harsh construction environments. It adopts an optimized lattice boom structure, which ensures high structural strength while reducing self-weight, realizing larger lifting range and higher working efficiency. Equipped with a high-power 265kW diesel engine and imported core hydraulic and control components, the machine provides stable power output and precise lifting control.
This 350-ton crawler crane supports multiple working modes including heavy-duty main boom, light-duty main boom and tower jib operation, meeting diverse lifting height and weight requirements. It is fitted with a 10.4-inch intelligent touch screen control system and a 1.25m wide panoramic cab, bringing excellent operating vision and comfortable working experience. The modular design of boom sections and counterweights simplifies assembly, disassembly and transportation, greatly improving site transfer efficiency. All electrical and hydraulic systems adopt industrial-grade protection, ensuring stable operation in high-temperature, low-temperature, dusty and other harsh working conditions.
Product Advantages
Superior Lifting Performance:
Max rated lifting capacity reaches 350t (heavy boom condition) with a maximum lifting moment of 2039 t·m. The flexible main boom (24m-87m) and optional tower jib perfectly adapt to high-altitude and heavy-load lifting tasks, covering most large engineering scenarios.
Reliable Core Configuration:
Equipped with original high-power diesel engine and well-known brand hydraulic components, PLC intelligent control system ensures precise, stable and responsive lifting actions. The whole machine undergoes strict factory testing to guarantee long-duration continuous operation stability.
Intelligent & Humanized Operation:
Adopts a new-generation panoramic wide cab with spacious interior and full-view design for broader working vision. The 10.4-inch integrated touch control panel simplifies operation logic, reducing operator fatigue and improving working accuracy.
Strong Environmental Adaptability:
Industrial-grade dustproof, waterproof and cold-resistant design supports stable operation in extreme weather and complex construction sites such as mountainous areas, wetlands and open-air construction bases.
Easy Transportation & Maintenance:
Modular boom and counterweight structure realizes quick assembly and disassembly. Standardized component layout and centralized lubrication system greatly reduce daily maintenance difficulty and operation cost.
High Safety Performance:
Equipped with multiple safety protection systems including overload protection, height limit protection, slewing limit and real-time working condition monitoring, effectively avoiding operational risks and ensuring construction safety.
Technical Parameters
Item | Unit | Specification |
Max. Rated Lifting Capacity (Heavy Boom) | t | 350 |
Max. Rated Lifting Capacity (Light Boom) | t | 140 |
Max. Lifting Moment | t·m | 2039 |
Main Boom Length Range | m | 24 - 87 |

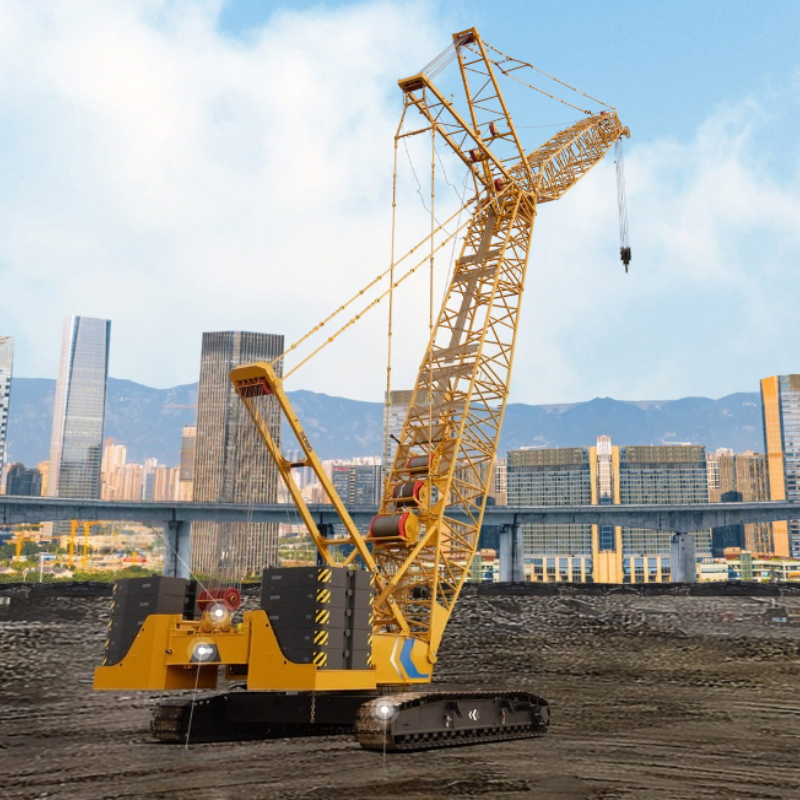

Tower Jib Length Range | m | 19 - 64 |
Engine Rated Power | kW/rpm | 265/2000 |
Basic Machine Weight | t | 282 |
Overall Length (Transport Mode) | mm | 10800 / 13300 |
Overall Width | mm | 3000 |
Overall Height | mm | 3400 |
Max. Single Line Hoisting Speed | m/min | 130 |
Warranty Period | / | 1 Year for Core Components |
Product Applications
XLC350 350-ton crawler crane is widely applied in various heavy-duty engineering scenarios, perfectly adapting to complex site construction requirements:
Bridge Engineering:
Lifting and installation of bridge girders, pier construction and large bridge component hoisting
Wind Power Project:
Wind tower cylinder hoisting, fan equipment installation and wind farm infrastructure construction
Steel Structure Engineering:
Large steel frame hoisting, factory building steel beam and column installation
Infrastructure Construction:
Urban large-scale construction, highway, railway and port engineering hoisting operations
Energy & Industrial Engineering:
Power plant, chemical plant and industrial equipment heavy lifting and installation
Large Municipal Projects:
Overpass, stadium and large municipal facility construction
FAQ
Q1: What is the maximum lifting capacity of XCMG XLC350 crawler crane?
A: The XLC350 crawler crane provides a max lifting capacity of 350 tons under heavy-duty main boom working condition and 140 tons under light boom condition, with a max lifting moment of 2039 t·m, meeting most heavy-load lifting demands.
Q2: What working modes does XLC350 support?
A: It supports multiple working modes including standard main boom lifting, light boom operation and tower jib high-altitude lifting. The main boom length ranges from 24m to 87m, and the tower jib ranges from 19m to 64m, covering low, medium and high altitude working scenarios.
Q3: Is the XLC350 crane suitable for complex construction sites?
A: Yes. The crawler walking structure provides strong ground adaptability, suitable for wetlands, mountainous areas and uneven construction sites. The whole machine has excellent dustproof, waterproof and low-temperature resistance performance, adapting to various harsh working environments.
Q4: What is the warranty policy of the XLC350 crawler crane?
A: We provide 1-year warranty for core components including engine, hydraulic pump, gearbox, PLC control system and bearings. Professional after-sales service and technical support are available globally.
Q5: Is assembly and transportation convenient?
A: Adopting modular design for boom sections and counterweights, the machine supports quick disassembly and assembly. Multiple transport schemes are available to meet international container and bulk cargo transportation standards, reducing transfer costs.
Q6: Does the machine support intelligent operation?
A: Equipped with 10.4-inch intelligent touch screen and integrated control panel, it realizes real-time working condition monitoring, fault self-diagnosis and precise lifting control, making operation simpler and safer.
