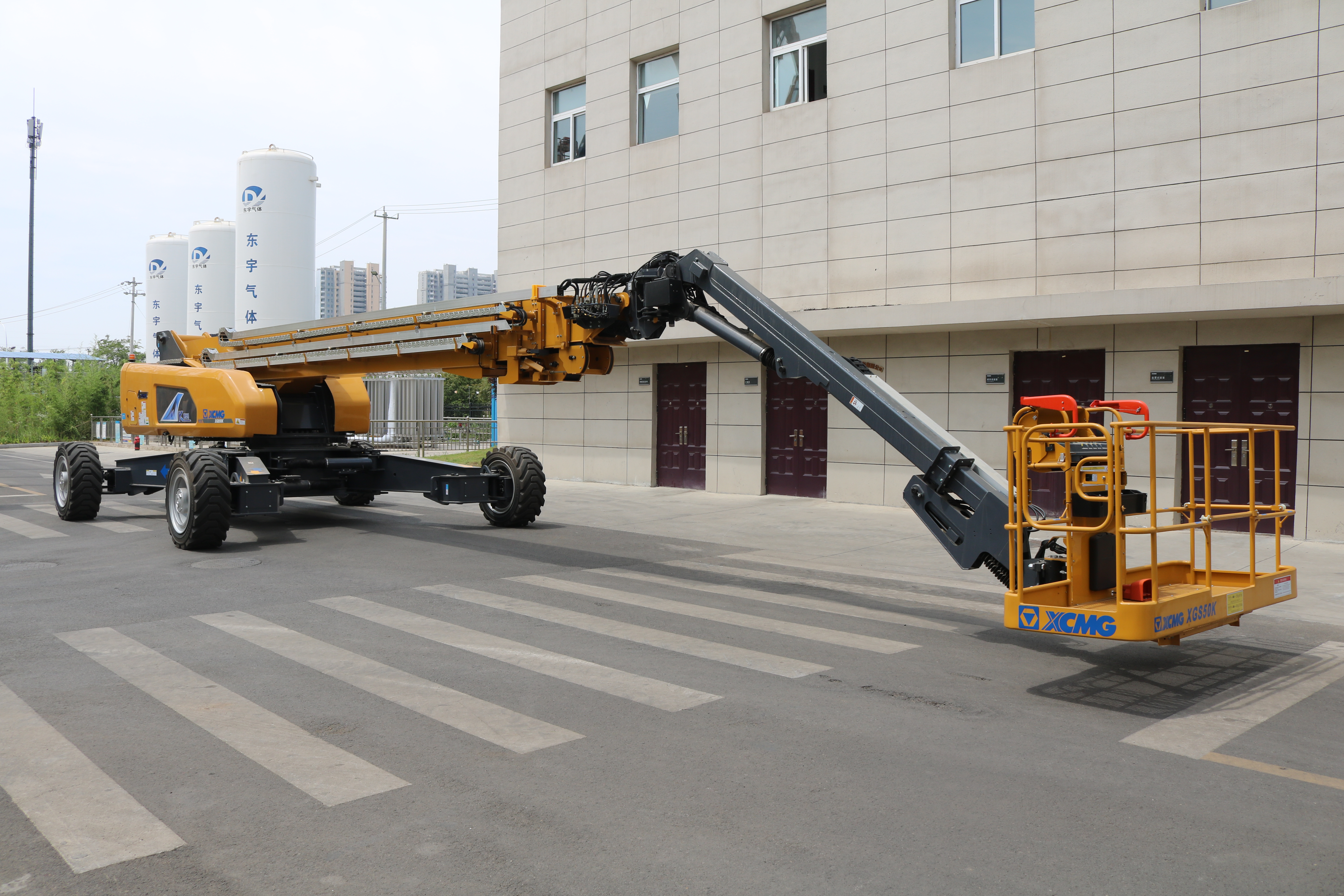

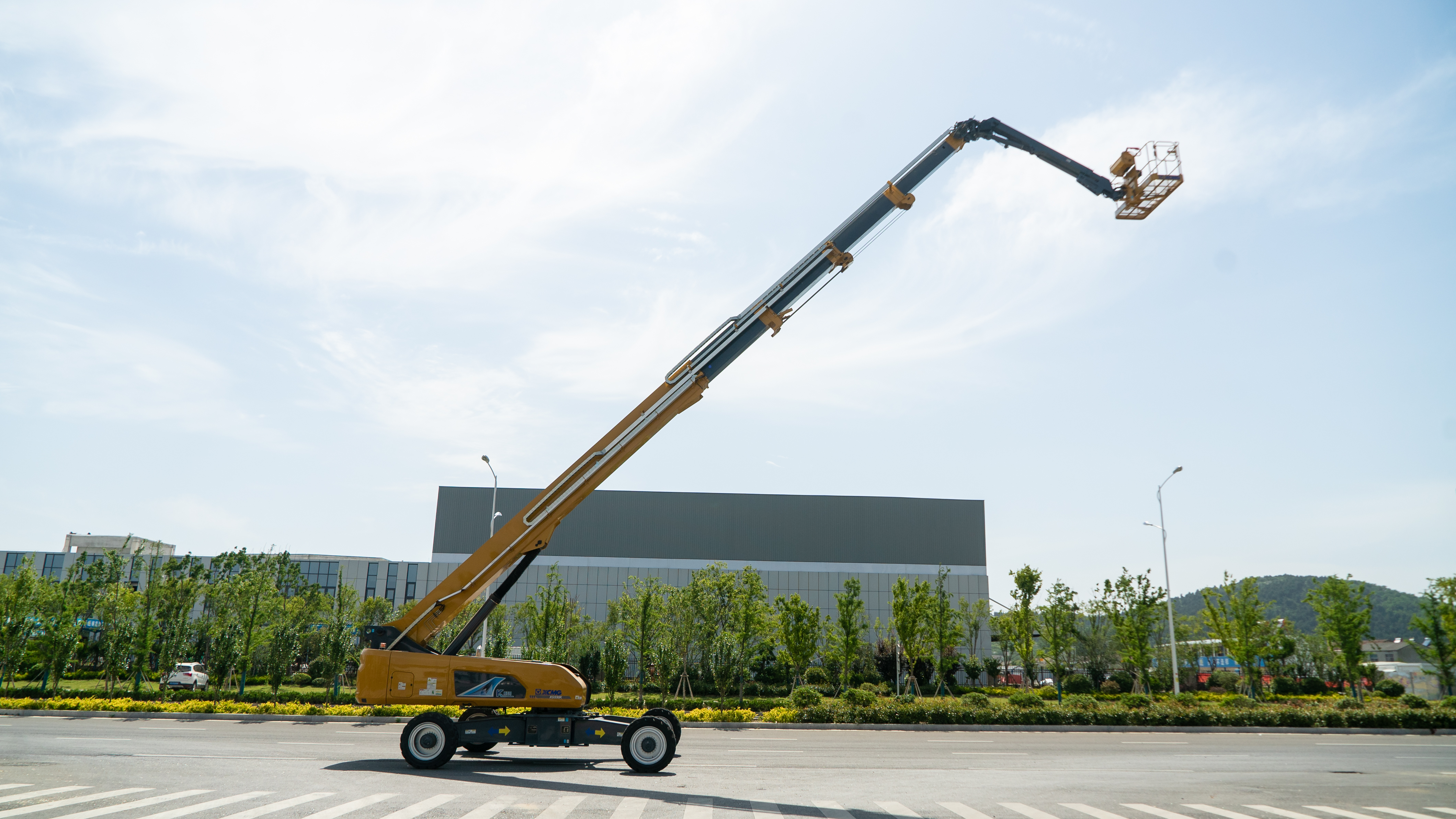

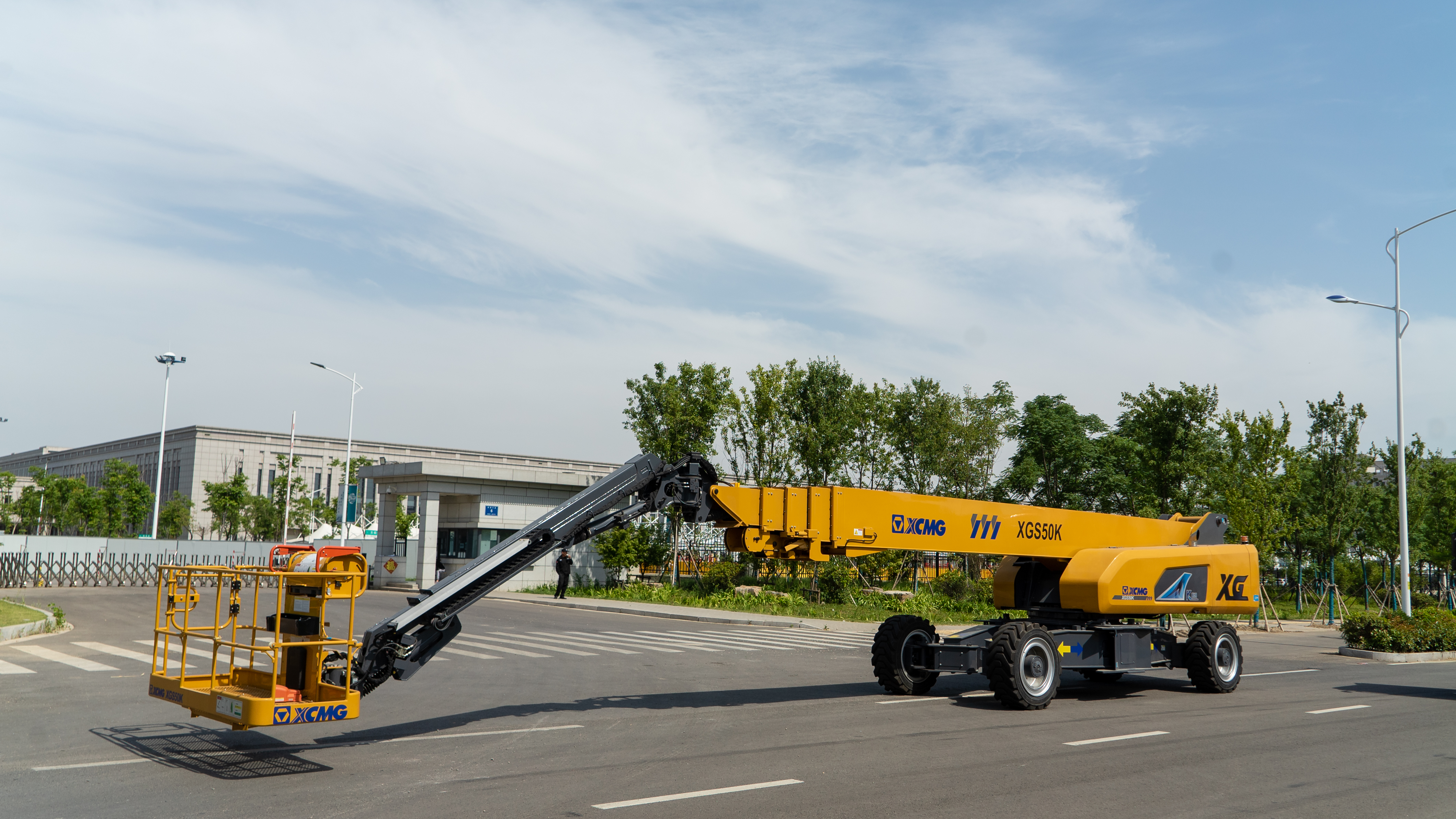

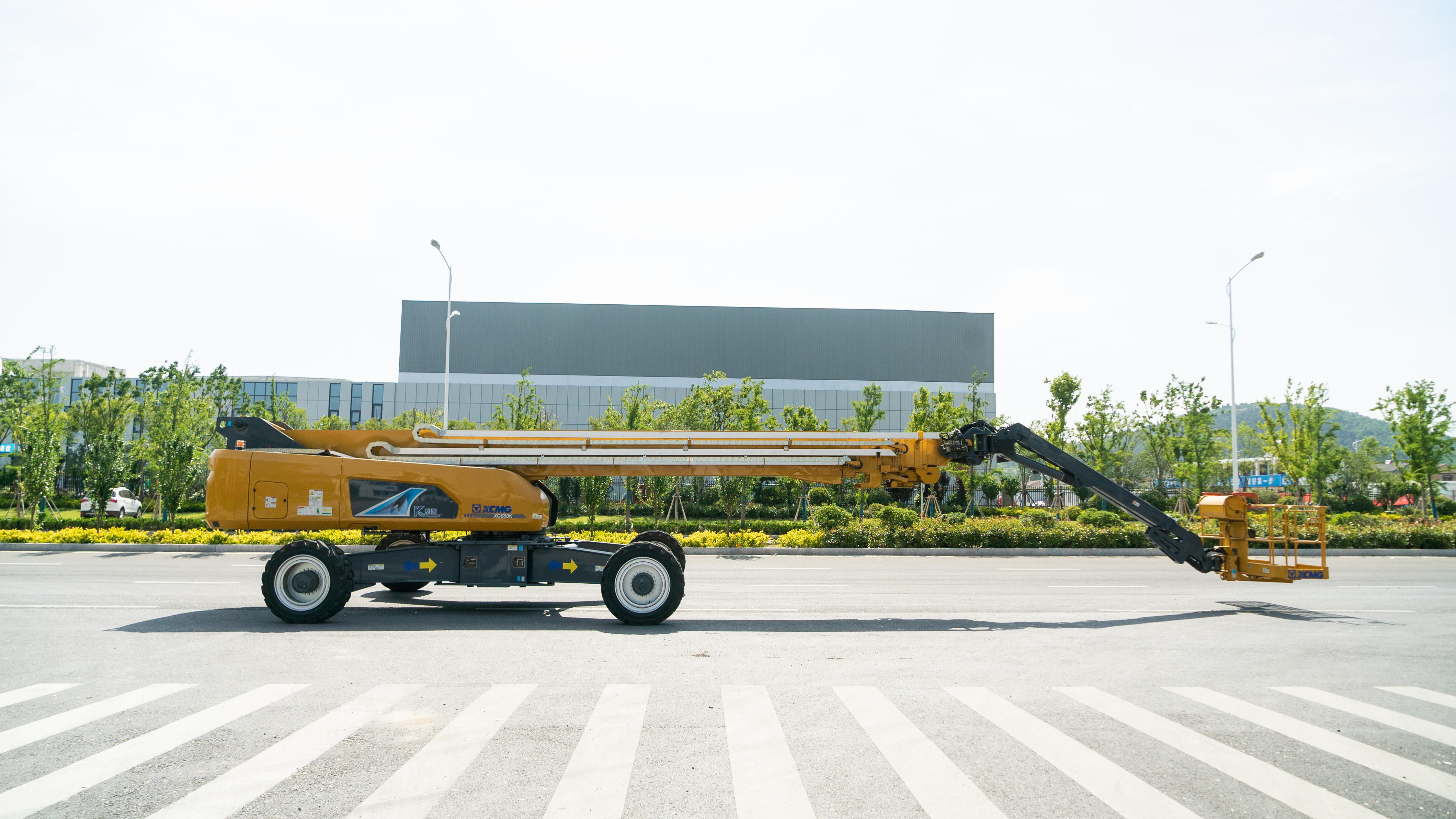

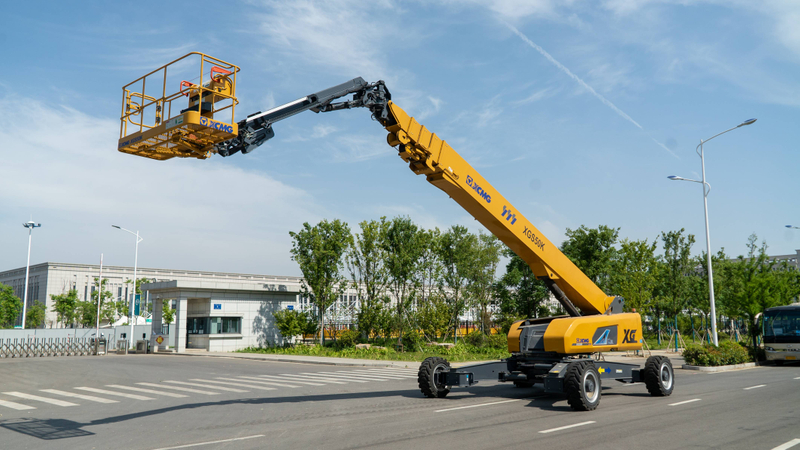

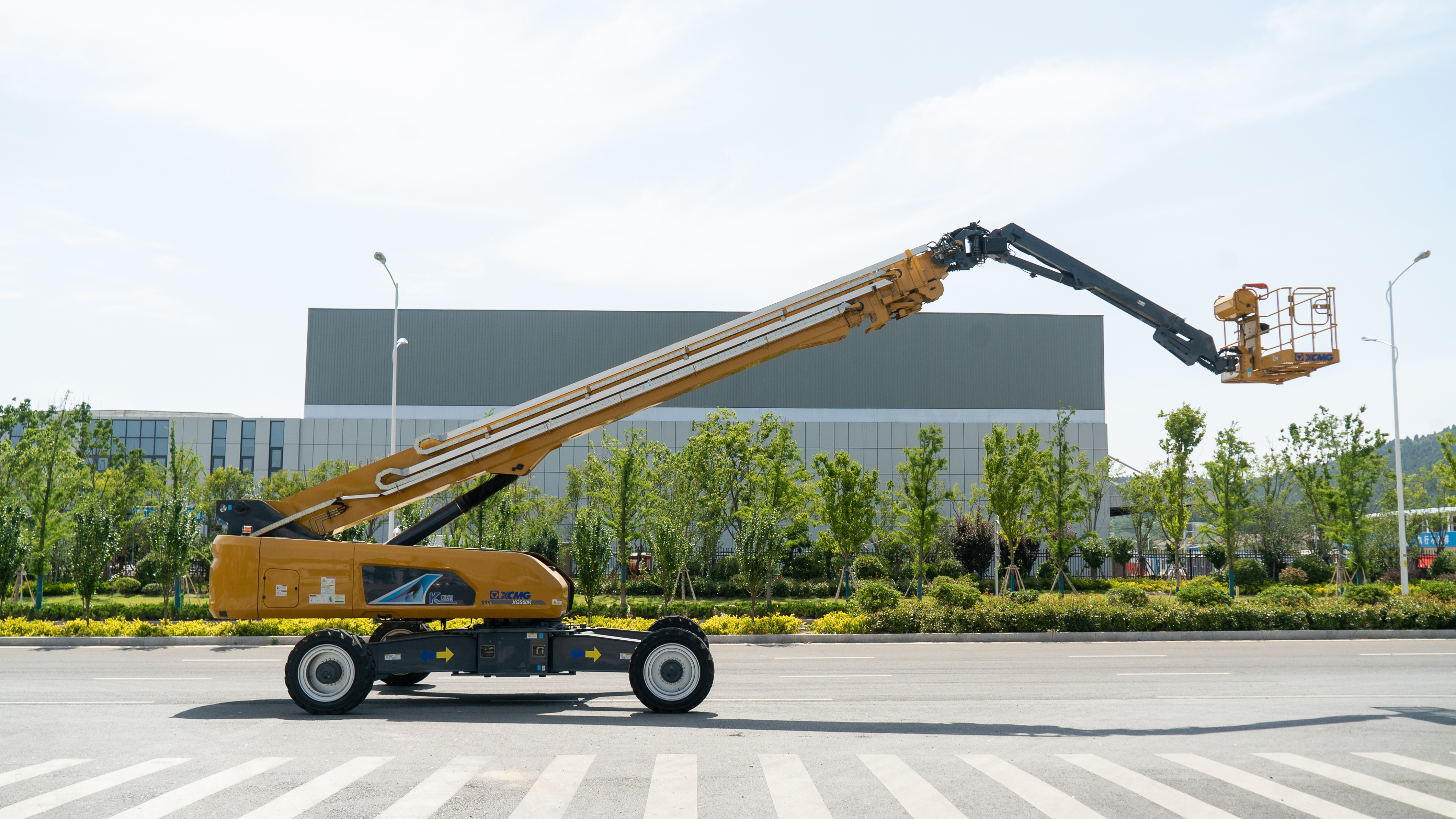

XGS50k
| Quantity: | |
|---|---|
Product Introduction
The XGS50k is positioned in the "efficient, intelligent and reliable" ultra-high altitude operation market, aiming to provide users with safe, stable and efficient ultra-high altitude operation solutions.
Product Advantage
Four-wheel drive (4x4) and four-wheel steering: They offer extremely strong ground adaptability and off-road capability, allowing for stable driving on uneven construction site roads.
The four-wheel steering mode (including front-wheel steering, rear-wheel steering and crab steering) greatly enhances the flexibility and precise positioning ability of the equipment, especially with obvious advantages in narrow Spaces.
Strong power: Usually, well-known brand diesel engines are adopted as the main power source, providing sufficient power and torque to ensure strong climbing ability (up to 40%-45%).
◦ Chassis structure: It adopts a heavy-duty steel box-type chassis structure, which has been reinforced in design to ensure the stability and durability of the entire vehicle.
XG's independently developed intelligent control system integrates functions such as fault diagnosis, safety protection, and precise adjustment.
One-click operation: The single-handle operator equipped with proportional control features smooth movements and precise control, reducing the labor intensity of the operator.
Self-diagnostic function: It can monitor the equipment status in real time. When an abnormality occurs, it can promptly alarm and display the fault code, facilitating quick troubleshooting and maintenance.
Emergency system: Equipped with power failure emergency protection device (EPS), emergency descent system, etc., to ensure that workers can safely return to the ground in case of emergencies.

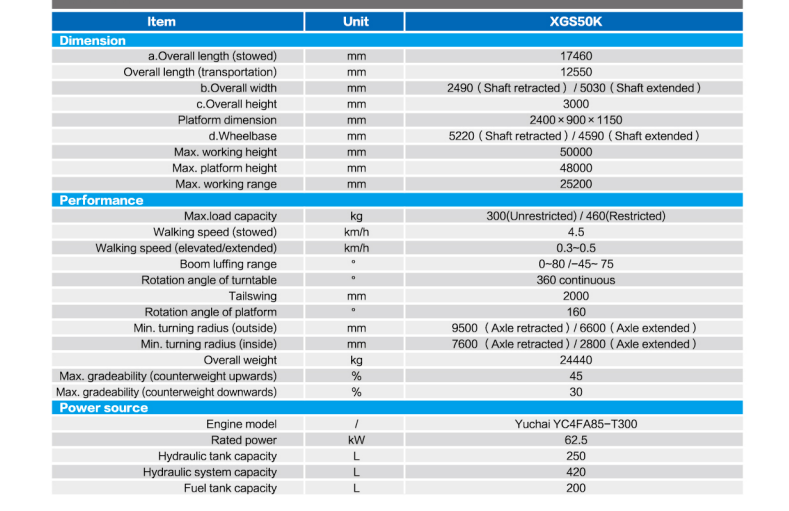

Technical Parameters
Product Uses
Installation and maintenance of steel structures for large sports venues and airport terminals
• Bottom inspection, painting and maintenance of large Bridges
Construction and maintenance of cooling towers in thermal power plants and nuclear power stations
• Exterior wall cleaning, glass installation and curtain wall construction of high-rise buildings
• Shipbuilding and maintenance
• Installation and removal of large billboards
Product Operate Guide
After confirming that there is no one and no obstacles in the platform, start the engine.
◦ Select the correct operation mode through the key switch or the mode selection button:
■ Platform mode: Normal high-altitude operation mode, with all functions available.
■ Chassis mode: Only used for the movement and steering of the equipment, and the on-board function is locked.
◦ Driving: In chassis mode, select the steering mode (front wheels/rear wheels/crab travel), and slowly operate the control lever to move the device.
Pay attention to observing the surrounding environment.
The operator should fasten the safety belt and attach the safety rope hook to the designated anchor point on the platform.
◦ On the platform console, operate the proportional control handle smoothly with one hand:
■ One handle: Usually controls the lifting, lowering and extension of the boom.
■ Another handle: Usually controls the rotation of the platform and slight leveling.
◦ Operating principles: Actions should be smooth and slow, avoiding sudden starts or stops. First raise the boom to a certain height and then extend and retract it. First retract the boom and then lower it.
FAQ
A: The rated load of the standard platform is 300 kilograms. This can usually accommodate 2 to 3 workers and their personal tools and equipment at the same time. Under certain working conditions, a 460-kilogram load-bearing platform can be optionally equipped.
A: It adopts four-wheel drive (4x4) and four-wheel steering system.
Advantages include:
• Outstanding off-road performance: The four-wheel drive capability enables it to easily handle rough construction site roads.
• Extremely strong flexibility: Supports front-wheel steering, rear-wheel steering and crab steering modes, and has excellent movement and precise positioning capabilities in narrow Spaces.
A: When the wind speed exceeds 12.5m/s (level 6 wind), high-altitude operations are strictly prohibited. In addition, operations should be immediately halted during severe weather conditions such as thunderstorms, heavy snow, and hail. The staff on the platform need to keep a close eye on weather changes at all times.
A: No. The equipment is equipped with multiple safety protection systems. In the event of a power failure, the emergency power unit (EPS) will automatically activate. The operator can press the emergency descent button on the platform to safely and slowly lower the platform to the ground with the assistance of power.
A: The XGS50k is equipped with an intelligent self-diagnostic system. When a fault code appears, operations should be immediately stopped and the fault code table in the random "Operation and Maintenance Manual" should be referred to to initially determine the cause of the fault. For complex faults, professional maintenance personnel should be contacted immediately. Do not disassemble key components by yourself.
A: The delivery cycle will vary depending on the order volume, production schedule and specific configuration requirements. You need to contact us to obtain the most accurate delivery time.
