Product Description

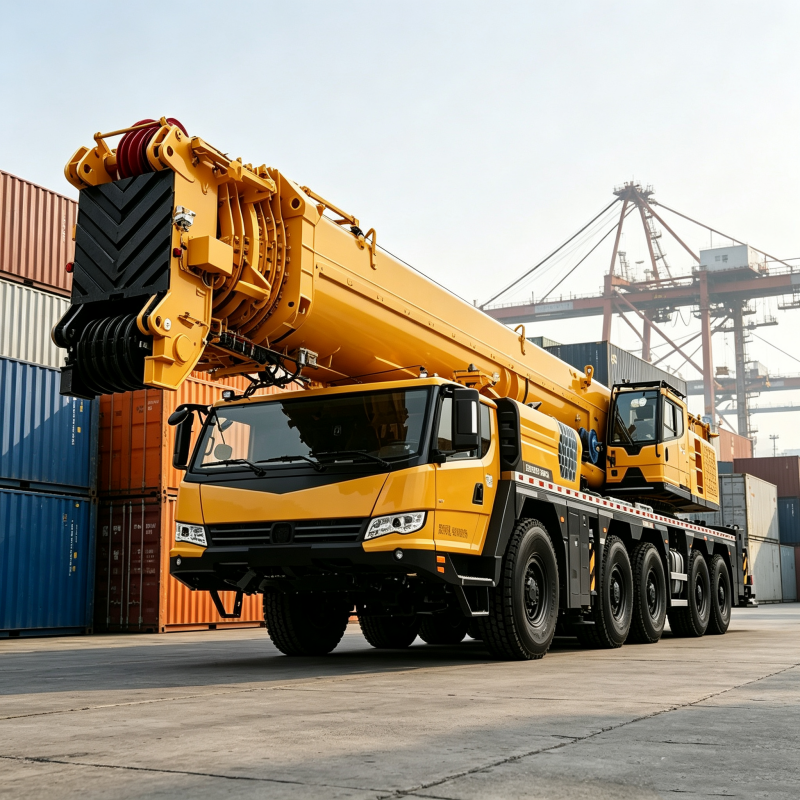

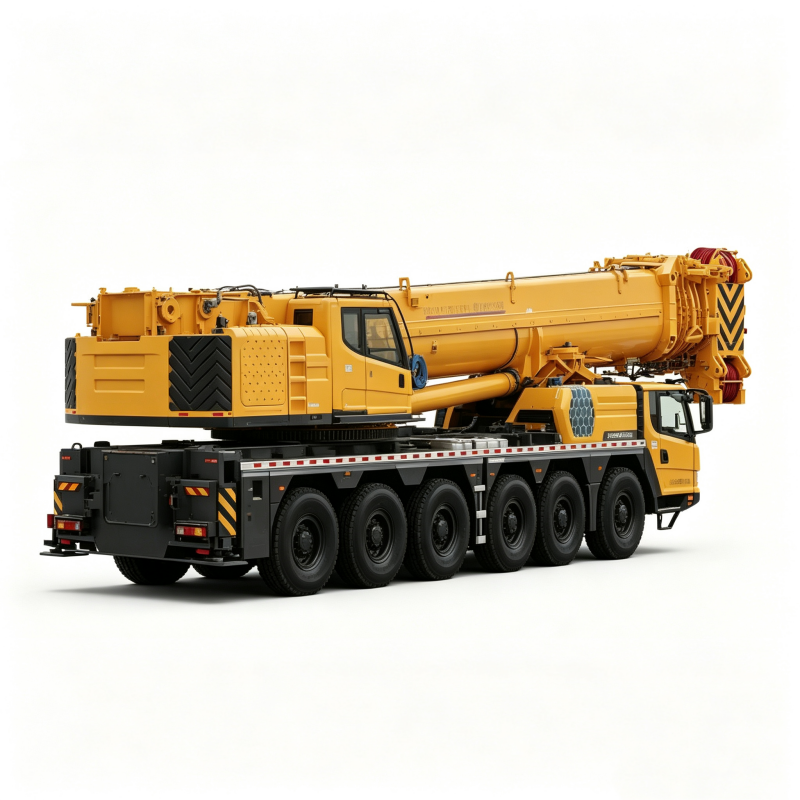

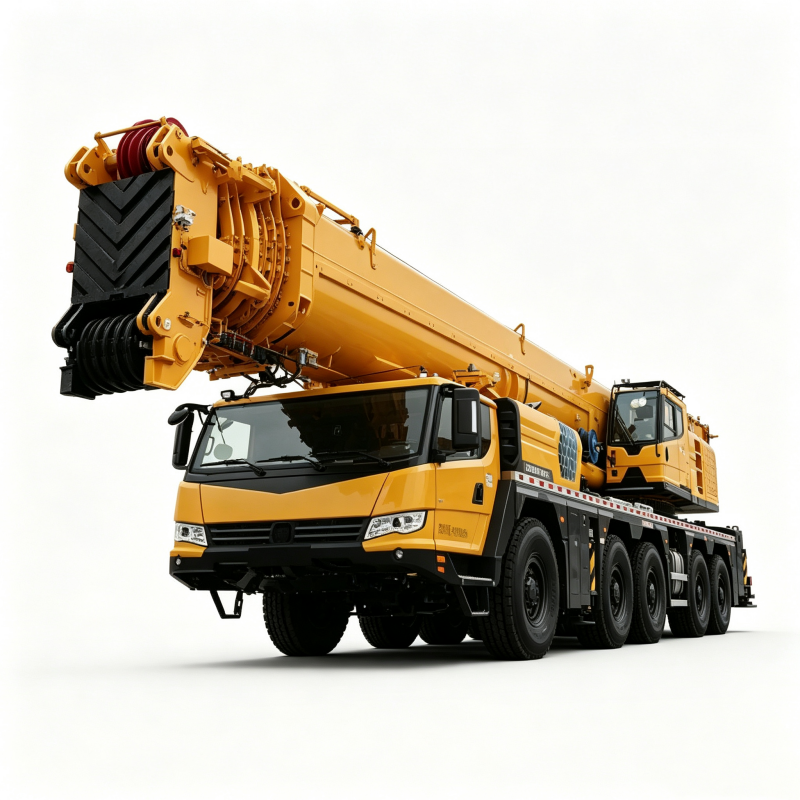

XCA400K8‑1 all‑terrain crane is engineered for complex and restricted‑space construction sites. Its 8‑segment U‑profile 92 m telescopic main boom provides outstanding rigidity and lifting performance at long radius and high working height. Three sets of outrigger span combinations, three superlift spread angles, three superlift working modes and three counterweight pre‑setting positions greatly expand site adaptability, solving hoisting challenges in narrow working zones. Dual‑engine independent power layout realizes energy‑saving operation, separating power supply for chassis driving and upper‑body hoisting work. 4‑axle drive chassis delivers powerful off‑road performance for muddy, sloped and uneven ground, with optimized turning radius and vehicle height for flexible site‑to‑site transition. Integrated intelligent safety control covers boom‑raising safety interlock, one‑click fixed‑length tensioning, comprehensive braking and fault self‑diagnosis. Full‑function wireless remote control supports convenient operation for superlift, counterweight and outriggers, reducing manual labor cost. Universal hook, side counterweight and lattice jib share interchangeability with adjacent tonnage cranes to cut accessory investment cost. Human‑oriented panoramic operator cabin ensures comfortable long‑shift heavy‑load operation.
Product Advantages
Superior Lifting Performance:
400‑ton rated lifting capacity; 8‑section 92 m U‑shaped main boom, max lifting height 126 m, max lifting moment 8310 kN·m, covers extensive heavy‑lifting working conditions.
Powerful Site Adaptability:
3‑in‑1 combinations for outrigger span, superlift spread angle, superlift mode and counterweight pre‑position; well‑suited for narrow and space‑constrained construction sites.
Dual‑engine Energy‑saving Design:
Independent power units for chassis and superstructure, optimized fuel consumption during hoisting and travelling, improving overall operation economy.
Excellent Transition & Off‑road Capacity:
4‑axle drive multi‑axle chassis, optimized turning radius and body height; strong climbing and rough‑ground passing performance for complex job‑site road conditions.
Intelligent & Full‑function Wireless Control:
Wireless remote control for superlift, counterweight and outriggers; multiple core safety technologies for full‑process monitoring from travelling to hoisting.
High Parts Interchangeability:
Hooks, side counterweights and lattice jib are interchangeable with 200‑600‑ton XCMG cranes, effectively lowering procurement and spare‑parts cost.
User‑friendly Maintenance:
Integrated climbing access platform, facilitating disassembly, inspection and daily maintenance of attachments and core assemblies.
Technical Parameters Table
Item | Specification |
Model | XCA400K8‑1 |
Type | All‑Terrain Crane |
Rated Lifting Capacity | 400 Ton |
Max Lifting Moment | 8310 kN·m |
Main Boom | 8‑section U‑shaped telescopic boom, 92 m |
Max Lifting Height (Main Boom + Jib) | 126 m |
Power Configuration | Dual‑engine (Chassis & Superstructure independent power) |
Chassis Drive | 4‑axle drive multi‑axle all‑terrain chassis |
Core Working Feature | 3‑mode outrigger span, multi‑mode superlift assembly |
Control System | Intelligent safety monitoring, full‑function wireless remote control |
Key Interchangeable Parts | Hook, side counterweight, lattice jib (shared with adjacent tonnage models) |
Note: Detailed OEM official data can be replaced according to original factory technical sheet.
Product Applications
‑ Power transmission tower hoisting and erection
‑ High‑rise building steel‑structure installation
‑ Petrochemical plant heavy‑equipment installation & maintenance
‑ Bridge component lifting and on‑site repair
‑ Wind‑farm auxiliary hoisting and equipment maintenance
‑ Large‑scale urban infrastructure construction
‑ Heavy machinery relocation and emergency rescue projects
FAQ
Q1: What is the model and rated lifting capacity of this crane?
A: XCA400K8‑1, XCMG 400‑ton heavy‑duty all‑terrain crane, maximum lifting moment reaches 8310 kN·m.
Q2: What are the core highlights of XCA400K8‑1?
A: It features 92 m eight‑section U‑shaped main boom, multi‑combinations of outriggers and superlift for narrow‑site adaptability, dual‑engine energy‑saving system, 4‑axle drive chassis and full‑function wireless remote control. Key attachments support cross‑model interchangeability to save cost徐工集团.
Q3: Can you supply brand‑new or used machines?
A: We mainly supply brand‑new XCA400K8‑1 all‑terrain crane. Used units are available subject to stock, please send inquiry for stock status and quotation.
Q4: What trade terms and lead time do you support?
A: FOB, CIF, CFR are acceptable. Lead time depends on stock and production schedule, please submit your inquiry for latest delivery arrangement.
Q5: What after‑sales services can be provided?
A: Complete operation‑maintenance manuals, remote technical consultation, spare‑parts supply and video‑based technical guidance. Overseas on‑site service is negotiable.
A: Yes. Lattice jib, different counterweight combinations, superlift assemblies and other attachments can be selected according to your actual hoisting project requirements.
Q7: What advantages does all‑terrain crane compare with truck crane?
A: All‑terrain crane adopts multi‑axle all‑wheel‑steering chassis with superior off‑road capability. It can travel and operate on uneven, muddy construction sites while maintaining high lifting performance, more suitable for complex large‑scale projects with high‑altitude and heavy‑load requirements.
