XG1614HD/XG1614HD-Li
| Availability: | |
|---|---|
| Quantity: | |

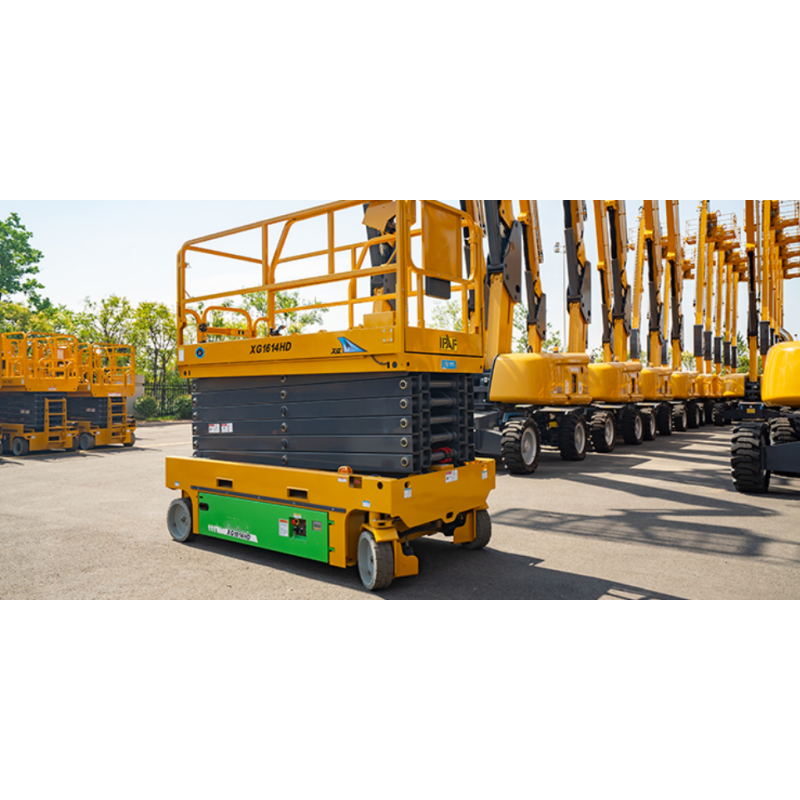

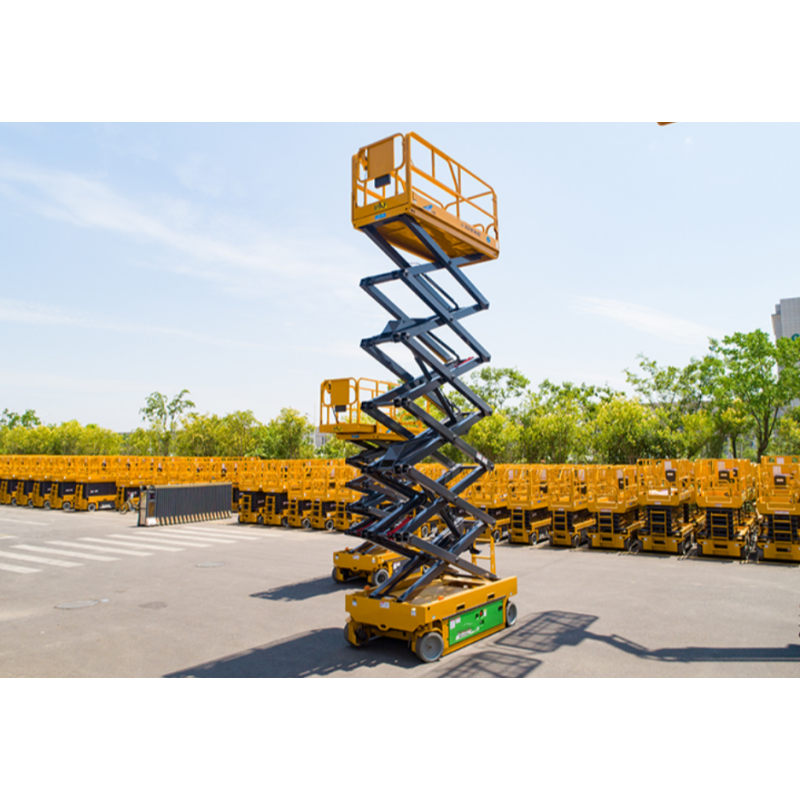

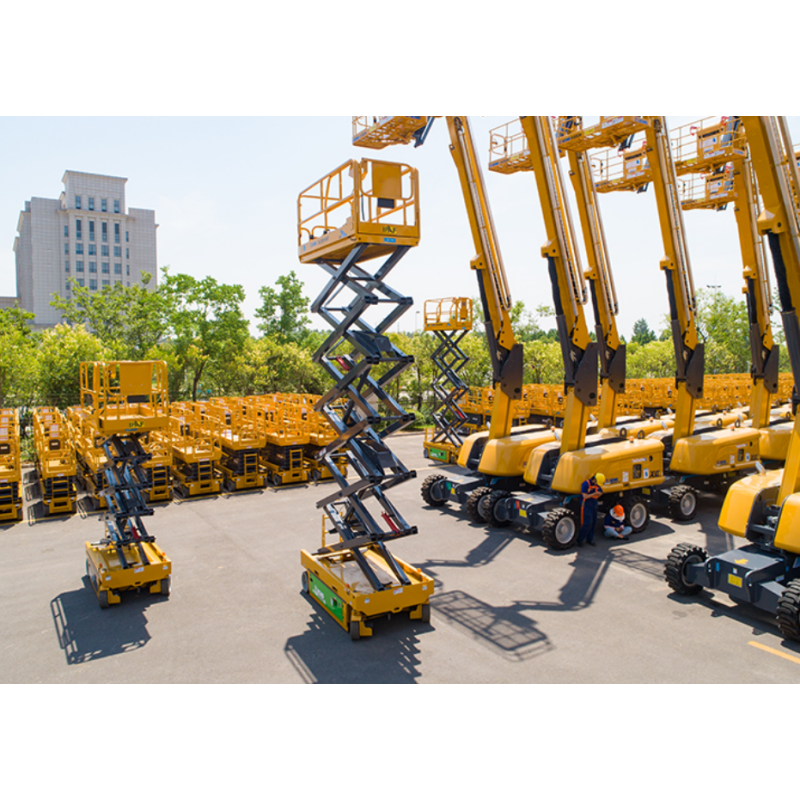

The XG1614HD and XG1614HD-Li are high-altitude heavy-duty self-propelled scissor lift equipment, designed for efficient and stable aerial operation. Both models deliver a maximum working height of 17.8 meters and a standard rated load of 380 kilograms. Built with high-strength reinforced steel structures and durable solid wear-resistant tires, the equipment boasts exceptional structural stability and strong environmental adaptability, fully applicable to indoor operations and mild outdoor working conditions.
The two versions differ mainly in power configuration to meet diversified user demands. The XG1614HD is equipped with a cost-effective lead-acid battery pack, balancing performance and economic benefits. In contrast, the upgraded XG1614HD-Li adopts a high-performance lithium battery system, featuring rapid charging speed, extended continuous working duration and minimal maintenance requirements. With official CE certification, both lifts are widely applicable for aerial work scenarios including construction engineering, warehouse logistics, commercial venue operations and municipal facility maintenance.
Superior Working Height and Load Capacity: The maximum 17.8m working height and 380kg rated bearing capacity fully satisfy the operational requirements of high-altitude, heavy-load construction tasks, covering most conventional aerial work scenarios.
Reinforced and Durable Structure: The whole machine adopts thickened steel frame and optimized reinforced scissor arm structure, which effectively improves overall rigidity and impact resistance, ensuring stable long-term operation and extending the equipment’s service life.
Dual Power Configuration Options: Users can choose the cost-friendly lead-acid battery version for low-budget and conventional use scenarios, or opt for the lithium battery version with fast charging capability, long service cycle and low daily maintenance cost for high-frequency operation.
Strong Terrain Adaptability: Equipped with wear-resistant solid tires, the equipment can travel and operate stably on flat ground and slightly undulating ground, adapting to complex on-site ground conditions.
Flexible and Agile Maneuverability: Thanks to its streamlined compact body and flexible steering system, the lift can freely pass through standard doors, elevator carriages and narrow aisle spaces, with no restriction on indoor site transfer.
Full-Range Safety Protection System: The machine is equipped with multiple safety configurations including load overload protection, tilt angle alarm device, emergency stop button, automatic anti-pothole protection mechanism and anti-slip working platform, eliminating potential operational risks in all directions.
Expandable Working Platform: Fitted with a 0.9-meter extended auxiliary platform, it effectively expands the effective working area, facilitates multi-person collaborative operation and significantly improves overall construction efficiency.
Energy-Saving, Eco-Friendly and Low-Noise Operation: Adopting full-electric driving mode, the equipment achieves zero exhaust emissions during operation, with low running noise, making it suitable for long-duration continuous aerial work and compliant with environmental protection operation standards of various venues.
Specification Item | XG1614HD | XG1614HD-Li |
|---|---|---|
Equipment Model | XG1614HD | XG1614HD-Li |
Maximum Working Height | 17.8 m | 17.8 m |
Maximum Platform Height | 15.8 m | 15.8 m |
Rated Load Capacity | 380 kg | 380 kg |
Extended Platform Bearing Load | 120 kg | 120 kg |
Main Platform Dimensions (Length × Width) | 1870 × 800 mm | 1870 × 800 mm |
Extended Platform Length | 0.9 m | 0.9 m |
Folded Overall Dimensions (Length × Width × Height) | 3050 × 810 × 2600 mm | 3050 × 810 × 2600 mm |
Overall Equipment Weight | 2450 kg | 2330 kg |
Outer Turning Radius | 1.8 m | 1.8 m |
Ground Clearance (Lifted / Folded) | 22 mm / 72 mm | 22 mm / 72 mm |
Travel Speed (Platform Lowered / Platform Lifted) | 4.5 km/h / 0.8 km/h | 4.5 km/h / 0.8 km/h |
Maximum Gradeability | 25% | 25% |
Platform Lifting Time | 30 ~ 52 s | 30 ~ 52 s |
Platform Lowering Time | 38 ~ 52 s | 38 ~ 52 s |
Power Supply Type | Lead-acid Battery | Lithium Battery |
Full Charging Duration | 8 ~ 10 h | 2 ~ 3 h |
Continuous Working Duration | 4 ~ 6 h | 8 ~ 10 h |
Certification Standard | CE Certified | CE Certified |
Construction Sites: Suitable for internal and external building decoration, wall painting construction, electrical wiring layout, pipeline installation and other high-altitude auxiliary operations.
Warehouse and Logistics Industry: Applied to high shelf daily maintenance, inventory counting and inspection, ceiling lighting system maintenance and replacement work.
Commercial Venues: Ideal for ceiling cleaning, lamps and lanterns replacement, advertising banner and billboard installation in shopping malls, hotels, exhibition centers and other public commercial spaces.
Building Maintenance: Used for daily inspection, maintenance and partial repair operations of high-rise office buildings, residential communities and public service facilities.
Municipal Engineering: Adaptable to urban street lamp maintenance, traffic sign installation and replacement, municipal landscape greening trimming and other outdoor municipal operations.
Event Operation and Layout: Meet the aerial work needs of stage construction, hanging banners and signs, professional equipment installation and debugging for large-scale exhibitions, cultural activities and temporary events.
Before starting the equipment, comprehensively check the battery power level, tire integrity and hydraulic oil storage capacity to ensure all indicators are normal. Inspect the firmness of safety guardrails, telescopic platform and locking pins to confirm all connecting parts are tightly fixed. Test the emergency stop function, tilt alarm system and automatic pothole protection device one by one to verify normal response and effective operation. Clean up obstacles on the working site, confirm the ground is flat and solid, and ensure the ground slope is within the allowable 25% gradient range.
Turn the key switch to the ON gear to start the whole equipment system. Control the forward, backward and walking movement of the lift through the operating joystick; the equipment will automatically limit the driving speed when the platform is lifted to ensure operation safety. Perform steering actions gently and smoothly. It is forbidden to conduct sharp steering operations or drive on slopes exceeding 25% during high-altitude lifting operation.
Press the lift control button to raise the working platform, and release the button to stop the lifting action in real time. Press the lowering button to descend the platform, and always ensure there are no personnel or obstacles in the falling range below the platform. The auxiliary extended platform can only be pulled out after the main platform is fully lifted and stabilized; it is strictly prohibited to overload the platform beyond the specified load limit during use.
Overload operation is strictly forbidden: the main platform maximum load is 380kg, and the extended auxiliary platform maximum load is 120kg. Do not drive or operate the equipment on slopes over 25% when the platform is in a lifted state. Operators must wear qualified safety harnesses and protective equipment during all high-altitude working processes. Before transferring the equipment position, the platform must be completely lowered and the extended deck fully retracted.
After completing the operation, fully lower the working platform and retract the extended auxiliary deck. Turn off the key switch and cut off the main power supply of the equipment. Clean the surface dust and stains of the whole machine, and inspect the equipment for loose connecting parts, surface damage or abnormal wear. Charge the battery in a timely manner after each use; for long-term idle storage, keep the battery power remaining at about 80% to protect battery activity. Store the equipment in a dry, ventilated and flat indoor environment to avoid long-term exposure to rain and dampness.
Q1: What are the maximum working height and rated load parameters of the equipment?
A: Both XG1614HD and XG1614HD-Li models feature a maximum working height of 17.8m, a maximum platform height of 15.8m and a standard rated load capacity of 380kg.
Q2: What are the core differences between the two models?
A: The key difference lies in the power system. The XG1614HD is equipped with a lead-acid battery, requiring 8–10 hours of full charging time and supporting 4–6 hours of continuous operation. The upgraded XG1614HD-Li adopts a lithium battery system, which only needs 2–3 hours for full fast charging, can work continuously for 8–10 hours, and has lower daily maintenance costs and longer service cycle.
Q3: Is the equipment available for outdoor operation?
A: Yes. The lift is applicable for light outdoor operations on flat or slightly uneven ground. To ensure safety, please avoid working in severe weather such as heavy rain and strong wind, as well as on rugged and complex terrain.
Q4: What is the load limit of the extended platform?
A: The maximum bearing capacity of the extended auxiliary platform is 120kg, and overload use is strictly prohibited to avoid safety hazards.
Q5: How many operators can work on the platform at the same time?
A: The platform allows a maximum of 2 operators to work simultaneously, and the total weight of personnel and goods on the platform shall not exceed the rated 380kg load limit.
Q6: What are the key points of daily equipment maintenance?
A: Conduct a comprehensive equipment inspection before each startup. Perform regular inspections on battery performance and hydraulic system status every week, and carry out lubrication maintenance for all movable parts on a regular basis to ensure stable equipment operation.
