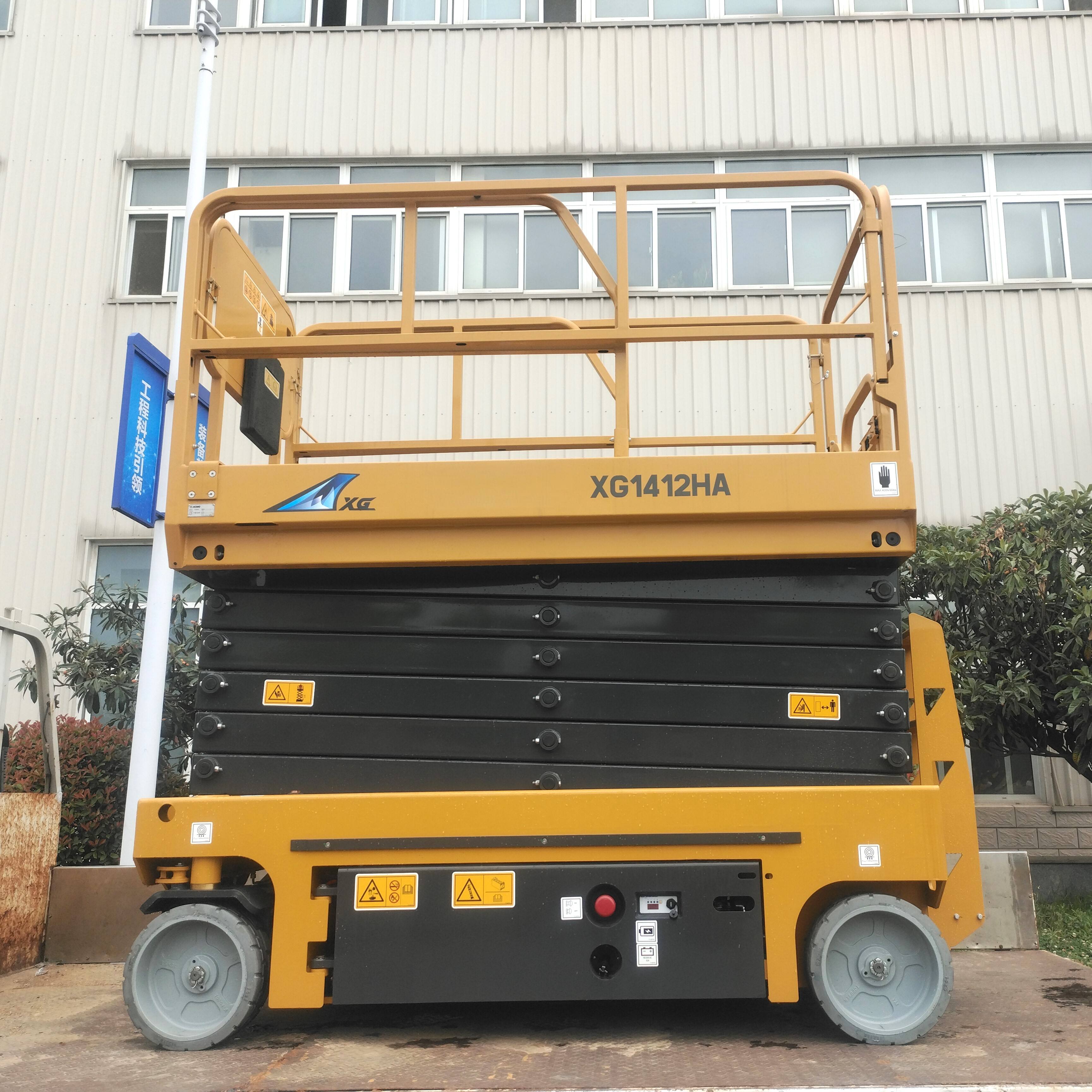

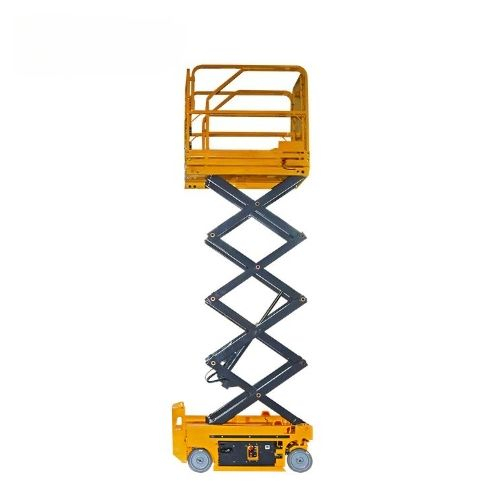

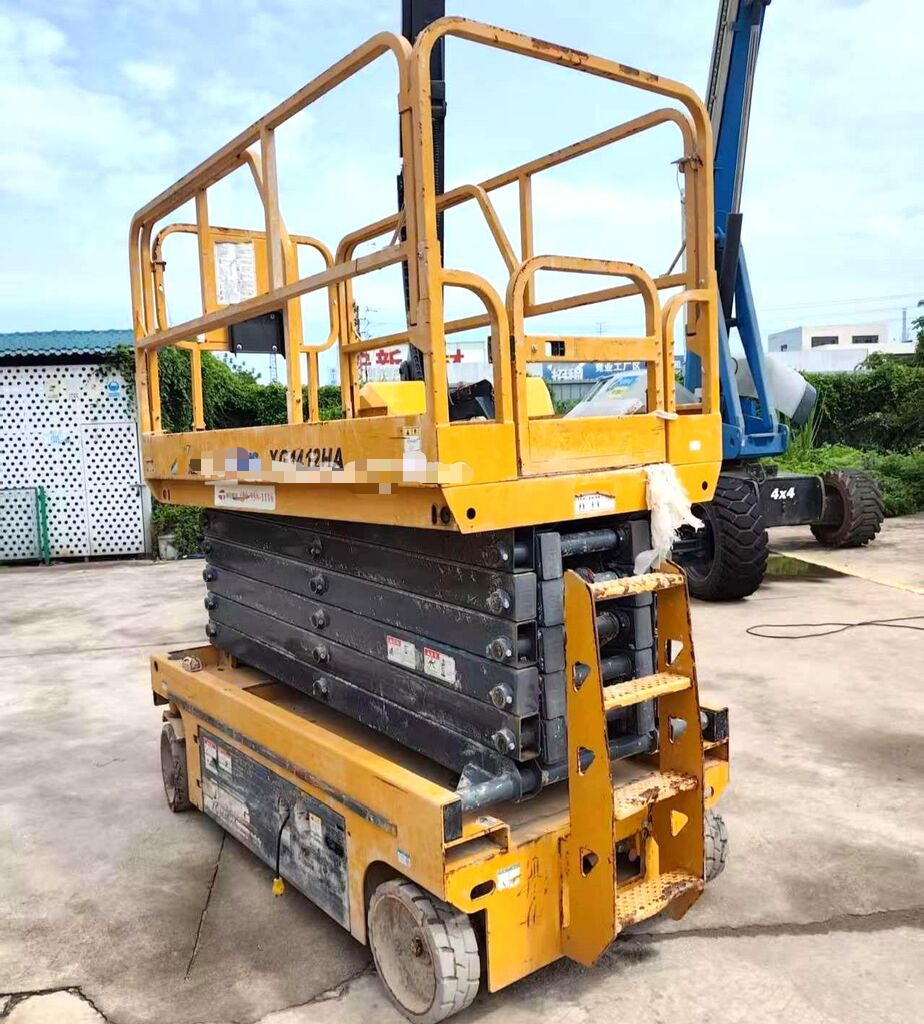

XG1412HA Electric Self-Propelled Scissor Lift Product Manual
The XG1412HA is an AC-powered self-propelled electric scissor lift engineered for complex and demanding high-altitude operation environments. Featuring a maximum working height of 15.8 meters and a standard rated load of 320 kilograms, this aerial work platform integrates a high-stability AC power unit and an upgraded heavy-duty reinforced scissor frame structure. The equipment delivers low-noise operation with zero exhaust emissions, fully complying with green construction and indoor operation standards. Fitted with wear-resistant solid rubber tires and a full set of standardized safety protection mechanisms, it boasts outstanding operational stability and flexible mobility. With official CE certification, the equipment is widely applicable to indoor high-altitude operations and light-duty outdoor work, covering construction engineering, warehouse logistics, commercial venues, municipal maintenance and other mainstream application fields.
1. Stable AC Power Supply System
Adopts high-performance AC power output configuration, delivering continuous, stable and sufficient power support for long-hour uninterrupted operations. The whole working process features ultra-low noise and zero environmental pollution, adapting to closed indoor and environmentally restricted construction scenarios.
2. Super High Lifting Height & Reliable Load Capacity
Equipped with a 15.8-meter maximum working height and 320-kilogram standard load capacity, it fully meets the high-standard operation demands of high-altitude, large-range and heavy-load aerial construction tasks, covering most conventional high-altitude work scenarios.
3. Reinforced Heavy-Duty Structural Design
Optimized with thickened high-strength steel body frames and reinforced scissor arm structures, the overall structural rigidity and compression resistance are significantly improved, effectively resisting structural deformation caused by long-term load-bearing operation and greatly extending the equipment’s service life.
4. Strong Terrain Adaptability
Matched with high-wear-resistance solid tires, the equipment can achieve stable and smooth traveling on flat ground and slightly undulating pavement, effectively adapting to complex on-site ground conditions of construction and logistics sites.
5. Agile & Flexible Maneuverability
The compact and optimized body structure design, combined with sensitive steering control, enables the equipment to freely pass through standard doors, elevator carriages and narrow channel spaces, realizing flexible operation in compact working environments.
6. Comprehensive Safety Protection System
It is fully equipped with industrial-grade safety configurations including overload automatic protection, tilt angle monitoring and warning system, emergency stop cut-off device, automatic road surface pothole protection and anti-slip working platform, building a full-dimensional safety barrier for high-altitude operation.
7. Expandable Working Platform
The detachable and retractable auxiliary platform can expand the effective working area of the main platform, providing a more spacious operation space for multi-person cooperative work and effectively improving overall construction efficiency.
8. Low Daily Operation & Maintenance Cost
The simplified and streamlined mechanical structure, together with high-quality original built-in components, reduces daily failure rates, lowers routine maintenance difficulty and workload, and effectively saves long-term equipment operation and maintenance costs.
Item | Specification |
|---|---|
Model | XG1412HA |
Max. Working Height | 15.8 m |
Max. Platform Height | 13.8 m |
Rated Load Capacity (Main Platform) | 320 kg |
Extended Platform Load Capacity | 120 kg |
Main Platform Size (L × W) | 1870 × 800 mm |
Extended Platform Length | 0.9 m |
Overall Dimension (Folded, L×W×H) | 2850 × 810 × 2520 mm |
Total Equipment Weight | 2250 kg |
Outer Turning Radius | 1.8 m |
Ground Clearance | 22 mm (Platform Raised) / 72 mm (Platform Stowed) |
Travel Speed (Lowered / Raised) | 4.5 km/h / 0.8 km/h |
Gradeability | 25% |
Lifting Time | 28 ~ 48 s |
Lowering Time | 35 ~ 48 s |
Power Supply Mode | AC Power + 24V Lead-acid Battery |
Certification Standard | CE |
1. Construction Engineering Sites
Suitable for indoor and outdoor building decoration, wall painting and coating, electrical wiring laying, pipeline installation and other high-altitude construction operations.
2. Warehouse & Logistics Industry
Ideal for high-level shelf maintenance, regular inventory inspection, ceiling and lighting system maintenance and repair in large-scale storage warehouses and logistics distribution centers.
3. Commercial Service Venues
Applicable to ceiling cleaning and maintenance, lamps and lanterns replacement, billboard and display board installation in shopping malls, hotels, exhibition halls and other commercial public areas.
4. Building Daily Maintenance
Used for routine maintenance and overhaul of high-rise office buildings, residential communities, public service buildings and other permanent facilities.
5. Municipal Public Works
Adaptable to urban street lamp inspection and replacement, traffic sign installation and debugging, urban greening pruning and other municipal daily operation tasks.
6. Exhibition & Event Layout
Suitable for stage assembly and disassembly, banner hanging, on-site equipment installation and debugging for large-scale exhibitions, conferences and temporary commercial events.
Check the connection firmness of AC power supply, confirm the remaining power of the matching battery, and inspect the wear and air pressure status of solid tires.
Verify the installation stability of safety guardrails, telescopic auxiliary platform and fixed locking pins to ensure all protective components are firmly installed without looseness.
Test the emergency stop switch, tilt alarm system and automatic pothole protection device one by one to confirm all safety systems respond normally and function effectively.
Clean up obstacles on the operation site, check and confirm the working ground is flat, solid and the ground slope is within the safe allowable range.
Turn the equipment key switch to the ON gear to activate the whole machine system and complete pre-operation self-inspection.
Control the forward and backward traveling of the equipment through the operating joystick. The system will automatically limit the traveling speed when the platform is lifted to ensure operation safety.
Implement slow and gentle steering operations during movement. It is forbidden to make sharp turns or drive on slopes exceeding 25% during high-altitude operation.
Press the lifting control button to raise the working platform, and release the button to suspend the lifting action in real time.
Press the lowering button to descend the platform. Ensure no personnel or obstacles exist in the lower working area during the whole lowering process.
The auxiliary telescopic platform can only be stretched out after the main platform is completely lifted. Strictly abide by the specified load limit of the extended platform to avoid overload operation.
Overload operation is strictly prohibited: the main platform is limited to 320kg load, and the extended auxiliary platform is limited to 120kg load.
It is forbidden to drive or operate the equipment on a slope with a gradient exceeding 25% when the platform is in a lifted state.
All operators must wear qualified safety harnesses throughout the whole high-altitude operation process to ensure personal safety.
Before moving the equipment, the working platform must be completely lowered and the telescopic auxiliary deck fully retracted and locked in place.
After the operation is completed, fully lower the working platform and retract and fix the extended auxiliary platform.
Turn off the equipment key switch and cut off the AC power supply to complete equipment shutdown.
Clean the dust and dirt on the equipment surface, and comprehensively check whether there are loose fasteners, damaged components or abnormal wear parts.
Charge the supporting lead-acid battery in time after each use, and store the equipment in a dry, ventilated and flat storage environment.
Q1: What is the maximum working height of this scissor lift?
A: The equipment’s maximum overall working height is 15.8 meters, and the maximum vertical height of the working platform alone is 13.8 meters.
Q2: What power system does the XG1412HA adopt?
A: This model is equipped with dual power support of AC mains power and 24V lead-acid battery, which can provide stable and continuous power output for long-term operation.
Q3: Is the equipment available for outdoor operation?
A: Yes, it supports light-duty outdoor operation on flat or slightly uneven ground. It is prohibited to work in severe weather such as heavy rain and strong wind, as well as on rugged and uneven terrain.
Q4: What is the load limit of the extended auxiliary platform?
A: The stretched auxiliary platform has a maximum bearing capacity of 120kg, and any overload use is strictly forbidden.
Q5: How many operators can the platform carry at most?
A: The working platform can accommodate up to 2 operators at the same time, and the total load of personnel and tools shall not exceed 320kg.
Q6: What safety protection devices are standard on the equipment?
A: The equipment is standardly equipped with overload protection mechanism, tilt angle warning system, emergency stop cut-off device, automatic pothole protection system and anti-slip working platform, with comprehensive safety protection functions.
