14m Mobile Scissor Lift Table Xg1412HD with CE Price

Product Introduction

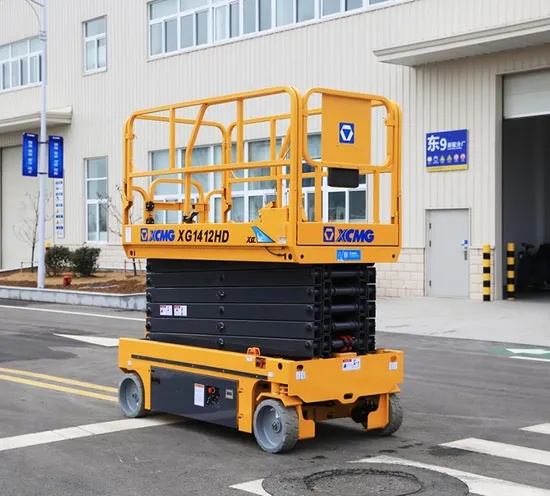

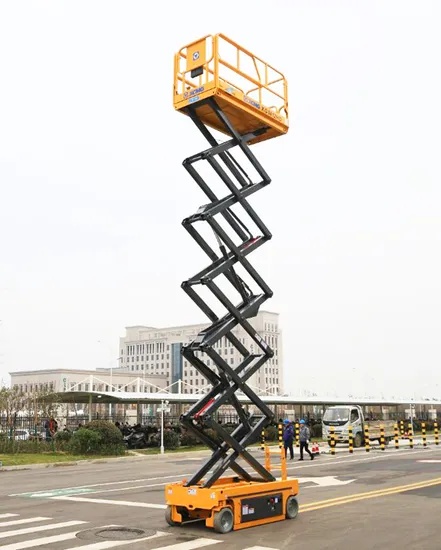

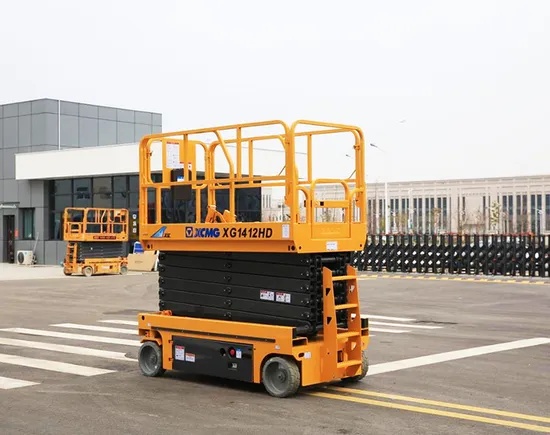

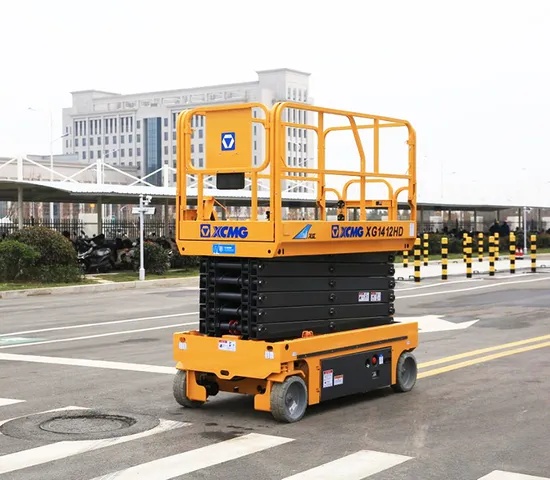

Aerial work platform effective and energy-saving electric-drive system features zero emission and low noise. XG aerial work platform XG1412HDfeatures compact structure, advanced performance, completed safety devices. XG ZG1412HD aerial work platform Meeting the customer needing for safety, reliability and intelligence. Max. payload at 320kg, leading the industry. Maximum traveling speed 4km/h and 25% gradeability make the driving easier.

Product Advantage

* Effective and energy-saving electric-drive system features zero emission and low noise, together with the traceless tires, enabling this machine easily to work in enclosed environments such as office building, hospitals and schools and minimizing the effect on environment.

* Active protective mechanism such as pothole protective mechanism and the self-developed safety control system feature the humanized design and the rich options, meeting the customer needing for safety, reliability and intelligence.

* Narrow- structure design enables the complete vehicle to easily pass through a single gateway; foldable fence could make the transportation easier

* "Zero Turning Radius "is unique and enable machine to corner in narrow room.

* Max. payload at 320kg, leading the industry.

* Maximum traveling speed 4km/h and 25% gradeability make the driving easier.

Technical Parameters

Product Uses

Equipment installation and maintenance for large industrial plants (such as aircraft hangars and shipbuilding)

High-rack access and maintenance in large-scale warehousing and logistics centers

The construction and decoration of international convention and exhibition centers, sports venues and theaters

Cleaning of the atrium and installation of lighting and sound systems in large shopping malls

Product Operate Guide

Before operating the XG1412HD, the operator must be certified to work. Before starting the operation, check whether the appearance of the equipment, the battery power and all functions are normal. When operating, ensure that the site is level and solid, and that the platform guardrails and doors are closed. Control the lifting and driving smoothly through the control handle. Pay attention to observing the surrounding environment and avoid obstacles. Overloading operation is strictly prohibited. In case of any abnormality or alarm during work, operation must be stopped immediately. After descending to a safe position, check. After the work is completed, the equipment should be parked in a flat area, the work platform lowered, the main power switch turned off and the key removed.

FAQ

1.What power does it use?How about the battery life?

• Power type: Pure electric drive, featuring an AC motor system. It operates smoothly, with extremely low noise and no exhaust emissions at all, making it an ideal choice for indoor work.

• Battery and Endurance: Standard equipped with a large-capacity 48V lead-acid battery (more advanced lithium batteries are optional). When fully charged, it usually supports continuous operation for 8-10 hours (endurance varies depending on load, working conditions and speed), meeting the work requirements of one shift.

2.How is its safety performance?What protective devices are there?

A: Safety is of Paramount importance. The XG1412HD is equipped with comprehensive safety devices:

• Emergency stop device: Both the platform and the underframe are equipped with emergency stop buttons.

• Tilt protection system: Automatically detects the levelness of the vehicle body. When the tilt Angle is too large, it will automatically alarm and stop the action.

• Platform door interlock system: Ensures that the platform door cannot be driven or raised or lowered when it is not closed.

• Power-off braking: When the control handle is released or there is an unexpected power outage, the vehicle brakes automatically.

• Hydraulic system safety valve: Prevents the hydraulic system from overloading.

• Under-voltage and overcurrent protection: Provide all-round protection for the electrical system.

3.What qualifications are required to operate this equipment?

A: Absolutely. According to national regulations, operating aerial work platforms is classified as special operations. Operators must undergo professional training and obtain the "Special Operations Operator Certificate (Aerial Work)" before they can take up their posts.

4.What should be noted during daily maintenance?

• Daily: Conduct visual inspection, functional testing (lifting, walking, alarm), and check battery power and hydraulic oil level.

• Regular: Tighten the bolts as required by the manual, check the tire wear, and clean the battery terminals and connectors.

• Long-term: Professional service personnel should carry out in-depth maintenance as planned, including changing hydraulic oil and inspecting structural components, etc.

5.How to maintain batteries?

• Lead-acid batteries: Avoid deep discharge and charge them promptly after use.

It should be fully charged before long-term storage and recharged regularly.

• Lithium battery (if optional) : No memory effect, can be charged as needed. Note to use and store it at an appropriate temperature.

6.How can I obtain the purchase quotation and detailed information?

A: We suggest you contact us directly to obtain the most accurate product configuration, the latest prices and promotional policies.
