Product Introduction

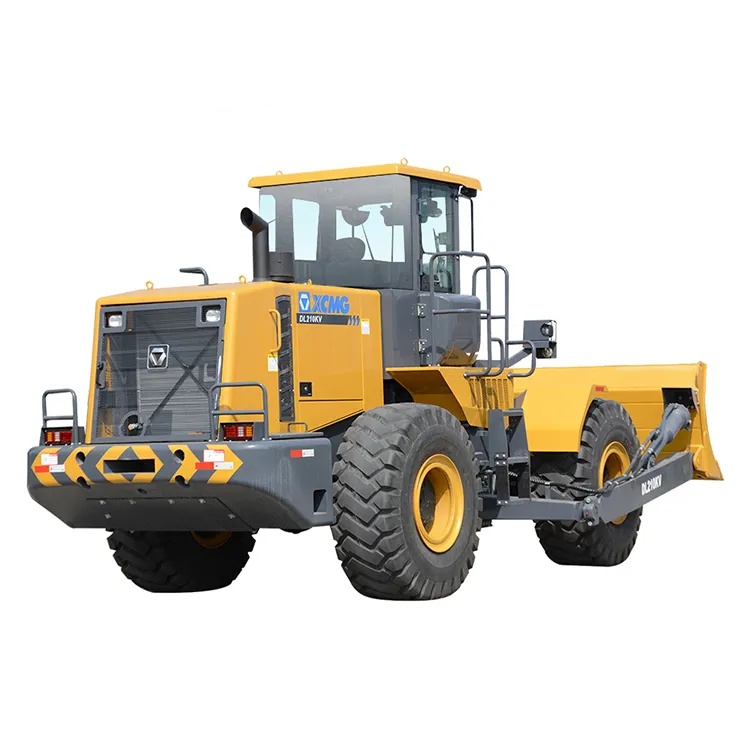

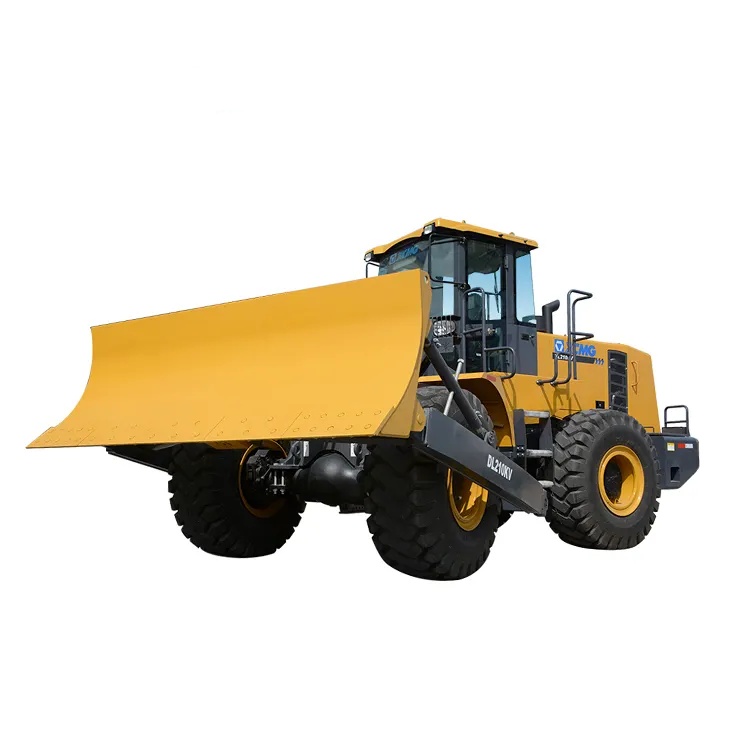

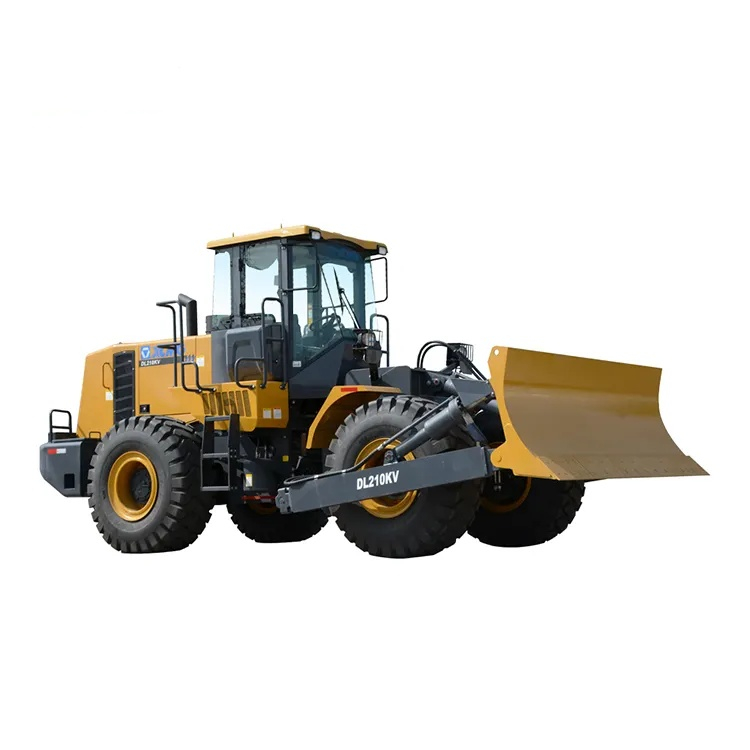

The DL210KV is a high-efficiency bulldozer designed for the mid-to-high-end market, aiming to offer users lower operating costs, higher work efficiency and a more comfortable driving experience. Its "KV" marking usually indicates that it is equipped with a traditional high-efficiency transmission system featuring a hydraulic torque converter and a power shift gearbox
Product Advantage
The DL210KV bulldozer combines high efficiency, reliability and comfort. It is equipped with an efficient power transmission system and a load-sensing hydraulic system, featuring strong power, lower fuel consumption and outstanding working efficiency. Advanced single-pole control technology significantly reduces driving intensity, and the ROPS-certified cab provides a safe and comfortable environment. The structural components have been reinforced in design, featuring strong durability and adaptability to harsh working conditions. It is convenient to maintain and effectively reduces operating costs, making it an ideal choice for all kinds of earthwork projects.
Technical Parameters
| Description | Unit | DL210KN |
| Dozer Max.lift heigh | mm | 1000 |
| Dozer Max.cutting depth | mm | 380 |
| Dozer Max.titing range | mm | 500 |
| Max.drawing force | kN | 136 |
| Articulation angle | . | 36 |
| Min.turn radius | mm | 6985 |
| Climb ability | . | 30 |
| Wheel base | mm | 3410 |
| Tread | mm | 2180 |
| Speeds | 1st(F/R) | km/h | 13/17 |
| 2st(F) | km/h | 40 |
| Engine Model |
| WD10G220E21 |
| Rated power/speed | kW/(r/min) | 162 |
| LxWxH | mm | 7430X3354X3515 |
| Operating weight | t | 16.5 |
| Tires |
| 23.5-2.5 |
Product Uses
•Construction and maintenance of roadbeds for highways and railways
• Stripping, soil discharge and site leveling of large-scale mines
The filling and reinforcement of water conservancy DAMS
• Site leveling and material stacking at the port
Land leveling in large industrial parks
Product Operate Guide
The operation of the DL350 bulldozer requires professional training. Before starting the operation, wrap around the machine for inspection to ensure that the equipment is in good condition. After starting, idle for preheating. Only when the instrument indication is normal can the operation be carried out. The lifting and tilting of the scraper are precisely controlled by the electro-hydraulic pilot handle. Flexibly apply articulated steering to deal with complex working conditions. It offers multiple intelligent modes, which can be switched with one click based on the load to optimize efficiency and fuel consumption. Overloading operation is strictly prohibited. Safety precautions should be implemented after the engine is turned off. For detailed operation, please be sure to refer to the random instruction manual.
FAQ
1.What brand of engine does it use? What emission standards does it meet?
A: It is usually equipped with top domestic brands (such as Weichai and Shangchai) electronically controlled high-pressure common rail engines, which have sufficient power reserves and high reliability. At present, this model should comply with the "National III" emission standards (or be upgraded to the National IV standard after the implementation of the non-road National IV standard). The specific information should be subject to the official information at the time of purchase.
2.Is the transmission system mechanical or hydraulic?
A: The DL210KV adopts a mature transmission form of "hydraulic torque converter + power shift gearbox". It combines the automatic adaptability and shock resistance advantages of hydraulic transmission, as well as the convenience and efficiency of power shifting. It is not purely mechanical or fully hydraulic.
3.Which different types of shovels can be optionally installed?
A: It is usually equipped with a straight-tilt shovel (SU blade) as standard and is suitable for general-purpose earth-moving operations. Users can choose to install Angle shovels (S-shaped blades) (suitable for lateral soil pushing) or semi-U-shaped shovels (suitable for transporting loose materials) according to the actual working conditions.
4.Is it complicated to operate?
A: It's not complicated. This model is usually equipped with a single-lever control system (one handle can control all the movements of the scraper), which is intuitive, simple and labor-saving to operate. Even beginners can quickly get the hang of it after a brief training.
5.How comfortable is the cab?
A: The cab complies with ROPS/FOPS safety standards, has good sealing performance and low noise. It is equipped with standard suspended shock-absorbing seats, high-power air conditioning and a wide field of vision, providing drivers with a safe and comfortable working environment and effectively extending the effective working time.
6.Is daily maintenance convenient?
A: Very convenient. The design fully takes into account the convenience of maintenance: The engine compartment is designed with a large open cover, and the layout of commonly used maintenance points such as the oil filter, diesel filter, and air filter is concentrated and within easy reach. It can also be optionally equipped with a centralized automatic lubrication system to further reduce the daily maintenance time and workload.
