Product Introduction

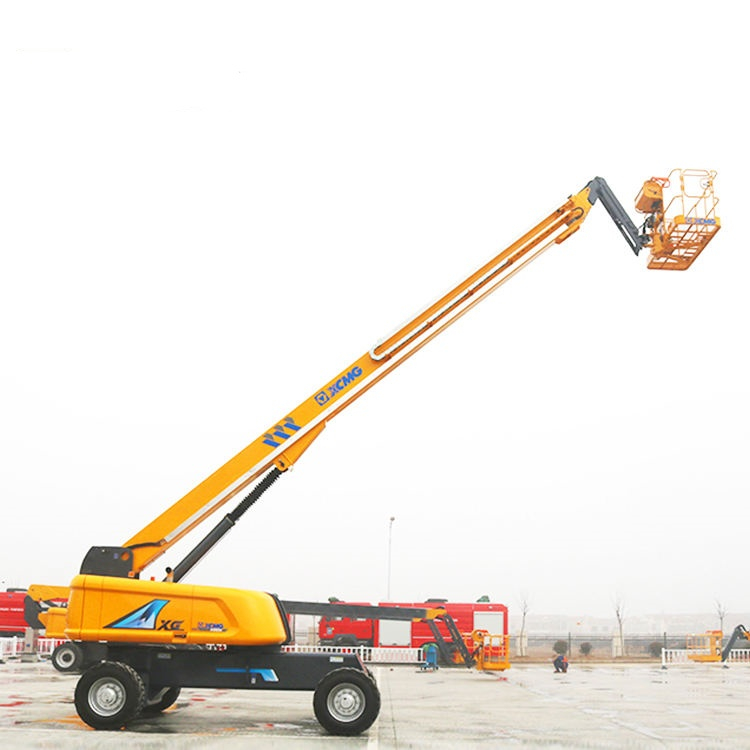

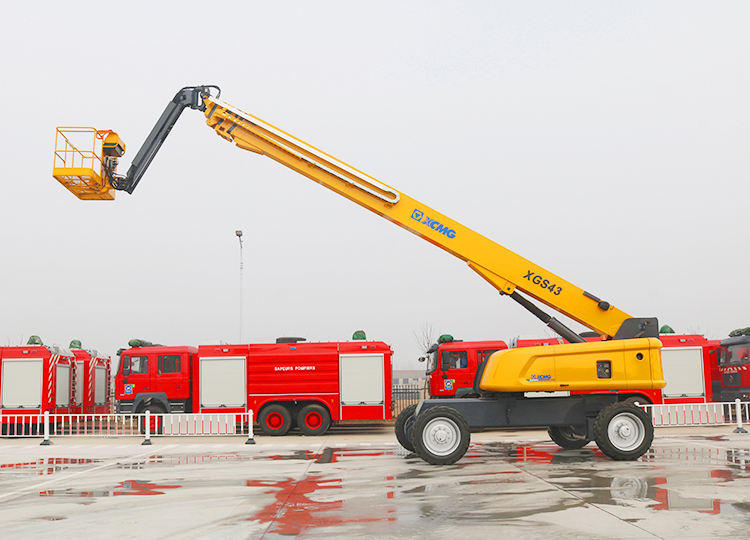

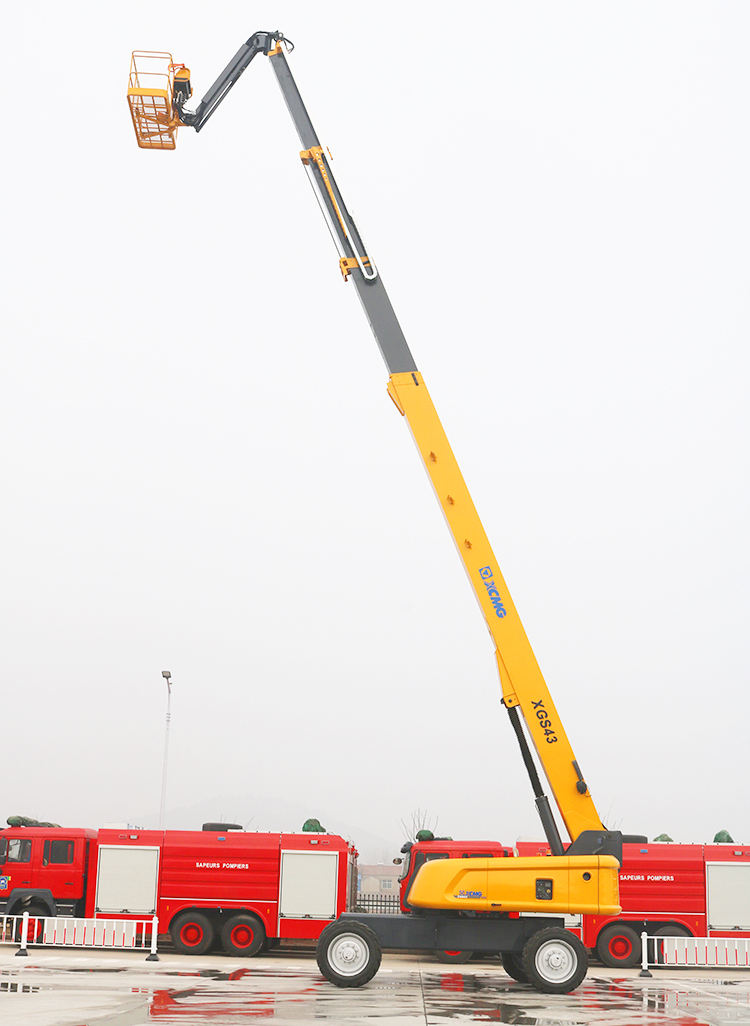

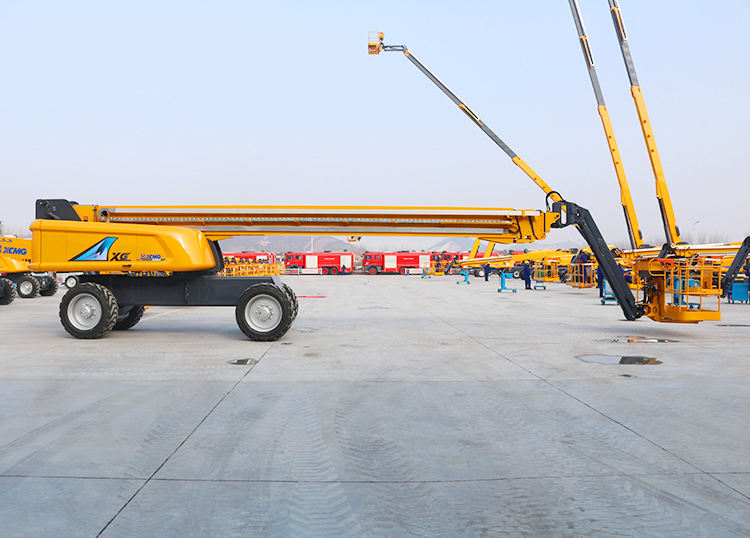

The XGS43 is a 43-meter-class diesel-powered straight boom aerial work platform with an industry-leading working height, meticulously crafted by XG Fire Protection. It represents the top level of domestic aerial work platform technology. With its extremely high working range, outstanding stability performance and intelligent control experience, it is specially designed for extreme working conditions such as super high-rise buildings and large infrastructure, and is a construction tool that challenges the sky.
Product Advantage
* 2.4m wide platform, enough for carrying tools and materials.
* Dual work-amplitude curve leads the industry in terms of work height and range.
* This vehicle is equipped with a swinging crank 2.44m long, with pitching angle up to 130° and leftwards/rightwards swinging angle up to 75°, effectively widening the work range.
* The crank should swing backward by 160°, retracted under the boom, saving the transportation and storage room.
* 230kg and 450kg loading capacity, leading in the industry.
* 360° turntable, luffing and telescopic straight arm and swing ad luffing crank arm during aerial operation ensure complete operation of surrounding buildings without moving.
* Four wheel drive and steering features strong drive capacity and flexible steering.
* Axle balance control system could enable the axle automatically to adapt to the terrain, suitable for cement, pitch, soft roads and other rough mountainous roads.
Technical Parameters
| Item | Unit | Parameter |
| Overall length (Transport status) | mm | 14900 (12000) |
| Overall width (With shaft retracted/extended) | mm | 2490/3800 |
| Overall height | mm | 3050 |
| Wheelbase | mm | 3800 |
| Max. working height | m | 43.3 |
| Max. platform height | m | 41.3 |
| Max.working range | m | 25 |
| Max. load capacity | kg | 230 (unrestricted)/450 (restricted) |
| Luffing range of boom | ° | -1 ~ +75 |
| Slewing angle of turntable | ° | 360° |
| Max tail swing (With axle retracted/extended) | mm | 2390/1725 |
| Platform size | mm | 2400×900 |
| Slewing angle of platform | ° | 160 |
| Overall weight | kg | 22000 |
| Max. traveling speed | km/h | 5 |
| Min. turning radius (With axle retracted/extended) | m | 8.2/10.8(Two-wheel steering)
5.8/6.8 (Four-wheel steering) |
| Min. ground clearance | mm | 320 |
| Max. grade ability | % | 40 |
| Tire specification | - | 445/50D710 |
| Engine model | - | Perkins 1104D-44T |
| Engine rated power | kW/(r/min) | 55.5/(2400) |
Product Uses

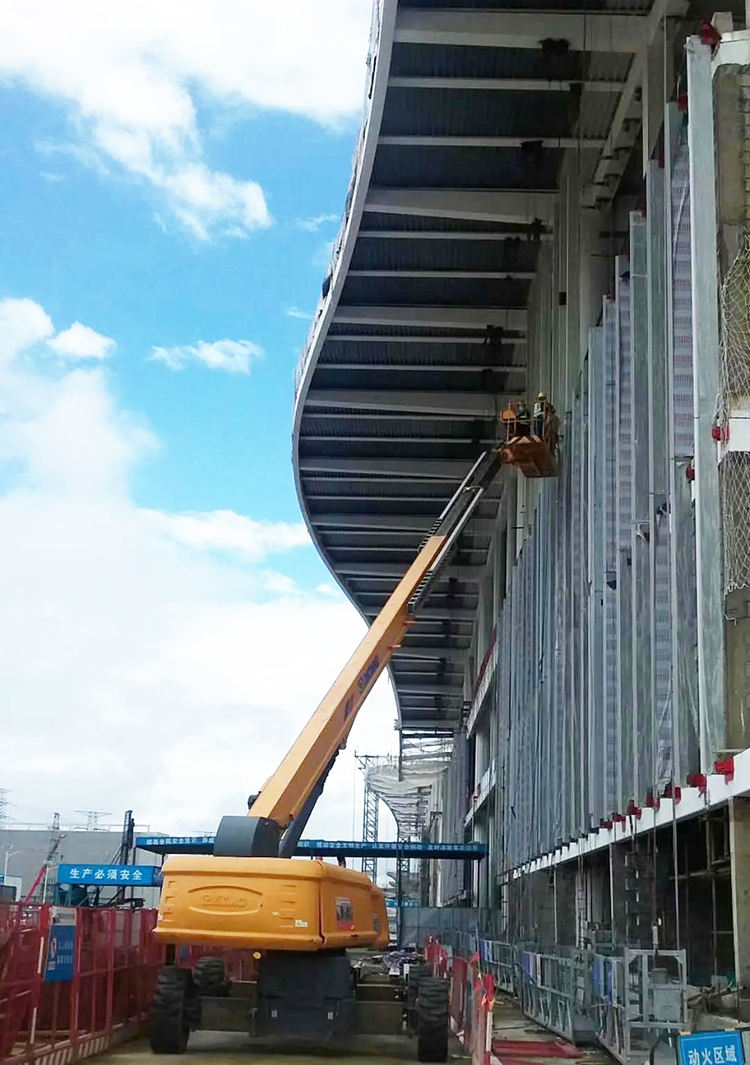

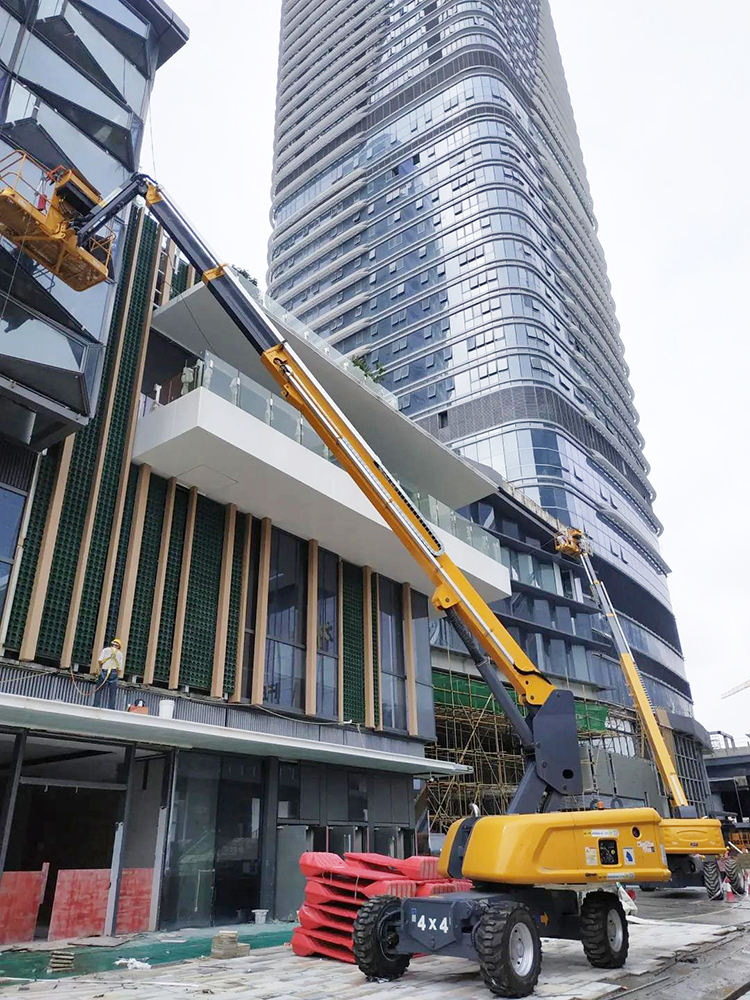

Construction of super high-rise buildings and exterior wall maintenance
• Construction and inspection of large Bridges and DAMS
Construction and maintenance of large power plants and petrochemical facilities
Steel structure installation and maintenance for large venues (airports, stadiums, exhibition centers)
"Shipbuilding"
Product Operate Guide
The operation of the XGS40K aerial work platform requires a valid certificate. Before starting the operation, be sure to check the outriggers, structure and emergency devices. After starting, select the driving mode on the chassis and use the four-wheel drive and four-wheel drive for flexible positioning. Operate the platform proportional handle to precisely control the movement of the hybrid boom and the rotation of the platform, paying attention to environmental obstacles and the 300kg load limit. Use the emergency stop button in an emergency. After completion, restore the equipment to the transportation state and park it. Overloading and illegal operation are strictly prohibited. Please strictly follow the safety manual.
FAQ
1.What is the maximum working height and amplitude of the XGS43?
A: With a maximum working height of 43 meters and a maximum horizontal extension range exceeding 24 meters, it belongs to ultra-high-altitude operation equipment and can meet the operation requirements of the vast majority of high-rise buildings and large facilities.
2.What are the advantages of the straight arm design?
A: The straight arm design mainly provides a greater horizontal extension capability, making it particularly suitable for scenarios that require long-distance crossing or operations over a large area, such as exterior wall construction of buildings and maintenance of large venues.
3.How is the mobility of the equipment on the construction site?
A: It adopts a four-axle telescopic chassis design, which not only ensures driving flexibility but also provides an extremely large support span during operation. Four-wheel drive and multiple steering modes ensure good off-road performance in complex construction site conditions.
4.What safety protection measures are there for the equipment?
A: Equipped with multiple safety systems
• Intelligent limit protection system
Tilt alarm and protection device
Emergency descent system
• Platform overload protection
• Emergency stop button (available on both the platform and the ground)
5.What maintenance checks are needed on a daily basis?
A: Before daily work, check:
Check if there is any deformation or damage to the structural components
Whether the hydraulic system is leaking
Whether the safety devices are functioning properly
• Condition of tires and outriggers
• Engine oil and coolant level
6.Is the maintenance and upkeep of the equipment convenient?
A: It adopts a modular design, with a reasonable layout of main maintenance points, which is convenient for daily maintenance and inspection. It is recommended to carry out regular professional maintenance as required by the operation manual.
