Product Description

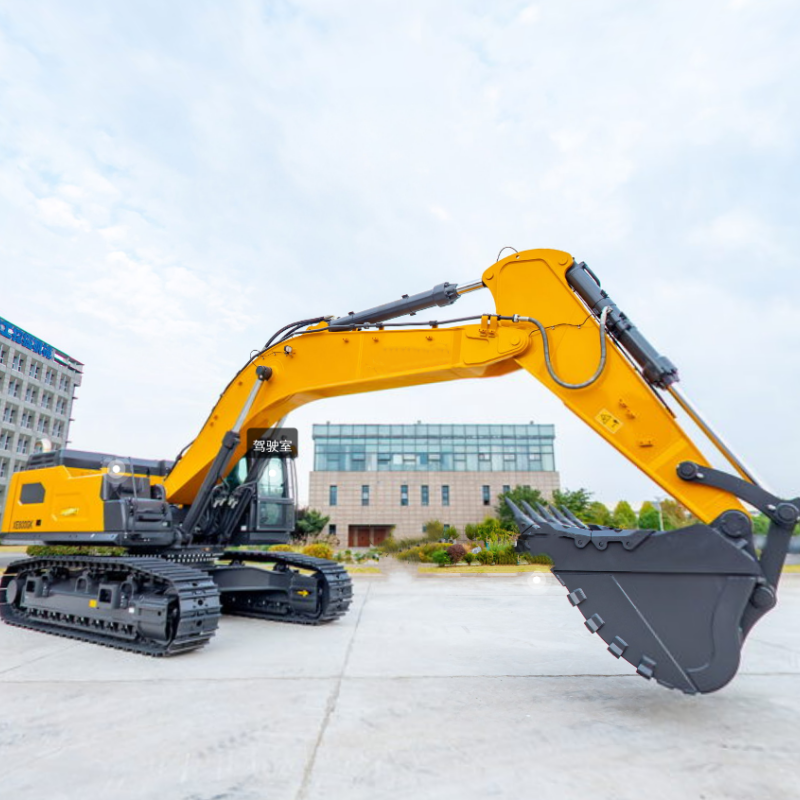

The XE600G is a 60-ton class heavy-duty hydraulic excavator designed for mining and large-scale earthmoving projects. It features a 3.6m³ large-capacity bucket and an operating weight of 54,500 kg, optimized for overburden stripping, rock excavation, and loading in open-pit coal, sand, and mineral mines.
Powered by a 343 kW Cummins engine (2100 rpm) with low-speed high-torque output, it delivers strong power reserve and reliable cold-start performance. The advanced hydraulic system, equipped with 36mm large-diameter low-pressure-loss main valve and 240cc large-displacement main pump, ensures precise flow distribution and 15% higher fuel efficiency than conventional models.
Built with a reinforced heavy-duty frame, mining-grade track shoes, and enhanced heat dissipation (16% higher cooling capacity), the XE600G withstands extreme working conditions and extends service life by 30%. It supports quick attachment swaps, including a 205/210 hydraulic breaker for high-strength rock demolition.
Product Advantages
Power & Efficiency: Custom Cummins engine with 343 kW rated power, low-speed high-torque curve, and 15% lower fuel consumption.
Superior Hydraulics: 36mm large-diameter main valve + 240cc main pump for 20% higher flow output and faster operation speed.
Heavy-Duty Durability: Reinforced frame, mining track shoes, and 16% improved heat dissipation for 30% longer service life.
High Productivity: 3.6m³ large bucket, 330 kN bucket digging force, and dual swing motors (20% higher torque) for efficient loading.
Comfort & Safety: 8-inch touchscreen, one-key start, powerful HVAC, rear camera, and LED work lights.
Versatility: Standard 205 hydraulic breaker (optional 210) for hard rock demolition.
Product Parameters
Item | Unit | Specification |
Operating Weight | kg | 54,500 |
Bucket Capacity | m³ | 3.6 |
Engine Model | - | Cummins (Customized) |
Rated Power | kW/rpm | 343 / 2100 |
Bucket Digging Force | kN | 330 |
Max. Digging Radius | mm | 11,622 |
Max. Digging Depth | mm | 7,430 |
Swing Speed | rpm | 8.5 |
Travel Speed | km/h | 4.5 / 3.0 |
Fuel Tank Capacity | L | 700 |
Hydraulic Tank Capacity | L | 400 |
Standard Bucket Teeth | - | 5 |
Track Shoe Width | mm | 600 (Mining Grade) |
Product Applications
Mining Operations: Open-pit coal, iron ore, gold mine, and sandstone mine overburden stripping, excavation, and loading.
Quarrying: Rock blasting, breaking, and aggregate loading.
Large Earthworks: Dam construction, highway/railway embankment, and port development.
Demolition: High-strength rock and concrete breaking with 205/210 hydraulic breaker.
Heavy Construction: Foundation excavation, trenching, and material handling in large infrastructure projects.
Operation Guide
1. Pre-Operation Inspection
Check engine oil, coolant, hydraulic oil, and fuel levels.
Inspect track tension, bucket teeth, and hydraulic hoses for wear/damage.
Verify function of lights, horn, camera, and safety alarms.
Ensure all controls are in neutral position.
2 .Starting & Operation
Enter cab, fasten seatbelt, and adjust seat/armrests.
Turn key to ON, wait for system self-check, then press one-key start.
Operate left joystick for swing/boom; right joystick for bucket/arm.
Use foot pedals for travel and breaker operation (if equipped).
Select Eco/Standard/Power modes via touchscreen for different tasks.
3 .Safety Rules
No personnel within 10m of working radius.
Avoid operation on slopes >30°.
Never exceed rated load or dig beyond bucket capacity.
Stop engine before inspection, maintenance, or attachment change.
Use safety lock when leaving operator’s seat.
4 .Daily Maintenance
Grease boom/arm/bucket pins every 8 hours.
Clean radiator and air filter daily.
Check hydraulic oil temperature (≤85°C) and pressure.
Inspect undercarriage for wear and tighten bolts.
FAQ
Q1: What is the main difference between XE600G and standard 50-ton excavators?
A1: The XE600G is a 60-ton mining-class machine with a larger 3.6m³ bucket, 343kW high-torque engine, reinforced mining undercarriage, and enhanced hydraulic system for 20% higher productivity in heavy mining conditions.
Q2: Can it work in high-altitude or extreme temperature environments?
A2: Yes. The Cummins engine is calibrated for high-altitude (≤4,500m) operation. The large radiator provides 16% better heat dissipation for 50°C ambient temperature, and cold-start aid ensures reliable operation at -20°C.
Q3: What is the fuel consumption per hour?
A3: 28–35 L/h (depending on workload; Eco mode: 28–30 L/h, Power mode: 32–35 L/h).
Q4: Is the hydraulic breaker included as standard?
A4: Yes, it comes standard with a 205 hydraulic breaker; a 210 breaker is available as an option.
Q5: What is the expected service life?
A5: 20,000+ hours with proper maintenance, thanks to reinforced structural components and mining-grade undercarriage design.
Q6: What after-sales support is available?
A6: 1-year/4,000-hour warranty (whichever comes first). Global service network with 24/7 parts supply and on-site technical support.
