Product Description

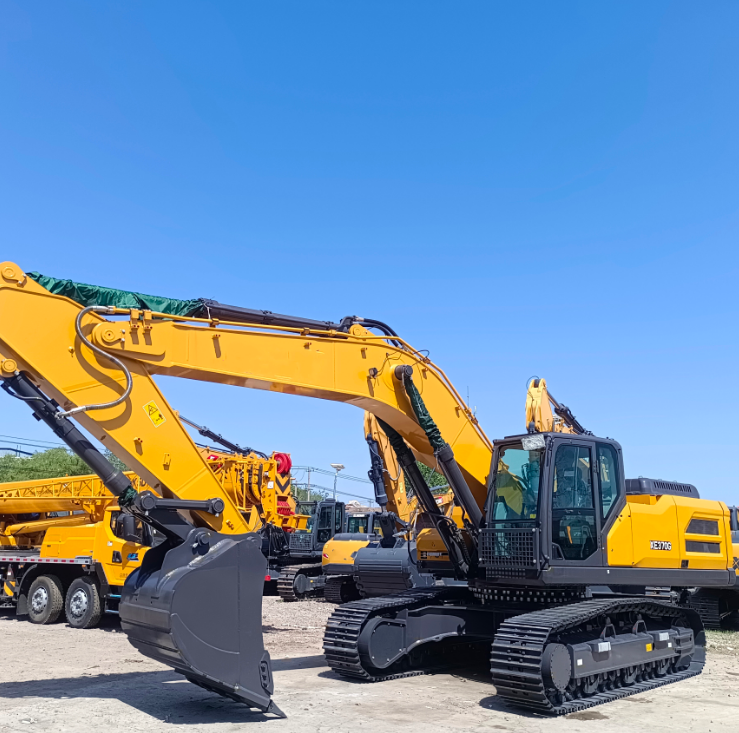

XE370G is a 37-ton class heavy-duty crawler hydraulic excavator designed for high-intensity working conditions. It integrates a high-efficiency power unit, intelligent hydraulic control, and a reinforced structural design, balancing powerful performance, fuel economy, and long-term reliability. Ideal for mining, quarrying, large-scale earthmoving, and infrastructure construction, it supports multi-scenario operations with standard, heavy-duty, and breaker configurations.
Product Advantages
High Efficiency & Fuel Saving: Equipped with a 212kW high-torque engine and electronic controlled common rail fuel system, delivering 5% higher fuel efficiency and strong power output.
Reinforced Durability: Heavy-duty chassis, strengthened boom/arm, and optimized undercarriage components (track chains, rollers) ensure stable operation in harsh environments like mines and rocky sites.
Intelligent Control: Advanced PIC intelligent hydraulic system enables precise movement control, fast response, and reduced operating resistance, improving work efficiency by 8–10%.
Comfortable & Safe Cab: Pressurized cab with 8-inch touchscreen, auto HVAC, and suspension seat; low noise (≤72dB) and 128° wide-view rear camera enhance operation safety and comfort.
Strong Adaptability: Three-stage fuel filtration system suits poor-quality oil; compatible with multiple attachments (hydraulic breaker, grapple) for excavation, loading, demolition, and leveling.
Product Parameters
Item | Unit | Parameter |
Operating Weight | kg | 36,860 |
Standard Bucket Capacity | m³ | 1.8 (1.6–2.0 optional) |
Rated Power | kW/rpm | 212/2000 |
Max. Digging Height | mm | 10,950 |
Max. Dumping Height | mm | 7,430 |
Max. Digging Depth | mm | 7,250 |
Max. Digging Radius | mm | 11,250 |
Bucket Digging Force | kN | 263 |
Travel Speed (High/Low) | km/h | 5.4 / 3.1 |
Swing Speed | rpm | 9.2 |
Gradeability | ° | ≤35 |
Fuel Tank Capacity | L | 630 |
Product Uses
Mining & Quarrying: Rock excavation, ore loading, and site development in medium-sized mines and quarries.
Infrastructure Construction: Earthmoving, foundation excavation, and slope trimming for highways, bridges, and railways.
Water Conservancy Projects: River dredging, reservoir excavation, and embankment reinforcement.
Municipal Engineering: Urban demolition, road repair, and site leveling.
Heavy-Load Operations: Long-term continuous work in harsh conditions with heavy loads.
Operation Guidelines
Pre-Operation Check: Inspect engine oil, coolant, hydraulic oil level, and fuel volume; check track tension, bucket wear, and attachment connection; verify cab instruments and rear camera function.
Start-Up: Enter the cab, fasten the seatbelt, turn the key to the "ON" position, wait for the self-check to complete, then press the start button; idle for 3–5 minutes to warm up the engine and hydraulic system.
Basic Operation:
Left joystick: Controls boom lift/drop and swing left/right.
Right joystick: Controls arm extend/retract and bucket dig/load.
Foot pedals: Control travel and swing brake.
Work Operation: Select the appropriate working mode (standard/heavy-duty) via the touchscreen; avoid sudden acceleration/deceleration or overload operation; maintain stable movement during excavation and loading.
Shutdown: Move the machine to a flat area, retract the bucket, lower the boom, idle for 3–5 minutes, then turn the key to the "OFF" position; cut off the power and lock the cab.
Frequently Asked Questions
Q1: What is the main engine model and emission standard?
A: Equipped with a high-torque diesel engine (AE-6HK1XWSC-S), meeting non-road emission standards, no urea required, simple structure, and convenient maintenance.
Q2: What is the fuel consumption per hour in standard working conditions?
A: Approximately 18–22 L/h (varies with working conditions, load, and operator habits); the intelligent hydraulic system optimizes power matching to reduce fuel consumption.
Q3: Can it be equipped with a hydraulic breaker? What is the matching model?
A: Yes, it supports a 175–195mm hydraulic breaker (BK configuration) for rock breaking and demolition; the hydraulic system is pre-calibrated for breaker operation.
Q4: What is the track shoe width? Can it be replaced with a wider one?
A: Standard track shoe width is 600mm; 700mm/800mm wide track shoes are optional for soft ground (swamp, mud) to reduce ground pressure.
Q5: How to maintain the hydraulic system to extend service life?
A: Replace hydraulic oil and filter elements every 2,000 hours; check oil seals and hoses regularly for leaks; avoid mixing different brands of hydraulic oil; keep the hydraulic tank clean.
Q6: What is the warranty period? What after-sales support is provided?
A: Standard warranty is 1 year or 2,000 hours (whichever comes first); global after-sales service includes online technical support, spare parts supply, and on-site maintenance.
