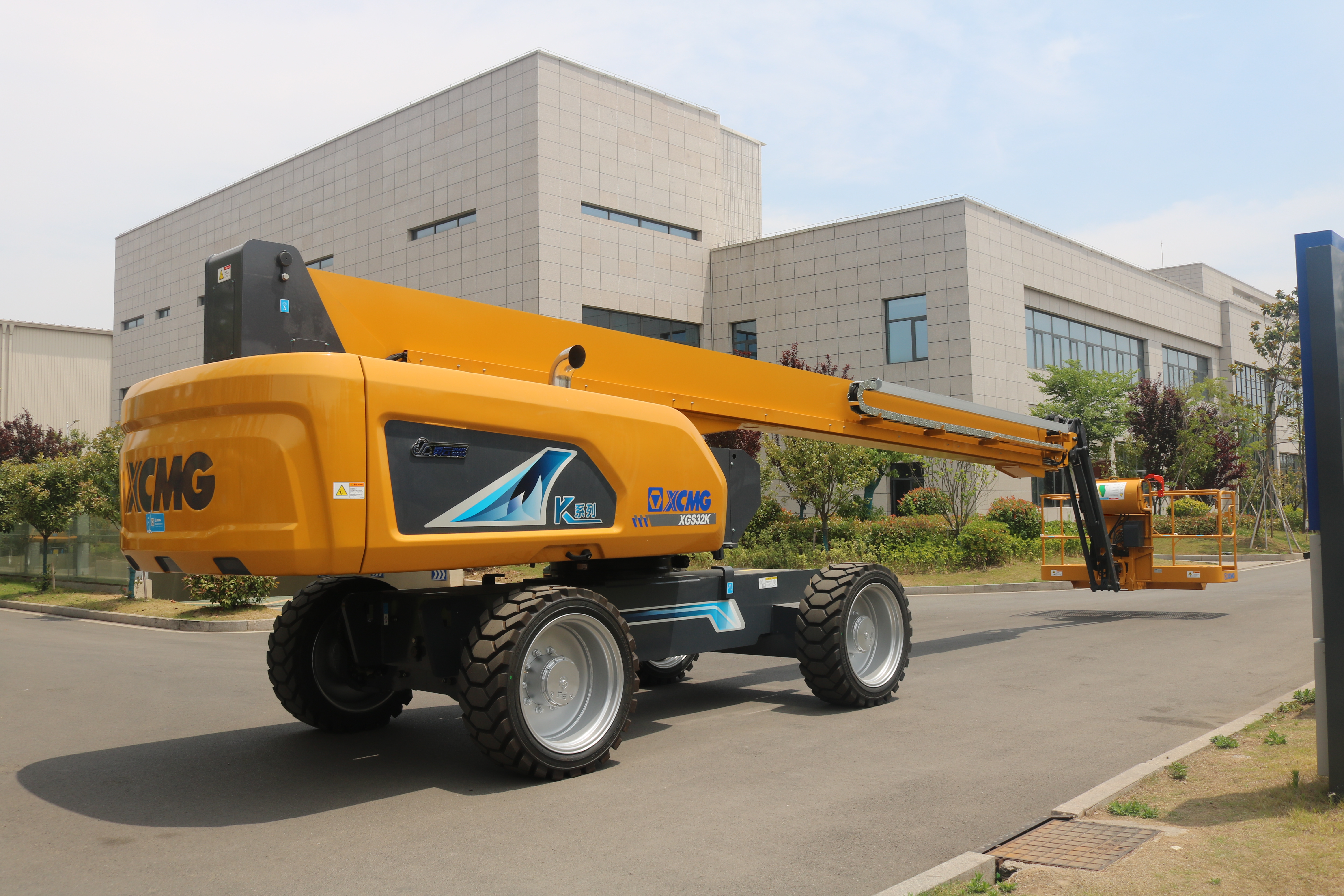

XGS32ACK-Li XGS32K
| Quantity: | |
|---|---|
Product Introduction
Choosing XGS32ACK-Li means choosing an extremely environmentally friendly, technologically advanced and future-oriented construction method, which is suitable for the high-end market with strict environmental protection requirements.
Choosing the XGS32K means choosing enduring, unrivaled power and unrestrained operational freedom, making it suitable for traditional heavy-duty conditions that pursue absolute reliability and adaptability.
Product Advantage
1. Peak work height and stability
The 32-meter platform height enables it to meet the vast majority of super high-rise operation requirements. Through structural optimization and an intelligent leveling system, an extremely stable and safe working experience can still be provided at such a height.
2. Dual top-tier power, defining industry benchmarks
XGS32ACK-Li (Lithium Battery Flagship) : It represents the highest technical level in the industry, perfectly integrating ultra-high height with pure electric environmental protection. It solves the operation problems of ultra-high platforms in sensitive areas (such as nuclear power plants and precision manufacturing plants), and is the first choice for achieving "green high-maximization" construction.
XGS32K (Diesel Flagship) : It achieves the ultimate performance with traditional diesel power, eliminating range anxiety and not being picky about working conditions. It demonstrates irreplaceable reliability in remote areas and continuous high-intensity operation scenarios.
3. Unparalleled environmental adaptability
Its powerful four-wheel drive capability and high off-road design enable it to move freely in complex terrains such as construction sites, muddy ground, and hills, truly achieving the goal of "going wherever needed".

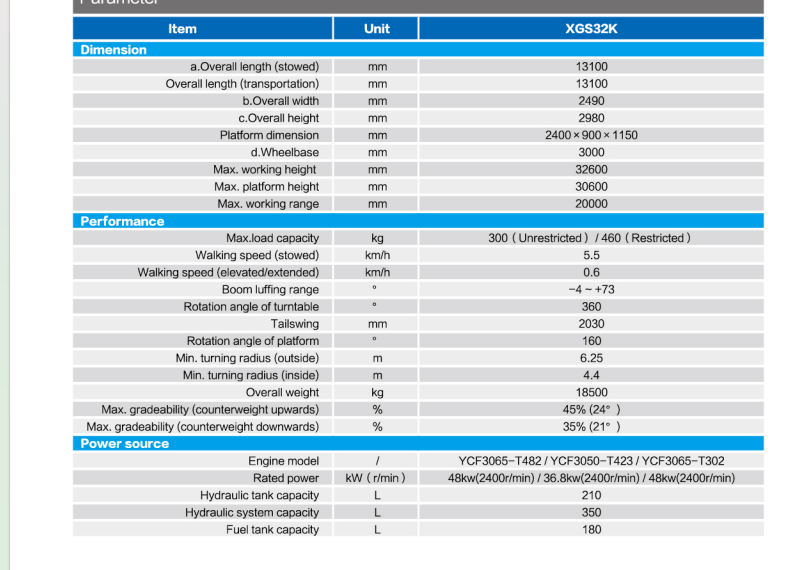

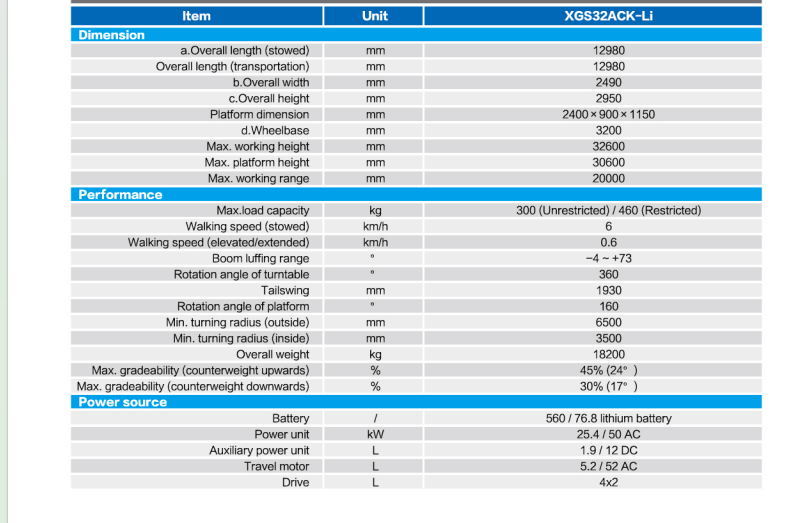

Technical Parameters
Product Uses
Construction and maintenance of super-large infrastructure: large Bridges, airport terminals, high-speed railway station buildings, and sports venues.
• Energy industry: Maintenance and repair inside thermal power plants, nuclear power stations and hydropower stations, installation of wind turbines.
• Shipbuilding and maintenance: Hull welding and painting operations for super cargo ships, cruise ships and aircraft carriers.
• Petrochemical industry: Construction and installation of large-scale oil refineries, petrochemical reaction facilities, and storage tanks.
• Large industrial plants: Construction and equipment installation of super-large plants for aircraft manufacturing, large machinery manufacturing, etc.
Product Operate Guide
1. Power system failure
◦ XGS32ACK-Li: Automatically enables backup power descent
◦ XGS32K: Manually activate the hydraulic emergency descent system
2. Environmental emergencies
When the wind speed exceeds the limit, immediately reduce it to a safe height
Evacuate to a safe area within 30 minutes during thunderstorms
3. Handling of equipment anomalies
Abnormal vibration should be stopped immediately
If the platform offset exceeds 50mm, emergency maintenance is required
FAQ
A: The main difference lies in the power system:
The XGS32ACK-Li is driven by a lithium battery and an AC motor, featuring zero emissions and low noise. It is suitable for indoor use and places with strict environmental protection requirements
The XGS32K is equipped with a diesel engine, which is powerful and has a worry-free range. It is suitable for outdoor use and situations without power supply
A: Possessing professional-level off-road capabilities
• Four-wheel drive system, climbing ability ≥40%
• Heavy-duty off-road chassis, ground clearance ≥350mm
• Adaptive hydraulic suspension, suitable for rough terrain
• Professional off-road tires with strong grip
A: The suggestions are as follows
• Replace the hydraulic oil filter element every 50 hours
• Every 100 hours: Calibrate the level sensor
• Every 500 hours: Conduct structural stress testing
• Annual: Comprehensive and systematic maintenance
A: Equipped with multiple safety systems
1. Dual-redundant hydraulic system
2. Emergency descent device (available when power is off
3. Tilt alarm system (Automatic alarm when > 3°)
4. Anti-collision system (automatic deceleration within 3 meters)
5. Wind speed monitoring system (alarm when > 12.5m/s)
A: The equipment is equipped with an emergency descent device (usually a manual pump).
In emergency:
Keep calm.
2. Press the emergency stop button.
3. Open the emergency descent valve and lower the platform to the ground smoothly through the manual pump.
All operators must repeatedly practice this process before going on the machine.
