Product Description

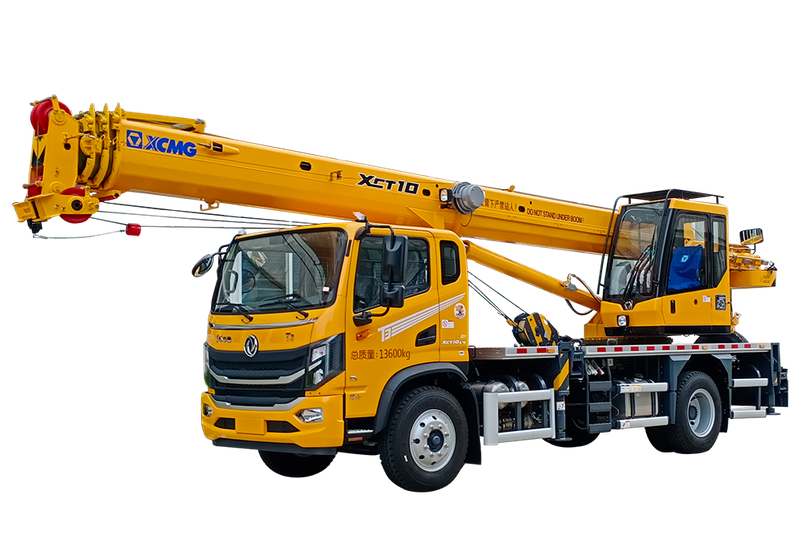

Developed for narrow‑space and high‑frequency light‑medium hoisting scenarios, XCT10L4 adopts four‑section U‑shaped high‑strength steel boom structure. Single‑cylinder pin‑type telescoping mechanism ensures smooth and reliable boom extension and retraction with short working cycle.
Compact lightweight chassis brings small turning radius, allowing easy driving into narrow urban streets, residential zones and small factory yards. The optimized load‑sensing hydraulic system supports compound movements of boom luffing, slewing and hoisting, realizing stable running and precise micro‑control for component positioning.
Standard H‑type outriggers provide reliable supporting span for stable operation on ordinary construction ground. Simple multi‑counterweight configuration meets different radius lifting requirements. Human‑friendly operator cabin is equipped with air‑conditioning, clear display instruments and shock‑absorbing seat to reduce operator fatigue for long‑time continuous work. Complete safety protection devices effectively prevent overload, over‑winding and mis‑operation in complex outdoor working conditions. The whole machine has low maintenance cost and high cost‑performance for rental companies and small construction contractors.
Product Advantages
Compact & Light‑Weight Body
Small overall dimension and excellent turning performance, easy to access narrow urban streets, residential areas and confined small job sites.
Reliable Lifting Capacity
Four‑section 30.5 m U‑type main boom; maximum lifting height up to 37.2 m, 10‑ton rated lifting capacity, satisfies most municipal and small‑project hoisting demands.
Stable Hydraulic Performance
Load‑sensing hydraulic system supports smooth compound actions, fast response and precise micro‑control, improving operation efficiency.
Flexible H‑Type Outriggers
Reasonable supporting span, quick outrigger expansion and retraction, fast setup on job site, saving preparation time.
Good Road Mobility
Commercial truck chassis design, fast self‑driven transfer between multiple work sites, no extra transport trailer required.
Cost‑Effective & Low Maintenance
Mature structural layout, durable core components, low failure rate and affordable spare‑part cost, ideal for equipment rental business.
Complete Safety Protection
Load moment limiter, hoist height limit switch, hydraulic balance valves and warning indicator lights prevent typical lifting‑site risks.
Comfortable Operating Cabin
Air‑conditioned enclosed cabin with adjustable seat and intuitive monitoring interface for long‑hour operation.
Technical Specifications
Item | Specification | Unit |
Model | XCT10L4 | ‑ |
Max. Rated Lifting Capacity | 10 | t |
Main Boom Sections / Length | 4 sections / 8.45‑30.5 | m |
Max. Lifting Height | 37.2 | m |
Overall Dimension(L×W×H) | 10650 ×2420 ×3380 | mm |
Total Operating Weight | 17200 | kg |
Max. Travel Speed | 90 | km/h |
Grade‑ability | 30 | % |
Max. Slewing Speed | 2.0 | rpm |
Counterweight | 3.2 | t |
Outrigger Span (Lateral) | 5.4 | m |
Product Applications
XCT10L4 compact truck crane focuses on medium‑light hoisting works in limited‑space environments
Municipal Engineering: Street lamp maintenance, municipal pipeline installation, traffic facility erection, urban renovation
Building Decoration: Construction material hoisting, exterior decoration component lifting for low‑rise & mid‑rise buildings
Factory & Workshop: Small‑size equipment installation, mechanical maintenance and spare‑parts handling inside industrial zones
Rural Infrastructure: House construction hoisting, farm facility assembly, rural road project material handling
Equipment Rental Business: Multi‑site frequent transfer tasks for rental fleets
Logistics & Yard: Light‑heavy cargo loading and equipment relocation in small storage yards
FAQ
Q1: Is XCT10L4 suitable for narrow urban streets?
A: Yes. It adopts compact lightweight chassis with small turning radius. It can pass narrow urban roads and enter small job sites where large cranes cannot work.
Q2: What is the maximum lifting height of XCT10L4?
A: The maximum lifting height reaches 37.2 m with fully extended four‑section main boom.
Q3: Does XCT10L4 need separate transport trailer?
A: No. The machine can travel by itself. It can drive directly between different job sites, saving extra transportation cost.
Q4: What safety devices come as standard?
A: Standard safety set includes load moment limiter, hoist height limit switch, hydraulic balance valves and multi‑function warning lights.
Q5: What kind of customers is XCT10L4 most suitable for?
A: It is highly cost‑effective for small construction contractors, municipal departments and equipment rental companies with frequent multi‑site operation.
Q6: Can it work on soft uneven ground? A: Working on soft ground requires solid outrigger pads to spread pressure and avoid sinking, ensuring operation stability.
