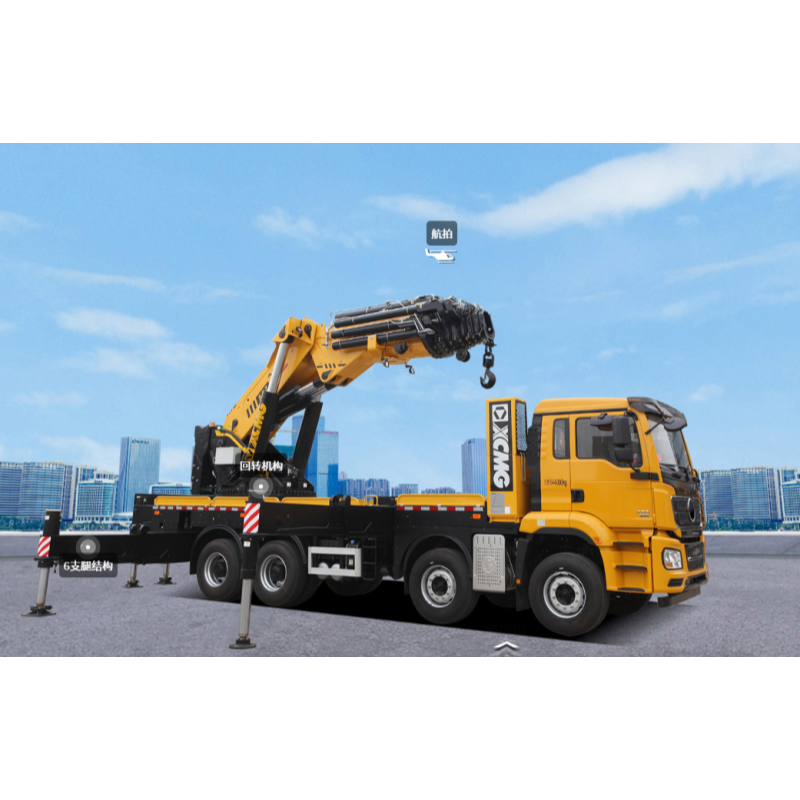

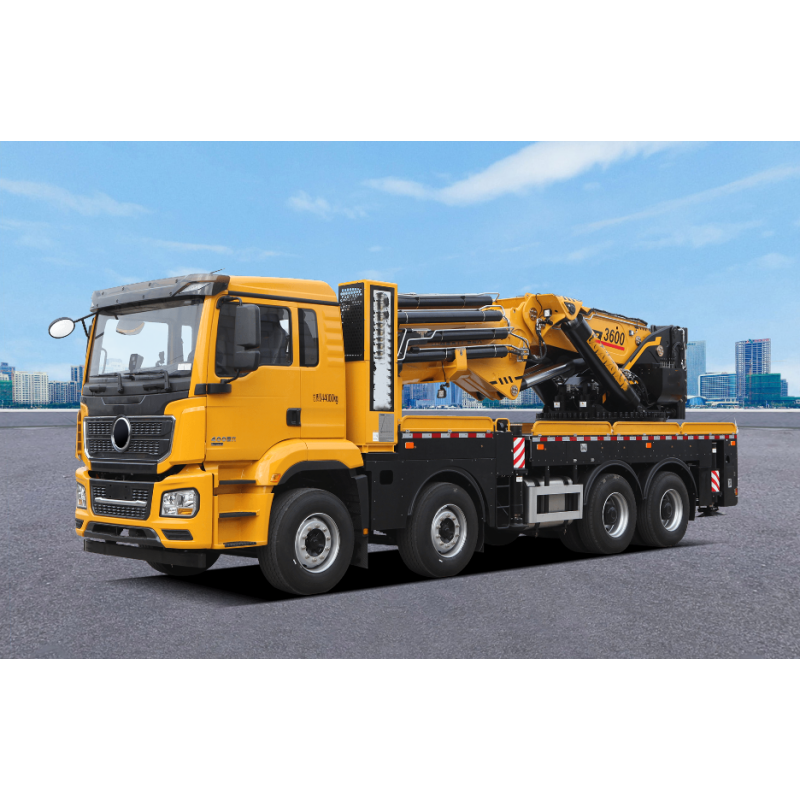

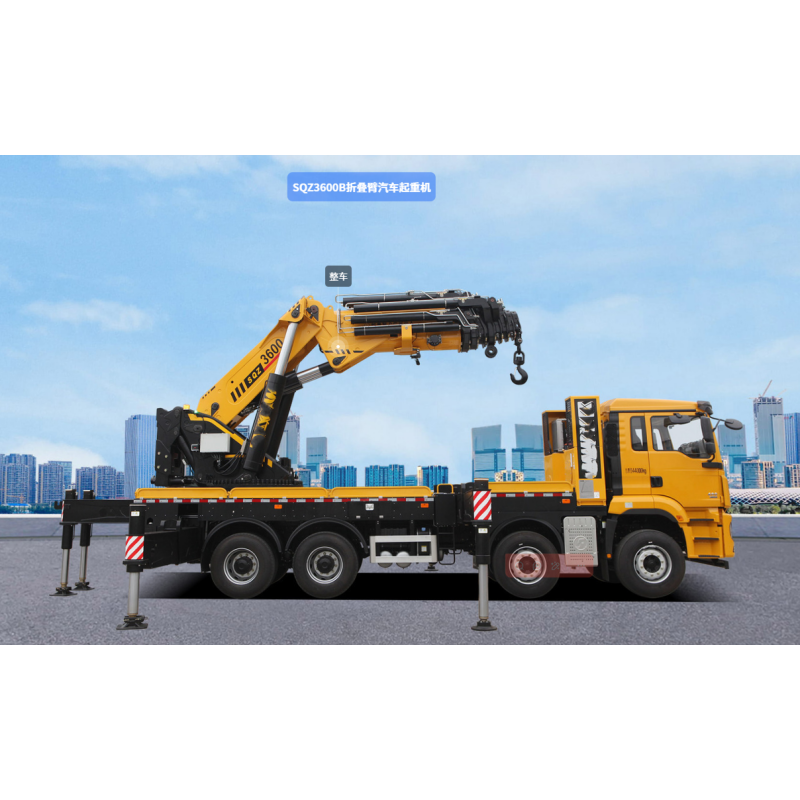

SQZ3600B Super Heavy Articulated Lorry Crane 90ton Low Clearance Folding Boom Crane 23.4m Lifting Height For Industrial Heavy Hoisting

Product Description

The SQZ3600B hydraulic folding boom crane is an upgraded ultra-heavy load lifting device, customized for super-large hoisting scenarios that conventional folding and telescopic cranes cannot undertake. The whole machine adopts high-strength integral polygonal steel boom with integral forging and precision welding technology, which greatly enhances overall structural rigidity, anti-bending and anti-torsion performance, effectively avoiding boom deformation and jitter during full-load and long-radius heavy operation.

Configured with a multi-section telescopic folding boom system, the crane realizes a maximum working height of 23.4m and a maximum working radius of 20.7m, balancing ultra-long reach and flexible folding storage. It adopts advanced dual-pump confluence hydraulic system with large-flow oil supply, featuring fast lifting response, stable power output and high working efficiency. The built-in multi-stage buffer protection structure of the hydraulic cylinder ensures smooth boom extension, retraction and luffing, reducing equipment wear and improving operation accuracy.

Equipped with dual high-torque reducers and full hydraulic slewing drive, the SQZ3600B supports 360° continuous dead-angle-free rotation, adapting to all-directional operation in complex construction sites. The full-span multi-stage telescopic hydraulic outriggers expand the supporting area comprehensively, providing ultra-high stability for 90-ton super-heavy load operation. Compatible with various multi-axle heavy-duty truck chassis, the crane supports intelligent upgrades including wireless remote control, real-time load monitoring and overload self-protection. All finished cranes pass strict full-load factory testing and aging inspection to ensure stable performance, ultra-low failure rate and long-term durable operation in harsh industrial environments.

Product Advantages

• Extreme Super-heavy Lifting Capacity:

  Industry-leading 3600kN·m rated lifting torque and 90-ton maximum lifting capacity, capable of handling various ultra-heavy equipment hoisting, fully meeting the demands of large industrial and national key engineering projects.

• High-rigidity Polygonal Boom Structure:

  Optimized multi-sided polygonal boom and integral high-strength steel structure improve overall stability, effectively resisting bending and torsion during long-distance full-load operation with no obvious jitter.

• Ultra-long Working Radius & Height:

  Max working radius reaches 20.7m and max lifting height up to 23.4m, covering a larger operation range and reducing frequent vehicle position adjustment to improve construction efficiency.

• Compact Folding & Low Clearance Adaptability:

  Full folding compact design reduces overall vehicle height and occupation space, enabling smooth passage and normal operation in low workshops, tunnels and height-limited construction sites where large truck cranes cannot enter.

• High-efficiency Confluence Hydraulic System:

  Dual-pump large-flow confluence hydraulic technology realizes fast lifting and stable speed, with sensitive operation response, low energy consumption and excellent continuous working performance.

• 360° Unlimited Full Rotation:

  Dual high-torque reducer driving system ensures stable and smooth all-round rotation without dead angles, realizing flexible omnidirectional hoisting in narrow and complex large-scale construction scenarios.

• Ultra-high Operation Stability & Safety:

  Full-span reinforced telescopic outriggers greatly expand the supporting base area, matched with intelligent overload protection and hydraulic balance system to effectively prevent tilting risks during ultra-heavy load operation.

• Intelligent & Diversified Customization:

  Optional wireless remote control, real-time load monitoring system, multi-functional grapples and customized anti-corrosion coating, supporting personalized configuration for special working conditions such as high dust, high humidity and low temperature.

Technical Parameters

Product Applications

• Large Industrial Equipment Installation:

  Hoisting and positioning of ultra-heavy mechanical equipment, large steel frames and industrial supporting components in heavy industrial parks and factories.

• Petrochemical & Energy Construction:

  Heavy pipeline laying, power station equipment hoisting, chemical tank installation and energy facility maintenance for petrochemical, wind power and thermal power projects.

• Urban Large-scale Municipal Reconstruction:

  Super-large bridge maintenance, urban viaduct renovation, traffic facility replacement and overhead heavy-duty construction projects.

• Low & Narrow Space Operation:

  Professional hoisting and handling work in low-height workshops, enclosed warehouses, tunnel interiors and other scenarios inaccessible to large truck cranes.

• Port & Yard Heavy Logistics:

  Loading, unloading and transshipment of super-large containers, heavy bulk cargo and engineering equipment at ports, freight yards and logistics hubs.

• National Infrastructure Engineering:

  Heavy material hoisting and equipment installation for highway, railway, water conservancy and bridge key projects.

• Ultra-heavy Emergency Rescue:

  On-site clearance of large-scale engineering obstacles, heavy equipment rescue and emergency hoisting for major construction accidents.

FAQ

Q1: What is the core advantage of SQZ3600B compared with other heavy-duty cranes?

A: The SQZ3600B features 3600kN·m ultra-high torque and 90-ton super-heavy lifting capacity, leading the industry in folding crane specifications. Different from traditional large truck cranes, its full folding compact structure adapts to low and narrow working spaces. It combines ultra-heavy load capacity and flexible passability, solving the industry pain point of "heavy cranes cannot enter narrow sites and small cranes cannot lift heavy loads".

Q2: Does the SQZ3600B support full-angle all-round operation?

A: Yes. Equipped with dual high-torque reduction driving system, the crane realizes 360° continuous unlimited full rotation without operation dead angles. Combined with flexible folding boom adjustment and ultra-long working radius, it can adapt to various complex and irregular large-scale construction scenarios.

Q3: What chassis is suitable for the 90-ton SQZ3600B folding crane?

A: This ultra-heavy crane is specially matched with customized multi-axle heavy-duty truck chassis to ensure bearing safety and driving stability. We provide one-stop professional chassis matching, modification and scheme design according to customer local road regulations and actual working conditions.

Q4: What intelligent configurations can be upgraded?

A: The standard configuration is manual hydraulic operation. It can be upgraded with intelligent wireless remote control, real-time load monitoring, automatic overload protection and fault self-diagnosis system, realizing safer, more precise and efficient intelligent operation.

Q5: What are the delivery time and after-sales guarantee policies?

A: The delivery cycle of standard SQZ3600B is 30–45 working days after deposit confirmation. We provide 12 months official factory warranty, lifelong free technical guidance, remote fault diagnosis and cost-price spare parts supply for global customers.

Q6: Can the equipment be customized for special working environments?

A: Full personalized customization is supported. We can customize high anti-corrosion coating, reinforced outriggers, special environment-resistant hydraulic components and multi-functional working accessories to adapt to high dust, high humidity, low temperature and other harsh working conditions.
