Product Introduction

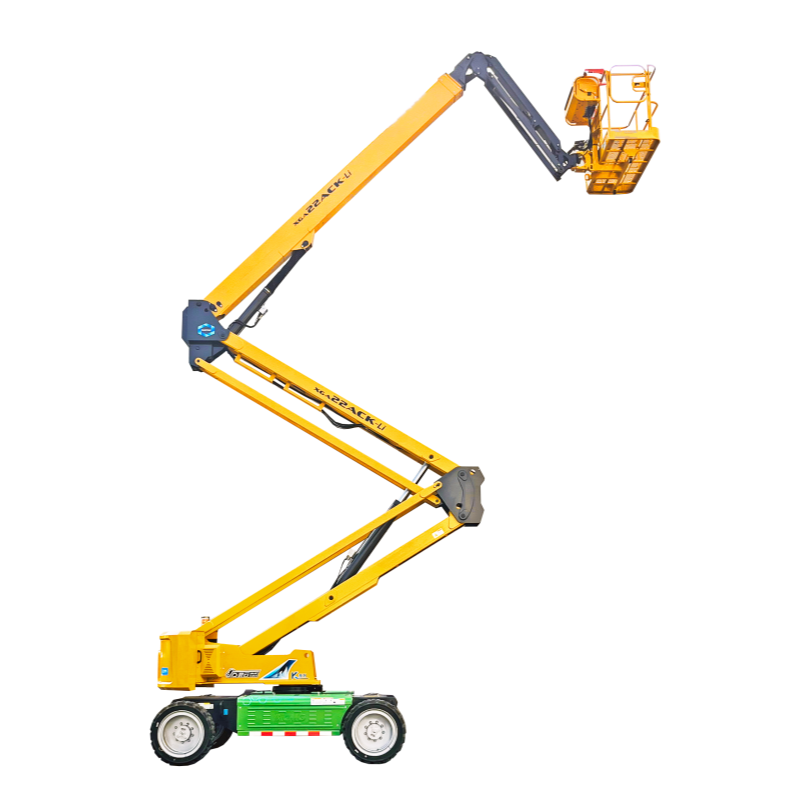

XGA22ACK-Li is a new-generation electric articulated boom lift powered by high-performance lithium battery. It features a maximum working height of 22.21m, maximum horizontal outreach of 10.6m and dual load capacities of 256kg (unrestricted) and 350kg (limited). Adopting zero tail swing design and flexible multi-joint boom, the unit operates quietly with zero exhaust. With long battery lifespan, fast charging and excellent maneuverability, it adapts to narrow working areas and complex environments. It is a premium choice for indoor maintenance, commercial venues, building renovation and various indoor & outdoor aerial operations.
Product Advantages
Lithium Battery Power: Longer cycle life, faster charging, stable output and no memory effect compared with traditional batteries.
Dual Load Modes: 256kg unrestricted load and 350kg limited load to meet different carrying requirements.
Zero Tail Swing: No rear overhang during turntable rotation, effectively preventing collisions in confined spaces.
Flexible Articulated Boom: Multi-section boom easily bypasses obstacles and works at complex angles.
Eco-friendly Operation: Zero emission and ultra-low noise, compliant with environmental requirements for indoor and urban areas.
Strong Trafficability: 45% gradeability ensures stable travel on sloped and uneven ground.
Smooth Hydraulic Control: Precise boom movement, simple operation and high working comfort.
Complete Safety System: Overload protection, tilt alarm and emergency lowering device ensure full operational safety.
Low Maintenance: Optimized electric drive structure reduces daily maintenance costs and downtime.
Product Specifications
Item | Unit | XGA22ACK-Li |
Max. Working Height | m | 22.21 |
Max. Platform Height | m | 20.21 |
Max. Horizontal Outreach | m | 10.6 |
Rated Load Capacity | kg | 256 (Unlimited) / 350 (Limited) |
Platform Dimension | mm | 1420 × 720 × 1100 |
Overall Dimension (Stowed) | mm | 8350 × 1780 × 2220 |
Total Weight | kg | 8400 |
Power Source | - | Lithium Battery |
Travel Speed (Stowed / Extended) | km/h | 4.0 / 0.7 |
Max. Gradeability | % | 45 |
Turntable Rotation Angle | ° | 360° Continuous |
Platform Swing Angle | ° | 180 |
Ground Clearance | mm | 190 |
Tail Swing | - | Zero Tail Swing |
Application Scenarios
Indoor Maintenance: High-altitude cleaning, equipment inspection and interior renovation in factories, hotels and shopping malls.
Commercial Venues: Roof maintenance, lighting and advertisement installation for exhibition halls, theaters and stadiums.
Building Engineering: Exterior wall renovation, pipeline layout and overhead auxiliary construction.
Municipal Works: Street lamp repair, landscape trimming and roadside facility maintenance.
Logistics & Warehousing: Inspection and maintenance of high-level racks in large warehouses and distribution centers.
Operation Guide
Pre-operation Inspection
Check lithium battery level to ensure sufficient power for continuous work.
Inspect tire pressure, surface condition and tightness of wheel bolts.
Verify hydraulic oil level and confirm no fluid leakage.
Check safety guardrails, platform door, emergency stop button and alarm devices.
Operating Steps
Turn on the main power switch and wait for system self-check to finish.
Drive the machine to a firm and flat site, then engage the parking brake.
Operate control levers gently to lift, extend and rotate the boom to the target position.
Adjust the platform for precise positioning; strictly follow the rated load limit.
After work, fully retract and lower the boom, then cut off the main power.
Safety Regulations
Select proper load mode and never exceed 256kg or 350kg rated capacity.
Operate only on solid ground; the working slope shall not exceed 5 degrees.
Stop all operations immediately when wind speed exceeds 12.5m/s.
Operators must wear safety helmets and safety harnesses during high-altitude work.
Carry out regular inspection on safety parts and hydraulic components.
FAQ
Q1: What are the advantages of lithium battery?
A: It features longer service life, faster charging speed, stable performance and no memory effect. It supports frequent charge and discharge and lowers long-term use cost.
Q2: What is the difference between 256kg and 350kg load modes?
A: 256kg is unrestricted mode for full outreach operation. 350kg is heavy load mode with limited outreach to guarantee safety.
Q3: How long can it work continuously after full charge?
A: It can work 6 to 8 hours continuously under normal load. A full charging takes around 6 hours.
Q4: What does zero tail swing mean?
A: The turntable will not go beyond the machine body while rotating, which avoids collision with walls and pillars in narrow spaces.
Q5: Can it run on sloped roads?
A: Yes. It has 45% gradeability and runs stably on common slopes and rough ground.
Q6: What safety devices are equipped?
A: It is fitted with overload protection, tilt alarm, emergency stop and emergency lowering system for comprehensive safety protection.
